45 Ton Metallurgical Overhead Crane Delivered to Russia

Congratulations to Aicrane 45 ton metallurgical overhead crane delivered to Russia! This is our AQ-YZ series hook casting overhead crane which will be used in the client’s steel mill to lift and move hot molten metal.

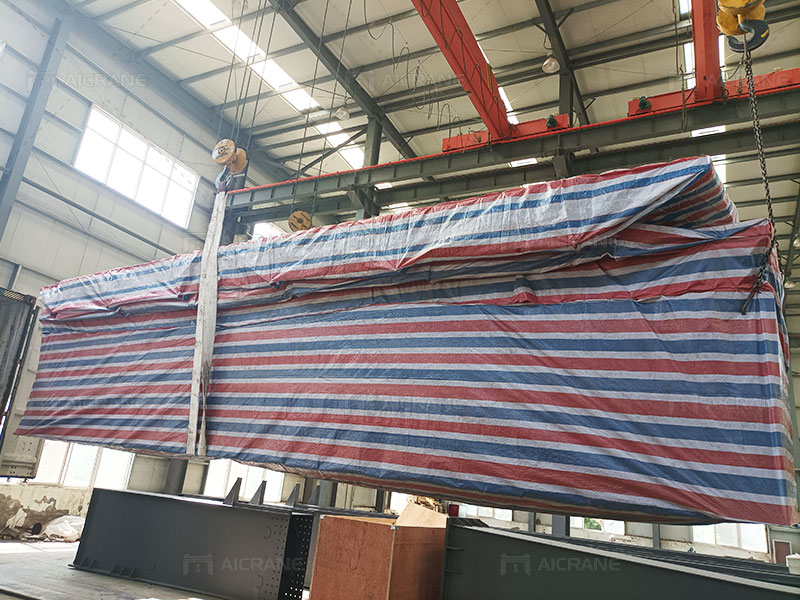

Main Beam Loading
Main Beam Loading

Overhead Crane Loading And Transport
Overhead Crane Loading And Transport

45 Ton Metallurgical Overhead Crane Delivered to Russia
45 Ton Overhead Crane Delivered to Russia

Uses of Aicrane AQ-YZ Metallurgical Overhead Crane

The metallurgical casting overhead crane is one of the main production equipments in the smelting workshop. The foundry crane is equipped with independent driving main and auxiliary trolleys. The main trolley is equipped with gantry hooks with fixed spacing to hoist the steel drums, and the auxiliary trolley can be used to turn the ladle or do other auxiliary lifting operations.

In the converter workshop, the casting overhead crane is used to pour the molten iron transported from the blast furnace workshop into the mixing furnace and directly pour the molten iron in the mixing furnace or the molten iron transported from the blast furnace workshop into the converter.

In the converter or open hearth workshop, the metallurgical overhead crane continuously casts molten steel in the steelmaking furnace or casts steel ingots.

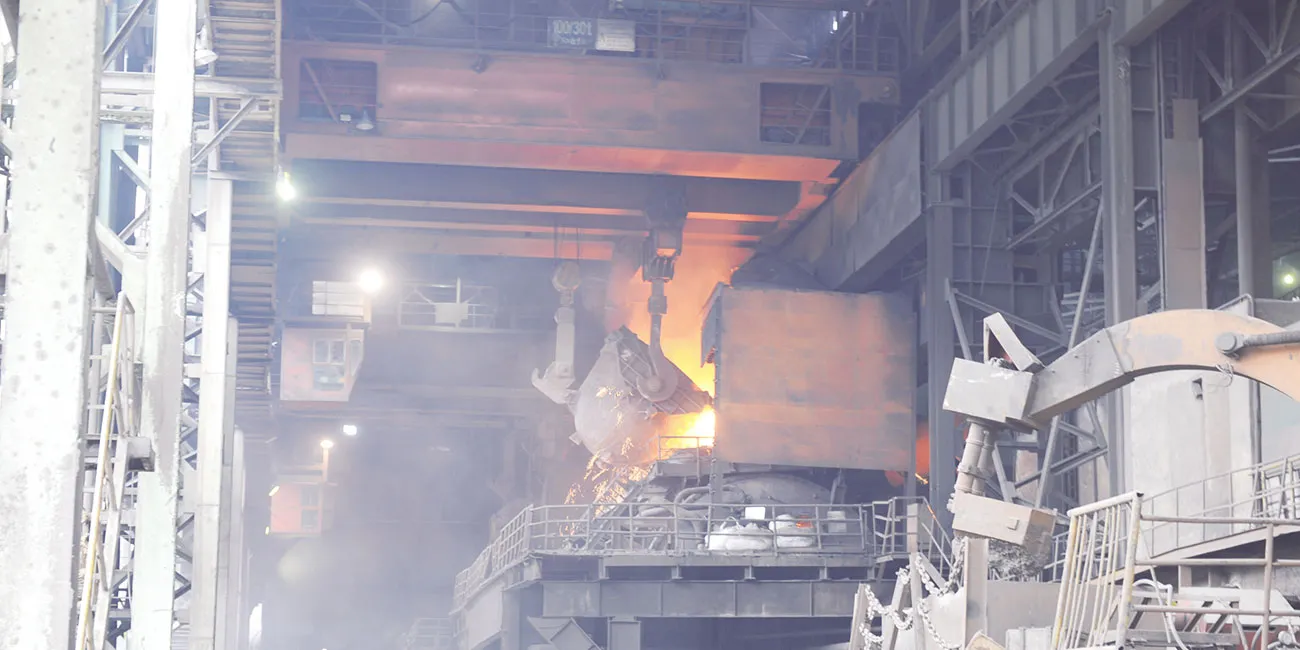

Metallurgical Overhead Crane in Steel Mill
Metallurgical Overhead Crane in Steel Mill

Technical Parameters of AQ-YZ Metallurgical Casting Crane

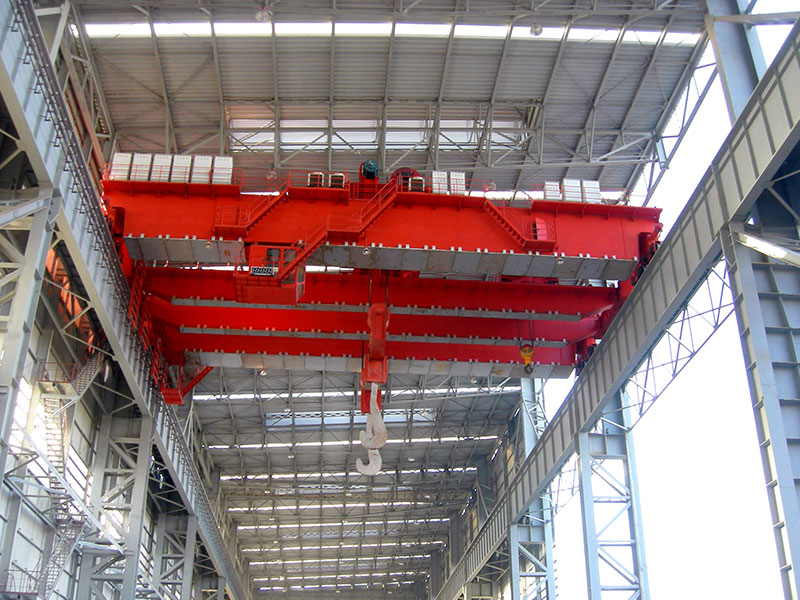

Metallurgical Casting Crane
Metallurgical Casting Overhead Crane

ModelAQ-YZ
Load capacity5-320t
Span10.5-31.5m
Lifting height6-24m
Lifting speed6-13m/min
Trolley running speed36-45.9m/min
Crane running speed63-118.6m/min
Work dutyA6-A8
Custom designs available

Contact Us For Overhead Crane Solutions For Steel Mills And Foundries

Aicrane has extensive experience in providing overhead crane solutions for steel mills and foundries. Whether casting, feeding, forging or loading steel coils, our wide range of overhead crane products can be used to properly and safely handle loads in hazardous environments. Our crane experts can custom design and build cranes for every stage of your steel production, so contact us today for custom steel mill lifting solutions!
