Construction winch is commonly used in various engineering projects on land and along the coast to lift or pull heavy loads. It is mainly designed to be electrically driven, and can also be customized into hydraulic winches and diesel winches depending on your requirements. Due to simple operation, good versatility, large capacity and easy displacement, winch equipment is a cost-effective solution for material lifting or pulling in construction, water conservancy projects, forestry, mines, docks, etc.
Types Of Construction Winches
Aicrane construction winches come in a range of sizes, shapes and capacities to meet different job requirements. The following are some popular winch models for you to choose from:
AQ-JM slow speed winch
This series is a gear reducer driven winch, mainly used for installation work on construction sites, such as the installation and dismantling of various large and medium-sized concrete, steel structures and mechanical equipment. This JM winch can also be specifically designed for anchoring, towing and mooring on board.
| Model | AQ-JM |
| Load capacity | 0.5~200 t |
| Rope capacity | 20~3600m |
| Working speed | 5~20 m/min;(single speed and dual speed) |
| Power supply | 220-690V, 50/60HZ, 3Phase |
AQ-JK fast speed electric winch
Fast speed winch is mainly used for lifting and pulling heavy loads in civil engineering construction and small equipment installation. This series of winch can also be utilized as a main lifting mechanism on cranes and derricks.
| Model | AQ-JK |
| Load capacity | 0.5~60 t |
| Rope capacity | 20~500 m |
| Working speed | 20~35 m/min; (single speed and dual speed) |
| Power supply | 220-690V, 50/60HZ, 3Phase |
AQ-JMM electric friction winch
With constant speed of the steel wire rope and stable lifting, the winch is suitable for long-distance traction and large-stroke lifting of various large and extra large concrete, steel structures and steel cables. It is widely used in roads and bridges construction, as well as the installation of large-scale factories, mines, and power engineering equipment.
| Model | AQ-JMM |
| Load capacity | 0.5~100 t |
| Rope capacity | 20~5000 m |
| Working speed | 5~20 m/min |
| Power supply | 220-690V, 50/60HZ, 3Phase |
AQ-JKL piling winch for construction
Fast speed electric piling winch is mainly used for vertical lifting of heavy objects at construction sites, factories, mines, ports, etc. It is especially suitable for free-fall punching and piling operation in bridges, wharfs, and building foundation projects. The structural feature of the winch is the main shaft rotation.
| Model | AQ-JKL |
| Load capacity | 1~10t |
| Rope capacity | 20~500 m |
| Working speed | 20~36 m/min |
| Power supply | 220-690V, 50/60HZ, 3Phase |
AQ-JKD electric planetary winch
This series is a new type of winch using planetary transmission, commonly found in building construction, bridge construction, metallurgy and other industries. It features compact structure, convenient operation, simple maintenance, low noise and long service life.
| Model | AQ-JKD |
| Load capacity | 0.75-2 t |
| Rope capacity | 20~200 m |
| Working speed | 20~35 m/min |
| Power supply | 220-690V, 50/60HZ, 3Phase |
Winch Machine For Construction Application
Construction winch can lift heavy objects vertically, horizontally or oblique, mainly referring to electric winches. It can be used alone or as a component part of lifting equipment.
The engineering winch is widely used because of its simple operation, large load capacity and convenient displacement. It is suitable for construction and installation companies, mining areas, factories, and the installation of equipment for various bridges, roads, ports, and dock engineering projects.
Construction Winch Design
The company’s excellent team of engineers has rich experience in winch design, and can tailor a reasonable configuration according to customer needs and actual conditions for winches to meet customers’ overall requirements for winch economy and safety.
Construction Winch Machine Options
We offer a range of options to make sure you end up with the right winch system for your application, including:
- Electric or hydraulic drive
- Grooved drum
- Drum guard, for protecting the winch users
- Rope spooling device, for better rope spooling on the drum
- Band brake, an extra brake fitted on the drum
- Clutch, only for pulling winches
- Emergency crank
- Load limiter
- Limit switches
- Local control or remote control
Contact us to learn more about Aicrane’s custom construction winch systems!
Aicrane Construction Winch For Sale Worldwide

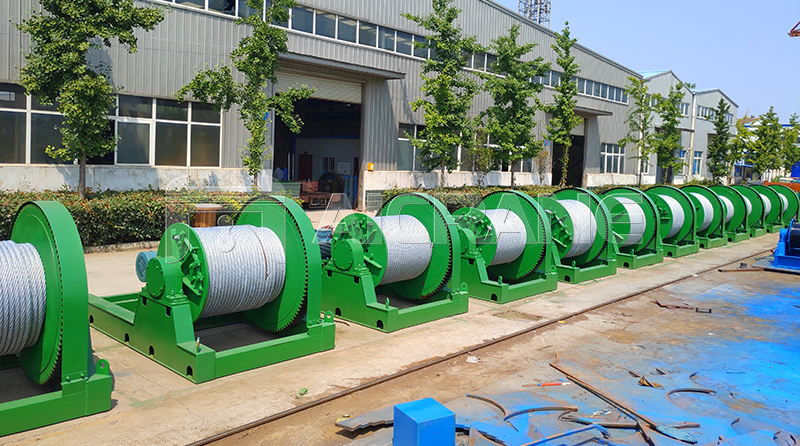

16 Units of JM 30 Ton Electric Winches to Turkey

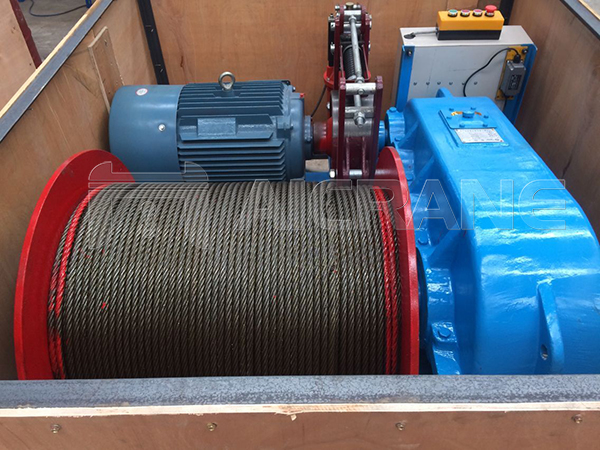

JK 5 Ton Electric Winch to Indonesia

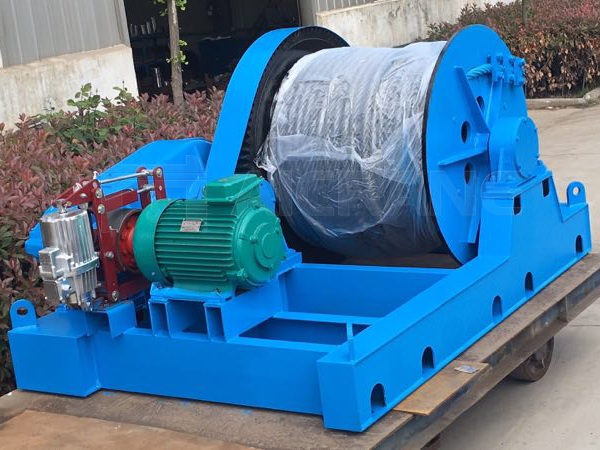

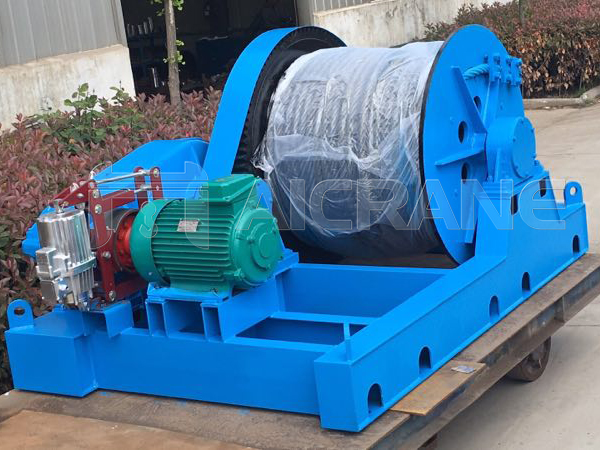

JM 20 Ton Electric Winch to Pakistan
Technical Parameters of Construction Winch
| Technical Parameters of AQ-JM Slow Speed Winch | ||||||||
| Model | Rated load | Rated speed | Rope capacity | Rope diameter | Motor type | Motor power | Overall Dimensions | Overall weight |
| KN | m/min | m | mm | KW | mm | KG | ||
| AQ-JM1 | 10 | 15 | 100 | 9.3 | Y112M-6 | 3 | 620x701x417 | 270 |
| AQ-JM1.6 | 16 | 16 | 150 | 12.5 | Y132M-6 | 5.5 | 945x996x570 | 500 |
| AQ-JM2 | 20 | 16 | 150 | 13 | Y160M-6 | 7.5 | 945x996x570 | 550 |
| AQ-JM3.2 | 32 | 9.5 | 150 | 15.5 | YZR160M-6 | 7.5 | 1430x1160x910 | 1100 |
| AQ-JM3.2B | 32 | 12 | 195 | 15.5 | YZR160M-6 | 7.5 | 1082x1014x610 | 536 |
| AQ-JM5 | 50 | 10 | 270 | 21.5 | YZR160L-6 | 11 | 1235x1230x805 | 1560 |
| AQ-JM5B | 50 | 9.5 | 200 | 21.5 | YZR160L-6 | 11 | 1620x1260x945 | 1800 |
| AQ-JM5C | 50 | 9.5 | 250 | 21.5 | YZR160L-6 | 11 | 1235x1230x805 | 1800 |
| AQ-JM5D | 50 | 15 | 250 | 21.5 | YZR180L-6 | 15 | 1235x1230x805 | 1850 |
| AQ-JM5E | 50 | 20 | 250 | 21.5 | YZR200L-6 | 22 | 1235x1230x805 | 2000 |
| AQ-JM6 | 60 | 9.5 | 270 | 24 | YZR180L-6 | 15 | 1235x1509x805 | 1800 |
| AQ-JM8 | 80 | 8 | 250 | 26 | YZR180L-6 | 15 | 2090x1475x956 | 2900 |
| AQ-JM8B | 80 | 9.5 | 350 | 26 | YZR180L-6 | 15 | 1075x1598x985 | 2650 |
| AQ-JM10 | 100 | 8 | 170 | 30 | YZR200L-6 | 22 | 2090x1475x956 | 3000 |
| AQ-JM10B | 100 | 9.5 | 250 | 30 | YZR200L-6 | 22 | 1705x2200x985 | 3500 |
| AQ-JM12.5 | 125 | 8 | 300 | 34 | YZR225M-6 | 30 | 2880x2200x1550 | 5000 |
| AQ-JM13.5 | 135 | 0-5 | 290 | 28 | YZR225S-8 | 22 | 2990x2363x1650 | 6500 |
| AQ-JM16 | 160 | 10 | 500 | 37 | YZR250M2-8 | 37 | 3750x2400x1850 | 8800 |
| AQ-JM20 | 200 | 10 | 600 | 43 | YZR280S-8 | 45 | 3950x2560x1950 | 9900 |
| AQ-JM25 | 225 | 9 | 700 | 48 | YZR280M-8 | 55 | 4350x2800x2030 | 13500 |
| AQ-JM32 | 320 | 9 | 700 | 56 | YZR135S-8 | 75 | 4500x2850x2100 | 14800 |
| AQ-JM50 | 500 | 9 | 800 | 65 | YZR315M-8 | 90 | 4930x3050x2250 | 19500 |
| AQ-JM65 | 650 | 10.5 | 3600 | 64 | LA8315-8AB | 160 | 5900x4680x3200 | 46000 |
| Technical Parameters of AQ-JK High Speed Winch | ||||||||
| Model | Rated load | Rated speed | Rope capacity | Rope diameter | Motor type | Motor power | Overall Dimensions | Overall weight |
| KN | m/min | m | mm | KW | mm | KG | ||
| AQ-JK0.5 | 5 | 22 | 190 | 7.7 | Y100L-4 | 3 | 620x701x417 | 200 |
| AQ-JK1 | 10 | 22 | 100 | 9.3 | Y112M-4 | 4 | 620x701x417 | 300 |
| AQ-JK1.6 | 16 | 24 | 150 | 12.5 | Y132S-4 | 5.5 | 945x996x570 | 500 |
| AQ-JK2 | 20 | 24 | 150 | 13 | Y132M-4 | 7.5 | 945x996x570 | 550 |
| AQ-JK3.2 | 32 | 25 | 290 | 15.5 | YZR180L-6 | 15 | 1325x1335x840 | 1011 |
| AQ-JK3.2B | 32 | 30 | 250 | 15.5 | YZR200L-6 | 22 | 1900x1738x985 | 1500 |
| AQ-JK5 | 50 | 30 | 300 | 21.5 | YZR225M-6 | 30 | 1900x1620x985 | 2050 |
| AQ-JK5B | 50 | 25 | 210 | 21.5 | YZR225M-8 | 22 | 2250x2250x1300 | 2264 |
| AQ-JK8 | 80 | 25 | 160 | 26 | YZR280S-8 | 45 | 1533x1985x1045 | 3000 |
| AQ-JK10 | 100 | 30 | 300 | 30 | YZR315S-8 | 55 | 2250x2500x1300 | 5100 |
| Technical Parameter of AQ-JKL Electric Piling Winch | ||||||||
| Model | Rated load | Rated speed | Rope capacity | Rope diameter | Motor type | Motor power | Overall Dimensions | Overall weight |
| KN | m/min | m | mm | KW | mm | KG | ||
| AQ-JKL2 | 20 | 30 | 150 | 13 | Y180L-6 | 15 | 1370x1650x1210 | 1200 |
| AQ-JKL3 | 30 | 30 | 200 | 15 | Y200L-6 | 22 | 1690x1740x1200 | 1800 |
| AQ-JKL5 | 50 | 30 | 250 | 21 | Y225S-6 | 37 | 2300x2100x1650 | 3000 |
| AQ-JKL6 | 60 | 36 | 250 | 24 | Y280S-6 | 45 | 2350x2100x1650 | 3200 |
| AQ-JKL8 | 80 | 29 | 250 | 26 | Y280M-6 | 55 | 2440x2500x1800 | 5500 |
| AQ-JKL10 | 100 | 29 | 250 | 28 | Y315S-6 | 75 | 2590x2540x1800 | 5800 |
| Technical Parameters of AQ-JMM Series Friction Winch | ||||||||
| Model | Rated load | Rated speed | Rope capacity | Rope diameter | Motor type | Motor power | Overall Dimensions | Overall weight |
| KN | m/min | m | mm | KW | mm | KG | ||
| AQ-JMM10 | 100 | 10 | 4800 | 30 | YZR225M-6 | 30 | 1980x2650x850 | 6000 |
| AQ-JMM16 | 160 | 11 | 1000 | 34.5 | YZR225M-6 | 45 | 3350x1920x1320 | 9500 |
| AQ-JMM20 | 200 | 11 | 3600 | 39 | YZR280S-6 | 55 | 3500x1960x1320 | 10000 |
| AQ-JMM32 | 320 | 10 | 3200 | 52 | YZR280M-6 | 75 | 4330x2350x1760 | 16000 |
| AQ-JMM55 | 550 | 5 | 2000 | 60 | YZR280M-6 | 75 | 5000x2800x1900 | 22000 |
| Technical Parameter of AQ-JKD Electric Planetary Winch | ||||||
| Model | Rated load | Rope capacity | Rope diameter | Motor power | Overall Dimensions | Overall weight |
| KN | m | mm | KW | mm | KG | |
| AQ-JKD0.75 | 7.5 | 100 | 9.3 | 3 | 900x340x400 | 165 |
| AQ-JKD1.25 | 12.5 | 120 | 11 | 7.5 | 1140x400x450 | 315 |
| AQ-JKD1.60 | 16 | 160 | 12.5 | 7.5 | 1200x400x480 | 350 |
| AQ-JKD2.0 | 20 | 190 | 13 | 13 | 1400x470x548 | 510 |
Get to Know Your Construction Winch Price
In order to help you select the right winch and offer you the appropriate quote, please provide the following basic information:
- Use of winch, for horizontal pulling or vertical lifting?
- Rated load or pulling force
- Drum capacity (length and diameter of rope)
- Speed requirement
- Working environment
- Single drum or double drum?
- Whether to use a rope spooling device
- Electric or hydraulic?
- 3-phase voltage (v/hz)
About Aicrane
We are one of leading construction winch companies in China, committed to providing customers with high-quality winch products and services. At present, our winch machines have been exported to more than 100 countries and regions, and we have established branches in the Philippines, Indonesia, Malaysia, Uzbekistan, Pakistan and other countries to provide customers with Offline service.
The company has a strict and complete product control system and after-sales service system, providing customers with product supply, program design, production and processing, installation and after-sales service, so that customers can truly enjoy worry-free high-quality service.
The professional after-sales service team can meet customer’s installation, commissioning, user training, technical consultation and other service needs, and there are dedicated personnel responsible for customer return visits after the service. All products provide lifetime service support.
Q&A
Where can I use a winch?
Winch machine is suitable for many occasions, such as building construction, road construction, bridge construction, factories, small mines, and also as a crane lifting mechanism. It can be used in any place where material lifting or pulling is required.
How to fix the wire rope on the drum?
The wire rope is fixed on the side of the drum and has a clamping plate.
How to determine the safety factor of towing heavy objects?
The safety factor for towing heavy objects is generally 3-4, which is mainly reflected on the wire rope. The towed weight must not exceed the rated weight of the winch.
How to maintain an electric winch?
The motor is an important part of the winch equipment, which needs good maintenance. The maintenance method is as follows:
- The working environment should always be kept dry, and the surface of the motor should be kept clean.
- Ensure that the motor is well lubricated during operation.
- When the thermal protection of the motor continues to run, it should be found out whether the fault is from the motor,the overload or the setting value of the protection device is too low.
For more information on Aicrane construction winch, contact us today!
