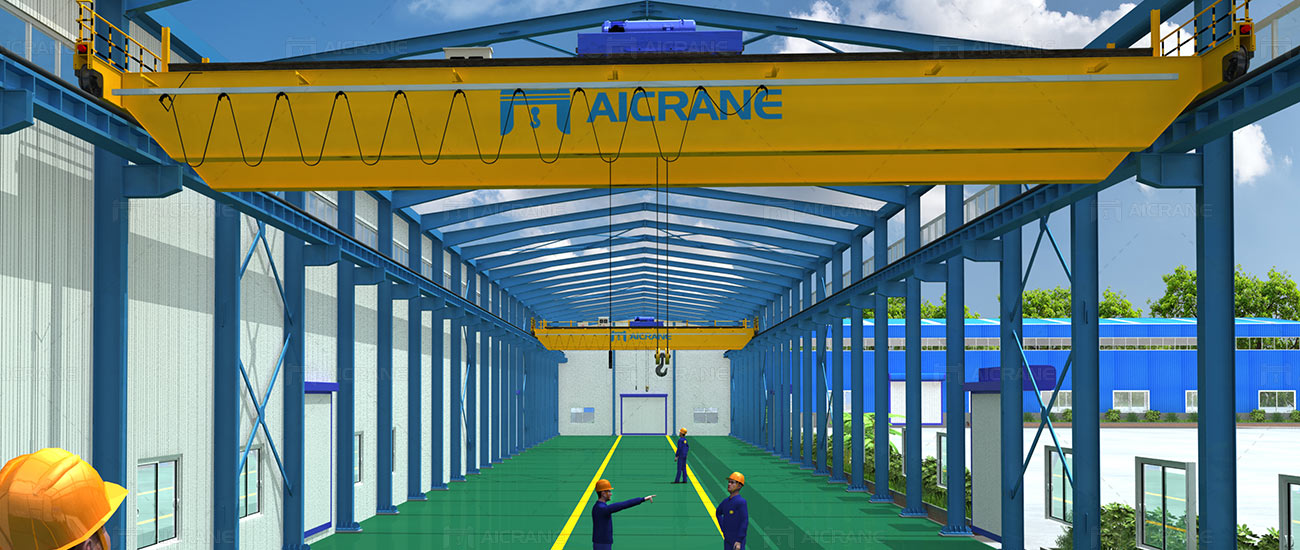

Proper operation of overhead cranes or EOT cranes is essential to ensure smooth and efficient operations while minimizing the risk of accidents. In this article, we will guide you through the various methods for overhead crane operation, essential operating procedures, safety practices, and troubleshooting common issues. Our goal is to help you operate overhead cranes safely and effectively, ensuring optimal performance and longevity of your equipment.
Different Operating Methods of Overhead Cranes
Overhead bridge cranes can be operated in different ways, each offering its advantages for specific working environments and requirements. Let’s look at the most common ways to operate overhead cranes:
Pendant Control
Pendant controls are among the most traditional and widely used methods for operating small overhead cranes. The control unit is typically mounted on a flexible cable, allowing the operator to control the crane’s movement from the ground. This type of pendant controlled overhead crane is easy to use and provides precise handling of the load, making it ideal for most standard operations.
Ease of Use:Pendant overhead cranes are straightforward and easy to learn. The operator has immediate tactile feedback and direct control over the crane’s movements.
Reliability:With a wired connection, pendant controls for overhead cranes are less prone to interference or battery failure, making them highly reliable.
Cost-Effective:Pendant controls are often less expensive than wireless or cabin controls, making them a good option for smaller operations or when budget is a concern.
Wireless Remote Control
Wireless remote control systems provide greater flexibility and mobility than pendant controls. These systems allow the operator to control the crane from a distance, without being tethered by a cable. This is particularly beneficial when the operator needs to monitor the load or perform other tasks from a safe location.
Increased Mobility:With remote control overhead cranes, operators can move freely around the crane and maintain a better line of sight on the load, improving safety.
Reduced Risk of Accidents:The ability to stand at a safer distance from the crane reduces the risk of accidents, such as being struck by the crane or load.
Enhanced Productivity:Wireless controls can increase productivity by allowing the operator to perform tasks from various vantage points, making it easier to position loads accurately.
Cabin Control
Cabin control involves the operator being seated in an enclosed cabin located on the crane itself. This control method is often used for large, heavy duty overhead cranes, such as those in steel mills or shipyards. The cabin is equipped with a full set of controls for lifting, lowering, and moving the crane.
Comprehensive Visibility:From the cabin, operators have a clear and direct view of the load and surrounding area, allowing for precise movements.
Comfort and Control:Cabin control provides a comfortable environment for operators, especially in high-duty cycle environments. The operator can control the crane using levers, joysticks, and touchscreens, making it suitable for long periods of operation.
Better for Complex Tasks:Cab operated overhead crane is ideal for more complex lifting tasks, as the operator can adjust the crane’s position and load more precisely, especially when handling large or intricate loads.
How to Operate Overhead Crane: Operating Procedures
To ensure safe overhead crane operations, operators must follow established operating procedures. Here are the key steps involved in the process:
Pre-Operation Procedures
Before bridge crane operation, conducting a thorough pre-operation inspection is crucial. This step ensures the crane is in good working condition and minimizes the risk of malfunctions.
Overhead Crane Pre-operational Checklist:
- Inspect the Crane: Check for any visible damage to the crane structure, including the bridge, hoist, trolley, and rails. Look for signs of wear, corrosion, or misalignment.
- Test Controls and Functions: Ensure that all control buttons, joysticks, and emergency stop features are operational. Verify that the hoist and trolley movements are smooth and responsive.
- Inspect the Hook and Load Chain/Wire Rope: Look for deformations, cracks, or fraying in the hook, chains, or wire ropes. Ensure the hook safety latch is intact and functional.
- Load Capacity Verification: Confirm that the load to be lifted does not exceed the crane’s rated capacity.
- Check for Obstructions: Ensure the travel path is clear of any obstacles, including personnel, tools, or debris.
- Test Safety Features: Confirm that warning systems, such as lights and alarms, are working correctly.
Operational Procedures
Once the crane has been inspected and deemed safe to use, follow these overhead crane standard operating procedures to ensure smooth and secure lifting.
Lifting Procedures:
- Positioning the Crane: Align the crane directly above the load to avoid side pulls, which can destabilize the crane and the load.
- Securing the Load: Attach the load securely using appropriate slings, hooks, or lifting attachments. Double-check the load’s balance before lifting.
- Slow and Steady Lifting: Raise the load slowly to minimize swinging or sudden movements. Stop lifting if the load appears unstable or the crane shows signs of strain.
- Avoid Overloading: Never lift a load that exceeds the crane’s maximum capacity. Overloading can lead to structural damage or catastrophic failure.
Movement Procedures:
- Horizontal Movement: Move the load horizontally with smooth and controlled movements. Avoid abrupt starts and stops, which can cause the load to sway.
- Maintain a Safe Height: Keep the load at a safe height above the ground to avoid collisions with equipment or personnel.
- Operator Visibility: Ensure the operator has a clear view of the load and travel path at all times. Use a spotter if visibility is limited.
Post-Operation Procedures
After completing the lifting task, proper shutdown and storage of the overhead travelling crane are essential to maintain its condition and safety.
Post-Operation Checklist:
- Lower the Hook: Lower the hook to a safe position and remove all slings or lifting attachments.
- Inspect the Equipment: Check for any signs of wear or damage that may have occurred during the operation.
- Turn Off Power: Switch off the crane’s power supply to prevent unauthorized use or accidental activation.
- Secure the Crane: Park the crane in its designated storage position, ensuring it is clear of walkways or work areas.
- Document Any Issues: Report any problems or maintenance needs to the appropriate personnel for immediate attention.
Safety Practices in Overhead Crane Operation
Ensuring safety during EOT crane operations is paramount to prevent accidents and injuries. Here are several key safety practices:
General Safety Practices for Overhead Crane Operation
- Ensure that operators are properly trained and certified to handle overhead bridge cranes.
- Regularly update training to cover new safety regulations and equipment updates.
- Conduct daily pre-operation inspections to identify any visible issues, such as worn cables or damaged hooks.
- Schedule periodic maintenance checks to ensure all components meet operational standards.
- Never exceed the crane’s maximum load capacity.
- Use load charts and calculate weights accurately before lifting.
- Establish clear communication signals, whether using hand signals or radios, to coordinate with the ground crew.
- Designate a signal person to guide the operator during complex lifts.
- Keep the EOT crane operating area free from obstructions.
- Ensure no unauthorized personnel are within the crane’s working radius.
- Always balance the load properly to avoid tilting or swinging.
- Use appropriate lifting devices like slings or shackles based on the load’s requirements.
Safety Practices for Specific Types of Overhead Cranes
General Purpose Overhead Crane Operation Safety
For single or double girder overhead cranes designed for general lifting work, safety considerations include:
- Regularly inspect the runway rail alignment to prevent derailments.
- Inspect the electrical systems, including wiring and control panels, for signs of wear or damage.
- Ensure the runway and bridge are free of debris that could affect crane movement.
- Ensure that all hoist brakes are functioning correctly to manage heavy loads safely.
Grab Crane Operation Safety
Grab cranes are equipped with a specialized grabbing mechanism to handle bulk materials, such as coal, scrap metal, or waste. Here are the grab overhead crane operation safety rules:
- Inspect the grab mechanism regularly for wear and damage, ensuring all claws and cables are in good condition.
- Ensure precise control of the grab bucket to avoid spillage or unbalanced loads.
- Use limit switches to avoid over-travel of the grab mechanism.
- Operate the crane at reduced speeds when handling loose materials to minimize the risk of accidents.
Explosion Proof Overhead Crane Operation Safety
Explosion proof cranes are essential in environments with explosion gas or dust, such as chemical plants or oil refineries. To ensure safety, you should follow these safety tips when operating explosion proof overhead cranes:
- Ensure all electrical components are explosion-proof and meet industry safety standards.
- Avoid sparking equipment and use intrinsically safe tools in hazardous environments.
- Maintain proper ventilation to prevent the accumulation of flammable gases or dust.

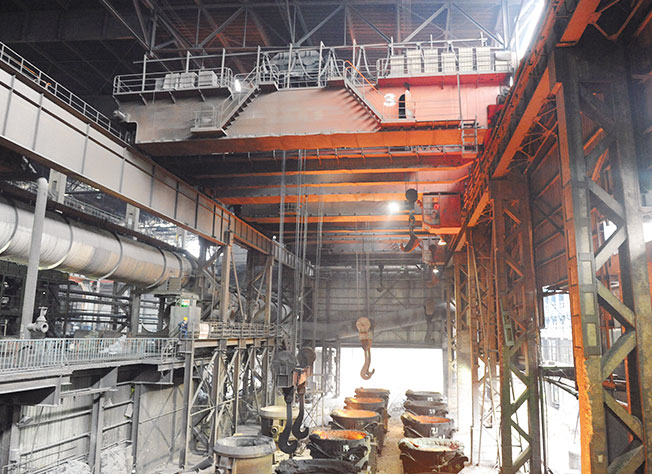

Metallurgical Overhead Crane Operation Safety
Metallurgical cranes, such as ladle cranes used in steel mills for handling molten metal, require special safety measures due to the high-risk environment. Here are the metallurgical overhead crane operation safety precautions:
- Ensure all components, such as hooks, ropes, and electrical parts, are heat-resistant and meet metallurgical standards.
- Inspect the insulation and cooling systems regularly to prevent overheating when handling molten metal.
- Use emergency stop and overload protection systems to enhance safety during critical operations.
- Equip the crane with a fire-resistant protective shield to safeguard the operator and equipment.
Troubleshooting Common Overhead Crane Operation Issues
Even with regular maintenance and careful operation, overhead cranes may experience issues. Here are some common problems and solutions:
Overload Protection Activation:If the crane’s overload protection system activates, it could be due to exceeding the load limit. The operator should stop the operation immediately, check the load, and ensure it is within capacity. If necessary, remove part of the load and reset the system.
Electrical Malfunctions:Electrical issues, such as power failure or faulty wiring, can cause the crane to stop functioning. Operators should check the crane’s electrical components and ensure proper power supply. Any issues should be addressed by a qualified technician.
Drifting or Sticking of Crane Movement:If the crane’s movement is jerky or not smooth, the cause could be worn-out components, such as gears or rollers. Regular maintenance and lubrication can prevent this issue. If the problem persists, inspection and replacement of the faulty parts may be necessary.
Crane Control Failure:If the control system malfunctions, it may result in erratic or no response from the crane. Check the control wiring, connectors, and remote units. Ensure that the batteries in wireless remotes are fully charged, and consult the crane manual for troubleshooting instructions.
Overhead bridge crane operation and safety is crucial to the success of various industrial applications. By understanding different crane operating methods, following overhead crane operating procedures, practicing safety, and addressing common troubleshooting issues, operators can ensure smooth and efficient lifting equipment operations. For detailed guidance on operating an overhead crane, feel free to reach out to us.
