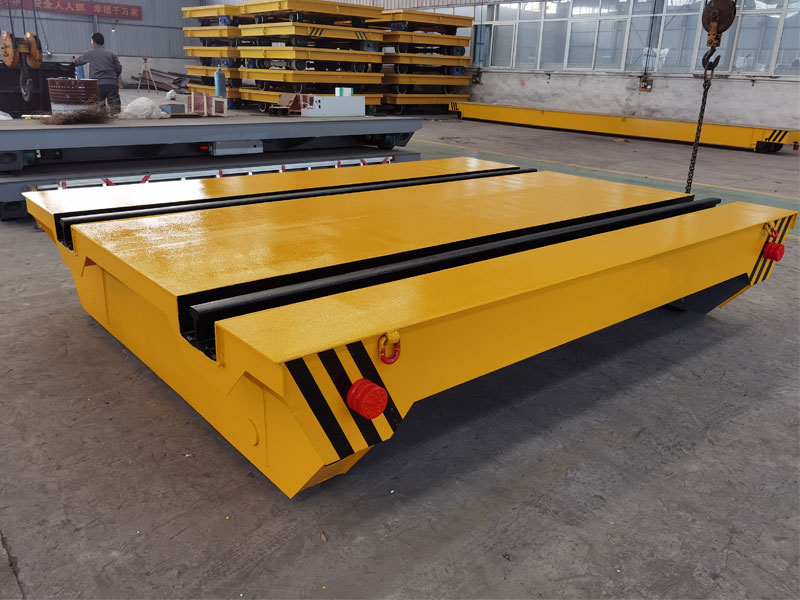

Rail transfer cart is an efficient material transporting cart that runs on rails, and it can be powered by cable drum, battery, or low-voltage rail. Our transfer carts are widely used in machine shops, warehouses, metallurgical plants, etc., to transport heavy loads throughout the facility or between crane bays, greatly improving work efficiency.
Cases of Rail Transfer Carts
Aicrane AQ-KPJ 20 ton electric rail transfer cart is used in our customer's steel coil warehouse in Kazakhstan for transporting steel coils and steel structures.
It works with a double girder 10 ton overhead crane which is also supplied by our company for easy transporting, loading and unloading onto the truck. Learn more+
A 20 ton electric rail transfer cart was installed in our client's steel structure processing plant in Pakistan to transport steel structures. The customer's business is to process and manufacture steel structures, so meterial transfer carts are essential to improve their work efficiency.

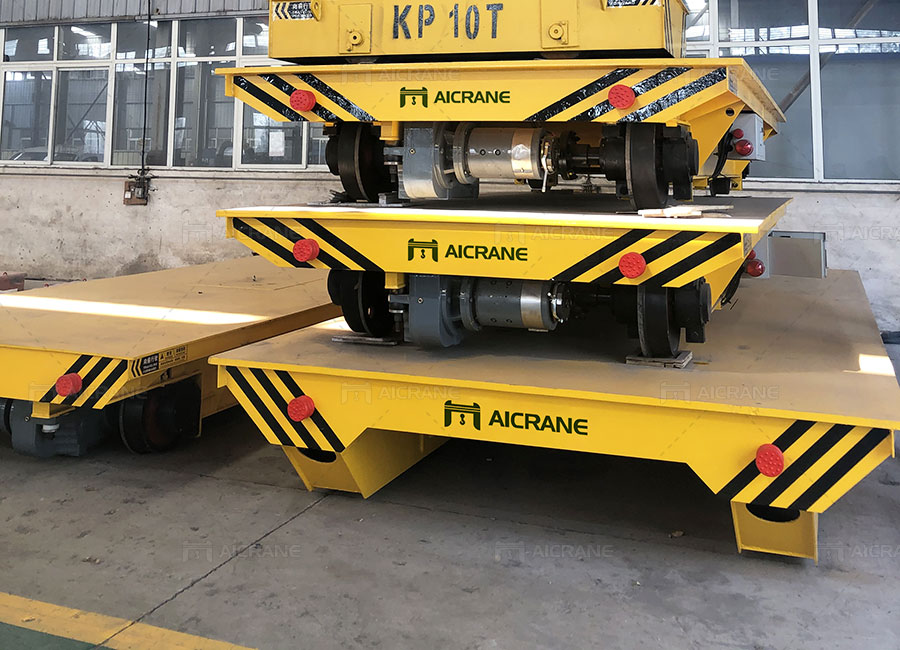

Three rail transfer carts are about to be shipped to Canada. These transfer carts will be installed in the client's workshop and work with overhead cranes to transport, load and unload materials.
The AQ-KPJ electric transfer cart is the most common type of material transfer cart in the workshop and also an affordable option for transporting heavy loads.
Three Types of Rail Transfer Carts for Sale
When using a rail transfer cart, a track needs to be laid on the ground, and the track is generally I-shaped. Depending on the power source, our on rail transfer cart can be battery powered, cable drum powered or low voltage rail powered. These three types have their own unique advantages.
- AQ-KPJ cable drum powered transfer cart is to use AC 380V cable and relys on the the winding device on the transfer cart to wind and unwind the cable to realize power supply. The winding device is placed under the rail transfer trolley. Compared with the AQ-KPX series, it is not limited by the use time, and compared with the AQ-KPD series, this electric transfer cart has less requirements for track laying.
- AQ-KPX battery powered electric flat cart has greater safety performance, mobility and flexibility than AQ-KPJ and AQ-KPD series. In addition, the running distance is not limited, and there is no insulation requirement for the track, so the construction is convenient and the cost is low.
- AQ-KPD low voltage rail powered transfer cart is a 36V single-phase or three-phase low-voltage rail powered electric flat cart, powered by rail sliding contact line. Because no cables are needed, the transfer cart does not hinder the cross transportation, and it is easy to realize remote control and automation, which is very convenient for the transportation arrangement in the factory area. However, the track construction requirements are relatively high, and the track insulation must be ensured.
- In addition, you can equip your rail trolley transfer cart with various options and accessories to work perfectly toward your goals: hydraulic lifting system for simple transportation; flat deck, V-deck, tilting or custom shaped deck to suit your load transporting requirements; fixed pendant control or remote control; controlled direction of motion or mounted on turntable; two carts can be connected to each other for heavier loads, higher efficiency or longer goods; warning horns; marker lights; collision avoidance system, etc.

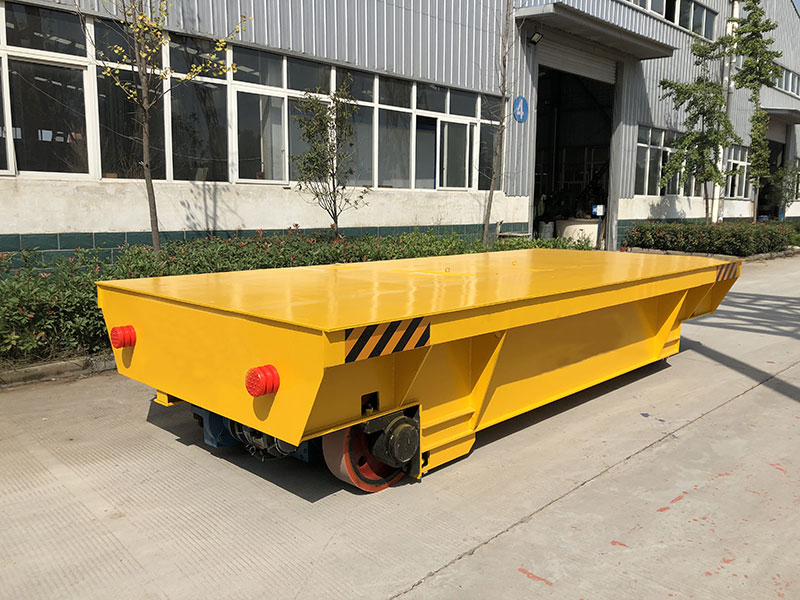

AQ-KPJ Cable Drum Powered Transfer Cart
- Table size: can be customized
- Wheel base: 1200~7000mm
- Rail inner gauge: 1200~2000mm
- Running speed: 0~25m/min
- Running distance: ≤200m
- Control mode: button / remote control

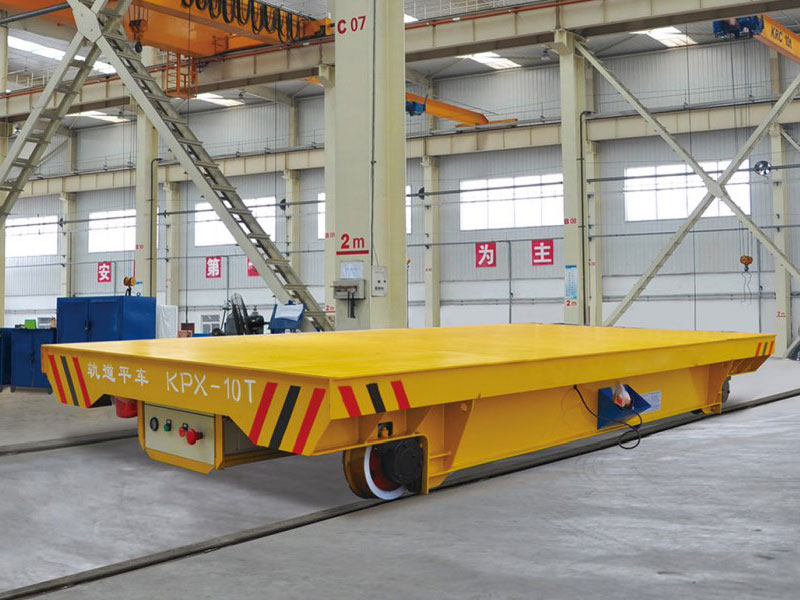

AQ-KPX Battery Transfer Cart
- Table size: can be customized
- Wheel base: 1200~7000mm
- Rail inner gauge: 1200~2000mm
- Battery voltage: 24~72V
- Running speed: 0~30m/min
- Control mode: button / remote control

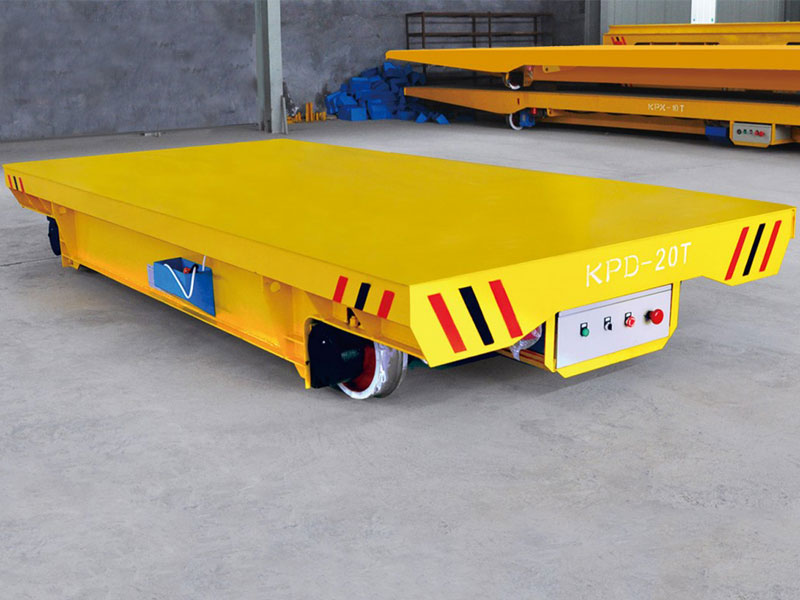

AQ-KPD Low Voltage Rail Powered Transfer Cart
- Table size: can be customized
- Wheel base: 1200~7000mm
- Rail inner gauge: 1200~2000mm
- Running speed: 0~25m/min
- Running distance: 50~80m
- Control mode: button / remote control

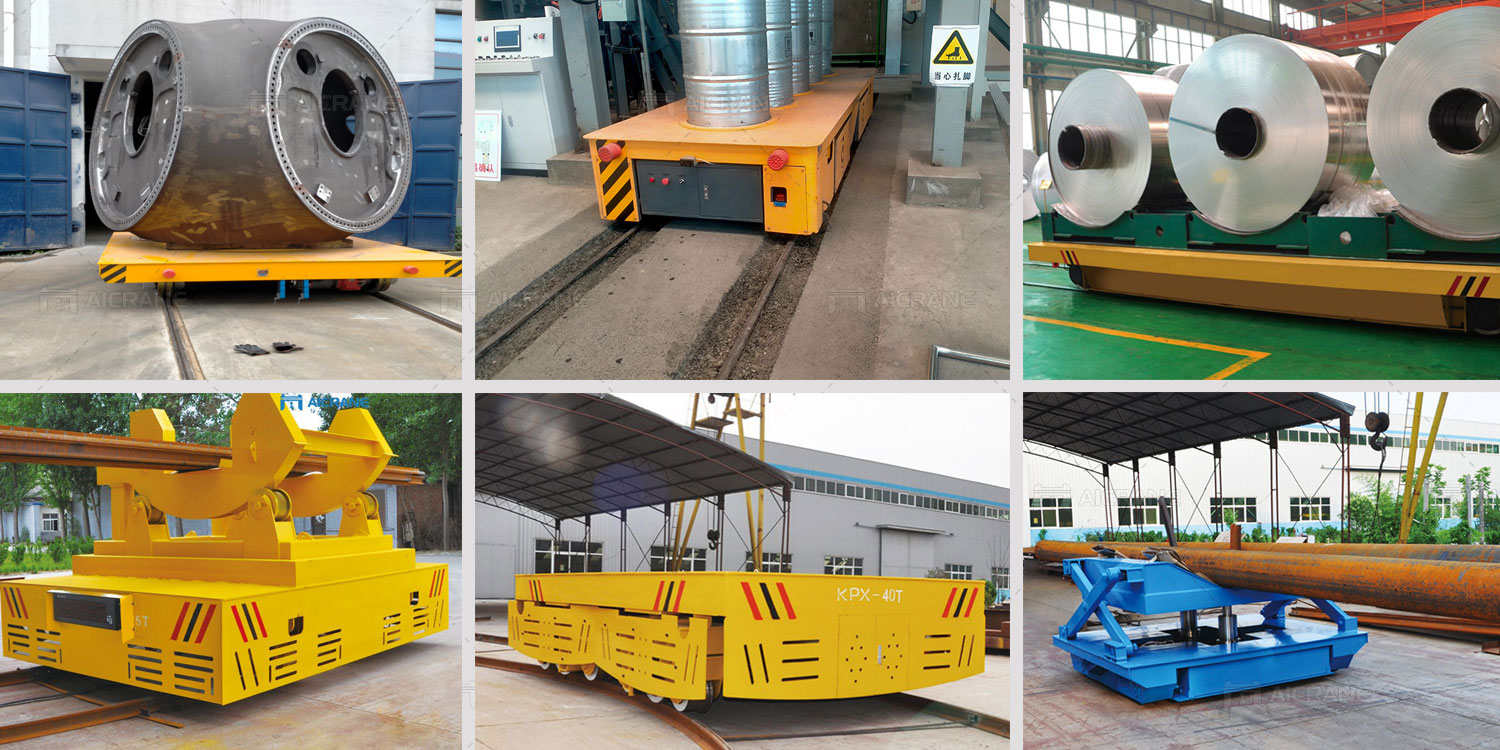

What Are The Uses Of Rail Transfer Car?
The rail transfer carts are designed to handle and transport large payloads efficiently and safely. They can help you improve workflow and productivity, reduce potential damage during load transport and improve visibility of the load. Our rail transfer trolleys are widely used in fabrication shops, chemical plants, warehouses, metallurgical plants, etc., to transport a variety of materials, including but not limited to:
Features And Benefits Of Aicrane Rail Transfer Cart
- Various Functions – Our rail transfer car can be equipped with positioning devices, clamping devices, lifting platforms and other auxiliary devices to meet the needs of different occasions. It can also be equipped with a PLC control system to achieve complete automatic control.
- Stable Structure – The wheel bearing is made of integral cast steel, which can ensure complete coordination with the body frame, and greatly enhances the stability.
- Safe And Reliable Operation – The transfer cart can be designed with no limiting travelling distance, ideal for heavy duty work cycle. It can be controlled by wireless remote control. There are also series of safety protection measures to ensure safe operation.

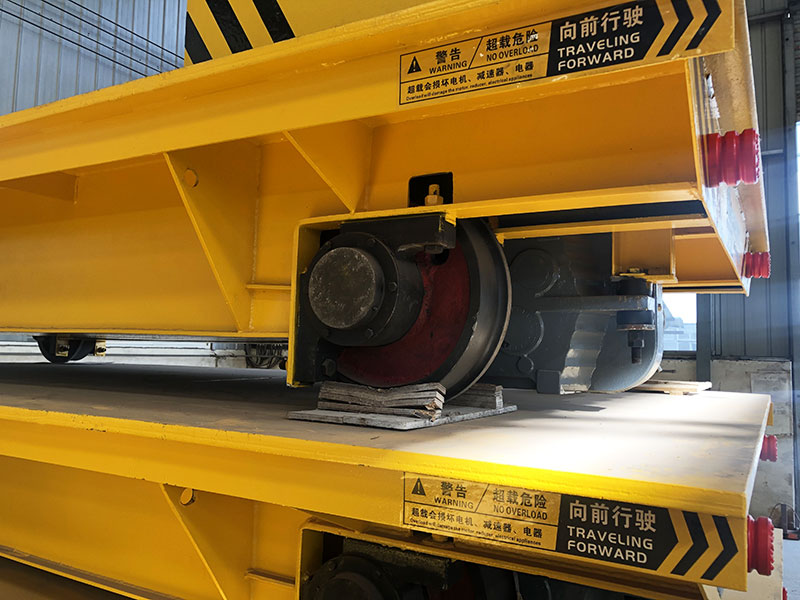

Rail Transfer Trolley Structure
- Cart frame – box beam structure with large load capacity, high strength, long service life and easy maintenance
- Deck – you can choose from stand-off, tilting, flat deck, V-deck or custom shaped deck based on your load requirements.
- Electrical control box – the unit is equipped with power distribution protection, short-circuit protection, over-current protection, emergency power failure protection and safety symbols to ensure a safe and reliable operation.
- Motor, three-in-one reducer, brake – The motor can be DC or AC motor. AC motor is suitable for flat carts that require frequent starts. The reducer provides stable movement, low noise, easy installation and maintenance.
What Is The Price of Rail Transfer Cart?
The transfer cart can be customized to suit varied needs and applications of customers, such as custom deck configurations and fixtures for different loads transportation. Therefore, its prices vary widely. In addition, the price of rail transfer carts varies by configuration, type, capacity, etc. To get a rail transfer cart price for your business, you need to address a few information:
- What type of rail transfer cart do you need? Cable drum powered, low voltage rail powered or battery powered transfer cart?
- Your required transfer cart parameters, such as load capacity, table size, wheel base, rail inner gauge, running speed and running distance.
- What material does the transfer cart handle?
- How is the environmental condition? (high heat, dust, explosive, etc.)
- What control mode do you desire? A fixed pendant or remote control?
- What safety equipment do you need?
- Other special requirements
These questions can be very helpful for the transfer cart manufacturer to choose the right transfer cart for your business, as well as to provide you with an accurate price.
Once you’ve gone through these information, you can discuss with one of our experts online. Our professional engineer and sales team will get together to develop the most appropriate and affordable solution. If you want to get the latest rail transfer cart prices, contact us today!
Why Choose Aicrane
We are trusted material handling equipment manufacturer and supplier in China. Our product range includes overhead cranes, gantry cranes, jib cranes, electric hoists, construction winches, marine winches, boat lifts, steel structures and transfer carts. You can rely on Aicrane material handling carts for efficient, safe, flexible and adaptable load transportation.
Reliable products
All our products are ruggedly made for high reliability and years of trouble-free operation. The major components are sourced from reliable suppliers. You can choose from an imported or made-in-China electrical equipment for your transfer cart.
Techncial support
We have professional solution design engineers and project consultants to fully discuss product requirements and budgets with customers, and provide the most suitable solution based on the information they provide.
After-sales service
We also provide a perfect after-sales service for our clients. With years of hard work, we have established a complete service system that comprises service networks in Uzbekistan, Philippines, Indonesia, Malaysia, Vietnam, etc., with local service team to provide door-to-door service. If you have any after-sales service issues, our after-sales service team is always at your service.
