Overhead cranes are designed to move heavy loads with precision and efficiency across a predefined path, typically within a warehouse, workshop, or factory. The robust overhead crane structure is engineered to ensure safe and reliable operation. In this article, we will take you through the key components of the overhead crane structure, and discuss important considerations in overhead crane structure design.

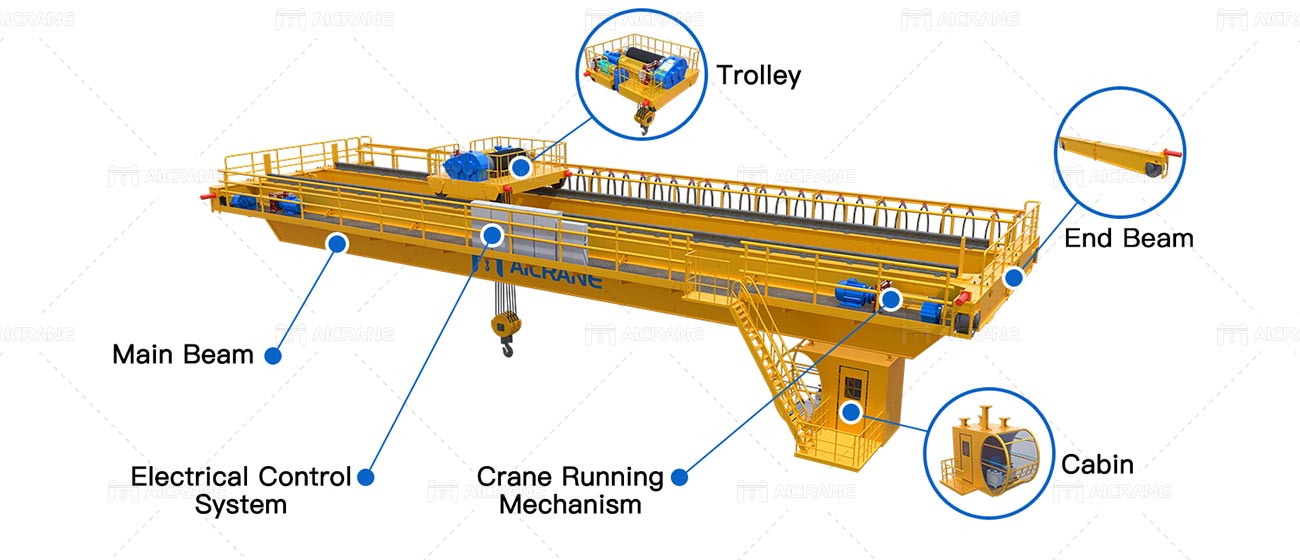

Key Components of Overhead Crane Structure
Bridge
The bridge is the primary component of an overhead crane, spanning the width of the working area. It consists of one or two horizontal girders (single or double girder) that are supported at each end by end trucks. These girders are responsible for carrying the hoist and trolley along the crane’s path. The bridge crane structure must be robust and well-engineered to support the weight of the load and the dynamic forces exerted during operation.
Single Girder Bridge
A single girder bridge crane has one main girder and is suitable for lighter loads. Its simpler design makes it more cost-effective and easier to install, but it may have limitations in terms of lifting capacity and span.
Double Girder Bridge
A double girder bridge crane features two parallel girders, offering higher load capacity and greater stability. This design is preferred for heavy-duty applications and larger spans.

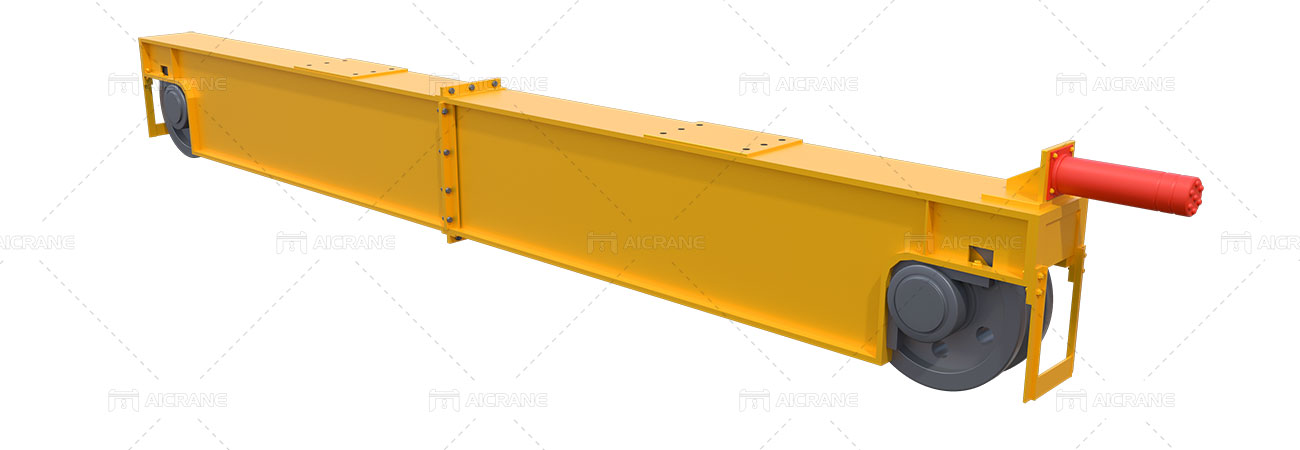

End Trucks
End trucks are located at either end of the bridge and support the entire structure. They run along the runway beams mounted on the walls or columns of the building. Each end truck is equipped with wheels that allow the bridge to move longitudinally along the runway. The design and construction of the end trucks are crucial in ensuring smooth and reliable crane operation.

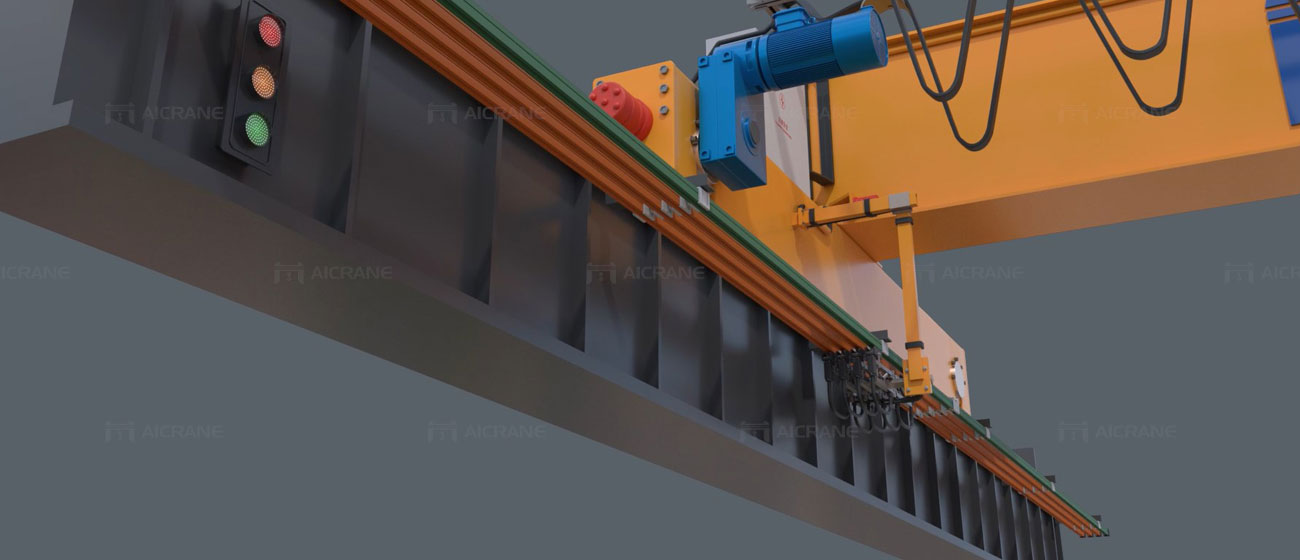

Runway System
The runway system is an integral part of the overhead crane structure, providing the path along which the crane moves. It consists of beams, rails, and supporting structures that are securely mounted to the building framework. The quality and alignment of the runway system directly impact the performance and longevity of the crane. Proper runway design must account for the load capacity, span length, and the building’s structural integrity.

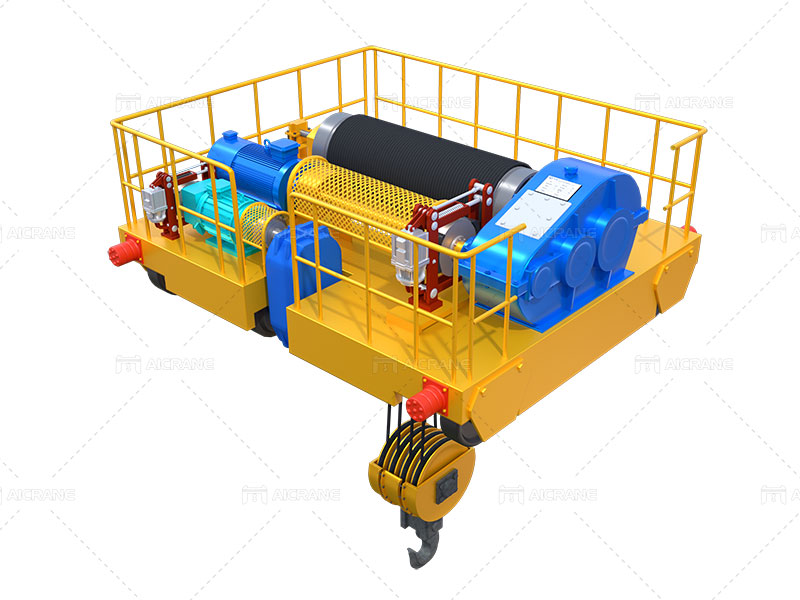

Hoist and Trolley
The hoist is the lifting mechanism of the overhead eot crane, attached to the trolley, which moves horizontally along the bridge. The overhead crane structure design must ensure that the hoist and trolley system can lift and position loads with precision and safety. Hoists come in different types, including chain hoists and wire rope hoists, each suited for specific applications.
Control System
Overhead cranes can be equipped with various control systems that allow operators to manage the crane’s movements with precision. These systems can be operated manually via a pendant control, remotely using wireless controls, or automatically through a programmable logic controller (PLC). The control system is an essential component of the bridge crane structure, ensuring safe and efficient operation.
Overhead Crane Structure Design Considerations
Load Capacity
- One of the most critical aspects of overhead crane structure design is determining the load capacity. The design must account for the maximum weight the crane will need to lift, including any additional forces that may occur during operation, such as dynamic loading, impact loading, and environmental factors like wind or seismic activity. Engineers use safety factors to ensure the crane structure can handle unexpected loads without compromising safety.
Span and Height
- The span of the bridge and the height of the lift are key design parameters. The span is the distance between the runway rails, and it determines how wide an area the crane can cover. The height of the lift refers to how high the crane can raise a load. Both parameters must be carefully considered to ensure the crane meets the operational requirements of the facility.
Material Selection
- The materials used in the overhead crane structure must be selected based on their strength, durability, and resistance to wear and corrosion. Common materials include structural steel for the girders and high-strength alloys for the hoist and trolley components. The choice of materials can significantly impact the crane’s performance, longevity, and maintenance requirements.
Structural Integrity
- The overall structural integrity of the crane is paramount to its safe operation. This includes ensuring that all components, from the bridge to the end trucks and runway system, are designed to work together seamlessly. Engineers must consider factors like stress distribution, load paths, and potential points of failure to create a structure that is both robust and reliable.
In a word, understanding the components and considerations involved in overhead crane structure design is essential for anyone involved in the selection, operation, or maintenance of these cranes. Whether you’re looking to install a new crane or upgrade an existing one, careful attention to the structure and design will ensure that your overhead crane performs efficiently and safely for years to come. To learn more about Aicrane overhead cranes, reach out to us today.
