Key Components of an Overhead Crane: Essential for Understanding How It Works
Before diving into how an overhead crane works, it’s important to familiarize yourself with its key components:
- Bridge Structure: The bridge is the primary support structure of the overhead crane, consisting of two main girders that span the width of the workspace. It moves along the runway beams mounted on the building’s columns or walls.
- Runway Beams: These beams are fixed to the building structure and support the bridge. They are integral to how an overhead crane works by allowing the crane to traverse horizontally across the workspace, facilitating efficient load handling.
- Hoist: The hoist is the lifting mechanism of the crane, responsible for raising and lowering the load. Mounted on the bridge, the hoist’s operation – using a drum or drum and rope system – is a critical aspect of how an overhead crane works, as it enables the precise vertical movement of the load.
- Trolley: The trolley moves along the bridge, allowing the hoist to travel horizontally across the span. It is equipped with wheels that run on the bridge’s rails.
- End Trucks: These are the components that connect the bridge to the runway beams. They house the wheels and drive mechanisms, enabling the crane to move along the runway.
- Control System: The control system, often operated via a pendant control, wireless remote control, or cabin, allows the operator to maneuver the crane. It includes controls for lifting, lowering, and horizontal movement.
Working Mechanisms: Understanding How an Overhead Crane Works
To fully understand how an overhead crane works, consider the following mechanisms:
Power Supply:

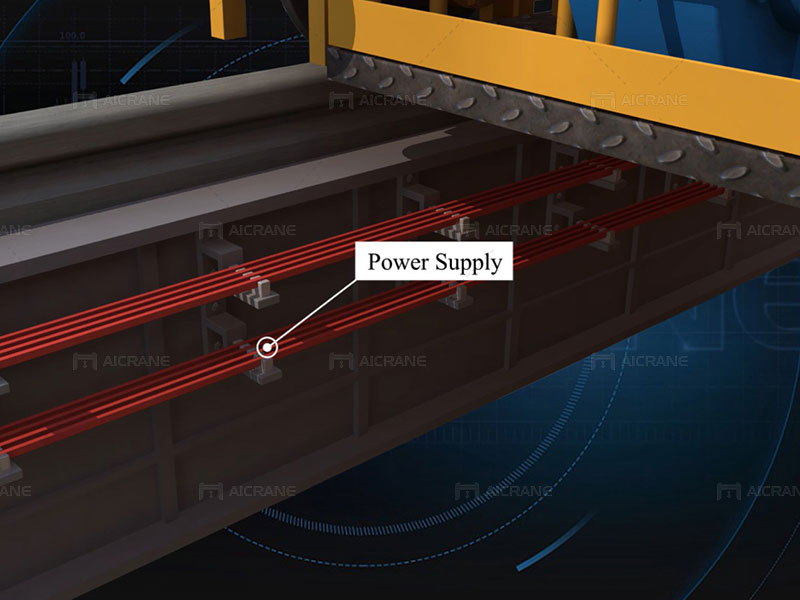

- Overhead cranes are typically powered by electric motors. The power supply is connected to the crane’s control system, providing the necessary energy for operation.
Movement Mechanisms:

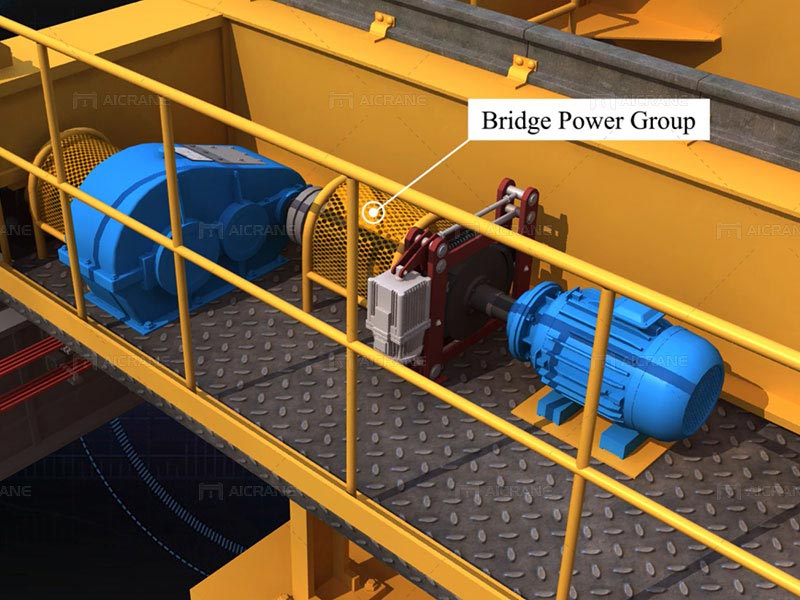

- Horizontal Movement: The overhead eot crane moves horizontally along the runway beams using the end trucks. The movement is powered by electric motors that drive the wheels on the end trucks. This mechanism allows the crane to traverse the workspace, a fundamental aspect of how an overhead crane works.
- Vertical Movement: The hoist raises and lowers the load through a combination of pulleys, drums, and a rope or chain system. The hoist is controlled to adjust the height of the load.
- Traverse Movement: The trolley moves along the bridge, enabling the hoist to position the load precisely across the span.
- Load Handling: The operator uses the control system to manage the crane’s movements and handle loads. Precision in controlling the crane is crucial for safe and efficient operations.
Safety Features:
- Overhead cranes are equipped with various safety features, including limit switches, overload protection, and emergency stop buttons, to ensure safe operation and prevent accidents.
Conclusion
Understanding how an overhead crane works is essential for optimizing its performance and ensuring safe operation. By familiarizing yourself with its components and functions, you can make better decisions regarding maintenance and operation. Whether you’re investing in a new overhead crane or managing an existing one, this knowledge will help you maximize the efficiency and longevity of your equipment.
