Mining Winch

Aicrane mining winch is commonly employed in mines to raise or move different minerals, including those found in coal mines and various metal mines such as copper, silver, iron, and zinc. The winch can be installed either inside or outside the mine. Our winches in mining are known for their practical features, including versatility, compact structure, substantial capacity, and ease of use. We offer customization services to tailor the machine to your specific mining operations.

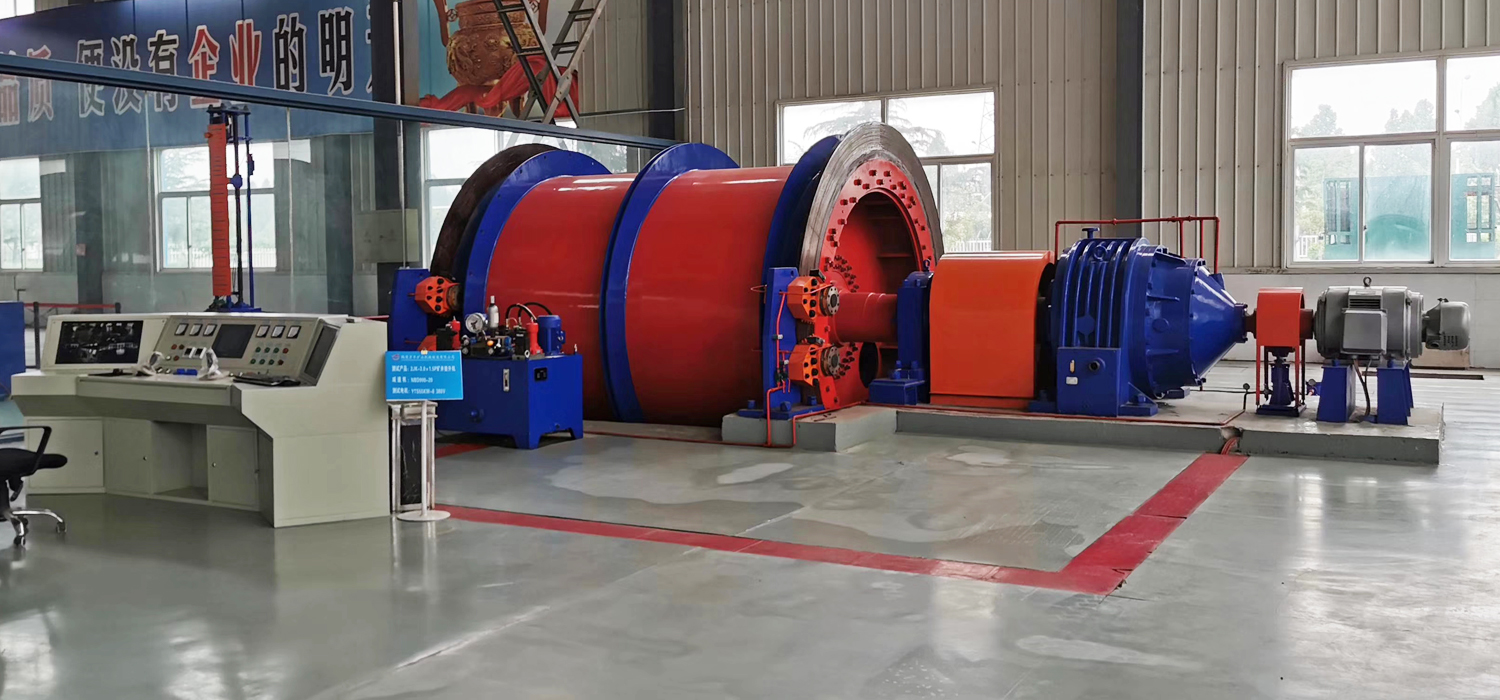

Aicrane Mining Winch for Sale
Aicrane Mining Winch

Mining Winches for Sale: Single Drum and Double Drum Options

We offer a diverse range of mining winch for sale, tailored to meet the unique demands of various mine projects. Whether you prioritize simplicity and efficiency or demand enhanced control and flexibility, our single drum and double drum winches are designed to meet your needs.

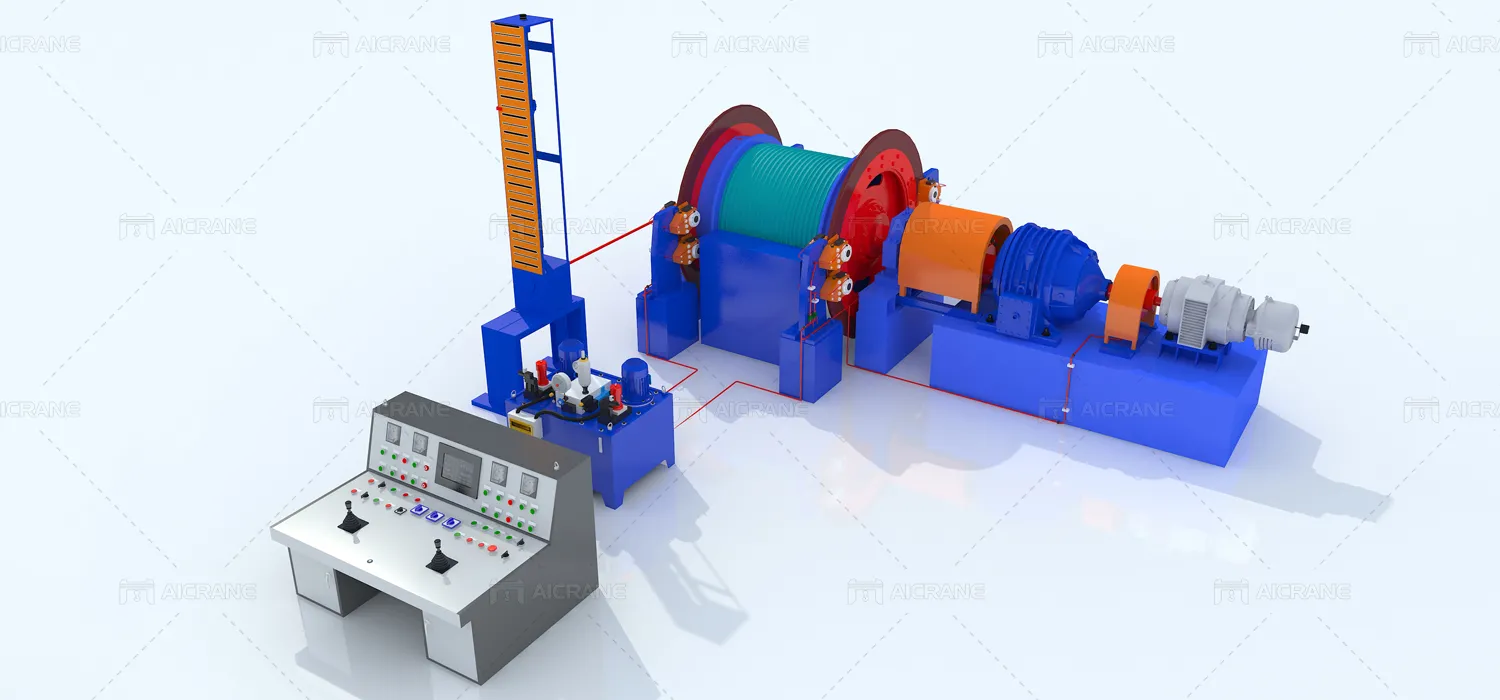

Single Drum Mining Winch

Our single drum mining winch is designed for straightforward and efficient operations. The single drum configuration ensures a straightforward and easy-to-operate system, making it an ideal choice for mining projects where simplicity is paramount. What’s more, with a compact design, the single drum winch is well-suited for sites where space is limited.

Single Drum Mining Winch
Single Drum Mine Winch for Sale

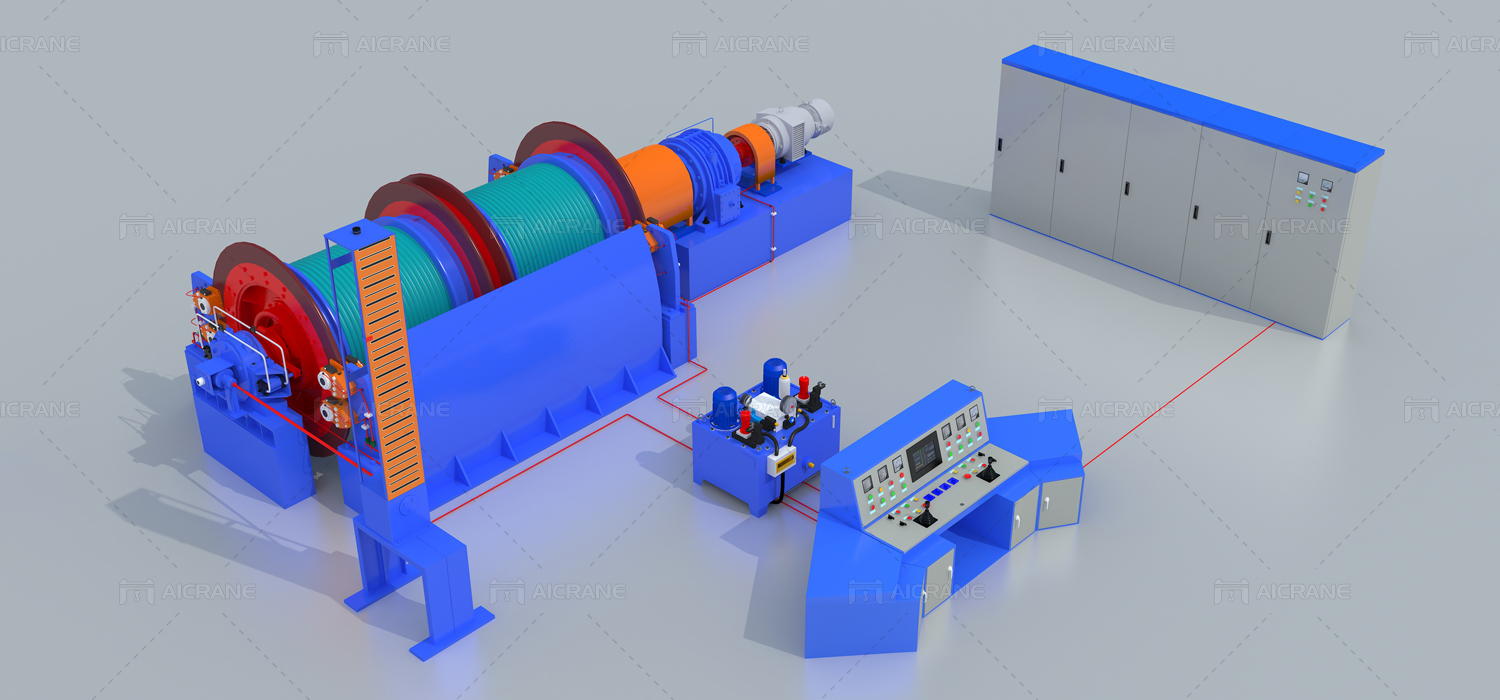

Double Drum Mining Winch

Our double drum winches in mining offer additional control and flexibility, catering to projects with more intricate requirements.

  • The dual drums allow for independent operation, providing enhanced control over the movement and positioning of loads. This is particularly beneficial in applications that demand precision and versatility.
  • Each drum can be operated at different speeds, enabling the handling of multiple tasks simultaneously.
  • The double drum configuration is adept at handling heavier loads, making it an optimal choice for large-scale mining projects where robust performance is essential.

Double Drum Mining Winch
Double Drum Mining Winch for Sale

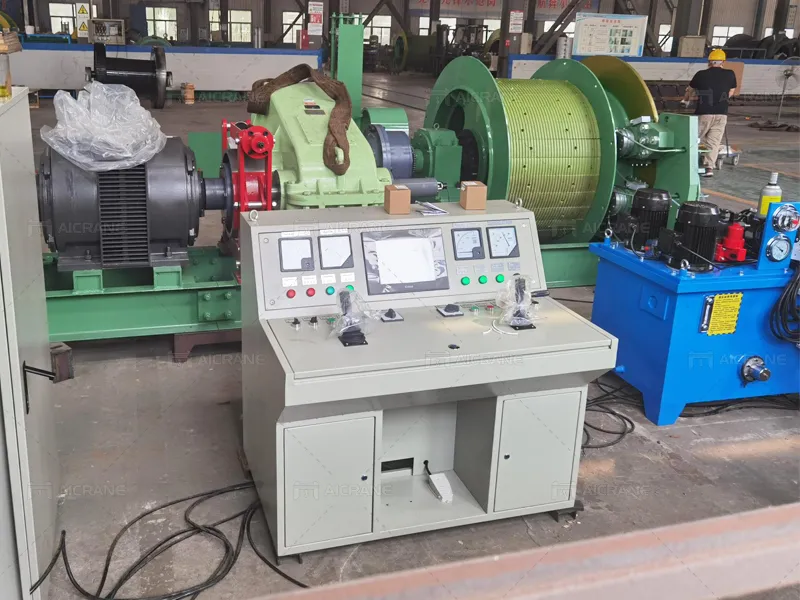

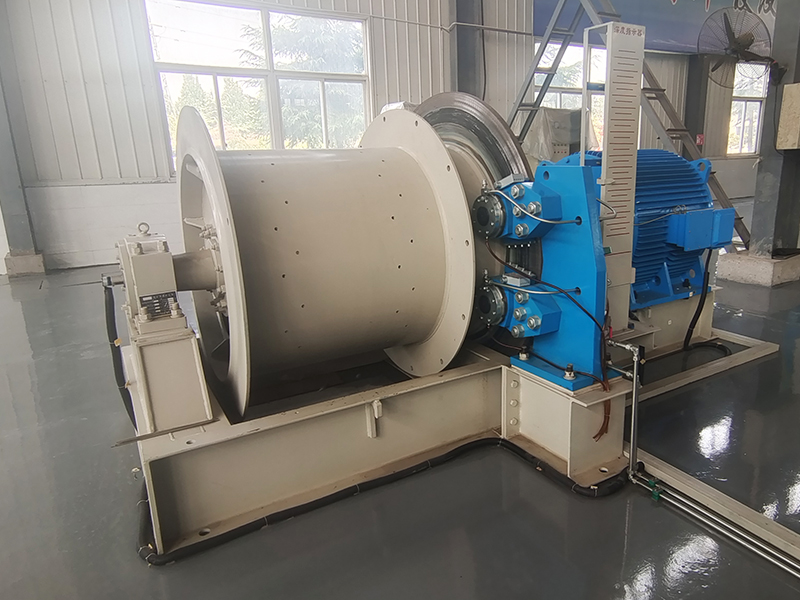

Test Run of A 3 Ton Mining Winch for a Colombian Client

Here’s an example of a 3 ton mining winch machine tailored for a Colombian client. Manufactured in our facility, the machine has undergone testing to ensure proper functionality. Its specifications include a single drum design with a capacity of 400 meters.

3 Ton Mining Winch for Sale
3 Ton Winch for Mine
Mine Winch 3 Ton
Mine Winch 3 Ton

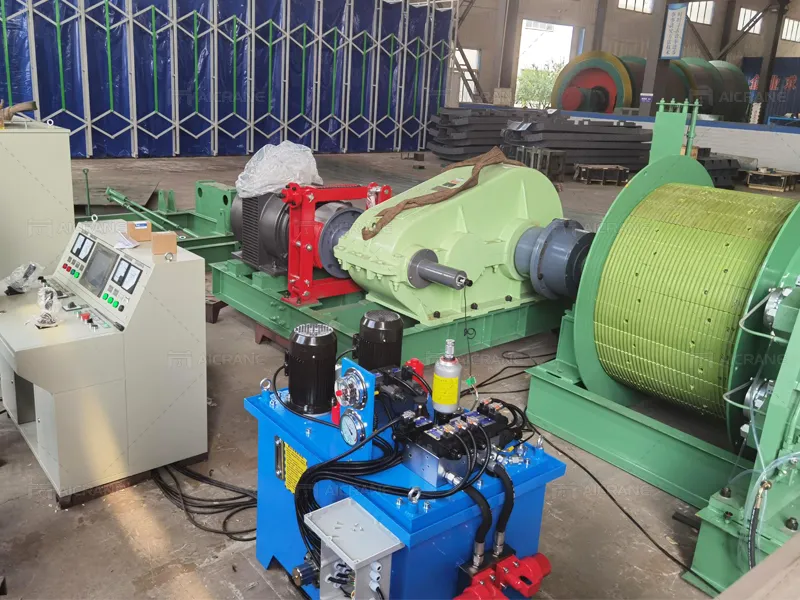

Mining Winch For A Colombian Client
Mining Winch For A Colombian Client

Diverse Applications of Mining Winches

Mining winches play a pivotal role in the smooth and efficient operation of mining activities, offering a versatile range of applications across the industry. From hoisting and well drilling to transportation and material handling, these winches are indispensable in ensuring the safety of personnel and optimizing the overall mining process.

  • Hoisting Operations: One of the primary applications of the winches lies in their role as hoisting equipment. They are essential for mine hoisting, well drilling, and lifting well drilling equipment. The core function involves lifting ore, waste gangue, and lowering materials, tools, and equipment. This critical aspect of mining operations requires reliable and robust equipment to ensure the safe and efficient movement of materials both vertically and horizontally within the mine.
  • Transportation Equipment: Winches in mining are also employed as transportation equipment for the underground movement of ore or mining carts. This application is crucial for the transportation of extracted materials, facilitating the efficient movement of resources within the mine. Whether it’s for rake mining or filling underground mines, these underground mining winches are instrumental in the transportation of materials, contributing to the overall productivity of mining operations.

According to the purpose of mining winches, they can be divided into friction haulage winch, dispatching winch, prop-pulling winch, and underground mining scraper winch. By understanding the specific needs of each application and selecting the right type of winch, mining operations can enhance efficiency, maintain safety standards, and contribute to the overall success of your business.

Winch for Mining
Winch for Mining

Main Components of Mining Winches

Winch for mining consists of several key components, each playing a vital role in ensuring the efficiency and safety of mining operations.

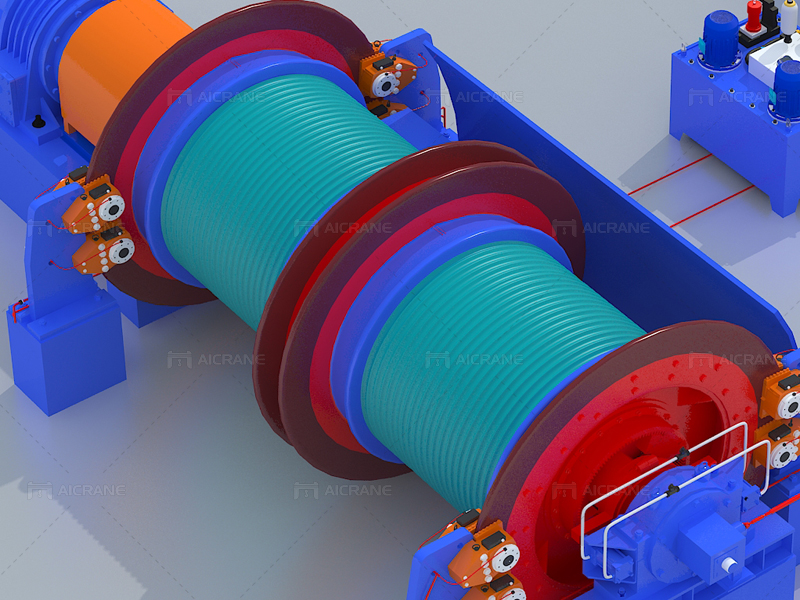

Drums

Drum

The drum is a fundamental component of a mine winch machine, serving as the primary storage for the wire rope. It winds and unwinds the cable, allowing the machine to lift and lower loads. Drums come in various sizes and designs, depending on the specific requirements of the mining operation.

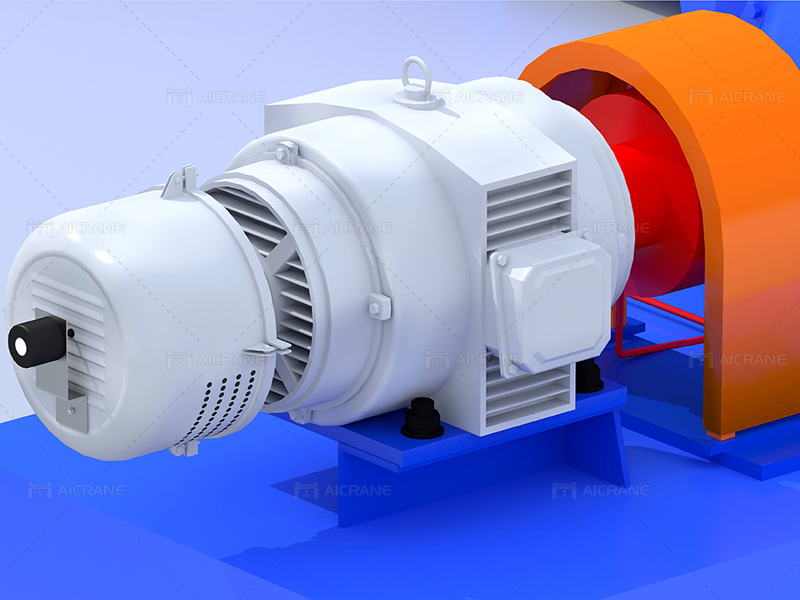

Electric Motor

Motor

The motor is the powerhouse of the electric mining winch, providing the necessary mechanical energy to drive the system. Electric motors are commonly used in the machines due to their efficiency and controllability. The motor’s power rating is carefully selected to match the load capacity and operational demands of the electric winch.

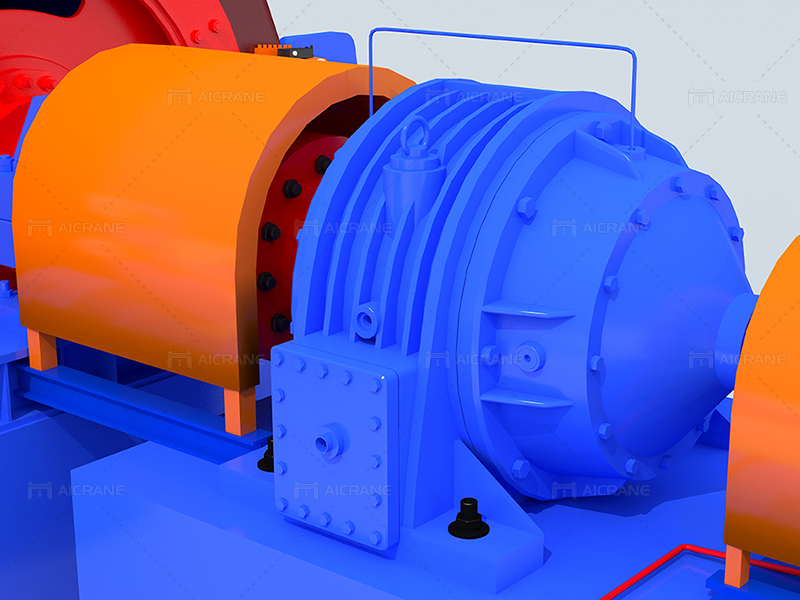

Reducer

Reducer

The reducer, or gear mechanism, is responsible for adjusting the speed and torque of the machine. It plays a crucial role in optimizing the power transmitted from the motor to the drum. By using gears with different ratios, the reducer allows the equipment to operate efficiently across a range of load conditions.

Disc Brake

Disc Brake

The disc brake is a key component in ensuring controlled and secure load handling. The disc brake system is designed to stop and hold the drum when required, preventing unintended movements and ensuring the safety of personnel and equipment. Our high-quality disc brake systems are engineered to withstand the harsh conditions of mining environments.

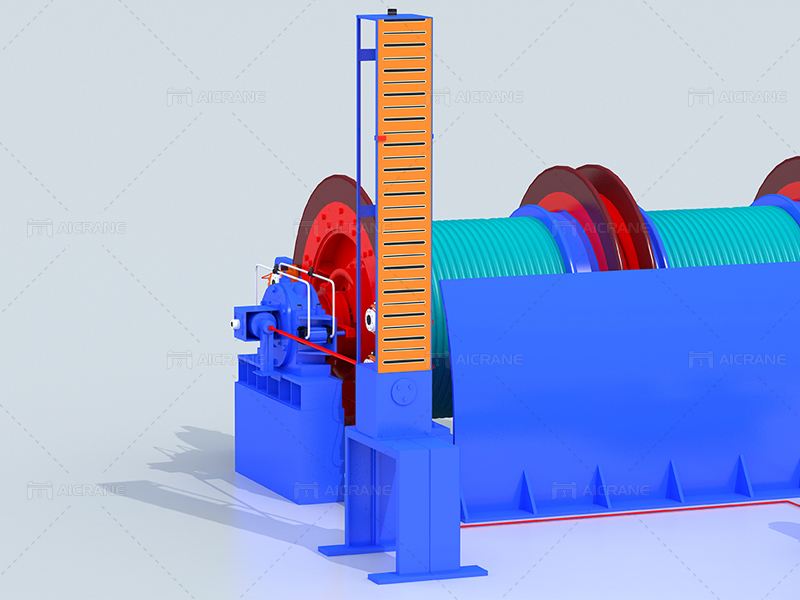

Depth Indicator

Depth Indicator

The depth indicator is a valuable feature that provides operators with real-time information about the position of the load and the length of wire rope deployed. This information is crucial for preventing overwinding, ensuring that the load is lifted or lowered within safe operational limits. Depth indicators contribute to the precision and safety of mining winch operations.

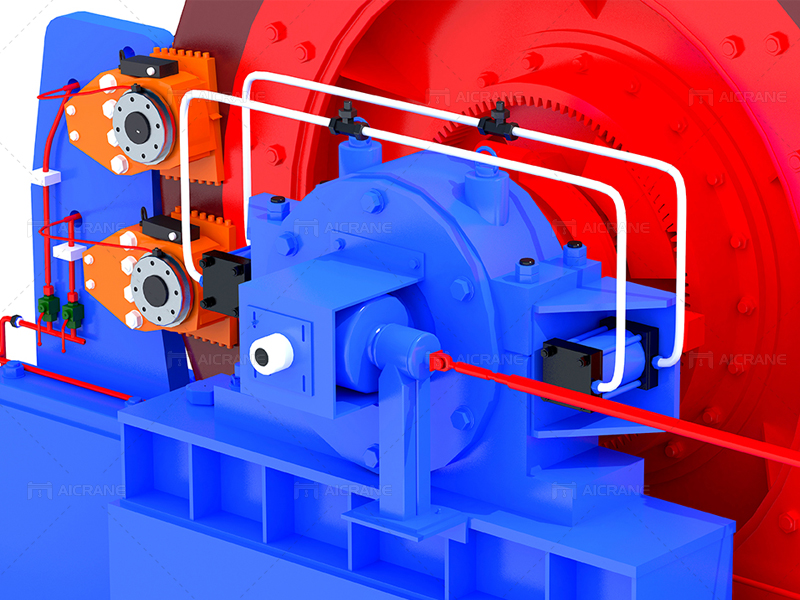

Hydraulic Rope Adjuster

Hydraulic Rope Adjuster

The hydraulic rope adjuster is a component that maintains proper tension in the wire rope during various operating conditions. It helps prevent issues such as rope slippage, ensuring that the wire rope remains securely in place on the drum. Hydraulic rope adjusters contribute to the overall reliability and longevity of the equipment by minimizing wear and tear on the wire rope.

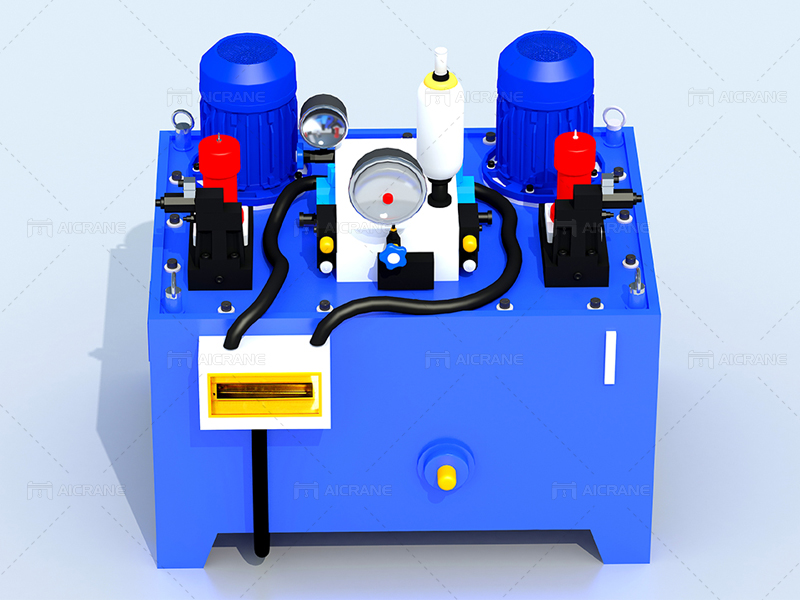

Hydraulic Station

Hydraulic Station

The hydraulic station supplies hydraulic power to various components of the mine winch, such as the rope adjuster and braking system. It is a vital part of the hydraulic system, providing the necessary pressure and flow to ensure smooth and controlled operation.

Operation Console

Operation Console

The operation console is the control center for the mining winch machine, allowing operators to manage the lifting and lowering operations. It typically includes levers, buttons, and switches for controlling the winch’s speed, direction, and braking. Our operating consoles feature user-friendly interfaces and advanced control systems, enhancing precision and safety during operation.

Electrical Cabinet

Electrical Cabinet

Housing the electrical components and control systems, the electrical cabinet is a critical part of the winch at mine. It protects sensitive electronic equipment from environmental factors such as dust, moisture, and vibrations. The electrical cabinet also facilitates easy access for maintenance and troubleshooting, ensuring the reliability of the machine in demanding mining conditions.

Our Tailored Services for Your Mining Winch Needs

As a trusted mining winch manufacturer, we offer a range of services covering custom design, manufacturing, installation, and after-sales support tailored to your specific requirements.

Custom Mining Winch Design

Our experienced team of project consultants and engineers collaborates closely with you to develop a customized design that aligns with your project specifications. Taking into consideration factors such as load capacity, drum capacity, speed, environmental conditions, and safety standards, we aim to deliver a mining winch system that meets your operational needs.

Aicrane Team of Engineers
Aicrane Team of Engineers

Mine Winch Manufacturing

With modern facilities and a commitment to quality and reliability, our manufacturing process adheres to industry standards. We utilize advanced technology and durable materials to craft mining winches designed to withstand the challenges of mining. Stringent quality control measures ensure the final product meets or exceeds industry regulations.

Manufacturing of Mining Winches
Manufacturing of Winches

Efficient Mine Winch Installation

We offer personalized mine winch installation assistance. Two flexible options cater to diverse needs: online and onsite support. Our installation assistance services are designed to streamline the installation process and empower your team.

After-Sales Service for Mining Winches

  • Accessible Customer Support: Our responsive customer support team available to address your inquiries, concerns, or technical questions. Reach out to us via phone or email, and we’ll provide the assistance you need.
  • Clear Maintenance Guidelines: We provide clear and concise guidelines to help you keep your winch mining in optimal condition. Our aim is to empower you with the information needed for effective equipment upkeep.
  • Efficient Spare Parts Delivery: Should you require replacement parts, our after-sales service team ensures timely delivery.
Aicrane Installation And After-sales Service
Aicrane Installation And After-sales Service

In search of a dependable supplier for your mining winch needs? Consider Aicrane as an excellent option. Reach out to us now, and let’s engage in a conversation about how our expertise can enhance the success of your mining projects.

    Customize Your Lifting Solutions

    Contact us now via email: inquiry15@aicranes.com, or fill in the form below.

    FEW TIPS:

    1.What will the winch be used for: ?

    2.Rated load(T) or pull force(KN): ?

    3.Drum capacity(mm x m): ?

    4.3-phase power supply(v/hz): ?

    5.Working speed(m/min): ?

    6.Project introduction: project working site, project budget, etc
