Transfer cart is a kind of cost-effective, safe and flexible material handling cart widely used in fabrication shops, warehouses, metallurgical plants, etc. for load transportation. It can also cooperate with overhead and gantry cranes in the workshop to transport heavy loads across the bridge. Transfer carts are simple devices that operate on floors and do not requires complex or permanent installation.

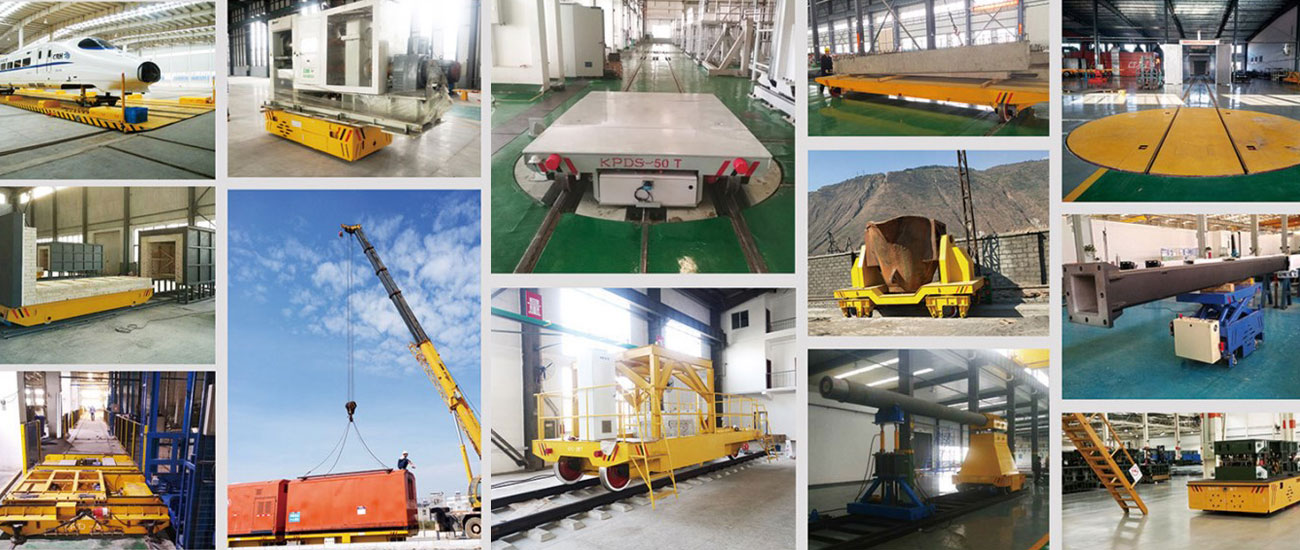

Wide Applications of Electric Transfer Carts
We design and manufacture transport carts for different uses. They can be used in your factory with lifting equipment such as overhead cranes, or they can be moved from one plant to another one for material transport. The types of materials that our transfer carts can handle include but not limited to:
Different Types of Transfer Cart For Your Application
We supply different types of transfer carts that run on rail and trackless transfer cart to meet your precise requirements.

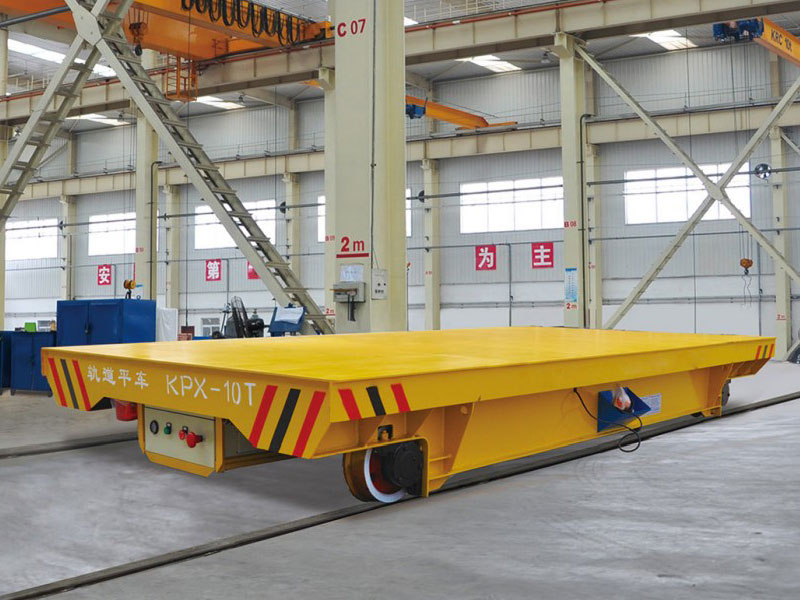

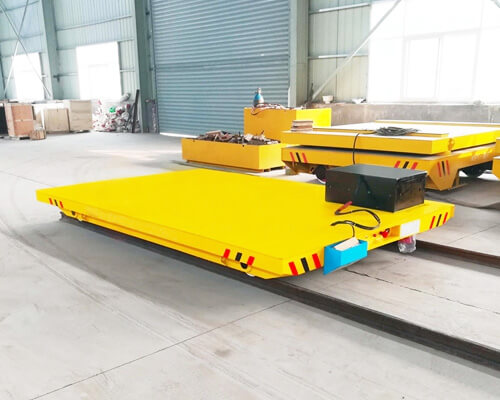

AQ-KPX battery transfer cart
Load capacity: 2-150t, power source: battery powered.
The AQ-KPX battery transfer cart is operating on rails. It has excellent safety and flexibility as compared to other AQ-KP series products. The battery is installed inside the device, which requires regular maintenance. The battery life is generally around 2.5 years.
This device is ideal for low frequency of use and long distance transportation. Two transfer cars can be linked in tandem for higher capacity load or longer objects. We offer custom shaped decks and carts to suit the type of loads to be handled.
| Model | AQ-KPX |
| Load capacity | 2t~150t |
| Table size | can be customized |
| Wheel base | 1200~7000mm |
| Rail inner gauge | 1200~2000mm |
| Battery voltage | 24~72V |
| Running speed | 0~30m/min |
| Control mode | button / remote control |

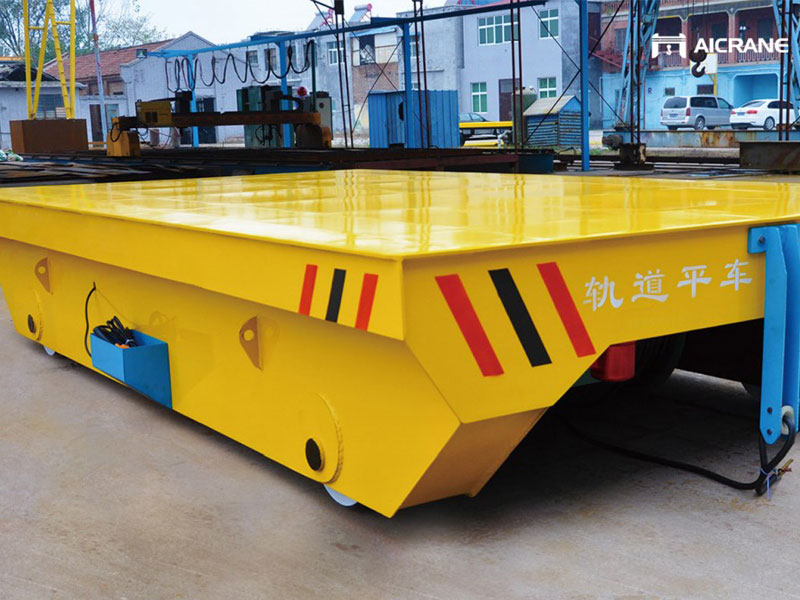

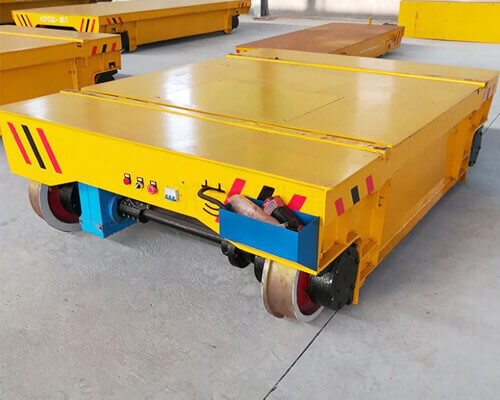

AQ-KPJ electric transfer cart
Load capacity: 2-150t, power source: cable reel powered.
Simple structure and low cost make the AQ-KPJ series common for load transportation in workshops. It is a kind of cable-powered transfer cart that is suitable for harsh environments and explosion-proof environments.
This device can be designed with any load capacity and high frequency of use. It can also come with lifting system for simple transportation. When the running distance exceeds 50m, a cable guider is required to assist the winding. Generally, the maximum running distance is less than 200m.
| Model | AQ-KPJ |
| Load capacity | 2t~150t |
| Table size | can be customized |
| Wheel base | 1200~7000mm |
| Rail inner gauge | 1200~2000mm |
| Running speed | 0~25m/min |
| Running distance | ≤200m |
| Control mode | button / remote control |

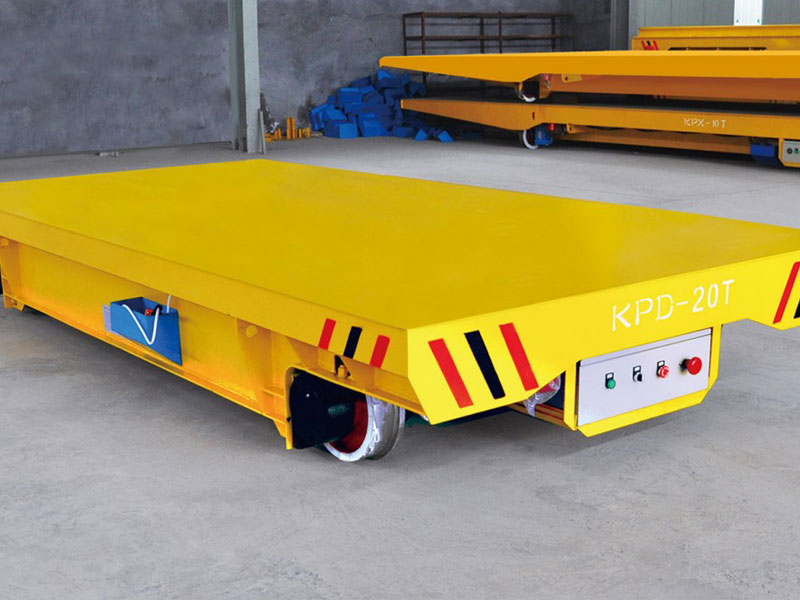

AQ-KPD rail powered transfer cart
Load capacity: 2-150t, power source: rail powered.
This type of material handling cart is powered by the rails. It is ideal for heavy load, high frequency of use and long distance transportation demand. It has many features, such as safety, flexibility, long service life and no distance limit. The rail transfer cart can be used in fabrication shops, steel plants, warehouses, chemical plants, etc.
This cart can be operating in S-tracks or curved tracks. The rails should be insulated. If the running distance exceeds 70m, more transformers are required to compensate for pressure drop of the track.
| Model | AQ-KPD |
| Load capacity | 2t~150t |
| Table size | can be customized |
| Wheel base | 1200~7000mm |
| Rail inner gauge | 1200~2000mm |
| Running speed | 0~25m/min |
| Running distance | 50~80m |
| Control mode | button / remote control |
In addition, a hydraulic lifting system can be installed on the device if needed. You can choose from single phase and three phase low-voltage power supply. The single-phase low-voltage electric transfer car is ideal for small load transportation, generally less than 50 tons, whereas the three-phase low-voltage cart is more suitable for heavier load handling (typically more than 50 tons) and high frequency of use.

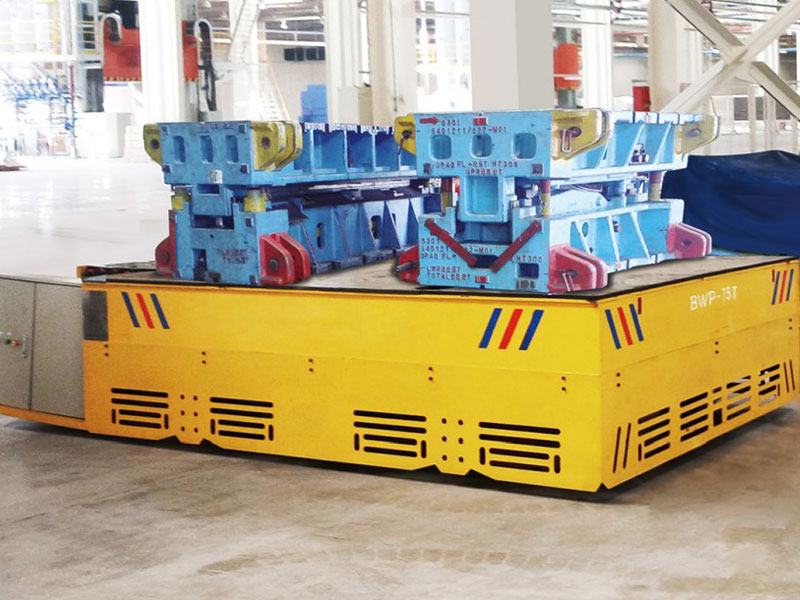

Trackless transfer car
Load capacity: 2-100t, available in battery powered version.
Trackless transport cart is very safe and efficient for moving dies, coils, blanks and other heavy loads throughout the workshops as well as between crane bays. These can move in any direction, typically 360° turning in a small space. It features two-way movement, small turning radius, no damage to the floor and flexible operation.
| Model | AQ-BWP |
| Load capacity | 2t~100t |
| Table size | can be customized |
| Wheel base | 1080~2000mm |
| Running speed | 0~25m/min |
| Control mode | button / remote control |
Other Types
In addition, depending on the material to be handled, we supply material transfer cart, pallet transfer cart, die transfer cart, coil transfer cart, etc., to meet different material handling needs.
Transfer Cart Cases
In this part, you can have a brief overview of some of our transfer carts exported to countries around the world, such as the United States, the United Kingdom, Canada, etc. We also look forward to cooperating with more customers around the world to provide the most suitable and cost-effective transfer trolleys for their businesses.
Two 10-ton trackless transfer carts were shipped to the UK. These carts are battery powered, and used to transfer steel structure parts in the factory. The customer's factory is to make steel structure parts barn and livestock farm equipment.
Two 10 ton battery transfer carts were delivered to the US. The client business is importing natural stone slabs, tiles, mosaics and decorative stones in the United States, so they need transfer trolleys to transport the stone slabs in their factories.
Aicrane electric transfer carts were delivered to Canada. These carts will be used as platforms for lifting devices in his plant. According to the customer requirements, the control mode is remote.
Features of Aicrane Transfer Carts
1. 1-ton to over 300 tons load capacity
2. Controlled direction of motion or steering ability
3. Lifting fixtures are available for simple transportation.
4. Remote control or fixed pendant
5. Increased maneuverability
6. Safety equipment options: warning horns, safety beacons, rail sweeps, anti-collisions detection devices, etc.
7. Two carts can be connected together for higher efficiency or longer goods.
8. Custom design to suit your cart requirements and its application
How to Choose The Right Transfer Cart For Your Application?
With so many different types of electric transfer carts out there, you may be confused which one is best for your application. Here, Aicrane simply lists a few points to help you find the transfer car that suits your needs.
- Which transfer cart model do you prefer? According to different working conditions, there are different types of electric transfer carts to choose from, such as trackless transfer cart, tracked transfer cart, track-powered, cable-powered or battery-powered transfer carts.
- What is the rated load? Electric transfer carts with different load capacities use different materials, so the prices are also different.
- Whether there is a requirement for the size of the table? The table size can be customized according to the requirements of the customer.
- What type of material to handle?And whether the transported materials are in special environments such as high temperature and high pressure.
- What is the running speed and running length of the transfer cart?
- What is the power source?
- Do you have special requirements? For example, the transfer cart can be equipped with an LCD screen to display the load data; the cart can have a lifting platform.
You need to address the above questions in order to choose the best possible transfer cart for your business. You can also contact Aicrane directly, and our professional engineers are always here to help you.
Test Run Video of Transfer Cart
Transfer Cart Custom Design
Our transfer trolley can be designed with the right features and capabilities to make it safe, reliable and adaptable for moving heavy loads throughout your facility. Backed by highly skilled and experienced engineers, we are able to custom design and build the device for your specific load movement requirements.
Design options
- Flat decks or fixtures designed for your specific application
- Multiple deck configurations, such as built-in scales, lift, tilt or rotate functions
- Track, trackless, steering capability, alternative drive and steering system.
- A variety of control options, including fixed user interface, pendant control and remote control.
- Fixed or variable speed
- Variety of safety equipment: warning horns, emergency stop, bumpers, rail sweeps, anti-collision system, etc.
You can fill out the contact form on this page or send us an email for more information or for a free quote on any size and configuration transport cart.
Scheme Design Steps of Transfer Carts
- 1. Confirm the use of the transfer cart for customers, because electric transfer carts need to have different functions and characteristics for different industries. Even in the same industry, its uses are different, and there are also great differences in the structural requirements of the cart.
- 2. Confirm the customer’s load requirements and table size requirements for the cart. These are useful for calculating frame strength and materials.
- 3. Confirm the customer’s requirements for the running distance and running speed of the cart. The can be used to determine the best power supply method for the electric flat cart, and calculate the reduction ratio and driving power.
- 4. Confirm the customer’s requirements for the track and gauge of the transfer cart.
- 5. Understand the customer’s budget for an electric transfer cart.
- 6. Understand other special requirements of customers for transfer carts.
Major Components of Material Handling Carts
Cart frame – the frame is box-shaped structure that features high strength, excellent safety, large load capacity, better appearance and easy maintenance.

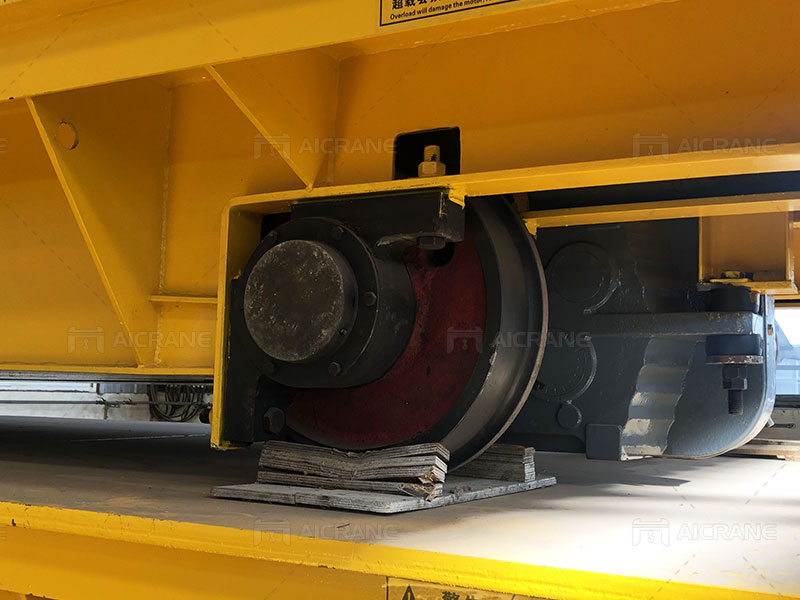

Wheel – the wheel is made of cast steel with polyurethane coating.
Deck – stand-off, tilting, flat deck, V-deck, etc.
Drive – it utilizes centralized drive or dual drive with soft start motor for smoother operation and safer braking.
Technical Parameters of Transfer Carts
Model | AQ-KPD-2T | AQ-KPD-5T | AQ-KPD-10T | AQ-KPD-20T | AQ-KPD-30T | AQ-KPD-40T | AQ-KPD-50T | AQ-KPD-63T | AQ-KPD-100T | AQ-KPD-150T | |
| Rated load (T) | 2 | 5 | 10 | 20 | 30 | 40 | 50 | 63 | 100 | 150 | |
| Table size | length(L) | 2000 | 3500 | 3600 | 4000 | 4500 | 5000 | 5500 | 5600 | 6500 | 10000 |
| Width(W) | 1500 | 2000 | 2000 | 2200 | 2200 | 2500 | 2500 | 2500 | 2800 | 3000 | |
| Height(H) | 450 | 450 | 500 | 550 | 600 | 650 | 650 | 750 | 850 | 1200 | |
| Wheel Base (mm) | 1200 | 2500 | 2600 | 2800 | 3200 | 3800 | 4200 | 4300 | 4900 | 7000 | |
| Rail Inner Gauge (mm) | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 2000 | 2000 | |
| Wheel Diameter(mm) | Φ270 | Φ300 | Φ300 | Φ350 | Φ400 | Φ500 | Φ500 | Φ600 | Φ600 | Φ600 | |
| Wheel Quantity(Nos) | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance (mm) | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 75 | 75 | 75 | |
| Running speed (m/min) | 0-25 | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power (Kw) | 1 | 1.2 | 1.6 | 2.2 | 3.5 | 4 | 5 | 6.3 | 11 | 15 | |
| Transformer Power (KVA) | 3 | 5 | 5 | 6.8 | 10 | 10 | 10 | 20 | 30 | 30 | |
| Transformer Quantity (Pcs) | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| Running Distance (m) | 80 | 80 | 80 | 80 | 80 | 60 | 50 | 50 | 50 | 50 | |
| Max Wheel Load (KN) | 14.4 | 25.8 | 42.6 | 77.7 | 110.4 | 142.8 | 174 | 221.4 | 343.8 | 265.3 | |
| Reference Weight (T) | 2.8 | 3.6 | 4.2 | 5.9 | 6.8 | 7.6 | 8 | 10.8 | 14.6 | 26.8 | |
| Recommended Rail Model | P15 | P18 | P18 | P24 | P38 | P43 | P43 | P50 | QU100 | QU100 | |
Model | AQ-KPX-2T | AQ-KPX-5T | AQ-KPX-10T | AQ-KPX-20T | AQ-KPX-30T | AQ-KPX-50T | AQ-KPX-100T | AQ-KPX-150T | |
| Rated load (T) | 2 | 5 | 10 | 20 | 30 | 50 | 100 | 150 | |
| Table size(mm) | length | 2000 | 3500 | 3600 | 4000 | 4500 | 5500 | 6500 | 10000 |
| Width | 1500 | 2000 | 2000 | 2200 | 2200 | 2500 | 2800 | 3000 | |
| Height | 450 | 500 | 500 | 550 | 600 | 650 | 900 | 1200 | |
| Wheel Base (mm) | 1200 | 2500 | 2600 | 2800 | 3200 | 4200 | 4900 | 7000 | |
| Rail Inner Gauge (mm) | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 2000 | 2000 | |
| Wheel Diameter(mm) | Φ280 | Φ300 | Φ300 | Φ350 | Φ400 | Φ500 | Φ600 | Φ600 | |
| Wheel Quantity(Nos) | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance (mm) | 50 | 50 | 50 | 50 | 50 | 50 | 75 | 75 | |
| Motor Power (Kw) | 1 | 1.2 | 1.6 | 2.2 | 3.5 | 5 | 10 | 15 | |
| Battery Capacity (Ah) | 180 | 180 | 160 | 180 | 250 | 330 | 440 | 600 | |
| Battery Voltage (V) | 24 | 36 | 48 | 48 | 48 | 48 | 72 | 72 | |
| Running speed (m/min) | 0-30 | 0-30 | 0-25 | 0-25 | 0-25 | 0-20 | 0-20 | 0-18 | |
| Running Time When Full Load(Hours) | 4.32 | 5.4 | 4.8 | 4 | 3.5 | 3.3 | 3.2 | 3.2 | |
| Running Distance for One Charge(Km) | 6.5 | 8.1 | 7.2 | 4.8 | 4.2 | 4 | 3.8 | 3.2 | |
| Max Wheel Load (KN) | 14.4 | 25.8 | 42.6 | 77.7 | 110.4 | 174 | 343.8 | 265.2 | |
| Reference Weight (t) | 2.8 | 3.6 | 4.2 | 5.9 | 6.8 | 8 | 14.5 | 26.8 | |
| Recommended Rail Model | P15 | P18 | P18 | P24 | P38 | P43 | QU100 | QU100 | |
| Model | AQ-KPJ-2T | AQ-KPJ-10T | AQ-KPJ-20T | AQ-KPJ-30T | AQ-KPJ-50T | AQ-KPJ-63T | AQ-KPJ-150T | |
| Rated load (T) | 2 | 10 | 20 | 30 | 50 | 63 | 150 | |
| Table size(mm) | length(L) | 2000 | 3600 | 4000 | 4500 | 5500 | 5600 | 10000 |
| Width(W) | 1500 | 2000 | 2200 | 2200 | 2500 | 2500 | 3000 | |
| Height(H) | 500 | 550 | 600 | 650 | 700 | 800 | 1200 | |
| Wheel Diameter(mm) | Φ270 | Φ300 | Φ350 | Φ400 | Φ500 | Φ600 | Φ600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 8 | |
| Running speed (min) | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power (Kw) | 0.8 | 1.5 | 2.5 | 4 | 5.5 | 7.5 | 15 | |
| Max Wheel Load (KN) | 14.4 | 42.6 | 77.7 | 110.4 | 174 | 221.4 | 265.2 | |
| Recommended Rail Model | P15 | P18 | P24 | P38 | P43 | P50 | QU100 | |
Model | AQ-BWP-2T | AQ-BWP-10T | AQ-BWP-20T | AQ-BWP-30T | AQ-BWP-50T | AQ-BWP-80T | AQ-BWP-100T | |
| Rated load (T) | 2 | 10 | 20 | 30 | 50 | 80 | 100 | |
| Table size | length(L) | 2000 | 2300 | 2400 | 3500 | 5500 | 6500 | 6600 |
| Width(W) | 1500 | 2000 | 2200 | 2200 | 2600 | 2800 | 3000 | |
| Height(H) | 450 | 500 | 600 | 700 | 800 | 950 | 1200 | |
| Wheel Base (mm) | 1080 | 1650 | 2800 | 1650 | 2000 | 1950 | 2000 | |
| Axle Base (mm) | 1380 | 1850 | 1435 | 2700 | 2850 | 3500 | 4000 | |
| Wheel Diameter(mm) | Φ250 | Φ400 | Φ350 | Φ450 | Φ600 | Φ600 | Φ600 | |
| Wheel Quantity(Nos) | 4 | 4 | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance (mm) | 50 | 50 | 50 | 50 | 50 | 75 | 75 | |
| Running speed (m/min) | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power (Kw) | 2*1.2 | 2*2.2 | 2*4.5 | 2*5.5 | 2*7.5 | 30 | 40 | |
| Battery Capacity(Ah) | 250 | 250 | 400 | 450 | 500 | 800 | 1000 | |
| Battery Voltage(V) | 24 | 48 | 48 | 48 | 72 | 72 | 72 | |
| Running Time When Full Load | 2.5 | 2.8 | 2.2 | 2 | 2.5 | 2 | 1.9 | |
| Running Distance for one Charge(Km) | 3 | 3.4 | 2.7 | 2.4 | 3 | 2.4 | 2.3 | |
| Max Wheel Load (KN) | 14.4 | 42.6 | 77.7 | 110.4 | 174 | 185 | 190 | |
| Reference Weight (t) | 2.3 | 4.2 | 5.9 | 6.8 | 8 | 14.6 | 26.8 | |
Choosing A Reliable Transfer Cart Manufacturer
If you require a safe and efficient material transportation throughout the facility, you can rely on a material handling cart. It helps save time for material delivery, reduce potential damage during transportation with simple load control, excellent visibility of load and maneuverability.
It is critical to choose a reliable manufacturer for addressing your material handling needs, improving workflow, productivity and safety. Looking for a trusted manufacturer and supplier? Go for Aicrane. You can learn about how we help you achieve your goals.
- We offer unique quality carts for years of trouble-free operation.
- Custom design is available to meet your specific load movement requirements.
- At our company, you can get a transfer cart at a factory price.
- Perfect after-sales service team can help solve any problem you have in the cart operation.
To get the right type of transfer cart for your application, and also at a reasonable price, get in touch with our sales manager today!
