Rail Mounted Gantry Crane

Aicrane Rail Mounted Gantry Crane

Aicrane rail mounted gantry crane (RMG) is a highly efficient container lifting and handling solution designed for the efficient, secure, and automated handling of containers. Known for its large capacity, high efficiency and dependable performance, it significantly enhances the efficiency of container handling and stacking operations. Our RMG container crane for sale comes in various capacities and sizes to accommodate different container loads, with the crane’s span tailored to match container rows accurately.

Rail Mounted Gantry Crane for Sale
Rail Mounted Gantry Crane Specifications
  • Load capacity: 30-50t
  • Span: 18-35m
  • Lifting height: 12.3-21m
  • Lifting speed: 9.2-12.5m/min
  • Trolley running speed: 45-56m/min
  • Crane running speed: 42-50m/min
  • Work duty: A6-A8
  • Custom designs available

Recent Project: 45 Ton RMG Crane for A Logistics Company in Kazakhstan

We are very pleased to showcase our recent rail mounted gantry crane project provided for a logistics company in Almaty, Kazakhstan. The client sought a practical solution for lifting and handling containers in their railway yard. We responded by supplying a 45-ton RMG crane with specific technical parameters to meet the client’s operational needs.

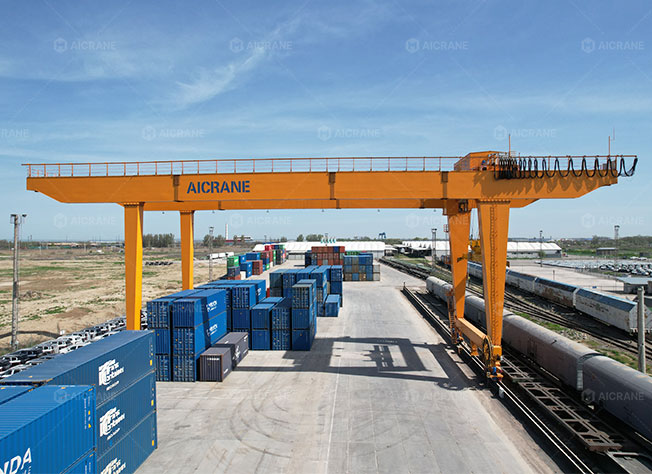

45 Ton Rail Mounted Gantry Crane Installed in Kazakhstan
45 Ton Rail Mounted Gantry Crane Installed in Kazakhstan

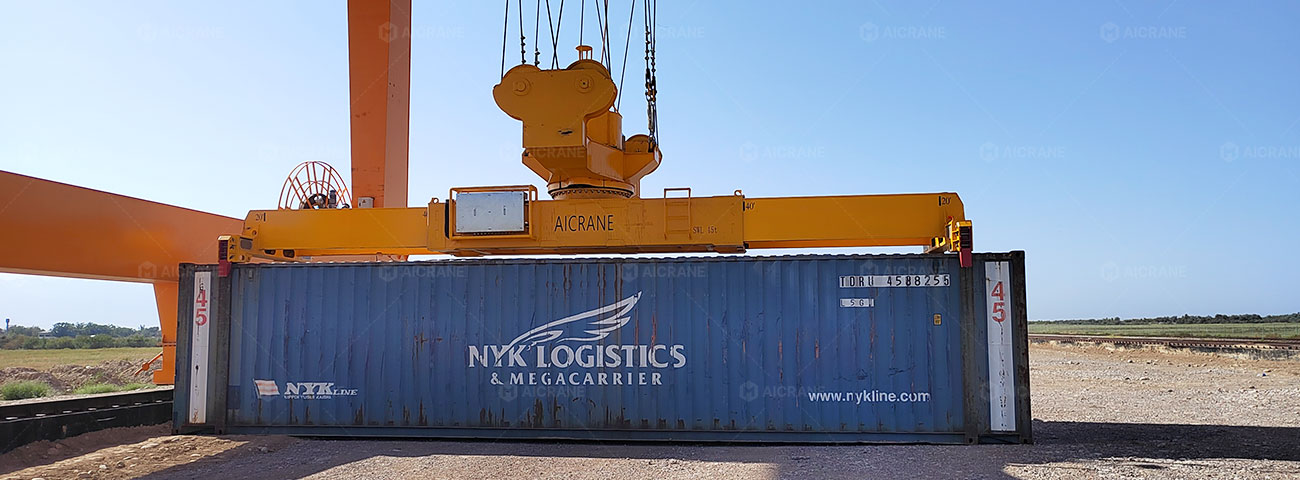

45 Ton Rail Mounted Crane for Handling Containers
45 Ton Rail Mounted Crane for Handling Containers

Client Overview

Our client, a logistics company based in Almaty, Kazakhstan, approached our company with a straightforward requirement – efficiently lift and transport 20-foot, 40-foot, and 45-foot containers, managing a daily throughput ranging from 100 to 120 containers.

Technical Parameters

Aicrane’s team of engineers adhered closely to the client’s specifications, resulting in a crane with the following technical parameters:

  • Load capacity: 45 ton
  • Span: 32m
  • Lifting height: 12.5m
  • Work duty: A6
  • Cantilever: 8m and 5.5m.

By providing a reliable, versatile, and high-performance RMG container gantry crane, we hope to optimize container handling operations for our esteemed logistics partner in Almaty, Kazakhstan.

title="YouTube video player" frameborder="0" allow="accelerometer; autoplay; clipboard-write; encrypted-media; gyroscope; picture-in-picture; web-share" referrerpolicy="strict-origin-when-cross-origin" allowfullscreen>

Applications Of Rail Mounted Gantry Crane

RMGs, or rail mounted gantries, are specialized gantry crane systems commonly utilized in intermodal and container terminals, railway freight yards, container yards and ports. Their primary function is to handle and stack large containers with efficiency. These cranes are characterized by a swift running speed and an elevated working level, ensuring smooth and effective operation. Their design contributes to expediting the turnover of container carriers and other cranes in the vicinity. We offer tailored solutions by designing rail gantry crane systems based on your specific application, aiming to enhance work efficiency and prioritize safety in your operations.

Rail Mounted Gantry Crane for Port Container Terminal

Port Container Terminals

The primary application of RMG cranes is at port container terminals, where they are crucial for unloading containers from ships and transferring them to storage areas or onto trucks and trains for further transportation.

Intermodal Rail Yards

Intermodal rail yards are another key application area for rail mounted container gantry cranes. In these facilities, containers are transferred between railcars and trucks, making RMG crane a vital component in streamlining the intermodal transport process in railway.

RMG Crane for Intermodal Rail Yards
RMG for Container Storage Yards

Container Storage Yards

Container storage yards at ports and logistics hubs rely on RMG gantry rail cranes for efficient stacking, retrieval, and storage of containers. Given the limited space in these yards, RMG cranes can stack containers in high rows, thus maximizing storage capacity.

Freight Terminals

At freight terminals, where various goods are loaded and unloaded for transportation, RMG rail mounted cranes are used to manage containers containing heavy or oversized cargo. These cranes enable efficient and fast handling of diverse cargo types by adapting to different container sizes and weights.

Rail Mounted Crane for Freight Terminals

Beyond standard shipping containers, container gantry crane on rails is also used for handling specialized containers in industries such as chemicals, pharmaceuticals, or automotive. These industries often require containers to be handled with care due to the nature of their contents.

Custom RMG Crane Design: Tailored Solutions from Our Expert Engineers

At Aicrane, we focus on delivering reliable custom-designed rail mounted gantry (RMG) cranes to meet the specific needs of our clients. Our team of engineers has solid experience in designing RMG cranes for industries such as logistics and port transportation, railway, and more.

Expert Crane Engineers with a Customer-Centric Approach

Aicrane Expert Engineers
Our crane design team is made up of experienced engineers who understand both the technical and practical requirements of RMG cranes. Whether the customer needs a crane for container handling at ports, or precise material transport in a production plant, our engineers have the knowledge and expertise to design a solution that enhances efficiency, safety, and productivity.

Our engineers work closely with customers, understanding their specific operational requirements before beginning the design process. This close collaboration ensures that each custom container gantry crane is built to the customer’s exact needs.

Experience in Custom Rail Mounted Gantry Crane Design

Aicrane has completed many custom rail mounted gantry crane projects for clients across various industries. Some example design drawings include:

40 Ton Rail Mounted Gantry Crane Design

40 Ton RMG Crane Design For A Railway Freight Yard

  • Load Capacity: 40T (under spreader)
  • Span: 22.2m
  • Lifting Height: 7.5m
  • Work Duty: A7
50 Ton Rail Mounted Gantry Crane Design

50 Ton RMG Crane Design For A Port Container Handling Project

  • Load Capacity: 50T (under spreader)
  • Span: 27m
  • Lifting Height: 12.5m
  • Work Duty: A6

If you are interested in getting a custom rail-mounted gantry crane, contact us today. Our team is ready to collaborate with you to develop a solution that precisely fits your operational requirements, enhancing efficiency and safety in your container handling operation.

What Is The Rail Mounted Gantry Crane Price?

What is the cost of a rail mounted gantry crane? This is a common inquiry among customers seeking a rail-mounted container gantry crane. To address these queries, we aim to provide valuable insights into the approximate pricing of our RMG cranes, factors influencing the pricing, and more to assist customers in making well-informed decisions.

Aicrane’s Approximate RMG Crane Prices

Generally, our standard rail mounted gantry cranes are priced as follows:

CapacitySpanLifting HeightPrice (USD)
RMG 30 Ton22-32m12.3-21m$264,000-$338,000
RMG 40 Ton22-32m12.3-21m$352,000-$412,000
RMG 50 Ton22-32m12.3-21m$411,000-$471,000

These rail mounted gantry crane prices are approximate and may vary depending on specific requirements and additional customizations. Each RMG crane is tailored to meet the unique operational demands of our clients, which may cause individual prices to differ.

Key Factors Influencing RMG Crane Pricing

Several factors affect the pricing of rail-mounted gantry cranes:

  • Technical Specifications: Higher load capacities, varying spans, and specific lifting heights will impact the overall rail mounted gantry crane cost.
  • Customization Options: Add-ons like specialized control systems, extended cantilevers, or custom engineering can lead to variations in pricing.
  • Operational Requirements: The complexity of the operational environment, such as weather conditions or specific industry demands, may require advanced features, contributing to price changes.

By providing this general insight into the approximate costs and the factors that influence them, we aim to empower our clients to assess their requirements accurately. The flexibility of our pricing structure allows for customization, ensuring that each crane investment aligns precisely with the operational needs and budget constraints of our valued customers.

For an accurate price quote tailored to your unique needs, feel free to get in touch with our team to discuss your specific requirements.

Features And Advantages of Rail Mounted Container Cranes

  • Suitable for various yard conditions – The rail mounted container gantry crane has a relatively large span, and generally can accommodate 8 to 15 rows of containers stacked iwithin the span, and multiple lanes can also be placed in the span, so that the yard space can be better utilized.
  • Increased productivity – Rail mounted gantry crane for sale is conducive to the installation of various devices for intelligent control and automated operations, such as storage systems, retrieval systems, accurate spreader positioning systems, anti-sway systems, etc., coupled with the use of high-speed travelling mechanism design, which greatly improves the working efficiency of the intermodal gantry crane.
  • Low energy consumption – Since the rail mounted quay crane is driven by electric energy, it has certain advantages in terms of energy saving, noise reduction, and waste reduction.
  • Stable operation – In order to meet higher requirements for use, the electric drive control system adopts thyristor DC or AC speed regulation drive control system to achieve better speed regulation and control performance. The electrical control system can also adopt conventional AC eddy current speed regulation control or AC stator voltage regulation and speed regulation drive control system.
title="YouTube video player" frameborder="0" allow="accelerometer; autoplay; clipboard-write; encrypted-media; gyroscope; picture-in-picture; web-share" referrerpolicy="strict-origin-when-cross-origin" allowfullscreen>

Considerations When Selecting a Rail Mounted Container Gantry Crane

Choosing the right rail mounted crane is crucial for efficient container handling in logistics and ports, rail yards, or intermodal terminals. To ensure optimal performance, several key parameters must be considered when selecting an RMG crane for your operation.

Aicrane RMG Crane
Aicrane RMG Crane for Sale
  • Load Capacity: The crane’s load capacity must match the weight of the containers, typically 20-foot (TEU) or 40-foot (FEU) containers. Make sure to select a crane that can safely handle the maximum load of your containers, taking into account both the container size and cargo weight.
  • Span: The span is the horizontal distance between the crane’s rails and determines how many container rows it can handle. Choose a span that fits your container yard’s layout and allows efficient container stacking.
  • Lifting Height: Lifting height is crucial for determining how many containers can be stacked. Higher lifting heights allow for taller stacking but require a crane that can handle the increased height safely and efficiently.
  • Container Size (20′ or 40′): Ensure the crane is compatible with the container sizes your operation handles. Most RMG cranes are designed for both TEU and FEU containers, but it’s important to confirm this based on your primary container types.
  • Containers Handled Per Hour: Crane efficiency is measured by how many containers it can move per hour. High-throughput operations require cranes with fast lifting speeds and short cycle times to meet demand.
  • Spreader Orientation and Rotation: Consider whether the container spreader is parallel or vertical to the crane’s main beam and if it can rotate. Spreader rotation adds flexibility for handling containers in tight spaces, improving alignment and placement.
  • Customization and Future Needs: Ensure the crane is tailored to your current needs, with room for future upgrades. Customizing the crane’s capacity, spreader features, and control systems will allow you to scale operations efficiently.

Reasons to Buy A Rail Mounted Gantry Crane From Aicrane

Aicrane focuses on the design and manufacture of various lifting equipment for many years. We offer productive and economical lifting solutions to meet each individual needs. We focus on providing not only high-quality cranes but also dedicated after-sales service to help customers throughout the entire process. Here are the key reasons why buying an RMG crane from Aicrane can benefit your business.

Expert Consultation

Pre-Sales Support: Helping You Make the Right Choice

Whether you need an RMG crane for container handling at ports, or precise loading and unloading operations in warehouses, our team provides expert consultation based on your industry. We assess factors such as the crane’s required capacity, span, lifting height, duty cycle, and site layout to recommend the right solution.

High-Quality Manufacturing: Durable and Reliable Cranes

We maintain strict quality control standards throughout the production process.

  • Our RMG cranes for sale are built using high-grade materials, ensuring durability and strength.
  • We follow a precise manufacturing process in our factories, with skilled technicians handling every stage of production.
  • All of our cranes are manufactured to comply with international safety and quality standards, such as ISO and CE.
  • Before delivery, every rail mounted gantry crane undergoes extensive load testing to confirm its performance under real-world conditions.
Precise Manufacturing of Cranes
After-Sales Service by Aicrane

After-Sales Service: Long-Term Support for Your Crane

We provide robust after-sales service to ensure the crane remains in top condition throughout its lifecycle, including:

  • Our experienced technicians can provide online or on-site installation and commissioning services to ensure the crane is set up correctly and operates as expected.
  • We offer comprehensive training for your operators and maintenance personnel.
  • We offer periodic maintenance and inspection services to ensure your crane remains in optimal condition.
  • Aicrane maintains a stock of genuine spare parts to ensure quick replacement and minimal downtime if a component needs repair or replacement.

Should you have inquiries about rail mounted gantry cranes or seek a complimentary quotation, do not hesitate to reach out to us. Upon receiving your inquiry, our dedicated project consultant will promptly reach out to you. Expect comprehensive rail gantry crane solutions and detailed quotations tailored specifically to your project.

How to Operate and Control a Rail Mounted Gantry Crane?

The automated rail mounted gantry crane is operated by the driver operating the console in the cab. The cab is generally suspended under the trolley and runs with the trolley. All operations of the rail mounted container gantry crane can be realized on the console of the cab. It can also be operated on the side of the RMG railway gantry crane to facilitate the temporary shifting of the crane. When operating on the running side of the crane, it realizes electrical interlocking with the main operating console.

The drive control of rail mounted stacking cranes can adopt different methods according to the needs of users, including conventional AC with eddy current speed regulation brake system; AC stator voltage regulation speed regulation system; thyristor DC constant rate speed regulation system and AC frequency conversion speed regulation system, and different electric drive control systems can be adopted according to different mechanisms.

RMG Cabin
RMG Cabin
Controls in the Cabin
Controls in the Cabin
Weighing Display in the Cabin
Weighing Display in the Cabin
RMG Electrical Cabinet
RMG Electrical Cabinet

The Main Structure of Rail-mounted Container Gantry Crane

The structure of a rail-mounted container gantry crane is an intricate assembly of several high-strength components designed to work together for maximum efficiency and durability.By understanding the structure of RMG cranes, you can better appreciate the technology behind these machines and make informed decisions about your purchase and deployment in container handling facilities.
Rail Mounted Gantry Crane Structure

RMG Crane Metal Structure

The metal structure of the rail mounted container gantry crane generally adopts a box structure. It includes:

  • Main Beam Structure – The main beam structure consists of two box girders supported on rigid and flexible legs. The connection between the main girder and the rigid leg adopts high-strength bolts or welding, and the connection between the main beam and the flexible leg adopts a hinged connection. For the convenience of installation, the connection between the main beam and the end beam is generally connected by high-strength bolts.
  • Gantry Leg Structure – Both rigid and flexible legs adopt box-shaped structure. For rail-mounted container gantry cranes with small and medium spans, the skew force on the legs and main girder caused by the asynchronous operation of the two sides of the crane is borne by the rigid and single-degree-of-freedom hinged connection between the main girder and the rigid and flexible legs. For large-span RMG cranes, the connection between the flexible legs and the main girder adopts a three-degree-of-freedom hinged connection, and a synchronous detection device is provided.
  • Trolley Structure – The structure of the running trolley is different depending on whether the hoisting mechanism is a wire rope drum type or a telescopic rigid frame type. Generally, a combined structure of box girder and plate truss is adopted. The driver’s cab, electric control cabinet, festoon cable, etc. are all connected to the trolley structure.
  • Auxiliary Structure – Auxiliary structures include electrical room structures, railings, walkways, maintenance platforms, etc.

Lifting And Travelling Mechanisms of RMG

In addition to the special selection of the lifting mechanism of the rail-mounted container gantry crane, the running mechanisms of the trolley and the crane are basically the same as those of other types of overhead cranes and gantry cranes.

  • Lifting Mechanism – There are two types of hoisting mechanisms: the wire rope drum type and the the rigid telescopic hoisting mechanism.
  • Trolley Running Mechanism – The trolley running mechanism consists of DC or AC motor, gear coupling, block or disc brake, medium-hard tooth surface reducer, low-speed gear coupling, wheels and wheel supports. The arrangement of the driving mechanism is generally divided into two ways: along the direction of the trolley track and perpendicular to the direction of the trolley track.
  • Crane Running Mechanism – The structure and form of the RMG crane running mechanism are similar to other types of gantry cranes. Due to the fast running speed of the RMG gantry crane, in order to prevent the wheels from slipping when braking, an electrical control system with good speed regulation performance is generally used, such as thyristor DC voltage regulation, AC frequency conversion speed regulation, AC stator speed regulation, etc.

Electrical and Control Systems

Rail mounted stacking cranes are equipped with sophisticated electrical and control systems that ensure safe and efficient operation. These systems control the movement of the trolley, hoist, and crane itself, as well as manage load handling. Key components of the electrical and control systems include:

  • Control Cabin: From where the operator manages crane operations, ensuring precise control of the lifting and moving processes.
  • Programmable Logic Controllers (PLC): Automated systems that govern crane functions, optimizing movement patterns and load handling.
  • Safety Sensors: Installed throughout the crane to detect potential hazards, such as overloads, misalignments, or obstacles in the crane’s path.

Power Supply System

RMG cranes require a continuous supply of power to operate, which is typically provided through a conductor bar system or cable reel.

  • Conductor Bar System: Supplies power via rails positioned along the crane’s track.
  • Cable Reel: Supplies power via a retractable cable that moves with the crane.

Other Devices of the RMG Crane

  • Buffer System and Bumpers – At the ends of the rail tracks, rail gantry cranes are fitted with buffer systems and bumpers to absorb any excess energy or shock if the crane reaches the end of its track. These components ensure the safety of the crane and its surroundings by preventing collisions or structural damage.
  • Slewing Device – For the wire rope drum type hoisting mechanism, the plane slewing mechanism can be composed of wire rope, pulley block, wire rope connection joint and hinge point, rocker arm and support, push rod, etc. For the rigid telescopic lifting mechanism, the spreader can not only rotate in the plane through power, but also float vertically and horizontally (without power) to adapt to the inclination of the upper plane of the container.
  • Anti-swaying Device – If it is necessary to install anti-swaying devices for rail mounted stacking cranes, two forms are generally used: when the lifting mechanism is a wire rope drum type, the anti-sway device is pulled by two diagonal thin steel cables, one end is connected to the corner of the spreader, and the other end is wound to the damping drum. When the trolley or crane starts or brakes, the inertia force of the spreader and the container is transmitted to the damping steel wire rope, its swing energy will be absorbed by damping drum; rigid anti-sway device. It is mainly realized by the rigid lifting frame and guiding device.

To learn more about gantry crane structure, please view this page: https://aicraneliftingsolution.com/gantry-cranes/gantry-crane-structure/

FAQs for Rail Mounted Gantry Crane (RMG)

What is a rail mounted gantry crane?

A rail mounted gantry (RMG) crane is a heavy-duty crane that operates on rails fixed to the ground. It consists of a large structure that spans across multiple rows of containers, enabling the crane to lift and move containers between trains, trucks, and storage areas. Gantry crane on rails is commonly used in intermodal yards, container terminals, and other large industrial facilities where container handling and storage are vital.

These cranes are well-suited for high-throughput environments, where they can handle large volumes of containers with exceptional precision and speed. With their ability to move heavy loads across long distances and their advanced automation features, RMG cranes offer a level of efficiency unmatched by other container handling equipment.

How does an RMG crane differ from an RTG crane?

RMG (Rail Mounted Gantry) cranes operate on a fixed rail system, making them ideal for environments that require precise, heavy-duty operations with fixed paths.

In contrast, RTG (Rubber Tyred Gantry) cranes are equipped with rubber tires, giving them the flexibility to move freely within container yards.

RTG RMG cranes serve different purposes, with RTG cranes offering mobile, flexible container handling in terminals, while RMG cranes are more suited to static, high-capacity operations. Both RMG RTG cranes play critical roles in container handling.

What is the delivery and installation time for an RMG crane?

The delivery time depends on the complexity and customization of the crane. Typically, it takes several months from the order to delivery. Aicrane provides both on-site and online installation guidance to ensure smooth setup and operation.

What are the different power supply options for an RMG crane?

Generally RMG rail mounted gantry cranes are electrically powered, typically using cable reels, conductor bars, or festoon systems. This ensures a stable and energy-efficient operation.

How does anti-sway technology work in an RMG crane?

Anti-sway technology minimizes the swinging motion of the load during lifting and transporting, ensuring precise load placement and enhancing overall safety. It uses sensors and control algorithms to stabilize the crane’s movement.
