In the precast concrete industry, workers need to use gantry cranes and bridge cranes in the yard and in the factory, whether they are handling finished precast elements or bagged premixes. Cranes play a central role in the productivity and efficiency of precast facilities, so choosing the right crane for your precast plant and yard is absolutely necessary. Read on to learn about our different crane solutions for your precast concrete industry.

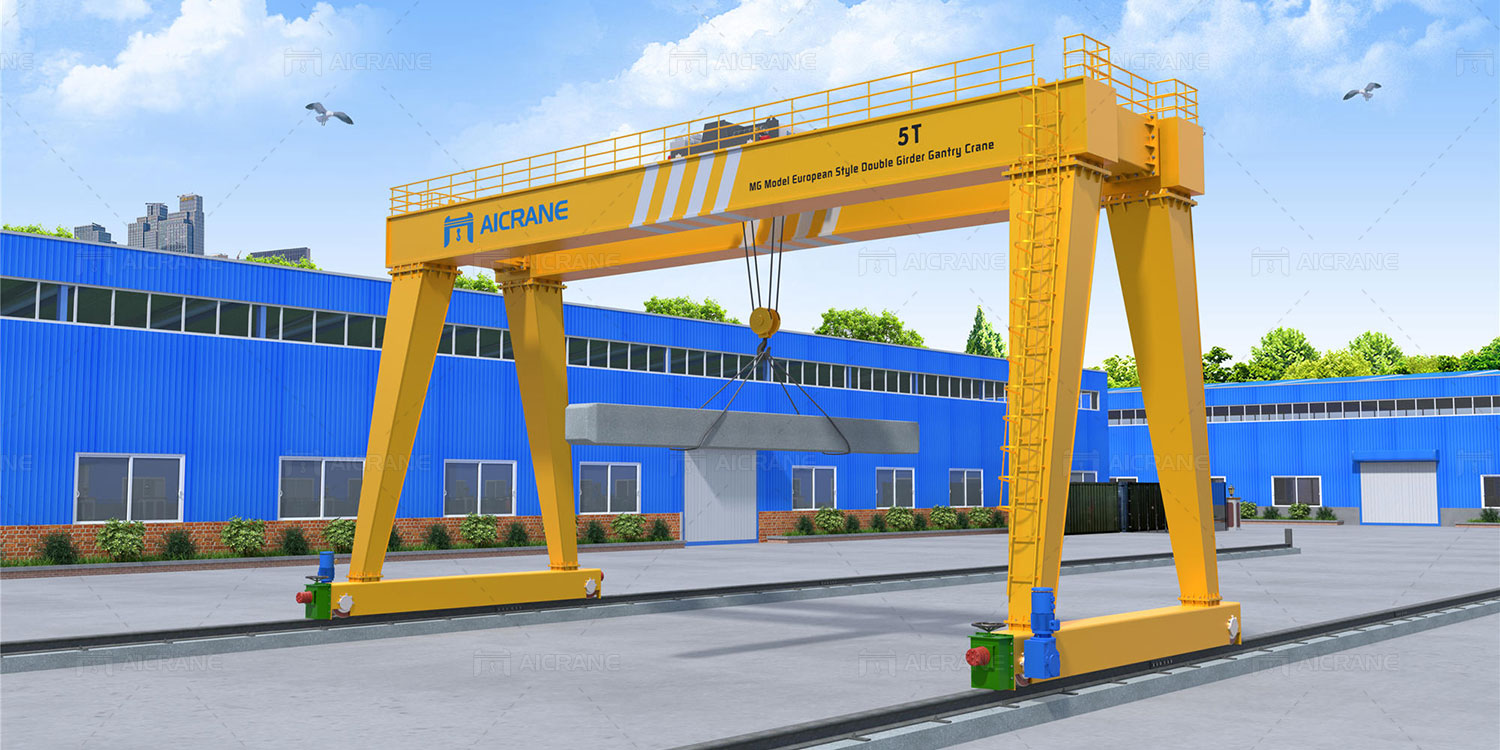

Aicrane Gantry Crane Solution For Precast Concrete Industry
Aicrane Custom Lifting Solutions For The Precast Concrete Industry
Aicrane provides customized precast concrete lifting solutions for various application scenarios and different material hanlding in the precast concrete industry. During the production, storage, internal transport, transfer and construction of precast concrete elements, Aicrane supplies different types of cranes to meet its lifting needs: overhead cranes, gantry cranes and rubber-tyred gantry cranes. Learn about the different crane solutions below.
1. Gantry Cranes for Handling Precast Concrete Elements
Aicrane single and double girder gantry cranes are a great choice for handling prefabricated products including concrete pipes, concrete slabs, concrete precast panels, steel and sheet piles, concrete piles, wall panels, core panels, etc. In the precast yard, you can use two gantry cranes to lift the precast beams, or you can lift the precast beams with a single gantry crane, equipped with double hoists.

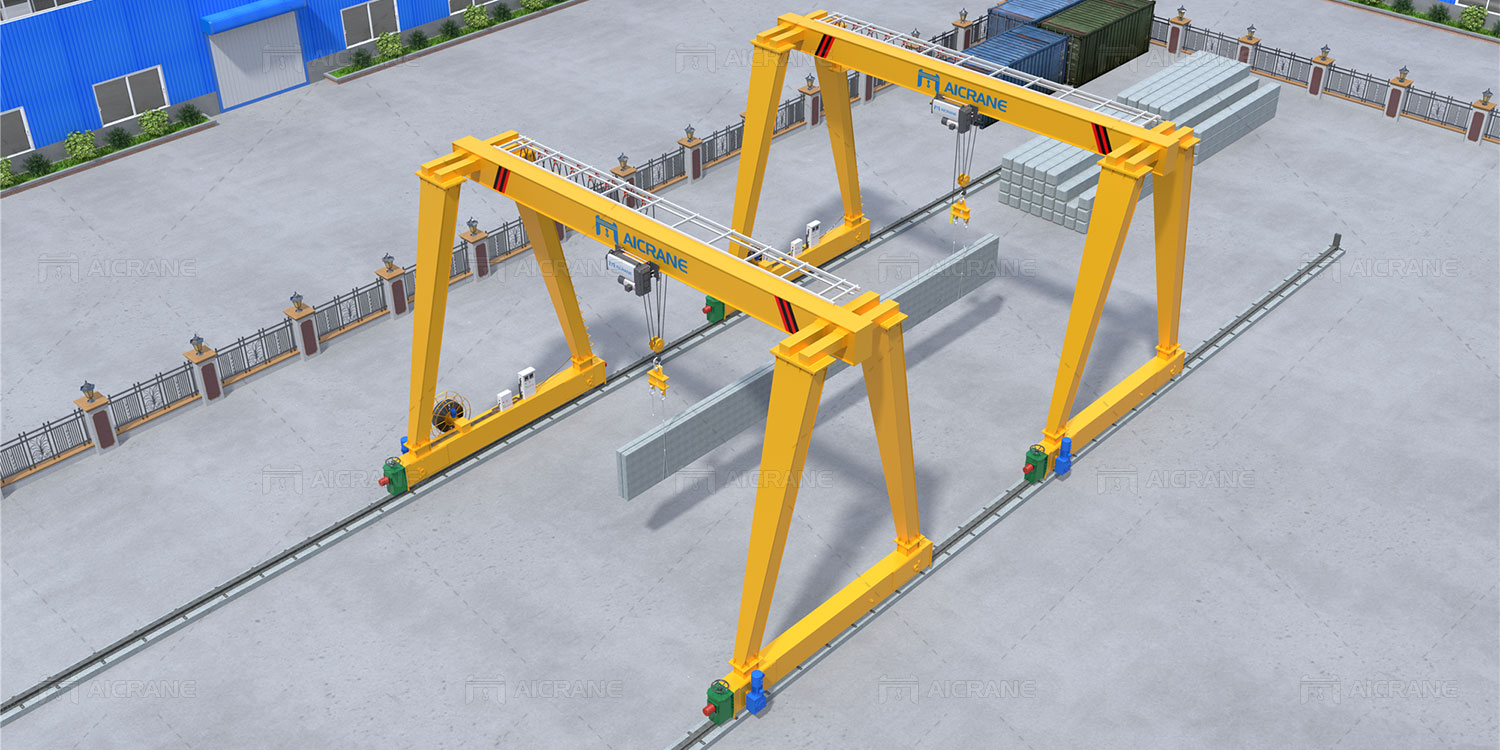

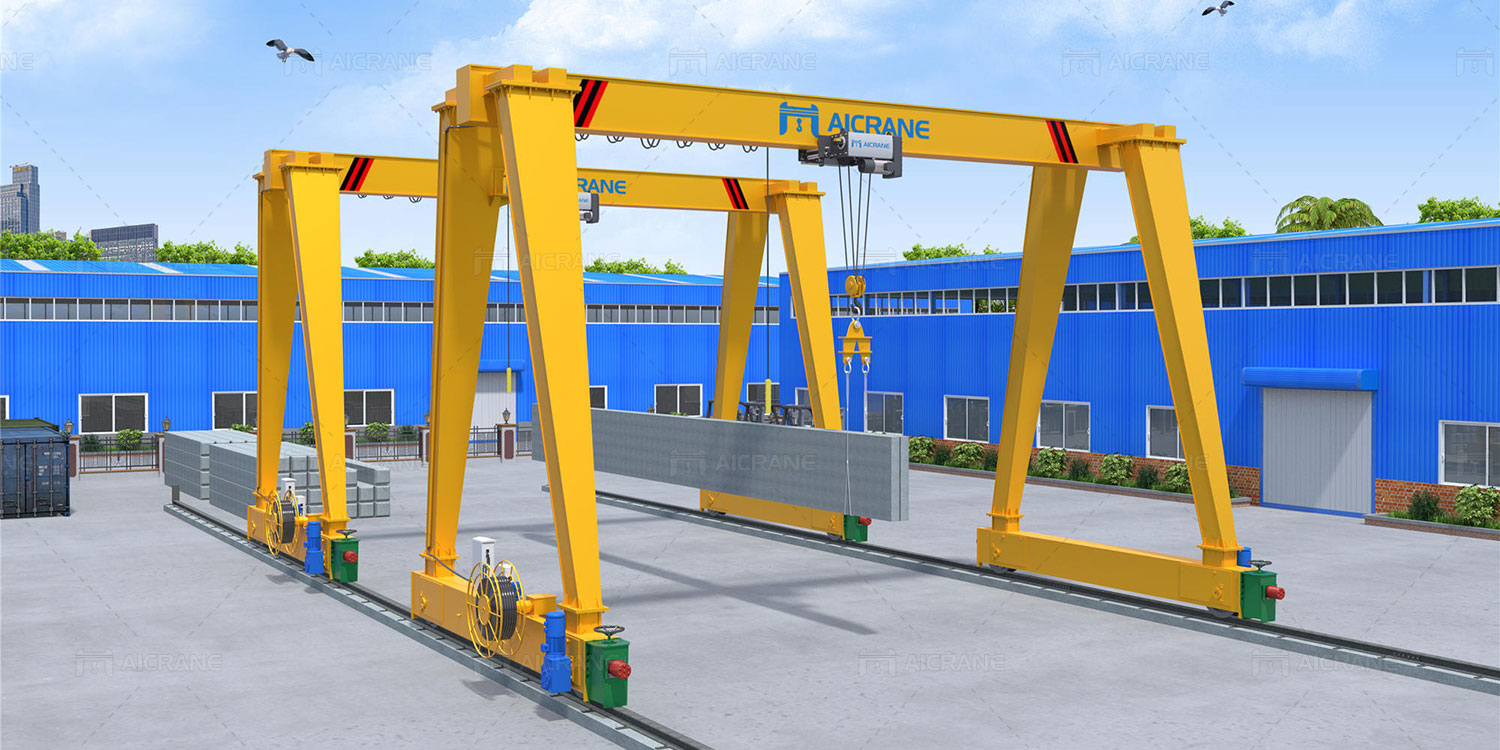

- Two single-girder gantry cranes jointly handle long concrete beams.

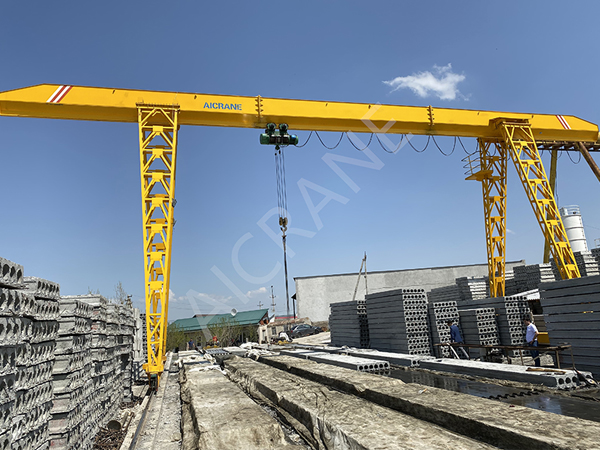

Aicrane AQ-MH single girder 10 ton gantry cranes are installed in our customer’s precast yard in Uzbekistan. The 10T gantry cranes in the precast yard are mainly used to lift and move prefabricated beams from the beam making platform to the beam storage position. With the gantry cranes, the production efficiency of the prefabrication yard is greatly improved!

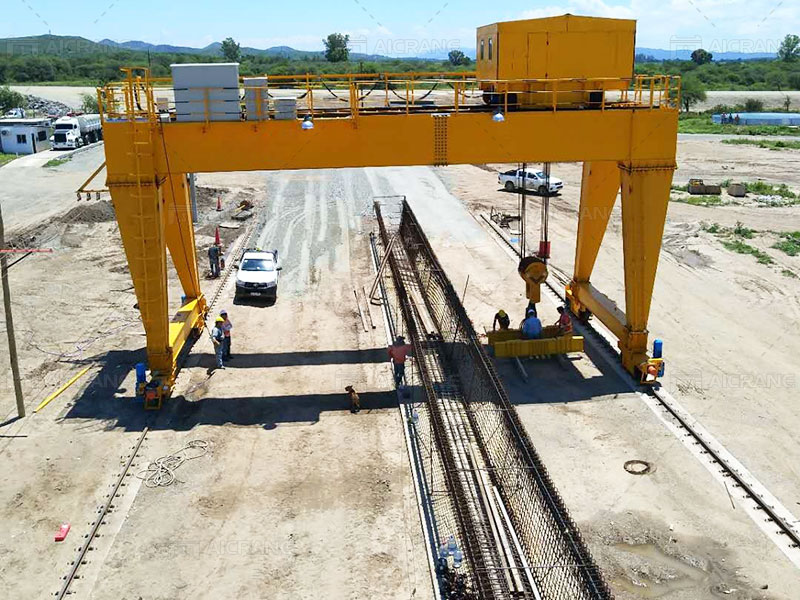

Two 70-ton double girder gantry cranes are used to lift reinforced concrete beams in Argentina. The customer's business is to make reinforced concrete beams in the prefabricated beam yard, and then these fabricated concrete box beams will be transported to the construction site for bridge construction.

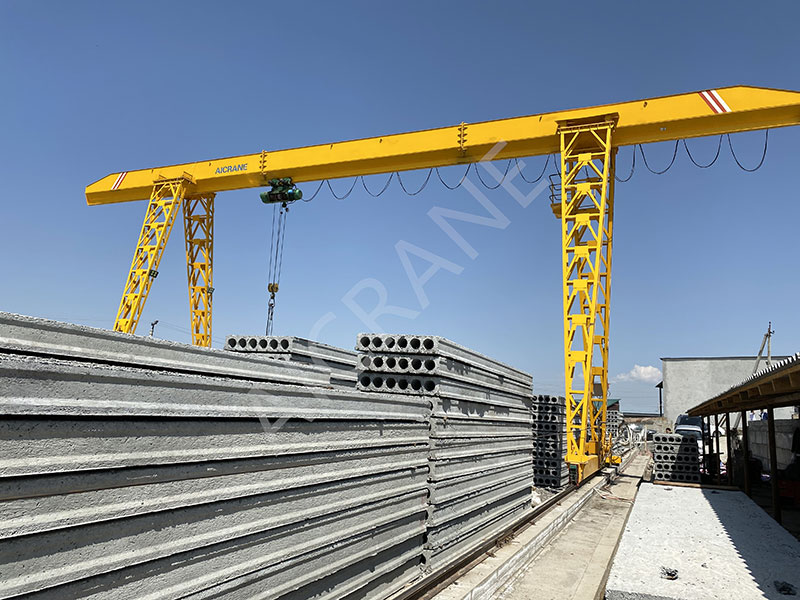

Working Video of The 10T Precast Concrete Gantry Crane in Uzbekistan
Watch the video below to see how an Aicrane 10-ton gantry crane works at a customer’s precast concrete yard in Uzbekistan:
AQ-MH Single Girder Gantry Cranes Parameters
- Span: 8-35m
- Lifting height: 6-18m
- Lifting speed: 0.33-8m/min
- Hoist running speed: 20m/min
- Crane running speed: 20m/min
- Work duty: A3, A4
Cost-effective single-girder gantry cranes for your precast concrete yard!
AQ-MG Double Girder Gantry Cranes Parameters
- Span: 18-35m
- Lifting height: 6-18m
- Lifting speed: 1.5-11.5m/min
- Trolley running speed: 10-40.1m/min
- Crane running speed: 16-50m/min
- Work duty: A3-A7
We can custom design and manufacture double girder gantry cranes for your precast concrete industry!

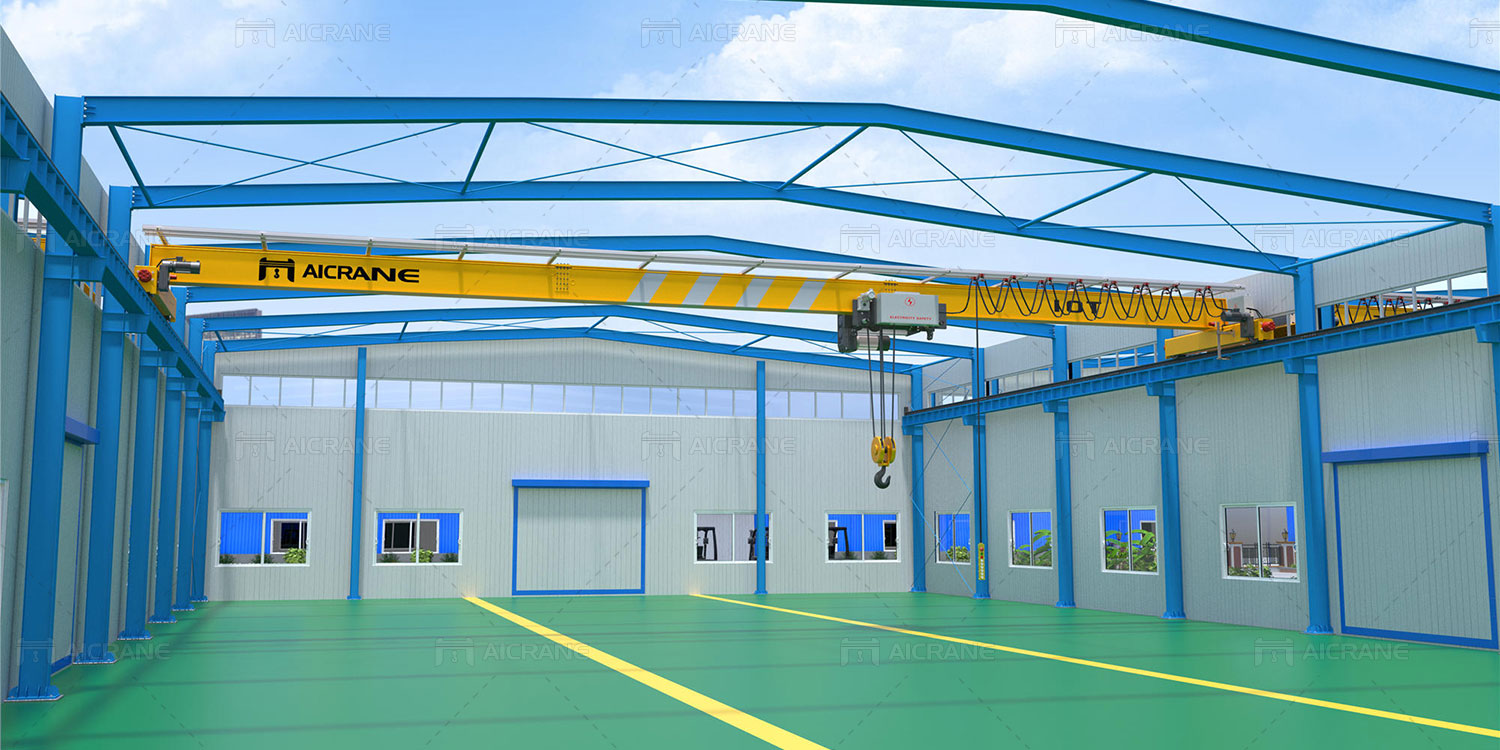

2. Overhead Cranes For Precast Plant
Aicrane single and double girder overhead cranes can be used for mass production of precast concrete parts in precast plants. Our overhead crane equipment is able to meet the various production needs of precast plants, from lifting raw materials in the plant to transferring concrete components for storage and shipment.
Technical Parameters of Precast Plant Overhead Cranes
For your precast plant, Aicrane offers a wide range of overhead crane products to choose from: single girder overhead cranes, double girder overhead cranes, European standard overhead cranes, etc. Check out some of the overhead crane parameters listed below:

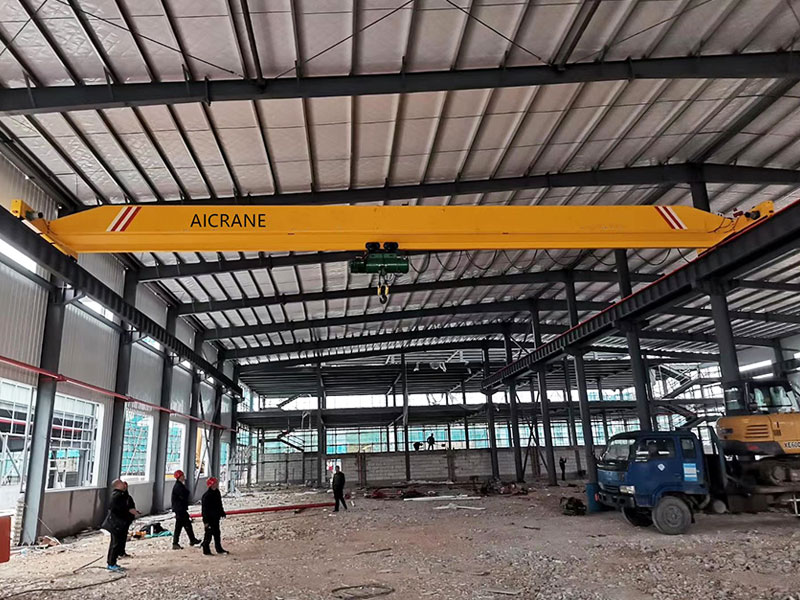

AQ-LD Single Girder Overhead Crane
- Span: 7.5-31.5m
- Lifting height: 6-30m
- Lifting speed: 0.3-8m/min
- Hoist running speed: 20m/min
- Crane running speed: 20m/min
- Work duty: A3, A4

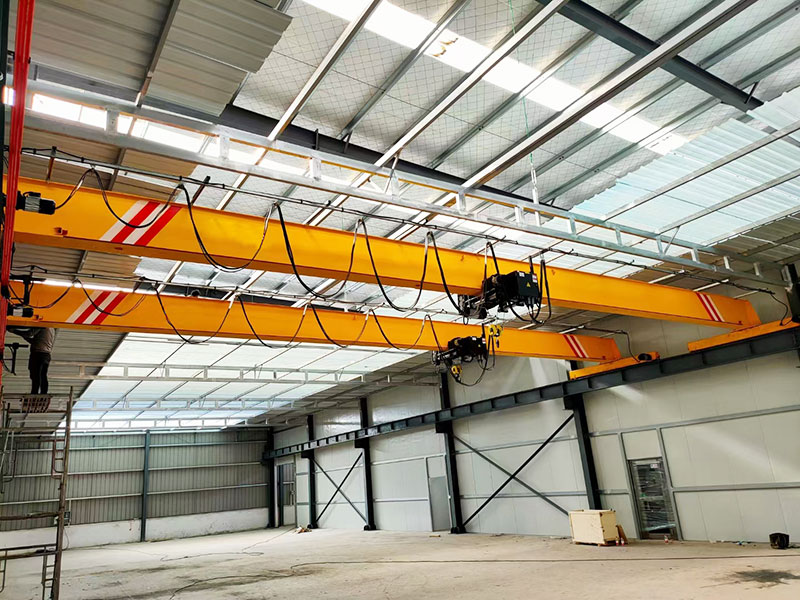

AQ-HD European Type Single Girder Crane
- Span: 7.5-28.5m
- Lifting height: 6-18m
- Lifting speed: 0.8/5m/min
- Hoist running speed: 2-20m/min
- Crane running speed: 3-30m/min
- Work duty: A5

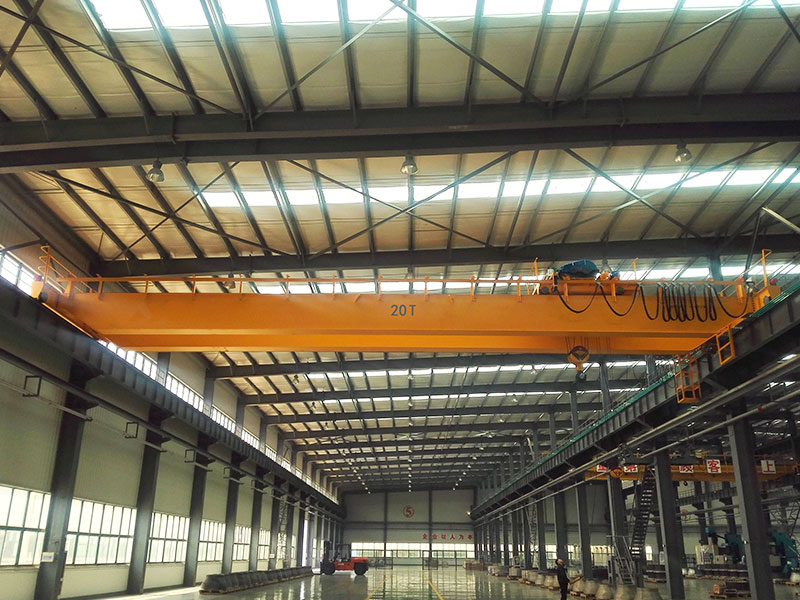

AQ-QD Double Girder Overhead Crane
- Span: 10.5-31.5m
- Lifting height: 6-24m
- Lifting speed: 2.1-11.5m/min
- Trolley running speed: 27-40m/min
- Crane running speed: 42-75m/min
- Work duty: A3-A7

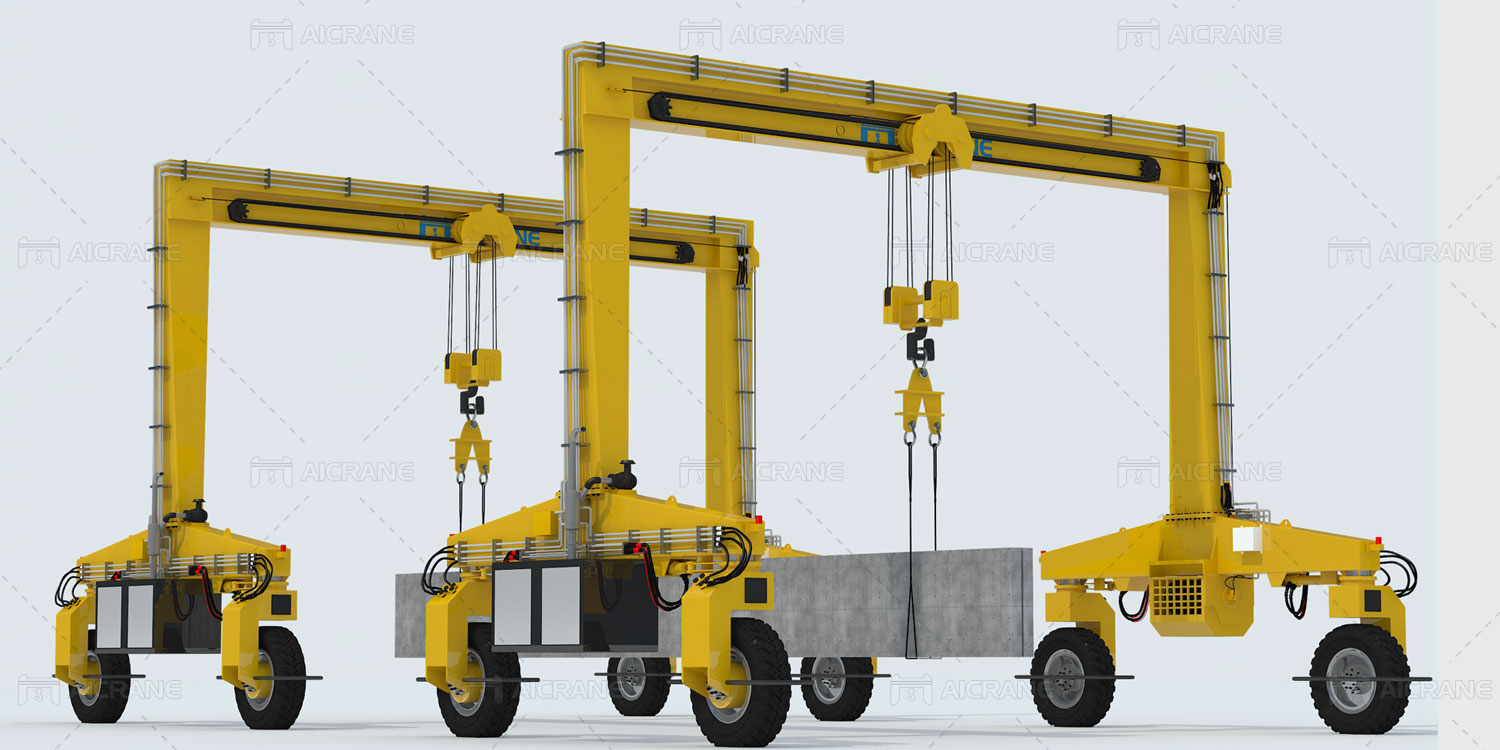

3. Rubber Tyred Gantry Cranes For Concrete Beam Lifting
We design and manufacture a full range of standardized and customized industrial rubber tyred gantry cranes for the precast industry, road and bridge construction, etc. When you need to lift and move precast concrete beams, concrete pipes, concrete slabs, concrete precast panels, etc., in open spaces and don’t want to be limited by fixed rails, Aicrane rubber tyre gantry crane is your flexible, economical and practical choice!

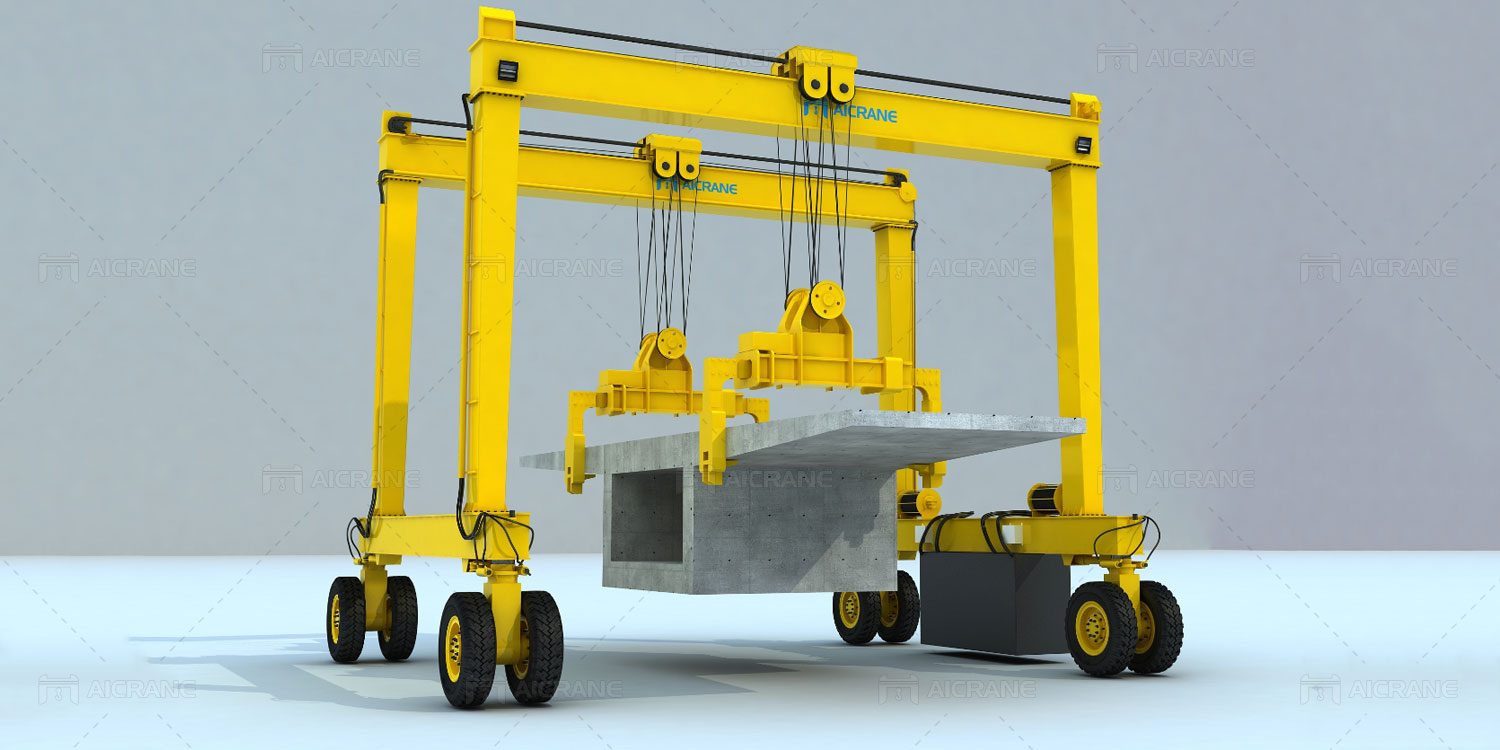

Rubber Tyred Gantry Crane For Bridge Construction
Aicrane rubber tyred gantry crane for the precast industry is available in different types and configurations to meet your working requirements: single beam, double beam, electric and hydraulic drive.
Our rubber tire gantry cranes for bridge construction are designed with different steering modes to suit different working conditions:
Straight movement, 90-degree lateral movement, oblique movement, pivot steering, Ackerman steering, forward swing and retral swing.
How To Select The Right Crane For Your Precast Concrete Industry
- First, the capacity, span and lifting height of the crane are always critical specifications. This ensures that the load can be safely lifted.
- Second, the below-the-hook attachments are also important. Depending on the shape of the product you want to lift, there are different lifting attachments under the hook to help you lift the components safely and effectively.
- Third, you need to consider where to install the crane, whether it is in an outdoor yard or in a facility. According to the installation position of the crane, you can choose overhead bridge crane or gantry crane.
- Finally, working with a reliable lifting equipment manufacturer is a must. Cooperating with overhead crane manufacturers who are already familiar with the special needs of the precast concrete industry is obviously the most effective. In addition, the reliable manufacturer also saves you from worrying about after-sales problems.
Aicrane Service And Support Team At Your Service
Over the years, Aicrane has always been committed to providing customers with the most cost-effective lifting solutions for their industries and applications, and multi-department collaboration ensures that they provide customers with professional and thoughtful services.
- The company’s engineer team has been strictly selected, with mechanical certificates and related professional certificates, and has rich experience in crane design. According to the actual working conditions and budget of customers, they can provide customers with overall solutions in a timely manner and tailor-made reasonable configurations to meet customers’ comprehensive requirements for crane efficiency, safety and economy.
- The after-sales service team is always customer-centric and responsible for the entire order process. They update production and delivery progress in a timely manner, support online or offline on-site installation, user training, etc. In addition, the company has set up overseas branches or offices in Pakistan, Uzbekistan, the Philippines, Indonesia, Malaysia and other countries to provide customers with convenient services.
- Aicrane Engineer Team
Contact Us For A Customized Crane Solution For Your Precast Industry!
If you expect your precast yard or plant to boost productivity with overhead and gantry cranes, please contact us for a customized solution. You can fill out the contact form below, email us or WhatsApp us with the crane’s parameters and your project information. After receiving your inquiry, our crane experts will contact you as soon as possible, and provide you with professional services!
