Aicrane designs and manufactures single girder gantry crane for various sectors and industries such as manufacturing, precast concrete plants, power plants, construction sites, scrap yards, steel yards, logistics, etc., providing a cost-effective lifting solution for both indoor and outdoor applications. At our company, you can find different styles of single girder gantry cranes for your unique application, such as full-gantry, semi-gantry and mobile gantry cranes. Apart from the standard gantry cranes for general use, we also provide custom designed and built cranes to meet all your special requirements.
Our Single Girder Gantry Crane Cases for Different Industries
Check out our single girder gantry crane cases to see how our solutions have helped our clients achieve their goals.

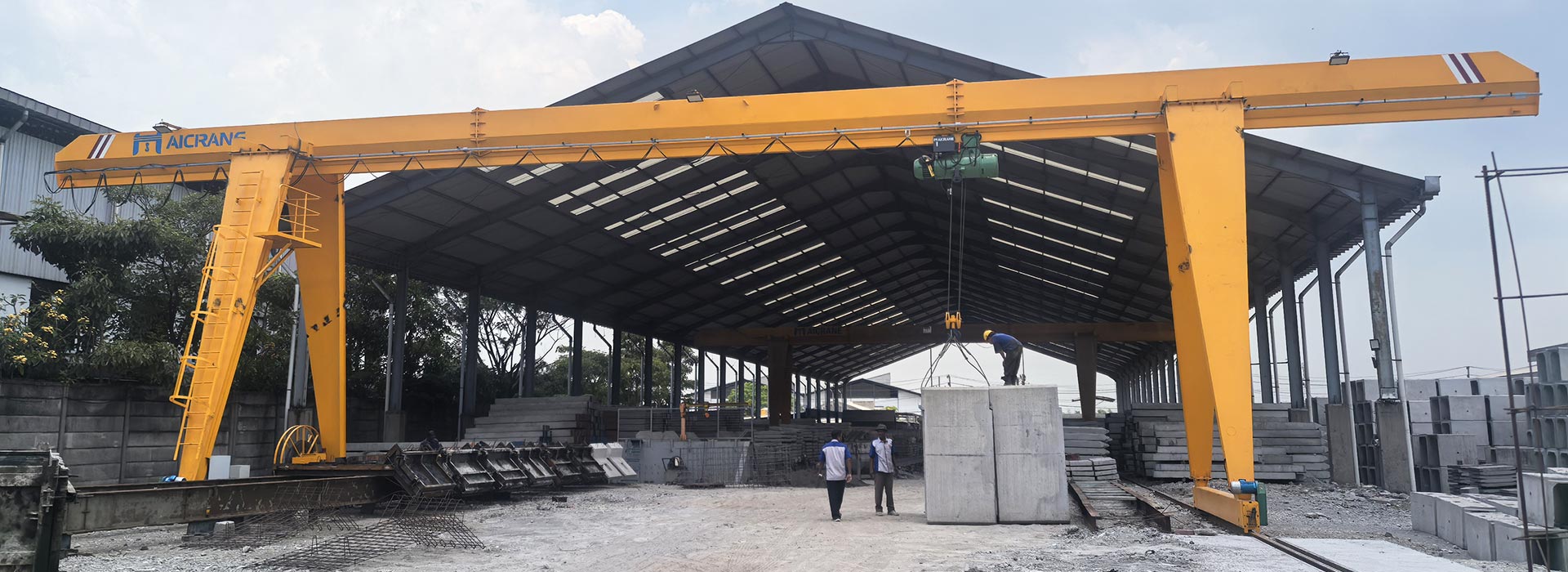

Single Girder Gantry Cranes for the Manufacturing Industry
Single girder gantry cranes are commonly used in manufacturing industries for a wide range of tasks, including lifting and moving heavy materials and products, supporting the assembly process in manufacturing, transporting goods within a facility, and loading and unloading trucks and shipping containers.

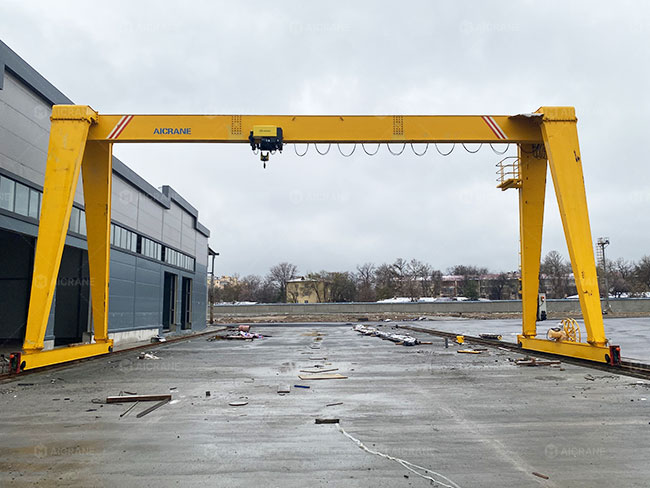

This gantry crane was installed outside the customer’s manufacturing workshop in Uzbekistan for loading, unloading and stacking of products. This is a European standard gantry crane with a span of 19.4m, a lifting height of 8m and work duty of A5. Compared with ordinary gantry cranes, it has more compact and beautiful structure, more stable operation and higher working level.

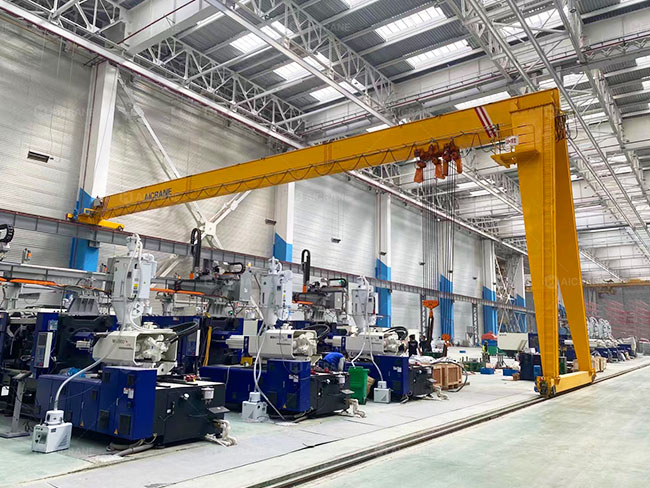

These single girder semi gantry cranes were installed in the manufacturing plant to lift and position large components into place during the manufacturing process, helping to speed up the assembly process and reduce the need for manual labor. The specifications of the cranes include: span 34m, lifting height 8.72m, work duty A5, double electric chain hoists, and wireless remote control.

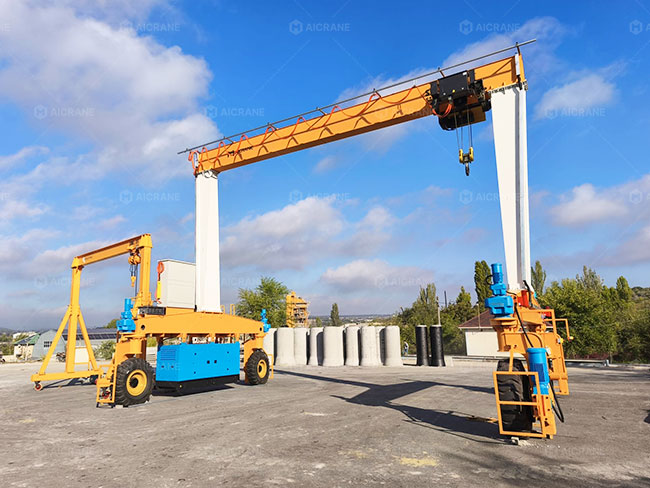

Single Girder Gantry Cranes for Precast Concrete Plants
Single girder gantry cranes can be used in precast concrete plants for lifting, moving and storing precast concrete elements. Precast concrete elements are usually prefabricated off-site and then transported to construction sites for installation. The use of gantry cranes in precast concrete plants facilitates the movement of these heavy and bulky elements, which can weigh several tons.
This 20 ton gantry crane is used in the customer's prefabrication plant to lift steel bars and concrete products. The specifications of the 20t single girder gantry crane include: span 32m, lifting height 15.6m, effective cantilever length 8+14m, remote control and cabin control.
This gantry crane was installed in the precast concrete yard to lift, move and stack the finished precast concrete elements. The specification of the gantry crane includes: 16m span, work duty A4, truss legs and wireless remote control.
This 16 ton gantry crane in Indonesia is used to lift and transport concrete precast elements from one location to another, such as from the casting bed to the curing area, or from the curing area to the storage area. It is also used for loading and unloading precast elements from trucks and other vehicles. The specifications of this 16 ton gantry crane in Indonesia include: span 12m, lifting height 5m, cantilever length 4m+4m, work duty A3, pendant control and remote control.
Single Girder Gantry Cranes for Power Plants
Single beam gantry crane is widely used in power plants for heavy lifting and transportation of equipment, materials, and components. Power plants often have large, heavy machinery and components that need to be lifted and moved during construction, maintenance, and repair activities.

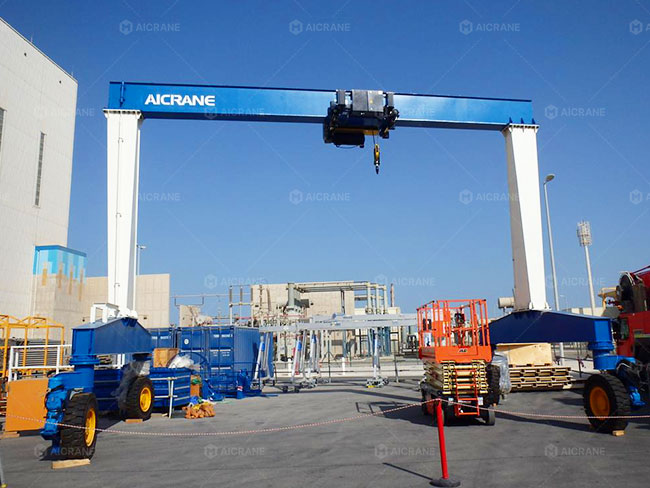

- 10 ton single beam rubber tyred gantry crane for a nuclear power plant in the United Arab Emirates: This electric single beam rubber tyred gantry crane in UAE is used to maintain and repair valves in the nuclear power plant. In this case, the operation mode of the mobile gantry crane is straight forward and reverse.
Single Girder Gantry Cranes for Warehousing and Logistics
Single girder gantry cranes are a popular choice for warehousing and logistics applications because they provide an efficient way to move heavy loads in and out of warehouses, shipping yards, or storage facilities.
- A 10-ton single girder gantry crane installed at a logistics station in Uzbekistan: This 10 ton gantry crane is used in the logistics station to load and unload goods from the train. It is designed with single cantilever that can provide additional reach to the crane, allowing it to lift and transport loads at the cantilever end.
The Different Types Of Single Girder Gantry Cranes at Aicrane
Aicrane is committed to providing customers with the most efficient and economical single girder gantry crane solutions and comprehensive services. You can choose the right one from our wide range of gantry cranes, including AQ-MH single girder gantry cranes, AQ-NMH European European gantry cranes, AQ-BMH semi-gantry cranes and rubber tyred gantry cranes.
Our single girder gantry cranes have different capacities for customers to choose, such as 5 ton, 10 ton, 15 ton, 20 ton, 30 ton, 50 ton, 100 ton gantry cranes and more, depending on the type of single girder goliath crane. However, if you have any other specific needs for its span, load capacity or lifting height, you can let us know and we can tailor it for you.

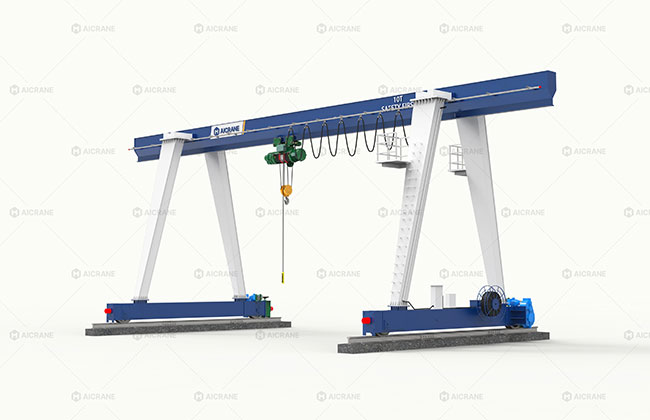

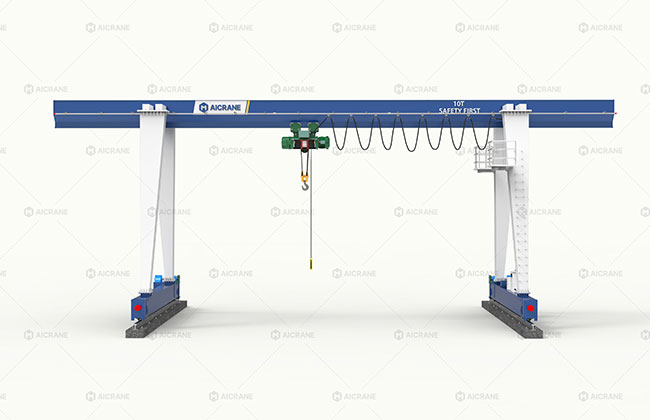

AQ-MH General Type Single Girder Gantry Cranes
The AQ-MH series is our standard configuration, a cost-effective choice for your business! It is simple in structure, easy to use and install, and low in operation and maintenance costs, so if you work on a tight budget, you can choose our AQ-MH series.
| Model | AQ-MH |
|---|---|
| Load capacity | 3-20t |
| Span | 8-35m |
| Lifting height | 6-18m |
| Lifting speed | 0.33-8m/min |
| Hoist running speed | 20m/min |
| Crane running speed | 20m/min |
| Work duty | A3, A4 |
| Custom designs available | |

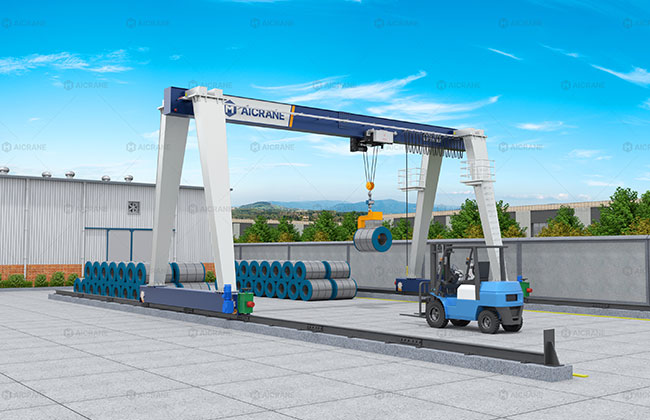

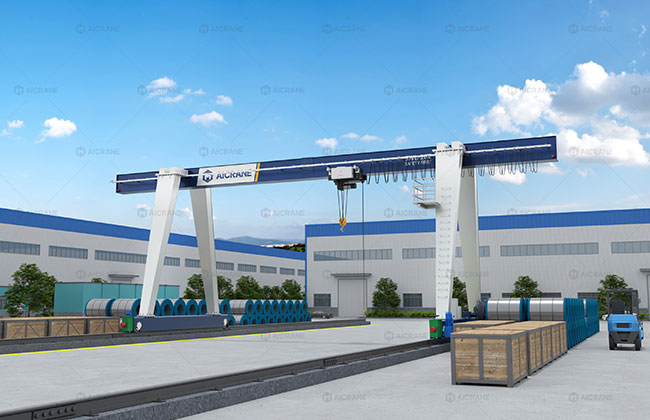

AQ-NMH European Standard Single Girder Cranes
If you have higher requirements on the use and operation of single-girder gantry cranes, Aicrane AQ-NMH European standard gantry crane is your better choice! It adopts frequency conversion running and double-speed lifting, which is more stable in operation and is more suitable for occasions requiring fine work.
| Model | AQ-NMH |
|---|---|
| Load capacity | 3.2-20t |
| Span | 8-35m |
| Lifting height | 6-12m |
| Lifting speed | 0.66-5m/min |
| Hoist running speed | 2-20m/min |
| Crane running speed | 3-30m/min |
| Work duty | A5 |
| Custom designs available | |
AQ-BMH Single Girder Semi Gantry Cranes
According to the needs of the production environment, when the choice of a single girder overhead crane or gantry crane is not practical in your facility, semi-gantry crane is also a great choice. In addition, according to your requirements, the semi-gantry crane can be of ordinary type or European standard.
| PARAMETERS OF AQ-BMH European Standard | |
|---|---|
| Load capacity | 3.2-20t |
| Span | 8-30m |
| Lifting height | 6-18m |
| Lifting speed | 0.66-5m/min |
| Trolley running speed | 2-20m/min |
| Crane running speed | 3-30m/min |
| Work duty | A5 |
| Custom designs available | |

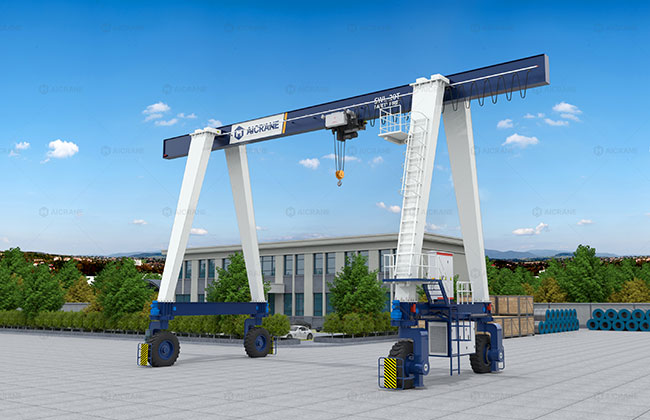

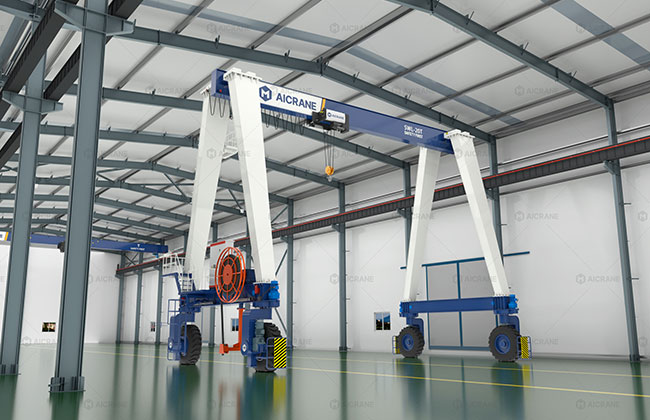

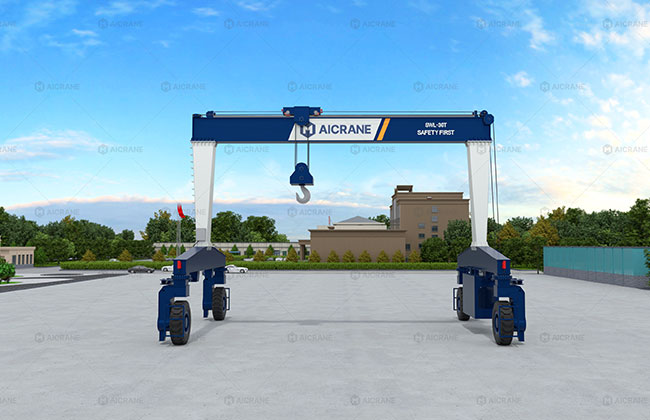

Single Beam Rubber Tyred Gantry Cranes
In addition to the above single girder gantry cranes running along fixed tracks, Aicrane also designs and manufactures a variety of mobile single beam rubber tyred gantry cranes for all industrial applications, such as precast concrete, warehousing and logistics, wind energy, tunnel construction, road and bridge construction, power plants, shipyard, etc.
Our single-beam rubber tired gantry cranes for industrial applications can be customized in width and height to suit the loads that need to be moved. Different steering systems enable the crane to perform various operations, such as straight travel, 90-degree lateral movement, oblique movement, pivot steering, Ackerman steering, forward swing and retral swing etc., to maximize the use of the available space.
| Model | RTG |
|---|---|
| Load capacity | 5-500t |
| Span | 5-35m |
| Lifting height | 6-18m |
| Lifting speed | 1-10m/min |
| Trolley running speed | 2-20m/min |
| Crane running speed | 3-30m/min |
| Work duty | A3-A5 |
| Custom designs available | |
Additional Components For Single Girder Gantry Cranes
The reason we can customize single girder gantry cranes for you is that our crane designs are very flexible. If you buy a single girder gantry crane from us, various additional components can be added to the crane to enhance its functionality and safety. Some of these components include:
- Hoist: It is an essential component of a hoist gantry crane and can be either an electric wire rope hoist or an electric chain hoist. It can also be equipped with two hoists that can work together to lift a single large load or can be used independently to lift two smaller loads at the same time.
- Control System: Our single girder gantry cranes can be equipped with pendant control, remote control or cabin control. The wireless remote control allows the operator to control the crane from a distance. This can improve safety and efficiency by allowing the operator to move around the worksite and have a better view of the load being lifted. Cabin is located on the gantry crane structure itself. The operator sits in the cab and controls the movement of the crane using various controls and switches.
- Maintenance Platform: A maintenance platform provides a safe and convenient workspace for technicians to perform maintenance and repairs on the crane. The single girder gantry crane can comprise typical access ladders, maintenance walks and hoist trolley maintenance platforms.
- Safety devices: Safety devices are essential components of a single girder gantry crane. They include limit switches, overload protection devices, emergency stop buttons, and warning horns.
- Weather protection: Weather protection components such as canopies, enclosures, and heaters can be added to a single girder gantry crane to protect it from environmental elements and ensure safe operation in all weather conditions. Optional rail clamp can lock the outdoor gantry crane to prevent damage in stormy conditions. Outdoor package with wind safety system can monitor outdoor operation.
- Variable Frequency Drive (VFD): A VFD is an electronic device that controls the speed and torque of the crane’s motor. This can help to improve energy efficiency and reduce wear and tear on the crane’s components.
- Anti-collision systems: Anti-collision systems are used to prevent collisions between multiple cranes operating in the same area. They use sensors and warning devices to alert the crane operators.

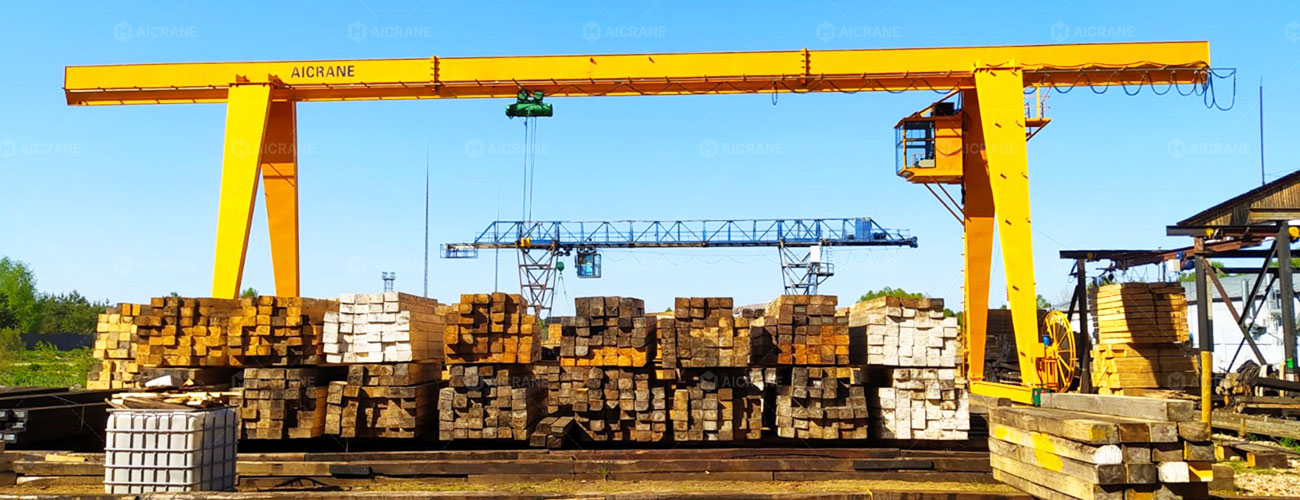

How Much Is a Single Girder Gantry Crane?
The cost of a single girder gantry crane can vary widely depending on several factors such as its lifting capacity, span, height, and features such as hoists, controls and safety devices. Additionally, the single girder gantry crane prices can also vary depending on the manufacturer, supplier, and location. For example, a basic single girder gantry crane with a lifting capacity of 5 tons can cost anywhere from $10,000 to $35,000 USD. However, larger and more complex gantry cranes with higher lifting capacities and longer spans can cost significantly more.
Below are the rough prices of our single girder gantry cranes with different lifting capacities and spans for your reference:
AQ-MH Single Girder Gantry Crane Prices:
| Capacity | Span | Lifting Height | Price (USD) |
|---|---|---|---|
| AQ-MH 5 Ton | 10.5-31.5m | 6-18m | $10,000-$29,000 |
| AQ-MH 10 Ton | 10.5-31.5m | 6-18m | $14,000-$41,000 |
| AQ-MH 20 Ton | 10.5-31.5m | 6-18m | $22,000-$52,000 |
AQ-NMH Single Girder Gantry Crane Prices:
| Capacity | Span | Lifting Height | Price (USD) |
|---|---|---|---|
| Single Girder 5 Ton | 10.5-31.5m | 6-12m | $14,000-$35,000 |
| Single Girder 10 Ton | 10.5-31.5m | 6-12m | $19,000-$43,000 |
| Single Girder 20 Ton | 10.5-31.5m | 6-12m | $29,000-$62,000 |
If you would like accurate gantry crane cost, please contact us.
Selection Guide for Single Beam Gantry Cranes
Are you considering purchasing one or multiple single girder gantry cranes but don’t know which one is best for your business? Don’t worry, Aicrane is here to help.
When you talk to single girder gantry crane manufacturers, it’s a good idea to provide as much information about the crane as possible so that the gantry crane manufacturer can recommend the right crane and provide you with an accurate quote.
Here is a selection guide for single girder gantry cranes:
- Capacity: The capacity of the crane should be selected based on the maximum weight of the loads that will be lifted. It is important to consider both the maximum weight and the frequency of the loads being lifted.
- Span: The span is the distance between the legs of the crane. It should be selected based on the dimensions of the area where the crane will be used.
- Height: The height of the crane should be selected based on the maximum lift height required for the loads. It is also important to consider the height of the area where the crane will be used.
- Duty Cycle: The duty cycle is the frequency and duration of use of the crane. It should be selected based on the expected usage of the crane. Heavy duty gantry cranes require more robust components to withstand the increased wear and tear.
- Environment: The environment where the crane will be used should be considered when selecting the crane. This includes factors such as temperature, humidity, corrosive materials, and hazardous substances.
- Controls: The type of controls on the crane should be selected based on the operator’s preference and the requirements of the application. This includes options such as pendant control, radio remote control, or cabin control.
- Safety Features: It is important to consider safety features such as anti-collision systems, limit switches, and emergency stop buttons to ensure safe operation of the crane.
Overall, selecting the right single girder gantry crane for your business requires careful consideration of several factors to ensure that the crane meets the specific needs of your application while providing safe and efficient operation. If you are investing in a gantry crane, contact Aicrane today to discuss the right gantry crane solution for your business!
Aicrane Factory And After-Sales Service
Aicrane is a leading lifting equipment manufacturer and supplier in China, integrating crane design, manufacturing, sales, installation and after-sales service. The company adopts advanced production equipment, lean management mode and strict quality control system to provide customers with high-quality lifting equipment.
How do you provide after-sales service? This is a concern of many customers. In fact, Aicrane has a professional after-sales service team to provide timely and comprehensive after-sales service to customers around the world. In addition, the company also has branches and overseas offices in Malaysia, Indonesia, the Philippines, Uzbekistan and more, which can provide faster and better services to local customers.
- Installation service – we can send a professional installation team to the site to guide customers to install and debug the crane.
- 1-year warranty – our warranty period is 1 year. If there is a failure or component damage caused by quality problems within 1 year, our company is responsible for providing free replacement parts.
- Spare parts service – we will provide customers with wearing parts for one-year use, so as to ensure that when there is a problem with the equipment, it can be solved as soon as possible.
- 24/7 service – we can provide 7*24 online service and lifelong service support.
Interested in our single girder gantry cranes or want to get a quote? Contact us today!
