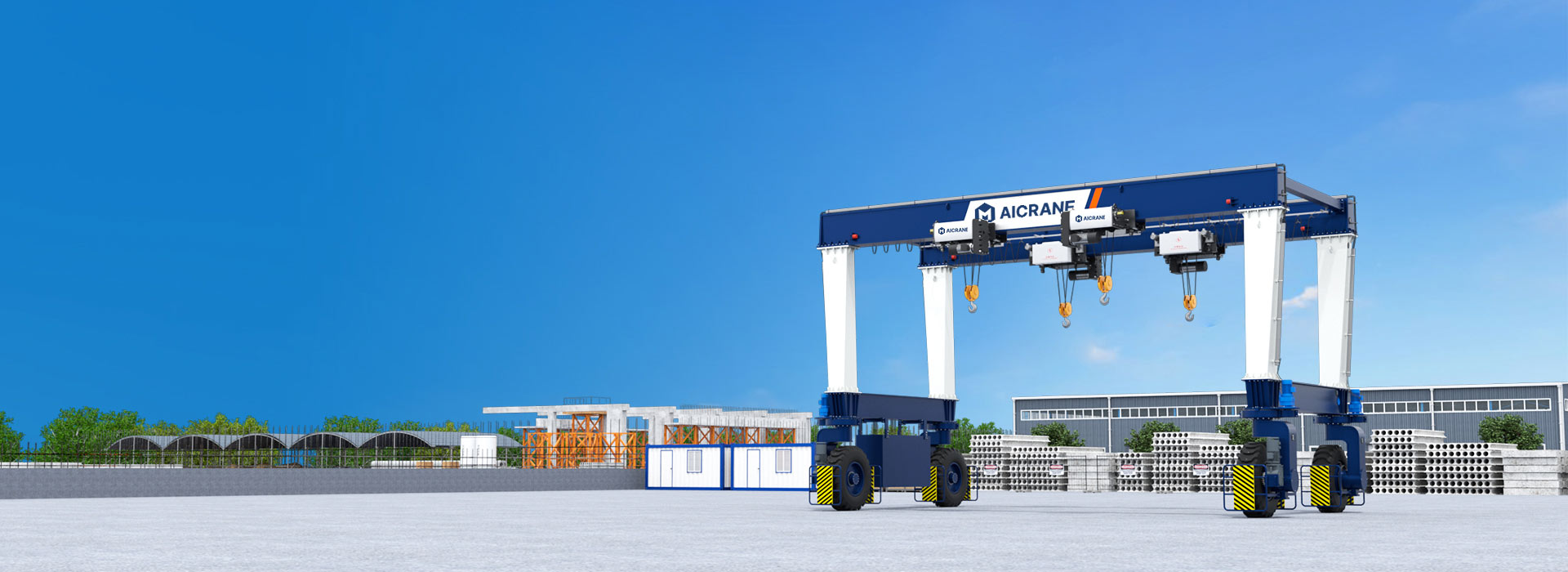

Aicrane offers mobile gantry cranes with lifting capacities from 10 to 800 tons and beyond, equipped with rubber tires for smooth, flexible movement across any terrain. Each crane is custom-designed with modular structures, versatile spreaders, and multiple power options – to perfectly match your lifting needs. Moreover, featuring intelligent control and anti-sway technology, our cranes ensure safe, precise, and efficient operation. Trusted by Fortune 500 companies worldwide, Aicrane delivers reliable and tailored lifting solutions built just for you.
Mobile Gantry Crane Types: Modular Structures for Different Applications
Aicrane mobile gantry crane for sale offers modular structural options tailored to various lifting needs. Each type, including single beam, double beam, A-frame and U-frame, features distinct design advantages, capacity ranges, and working environments, ensuring you get the right gantry crane for your project.

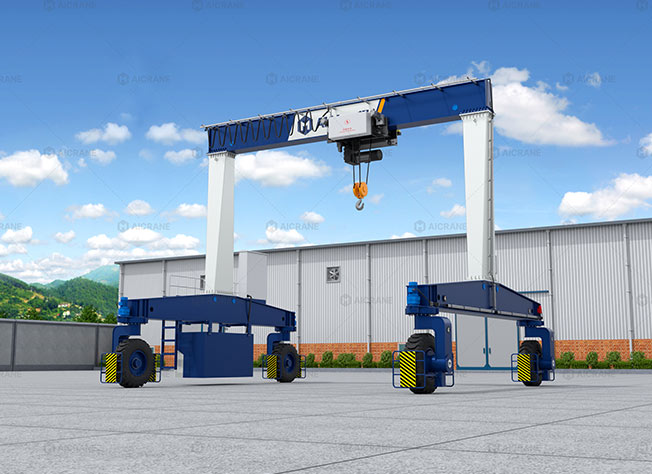

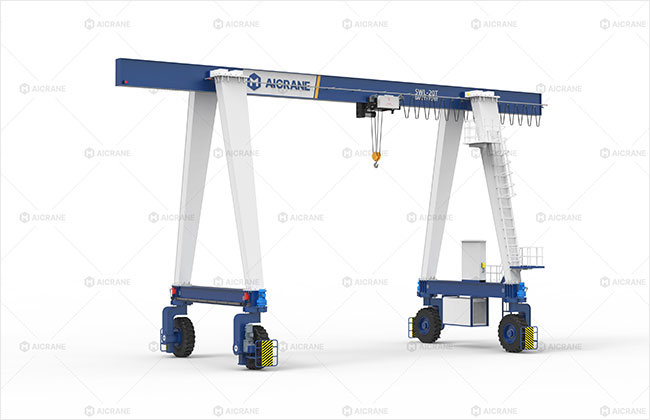

Single Beam Mobile Gantry Crane: for Light Loads
Single beam design is a small mobile gantry crane and is highly adaptable for light to medium-duty lifting tasks such as workshop handling, maintenance tasks or small yard operations.
- Lifting capacity: 10-150t
- Span: 5-20m (customizable)
- Lifting height: 6-12m (customizable)
- Mobility: Straight-line travel, 90° sideways steering, diagonal (45°) steering, spot rotation (pivot turn), Ackermann steering

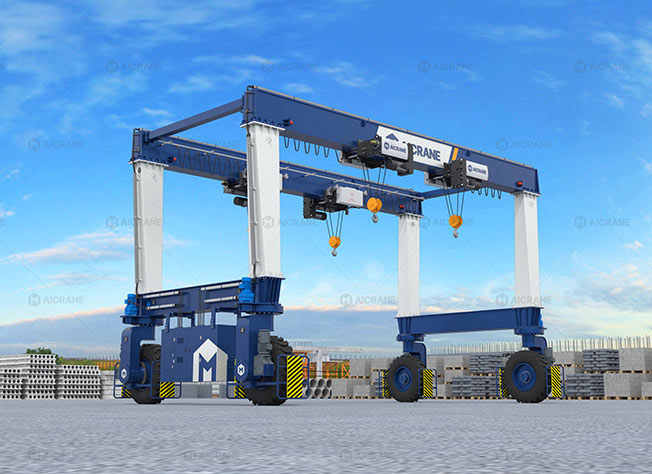

Double Beam Mobile Gantry Crane: for Heavy-Duty Lifting
Double-beam configuration is designed for heavier lifting requirements. Featuring two parallel beams, this heavy duty mobile gantry crane provides better stability and load distribution, allowing for the lifting of heavy loads across longer spans.
- Lifting capacity: 20-500t
- Span: 5-30m (customizable)
- Lifting height: 6-30m (customizable)
- Mobility: Straight-line travel, 90° sideways steering, diagonal (45°) steering, spot rotation (pivot turn), Ackermann steering
A Frame Mobile Gantry Crane: Offers Excellent Stability
The mobile a frame gantry is an extremely versatile solution that can handle both light and heavy-duty loads depending on the specific requirements. It features excellent stability due to rigid triangular design, and high clearance for lifting tall or bulky loads.
- Lifting capacity: 20-500t
- Span: 5-30m (customizable)
- Lifting height: 6-30m (customizable)
- Mobility: Straight-line travel, 90° sideways steering, diagonal (45°) steering, spot rotation (pivot turn), Ackermann steering
U Frame Mobile Gantry Crane: Handling Wide or Bulky Loads
The U type mobile gantry crane for sale features a U-shaped frame, allowing easy loading and unloading from both front and rear. This type is commonly used in shipyards, container yards and logistics centers for wide or bulky cargo.
- Lifting capacity: 30-1200t
- Span: 6.5-25m (customizable)
- Lifting height: customizable
- Mobility: Straight-line travel, 90° sideways steering, diagonal (45°) steering, spot rotation (pivot turn), Ackermann steering
Thanks to this modular structural design, Aicrane customizes each mobile gantry crane type to meet your exact site dimensions, load requirements, and operational challenges.
To enhance mobility and site performance, our cranes can be equipped with multiple steering modes – offering unmatched maneuverability even in tight or complex working environments. Next, let’s explore these steering configurations in detail.
Multiple Steering Modes for Maximum Mobility
To adapt to different site layouts and working conditions, Aicrane mobile cranes can be equipped with multiple steering modes, allowing for precise movement even in tight or irregular spaces. These advanced configurations improve flexibility, reduce turnaround time, and make crane operation easier in complex environments.
Straight-Line Travel
The mobile overhead gantry crane moves forward or backward in a straight path – ideal for linear transport along a fixed route such as factory aisles or long storage yards.
90° Sideways Steering
Enables the moveable gantry crane to move left or right without changing orientation. This is perfect for parallel parking-style movement in narrow spaces or when working between fixed objects.
Diagonal (45°) Steering
Allows the gantry mobile to travel diagonally across the site, offering more path flexibility when space or positioning is limited.
Spot Rotation (Pivot Turn)
All wheels rotate around a central point, enabling the wheeled gantry crane to turn in place. This is extremely useful for confined areas where directional adjustments are needed without forward or sideways movement.
Ackermann Steering
Mimics automotive steering, allowing for smooth curved turns, suitable for large mobile gantry cranes requiring controlled turning radius during movement across wider job sites.
You can watch our mobile gantry crane using various steering modes to smoothly transfer electrical units at the customer’s worksite.
With these steering options, Aicrane mobile gantry for sale can be easily maneuvered to match the flow of your site, reduce repositioning time, and improve operational efficiency – no matter how complex your layout is.
Next, let’s look at our project cases across various industries – showing how our custom mobile gantry solutions have helped customers handle various loads with flexibility and efficiency.
Aicrane Mobile Gantry Crane Project Cases

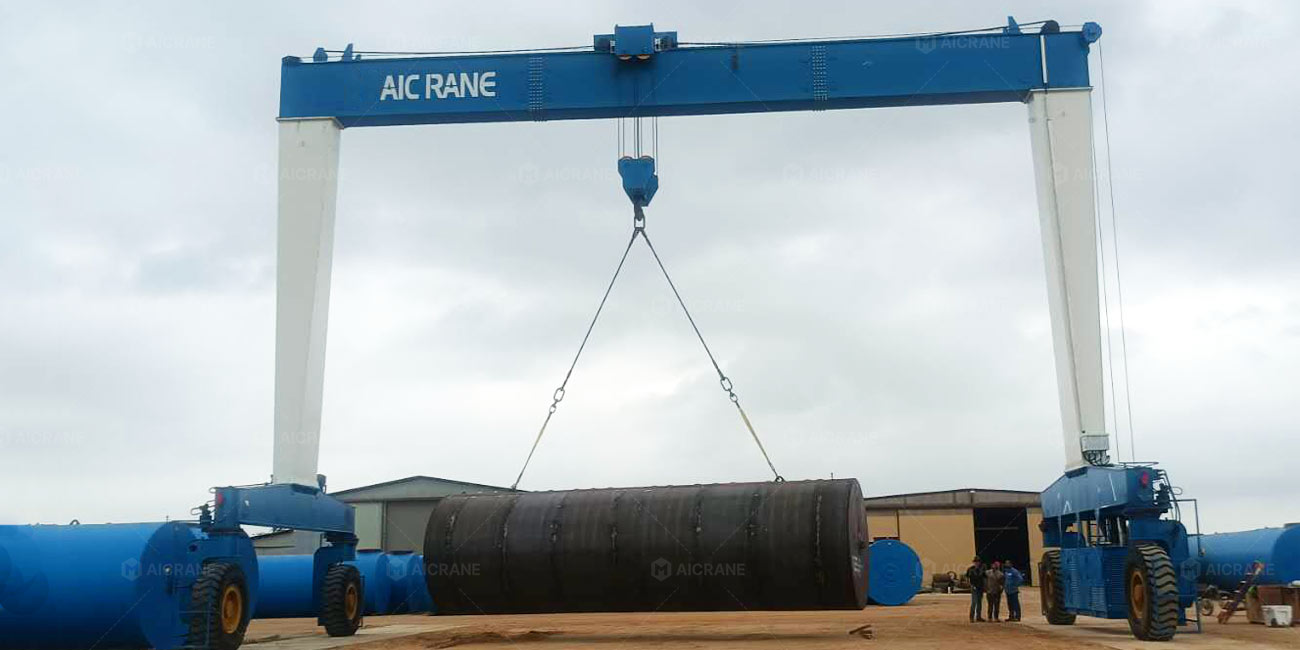

Steel Tank Handling – United States
- Customer Needs & Challenge: Forklifts were inefficient, couldn’t handle larger tanks, and required costly skilled operators. A more flexible and economical solution was needed.
- Our Solution: We provided a single girder mobile gantry crane 40 ton with a 19.8m span. The crane was equipped with 4-wheel multi-directional steering for flexible movement, including sideways, diagonal, and on-the-spot rotation.
- Result: The crane greatly improved tank handling efficiency, enabling easy transport across the yard. It features wireless remote control for easy operation, allowing general workers to operate it after simple training, thus reducing labor and training costs.

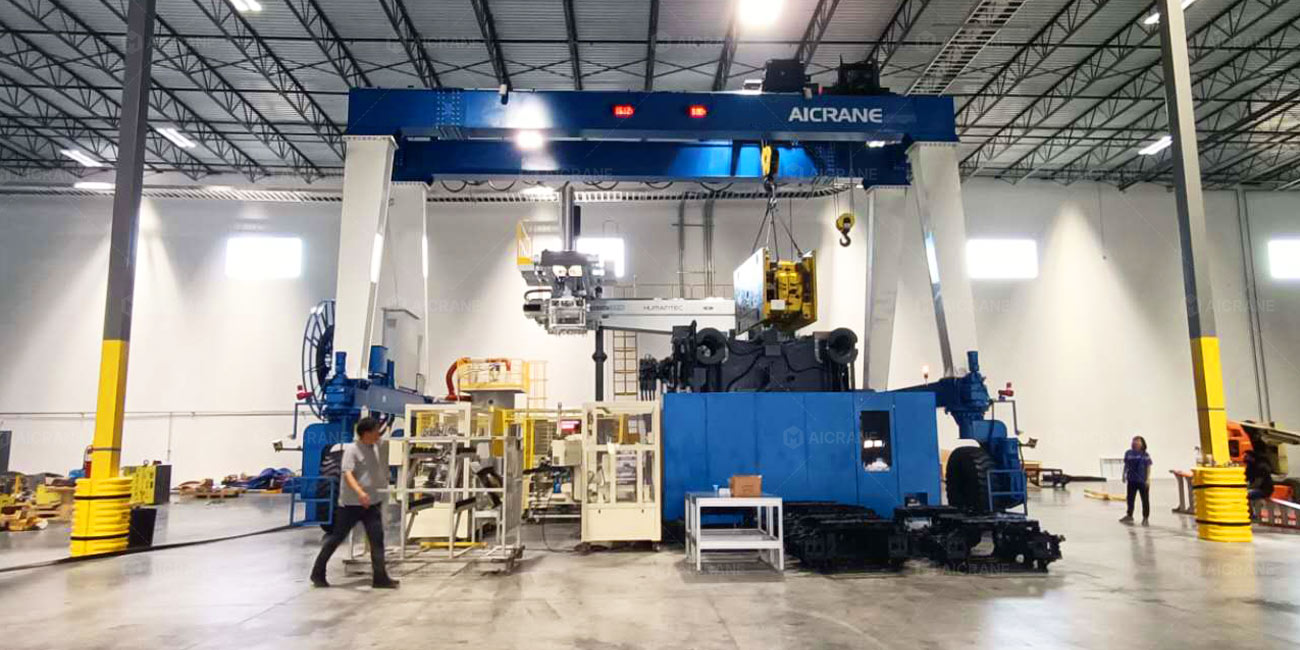

Mold Handling – United States
- Customer Needs & Challenge: The customer needed an indoor mobile gantry crane to handle injection molds in a rented warehouse where no damage to the roof or floor was allowed.
- Our Solution: We recommended a 32/20 ton mobile A frame gantry crane with a span of 11.57m and lifting height of 7.7m, designed with anti-collision protection and weighing display. No foundation work was required, and the crane can travel freely on the ground.
- Result: The solution provided efficient mold handling without any structural modifications. It also proved more cost-effective than a fixed gantry crane and met all site limitations.

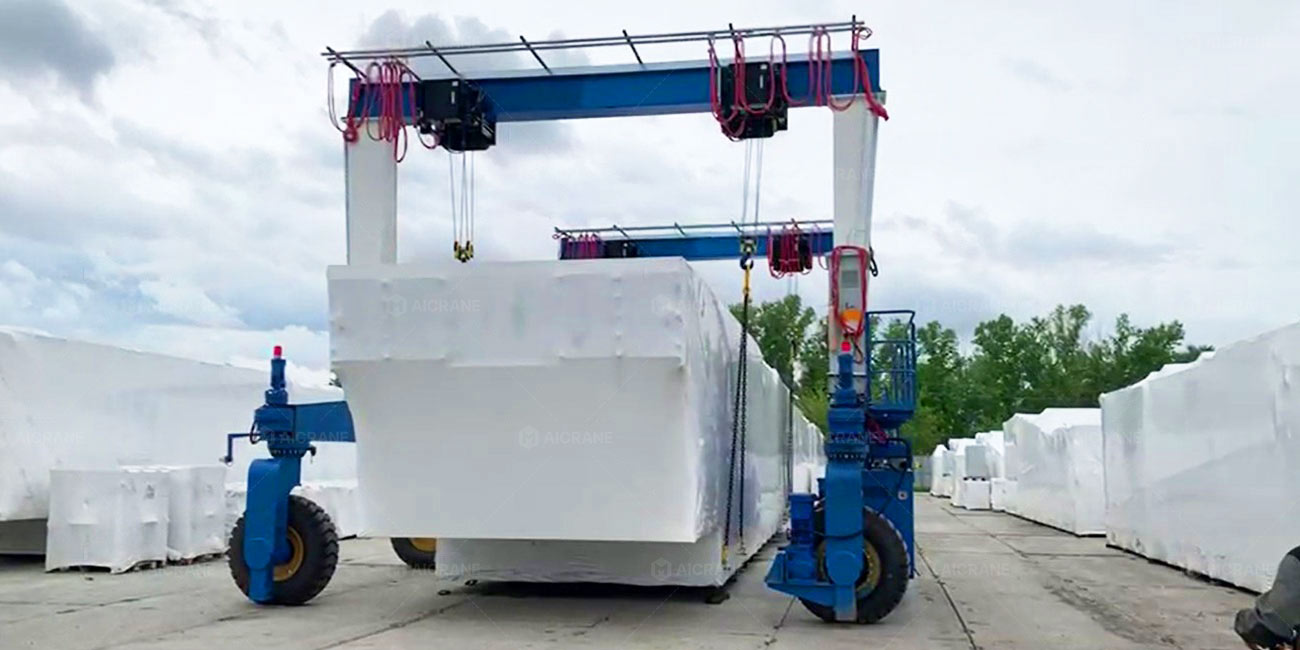

Precast Concrete Handling – Russia
- Customer Needs & Challenge: The customer needed to move large precast components previously handled by mobile truck cranes, which were inefficient.
- Our Solution: We supplied two 12.5+12.5 ton single girder mobile gantry cranes (combined capacity 25 tons) with a 6.9m span and 6.2m lifting height. The cranes work in tandem to lift and transport long concrete elements across varying locations on site.
- Result: The mobile gantry lifting system significantly increased handling efficiency, enabling safer and more flexible movement of precast components during production and loading.

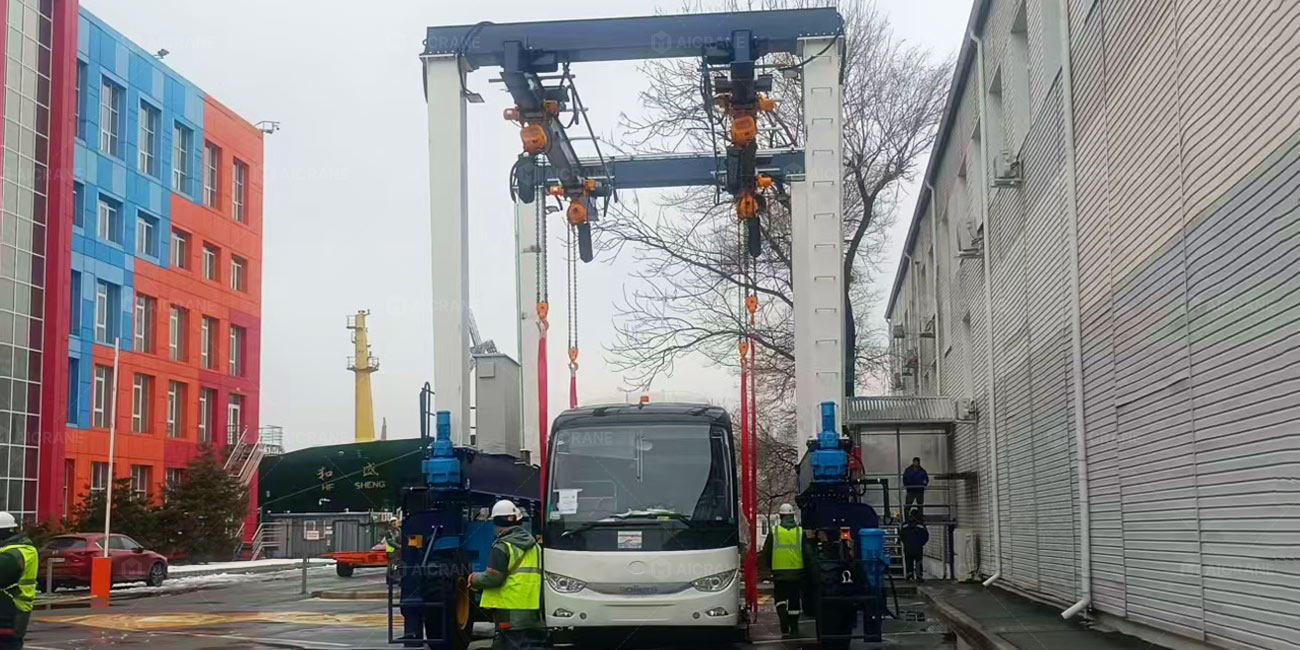

Bus Handling – Russia
- Customer Needs & Challenge: The bus width was fixed, but the lengths varied, making lifting difficult with fixed points.
- Our Solution: We delivered a double girder mobile gantry crane 20 ton with four adjustable lifting points, which can be repositioned perpendicular to the main beam to accommodate different bus lengths.
- Result: The solution ensured safe, balanced lifting of buses of various sizes, improving operational flexibility in assembly and maintenance processes.
Boat Handling – Mexico
- Customer Needs & Challenge: A customer in the salmon farming industry needed a cost-effective way to lift and move fishing boats.
- Our Solution: We provided a 50 ton U-frame mobile boat crane with a span of 8.8m, designed specifically for lifting boats safely and efficiently.
- Result: The 50 ton mobile gantry crane provided smooth, stable boat handling with lower operational costs, making it ideal for the customer’s daily marine operations.
These cases show how Aicrane delivers tailored mobile gantry crane solutions for a wide range of lifting needs. Whatever your application, we customize the right mobile crane to fit your site, load, and workflow.
Custom Spreader Options for Diverse Lifting Needs
To ensure safe and efficient handling of various materials, Aicrane provides a wide range of custom spreader and lifting attachments designed to suit specific load types, shapes, and working environments. These options can be flexibly integrated into your mobile gantry crane system:
Container Spreader
Container spreader for mobile container gantry crane is engineered for handling shipping containers. These spreaders can adjust to accommodate different container sizes and are equipped with twist locks that securely attach to the container’s corner fittings.
Coil Spreader
Coil spreader is specifically designed for lifting and transporting steel coils or other cylindrical objects. This spreader uses adjustable arms that grip the coil securely, ensuring safe and efficient handling. Coil spreaders are commonly used in steel industry.
Lifting Clamp
Lifting clamps are used to grip and lift materials with irregular shapes or surfaces, such as steel plates, slabs, and heavy metal sheets. They are equipped with powerful jaws that clamp onto the load, ensuring a firm hold during lifting.
Lifting Beam
It is a horizontal attachment that connects to the crane hook and provides multiple lifting points. Lifting beams are ideal for lifting long objects such as large concrete beams that require support from multiple points to prevent bending or damage during lifting.
Bridge Girder Spreader
Used for lifting large bridge girders or structural beams, this type of spreader ensures that the load remains stable during hoisting. It is particularly used in the road and bridge construction where large steel or concrete beams need to be transported safely.
Pipe Lifting Spreader
Pipe spreaders are designed for lifting and transporting long cylindrical objects such as pipes, tubes, and poles. These spreaders typically use adjustable hooks or slings to secure the load at multiple points, allowing for safe and balanced lifting.
The options above represent just a selection of our customizable spreaders. At Aicrane, we offer a full range of tailor-made lifting attachments to ensure your moveable gantry crane handles every load with precision and reliability.
Key Components That Enable Excellent Maneuverability of Mobile Gantry Cranes
The core advantage of a mobile gantry crane lies in its ability to move heavy loads smoothly and flexibly across a job site. Several key components work together to make this possible:
Robust Rubber Tire System
At the heart of crane mobility is the large, heavy-duty rubber tire system. These cranes typically use multiple oversized rubber tires designed to provide strong grip and stability on concrete or paved surfaces. The tires absorb shocks and ensure smooth rolling, making it possible for the crane to travel long distances within the yard without damaging the ground.
Some advanced mobile gantry cranes also feature Tire Pressure Monitoring Systems (TPMS), which help maintain optimal tire conditions and prevent mobility issues caused by underinflated or damaged tires.
Steering Stability with Anti-Slip Control
Various steering modes are available in our mobile gantry crane systems, with an integration of anti-slip steering control further enhancing operational safety. This system continuously monitors the movement of each wheel and detects any signs of slippage or lateral drift during travel or turning. When instability is detected, the system intelligently adjusts wheel torque or alignment in real time to restore balance and maintain full directional control.
By minimizing unwanted wheel slip and maintaining traction even under high load or sudden directional changes, anti-slip steering control plays a crucial role in supporting smooth, stable, and safe crane movement across all types of surfaces.
Advanced Drive System for Controlled Movement
The mobility of gantry cranes is largely powered by a sophisticated drive system designed for precision, strength, and coordination:
- Electric Wheel-Edge Drive Motors: Most motorized mobile gantry cranes are equipped with individual electric motors mounted at each wheel, enabling independent control and precise propulsion. This setup allows for accurate speed regulation and torque management across all wheels, which is especially critical during tight maneuvers or when handling uneven loads.
- Hydraulic Drive Option: In some heavy duty mobile gantry cranes, hydraulic drive systems are employed to deliver high torque and strong driving force. This is particularly suitable for large cranes operating under extreme load conditions.
- Coordinated Multi-Wheel Drive Control: To ensure smooth and synchronized motion, a centralized control system manages the operation of all drive units simultaneously. This coordination prevents wheel slippage, supports stable steering, and enables smooth acceleration and deceleration, significantly improving overall travel performance and operational safety.
Flexible Power Supply Options
To ensure maximum adaptability, Aicrane gantry mobile cranes can be equipped with different power supply systems, allowing them to perform efficiently across a wide range of operating conditions – whether you’re working in a fixed facility, open yard, or off-grid site.
- Diesel Generator Power: The diesel-powered system provides complete mobility and independence from fixed power sources. It’s ideal for remote job sites, large outdoor yards, or situations where the mobile rubber tyred gantry crane needs to move over long distances without cable constraints.
- Cable Reel Electric Power: For operations with a defined working path or limited movement area, the cable reel system offers a stable and continuous power supply. The electric mobile gantry crane is commonly used in factories, precast yards, and rail-aligned setups.
- Battery Power Supply: Battery powered mobile gantry cranes are an excellent solution for indoor applications, emission-sensitive environments, or sites requiring low-noise operations. Our battery systems support long working hours and are engineered for easy recharging and low maintenance.
Structural Support and Stability
In addition to drive and steering systems, the crane’s structure is engineered to withstand dynamic forces during movement.
- Rigid Gantry Structure: The crane’s robust gantry and cross-beam construction are engineered to resist twisting or bending forces during travel, keeping the structure firm and aligned.
- Center of Gravity Management: Cranes are designed with a low center of gravity to reduce the risk of tipping, even during tight turns or while operating on uneven surfaces.
- Speed Regulation & Motion Dampers: Regulate acceleration and deceleration to prevent abrupt movements that could destabilize the load.
Safety Features for Mobile Operation
Safety systems such as anti-tilt sensors and collision avoidance detectors ensure stable movement and prevent accidents during crane travel. These systems constantly monitor the crane’s status and surroundings, automatically alerting operators or intervening when needed to maintain safe mobility.
Together, these components enable mobile gantry cranes to deliver flexible, safe, and efficient mobility across various working environments.
To further enhance performance, Aicrane integrates advanced intelligent technologies – such as anti-sway control, smart monitoring, and automated control systems – ensuring even greater precision, safety, and operational efficiency.

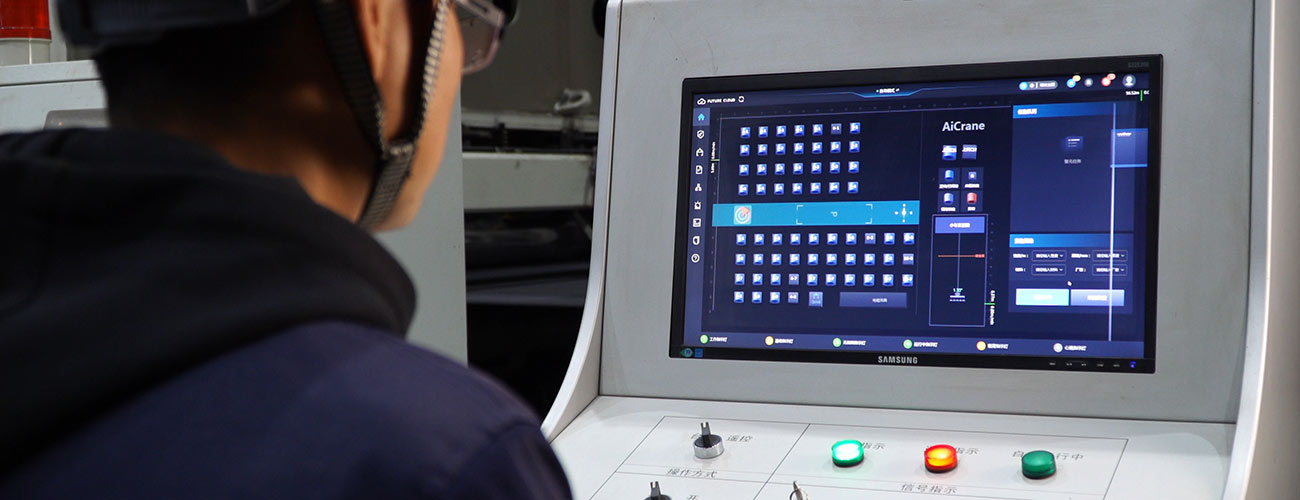

Advanced Intelligent Technologies for Enhanced Performance of Mobile Cranes
Aicrane mobile gantry crane for sale can be equipped with cutting-edge intelligent technologies to boost safety, precision, and operational efficiency:
Anti-Sway ControlOur electrical anti-sway system reduces load swing by up to 85%, improving load positioning accuracy by 40%, which significantly enhances safety during lifting and transport.
Intelligent Monitoring SystemEquipped with high-resolution cameras and real-time visual recognition, the system provides 24/7 equipment monitoring with early fault detection accuracy exceeding 95%, ensuring stable and secure crane operation.
Smart Control SystemIntegrated PLC automation and variable frequency drives (VFD) enable smooth speed regulation with acceleration/deceleration precision within ±3%. The advanced steering anti-slip mechanism reduces wheel slip by over 70%, ensuring stable maneuvering even on slippery or uneven surfaces.

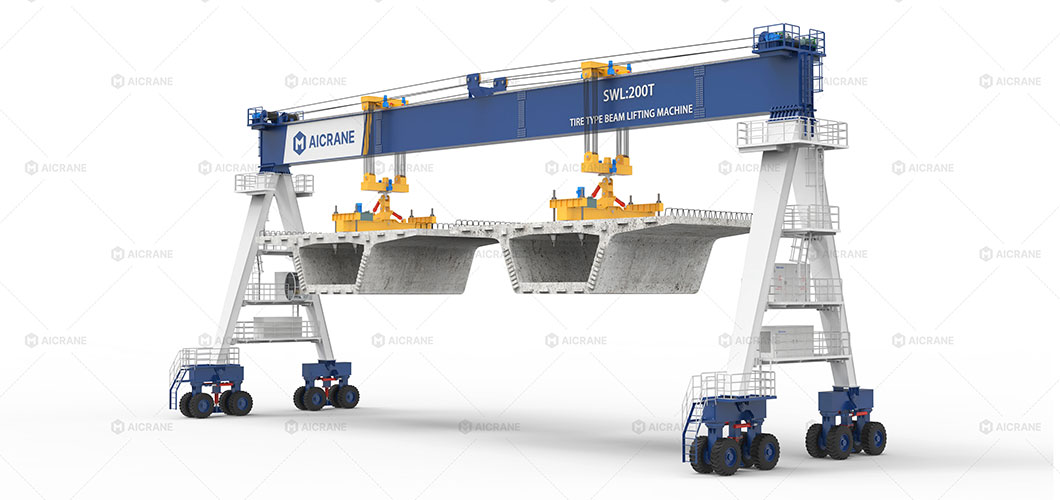

How to Select the Right Mobile Gantry Crane
Whether you’re involved in manufacturing, construction, or logistics, choosing the appropriate crane for your specific needs is essential. This guide outlines key factors to consider when selecting a mobile gantry crane, ensuring you make an informed choice that aligns with your operational requirements.
Understand Your Lifting Needs
- Load Capacity: Determine the maximum load you need to lift. Our mobile gantry crane for sale comes in various capacities, from 10 ton, 20 ton, 50 ton, 100 ton, to over 800 ton.
- Lifting Height: Evaluate the height at which you need to lift your loads. Measure the clearance available in your workspace and select a crane that can provide the necessary lifting height.
- Span Requirements: The span of the movable gantry crane refers to the distance between its legs. Assess your workspace layout to determine the optimal span that provides adequate coverage without compromising stability.
Determine the Intended Use
Understanding the specific applications – whether for manufacturing, construction, shipping, or warehousing – will guide you in determining the necessary crane type, size, lifting attachments, and more to safely and efficiently handle your loads.
Additionally, evaluating the work environment, including terrain and space constraints, is essential for ensuring that the crane’s mobility and design align with operational needs, ultimately enhancing productivity and safety in your projects.
Consider Mobility Options
The steering mechanism of a mobile lifting gantry crane impacts its ease of movement. They can be designed with 2-wheel steering or 4-wheel steering systems. If your workspace is limited or has obstacles, consider a crane with advanced steering options for better maneuverability.
Evaluate Type and Design
Different types and models come with various design features that can enhance safety and usability. For example, consider a mobile A frame gantry crane for enhanced stability and structural strength.
Consider Budget
While it may be tempting to go for a cheap option, it’s essential to balance cost with the features and capabilities you need. Consider the total cost of ownership, including initial mobile gantry crane price, maintenance, and potential operational costs.
By evaluating these factors, you can ensure your mobile gantry crane is not only technically suitable – but also the most cost-effective and efficient choice for your operations.
Need expert advice? Contact Aicrane – We provide tailored mobile gantry crane plans to meet your unique requirements.
Choosing Aicrane As Your Dependable Mobile Gantry Crane Supplier
Looking for reliable mobile gantry crane manufacturers and suppliers? Aicrane can be a great choice for the following reasons:
Tailored Mobile Lifting Solutions for Any Working Conditions
At Aicrane, we offer customized mobile gantry crane design to meet specific operational requirements. Depending on your work environment and load-handling needs, we can tailor our mobile cranes to include load capacity, span, specific steering modes, and additional feature that enhance your operations.

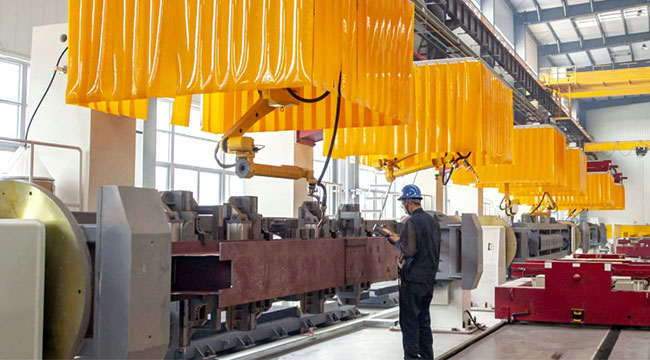

High-Quality Mobile Gantry Crane Manufacturing
All our mobile lifting gantry cranes are built in our advanced manufacturing facilities using high-grade steel, precision components, and strict quality control standards. We follow ISO and CE certifications, ensuring each crane delivers long-term performance, safety, and durability.

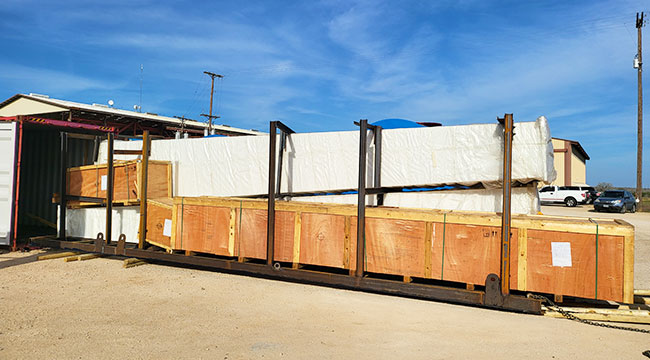

Secure Packaging & Delivery for Mobile Gantry Cranes
All of our mobile gantry crane products are packed firmly and safely, minimizing possible equipment damage during shipping. According to different transportation methods, plastic film, bubble film, wooden box, etc., can be used for packaging. Aicrane also has a dedicated shipping department to book containers, prepare and confirm customs clearance documents for customers.

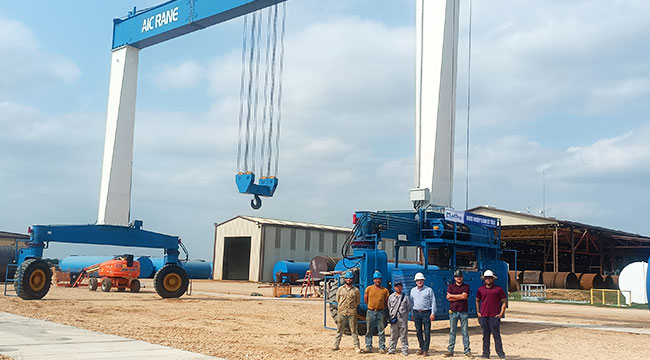

Comprehensive After-Sales Service for Mobile Cranes
Our support doesn’t stop at delivery. Aicrane offers installation guidance (online or on-site), operator training, spare parts support, and technical assistance throughout your crane’s lifecycle – ensuring smooth operation and peace of mind.
With Aicrane, you’re not just buying a crane – you’re gaining a reliable partner committed to helping you lift more efficiently and flexibly.
While mobile gantry cranes offer unmatched flexibility and adaptability, they’re not the only option. In the next section, we’ll compare mobile gantry cranes with fixed gantry cranes, helping you decide which is better suited for your operation.
Mobile Gantry Crane vs. Fixed Gantry Crane: Which One Fits Your Needs?
When it comes to lifting and transporting heavy loads in industrial settings, both mobile gantry cranes and fixed gantry cranes serve vital roles. However, they differ significantly in terms of design, functionality, and applications. Take a look at the key differences between these two types of cranes to help you make informed decisions based on your specific operational needs.
Equipped with rubber tires and various steering modes, mobile gantry cranes can easily move around your job site, covering multiple work areas without the need for rails or foundations. This makes them ideal for projects requiring frequent repositioning or working across large outdoor yards.
Mobility and Flexibility

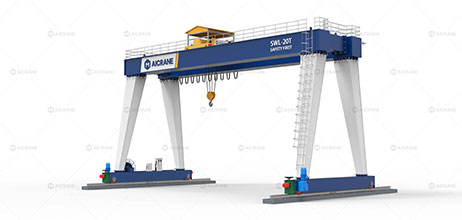

Installed on rails or fixed foundations, these fixed gantry cranes move along a predetermined path. They provide excellent stability and are well suited for repetitive tasks in confined or highly structured environments.
Mobile gantry crane requires minimal site preparation, no permanent foundations, and faster deployment, saving time and costs.
Installation and Infrastructure
Fixed gantry crane demands significant groundwork and infrastructure, including rails and foundations, which increase initial setup time and cost but offer long-term operational precision.
Mobile gantry system typically ranges from light to heavy capacities (10-800+ tons), but generally suited for flexible, multi-purpose lifting.
Load Capacity and Span
Fixed gantry is often designed for very heavy loads and very long spans, making it preferred in large factories, shipyards, or heavy industry plants.
Mobile gantry crane has lower upfront infrastructure costs, but may require more maintenance for mobility components.
Operational Costs
Fixed gantry has higher initial investment but usually lower maintenance for movement systems over time.
When deciding between mobile and fixed gantry cranes, it’s essential to consider your site layout, workflow, budget, and specific lifting requirements. For businesses seeking flexibility, ease of relocation, and multi-site operations, mobile gantry cranes are the ideal solution. Whether you need a mobile workshop gantry crane for indoor and outdoor maintenance, or a mobile container gantry crane for efficient container handling, these versatile options can significantly enhance productivity.
If your lifting operations are repetitive and occur in a fixed location, a stationary or fixed gantry crane might be more suitable. However, if adaptability and mobility are your priorities, now is the perfect time to explore our range of mobile gantry crane solutions. Contact us today to find the right mobile gantry crane tailored to your needs and take your operations to the next level!
