Aicrane slipway winch is used in various locations and settings where ship launching, hauling, docking, and maintenance operations take place. We offer a range of slipway winches for sale, including the single drum slipway winch and the friction type slipway winch, each tailored to meet specific requirements and optimize operational effectiveness. With Aicrane boat winches, shipyards, ship repair yards, navies, maritime repair facilities and other industrial settings can benefit from a reliable and customized solution for safe and efficient ship pulling operations. We also provide its accompanying equipment set including pulley block, wire rope slings, marine airbags and more.

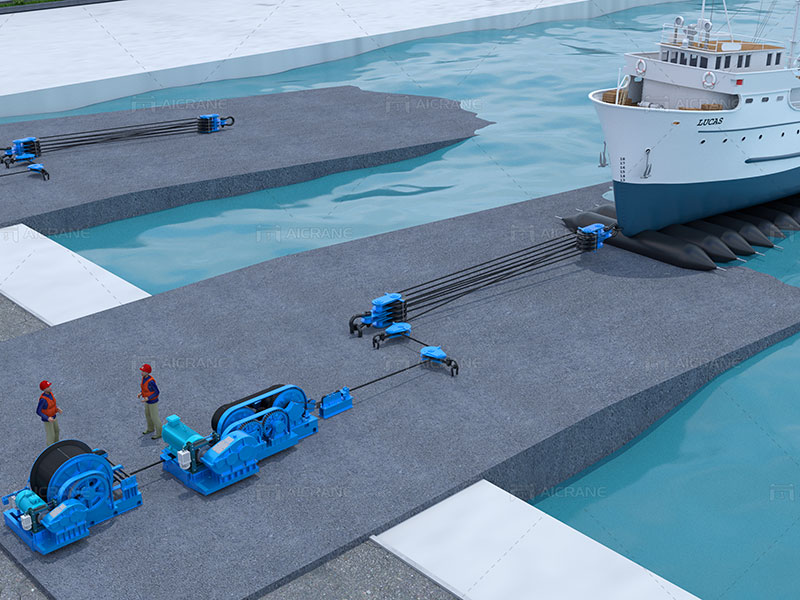

Two Effective Methods for Pulling Ships Using a Slipway Winch
As a well-experienced slipway winch manufacturer, we understand the importance of efficient and safe ship handling in shipyards. When it comes to pulling ships along a slipway, two commonly employed methods are using marine airbags and rail trolleys. These methods offer distinct advantages and contribute to streamlined operations, precise control, and enhanced safety.

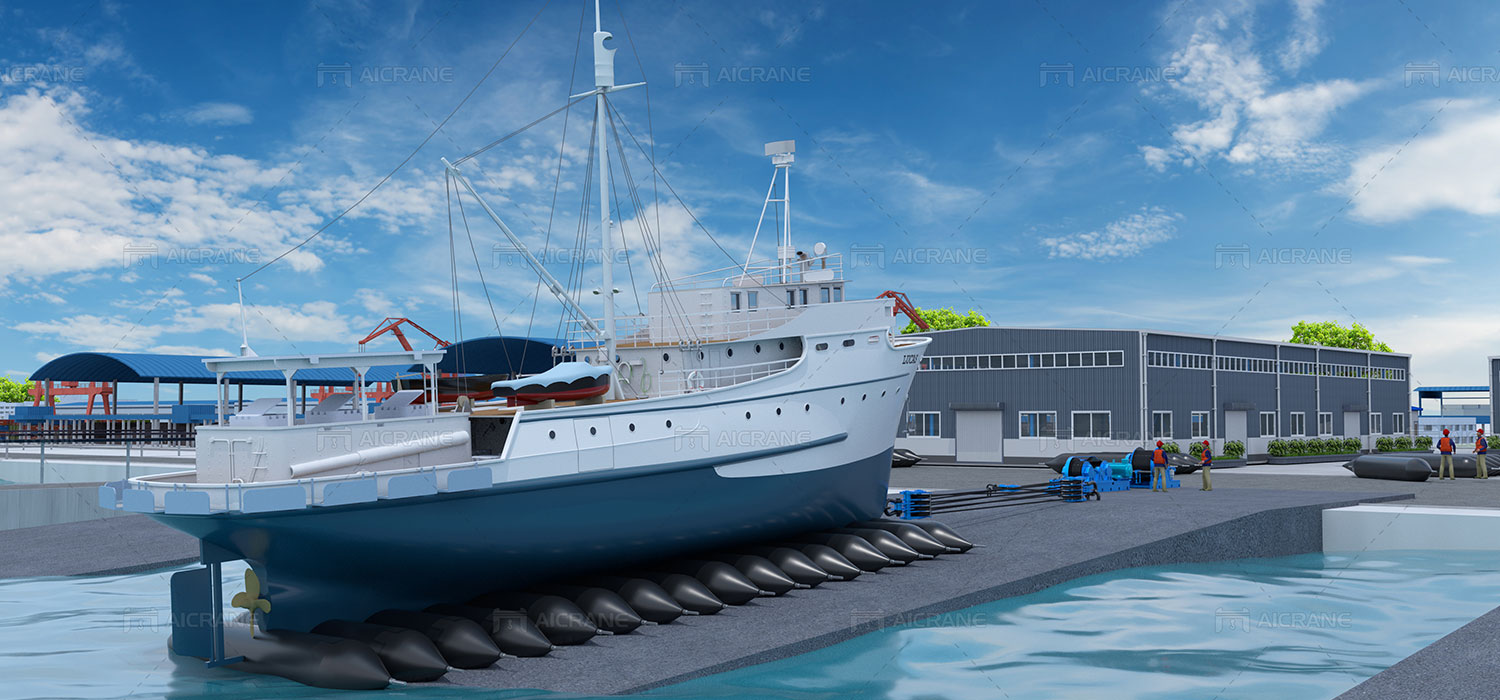

Marine Airbags: Enhancing Launching and Hauling Operations
Marine airbags have emerged as a versatile solution for ship launching and hauling in shipyards. By utilizing boat slipway winches alongside marine airbags, shipyard operators can benefit from several advantages. These cylindrical inflatable structures, made from reinforced rubber, provide buoyancy and reduce friction, allowing for smooth movement along the slipway. The boat launch winch exerts controlled pulling force while the airbags create a cushion of air, ensuring the vessel slides with minimal resistance.
Key benefits of using marine airbags with slipway winches include:
- Enhanced maneuverability: Marine airbags offer flexibility in ship handling, especially in areas with shallow water or restricted access. The marine winch and airbag combination allows ships to be launched or hauled out smoothly, even in challenging environments.
- Reduced stress on the hull: The cushioning effect of marine airbags significantly reduces stress on the ship’s hull during launching or hauling operations. This minimizes the risk of structural damage, ensuring the vessel remains in optimal condition.
- Cost-effective solution: Compared to traditional dry-docking methods, marine airbags offer a cost-effective alternative. They require less infrastructure and enable faster turnaround times, reducing downtime and increasing operational efficiency.

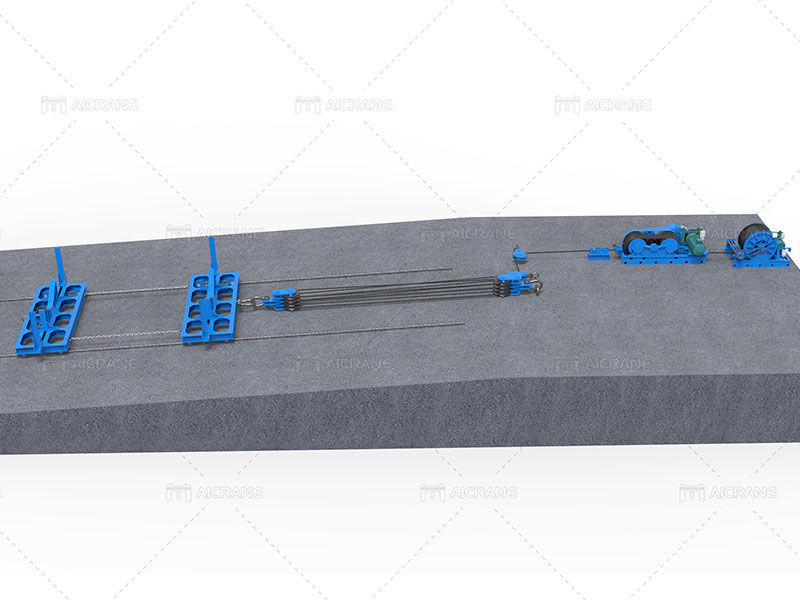

Rail Trolleys: Ensuring Controlled Movement and Stability
Rail trolleys provide a stable and guided solution for pulling ships along a slipway. When used in conjunction with ship slipway winches, rail trolleys offer precise control and ensure safe and efficient ship handling operations.
Key benefits of employing rail trolleys include:
- Guided movement: Rail trolleys, equipped with sets of rails, facilitate guided movement of the ship along the slipway. The slipway winch pulls the trolleys, ensuring controlled and predictable motion, minimizing the risk of accidents or mishaps.
- Enhanced stability and support: Rail trolleys provide stable platforms for the ship during the pulling process. They distribute the ship’s weight evenly, reducing stress on the hull and minimizing the potential for damage.
- Improved accuracy and positioning: Rail trolley systems enable precise positioning of the ship along the slipway. This accuracy is crucial during launching, dry-docking, or repair operations, ensuring efficient workflow and minimizing costly rework.
How to Choose Between the Two Methods
When it comes to choosing between using marine airbags or rail trolleys for pulling ships, several factors should be considered to determine the most suitable method for a specific shipyard or project.
- Ship Size and Weight: The size and weight of the ship play a crucial role in method selection. Marine airbags are typically more suitable for larger ships, while rail trolleys are better suited for smaller to medium-sized vessels. Assess the dimensions and weight of the ship to determine which method can adequately support and handle it during the pulling process.
- Slipway Design and Infrastructure: Evaluate the slipway design and infrastructure available in the shipyard. Marine airbags require a smooth and relatively flat surface for optimal performance. If the slipway has irregularities or obstacles that could hinder the movement of airbags, rail trolleys may be a better choice. Similarly, if the slipway already has rail tracks in place, utilizing rail trolleys becomes a convenient option.
- Operational Efficiency and Safety: Evaluate the desired level of operational efficiency and safety. Marine airbags provide flexibility and cost-effectiveness, as they require minimal infrastructure and can be easily deployed. Rail trolleys offer precise control, stability, and guided movement, ensuring accurate positioning and minimizing risks during the pulling process. Consider the specific operational requirements and prioritize factors such as speed, accuracy, and risk mitigation.
- Project Budget and Duration: Assess the project budget and timeline. Marine airbags generally offer a cost-effective solution with quicker turnaround times, making them suitable for projects with budget constraints or tight schedules. Rail trolley systems may require a higher initial investment due to rail infrastructure, but they offer long-term benefits in terms of stability, control, and durability.
Ultimately, the choice between marine airbags and rail trolleys depends on a thorough evaluation of the shipyard’s requirements, ship characteristics, slipway conditions, and project constraints. Consulting with experienced boat slipway winch professionals and considering the specific needs of the project will help determine the most appropriate method for pulling ships, ensuring safe and efficient operations.
Latest Project Cases
60 Ton Slipway Winch for an Indonesian Shipyard
As a reputable slipway winch manufacturer, we had the privilege of providing an Indonesian shipyard with a reliable 60-ton slipway winch. This high-quality shipyard winch, featuring a pulley system, effectively assists the client in handling vessels weighing up to an impressive 6,000 tons. It has greatly improved ship maintenance, repair, and vessel launching operations for our valued customer.
30 Ton Slipway Winch for Nigerian Naval Base
We successfully catered to the needs of the Nigerian Navy base by delivering high-performance 30-ton slipway winches. We provided them with two 30-ton single drum slipway winches, designed specifically for vessels weighing up to 250 tons. Operating on a slope of 7.2 degrees, this winch, equipped with a single moving pulley and a fixed pulley (pulley set magnification is 3), enhances onshore vessel maintenance and repair capabilities.
The specifications of the Nigeria 30 ton slipway winch include:
| Model | AQ-JM |
| Working Load | 300 kN |
| Rated Speed | 9 m/min |
| Drum Capacity | 400m |
| Operating Mode | Electric control panel buttons + Remote control |
| Additional Requirements | Galvanized steel wire rope with a diameter of 42mm. Epoxy paint is required with a film thickness of 200um. |

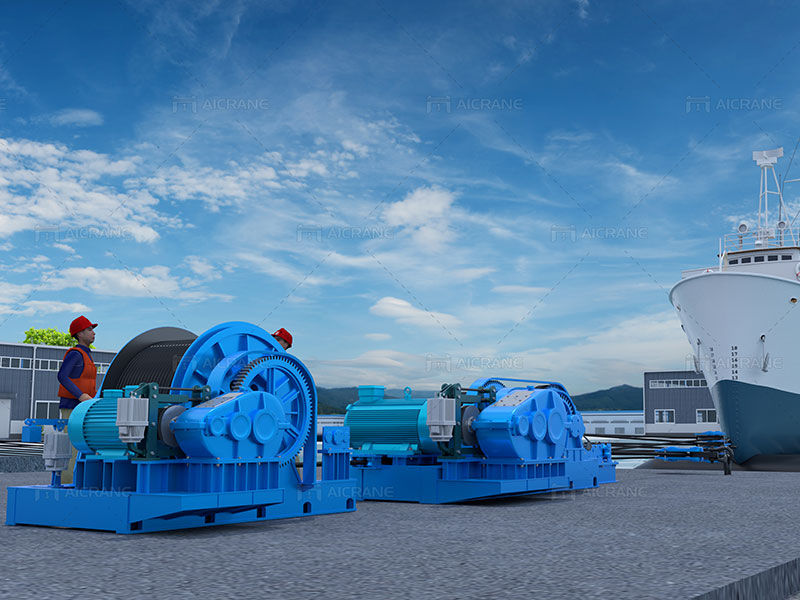

Two Types of Slipway Winches for Efficient Ship Pulling
At Aicrane, there are two common types of slipway winches: single drum slipway winch and the friction type slipway winch. The single drum winch provides simplicity, reliability, and customization options, while the friction winch offers increased pulling force and enhanced load control.
Friction Type Slipway Winch
The friction type slipway winch for sale is designed for high-power applications and heavy loads. It utilizes the friction between the steel wire rope and the drum to generate tension.
Advantages of Friction Type Electric Slipway Winch:
- Since the rope outlet position remains unchanged, no deflection angle of the wire rope will be produced, which reduces the wear of the wire rope and increases the service life of the wire rope.
- The pulling force and speed of the rope are constant, so the whole machine runs stably and the impact force is small.
Main Structure of The Friction Winch
- Friction drum: The friction drum set must be equipped with rope grooves to increase the friction between the steel wire rope and the drum. The number of rope grooves is generally 6-10.
- Rope storage drum: The rope storage drum is only used to store steel wire ropes and does not provide pulling force. It is controlled by the drive torque of the frequency conversion motor, which can better maintain synchronization with the friction drum.
- Rope pressing device: It prevents the wire rope from falling out of the groove when it is not working. The rope pressing device is generally mechanical. The rope pressing wheel is generally synchronized with the drum set through the sprocket chain transmission.
Single Drum Slipway Winch
The single drum boat slipway winch is a widely used and versatile option in shipyards. It features a single drum around which the wire rope is wound.
Features of Single Drum Winch:
- The distance from the single-drum slow speed winch to the fixed pulley is about 10 times the length of the drum. Therefore, the single-drum winch takes up more space.
- According to the height of the fixed pulley, the winch can be designed with upper rope or lower rope. Generally, the wire rope winch used for slipway uses the lower rope.
- The single-drum winch generally adds a rope arranging device when the number of layers of the wire rope exceeds 7 or when the deflection angle of the wire rope is greater than 3°.
- The working speed and pulling force of each layer of the single drum winch are different: the first layer has the largest pulling force and the slowest speed, and the outermost layer has the smallest pulling force and the fastest speed.
Unique Features And Advantages of Aicrane Slipway Winch Solution
- Increased Pulling Capacity: By introducing a pulley block into the system, the pulling capacity of a small tonnage slipway winch system can be effectively multiplied. The pulley block creates a mechanical advantage by changing the direction of the wire rope, redistributing the load. This allows the winch to achieve a larger tonnage end pull, making it capable of handling larger vessels.
- Customizable Configurations: Our boat ramp winches can be tailored to meet specific requirements of shipyards. They are available in various configurations, including different drum capacities, pulling forces, and speeds. This customization ensures optimal performance and efficiency for different ship handling operations.
- Enhanced Safety Features: Our electric slipway winches are equipped with safety features to protect both personnel and equipment. These may include emergency stop buttons, overload protection systems, and fail-safe mechanisms to ensure safe operations and prevent accidents.
- Versatility: Boat ramp winch systems are versatile and can be used for various shipyard applications. They are suitable for launching, hauling, dry-docking, maintenance, and repair operations. Their adaptability makes them valuable equipment in shipyards with diverse needs.
Calculating Pulling Force for Slipway Winches: A Simple Guide
Determining the pulling force required for a marine slipway winch is crucial for selecting the appropriate equipment. In this guide, we will walk you through a practical example of calculating the pulling force. However, if you require assistance or are unable to provide the necessary information, our expert team is always ready to help.
Example Calculation:
1. Let’s consider a ship with the following dimensions:
- Length: 108 meters; Width: 14 meters; Height: 5.3 meters; Ramp gradient ratio: 1:20 (2.8°); Ship weight: Approximately 4000T
2. Calculation Steps:
- Calculate the sliding force (F1): F1 = 4000T x sin(2.8°) ≈ 195T
- Determine the friction force (F2): F2 = 4000T x cos(2.8°) x 0.01 ≈ 40T (assuming a rolling friction coefficient of 0.01)
- Calculate the total ashore pulling force (F3): F3 = F1 + F2 ≈ 235T
- Incorporate a safety factor (F3″): F3″ = 1.25 x 235T ≈ 294T
- Determine the pulling force at the rope end of the winch (F): F = F3″ / 8 ≈ 36.75T (considering a pulley set magnification of 8)
3. Important Notes:
- Airbag rolling friction coefficient: 0.01; Safety factor: 1.25; Pulley set magnification: 8
4. Based on this calculation, a slipway winch with a pulling force of approximately 40 tons should be selected.
If you require assistance in determining the pulling force, please don’t hesitate to contact our knowledgeable winch experts. To facilitate accurate calculations, kindly provide the slipway slope, ship weight, the maximum moving distance of the ship, the speed at which the boat is pulled, the method used for pulling ships (airbags or slide rails) and any other relevant details. Our team will be delighted to assist you in selecting the ideal boat pulling winch for your specific requirements.
Installation Service and Comprehensive After-Sales Support
At Aicrane, we provide exceptional service not only during the purchase of our slipway winches but also throughout the installation process and beyond.
Installation Service For Slipway Winches
- Our dedicated installation team offers on-site or online installation guidance, ensuring a smooth and efficient setup of your slipway winch. We also have local installation teams available in various regions, including Indonesia, Philippines, Malaysia, and more, to cater to your specific needs.
- Our installation experts possess extensive knowledge and experience, guaranteeing the proper installation and configuration of your ship slipway winch. Whether it’s a complex or straightforward installation, our team will be there to provide guidance, answer your questions, and ensure the successful integration of the winch into your shipyard operations.
After-Sales Support
- Our commitment to excellent after-sales service extends beyond installation. We offer comprehensive after-sales support to address any issues or concerns that may arise. Our dedicated customer service team is available to assist you with troubleshooting, maintenance guidance, and spare parts procurement. We understand the critical nature of your slipway winch in your operations and strive to provide timely and efficient support to keep your equipment running smoothly.
With Aicrane, you can rely on our expertise and dedication to deliver exceptional service at every stage. From professional installation assistance to reliable after-sales support, we are committed to ensuring your slipway winch operates optimally, providing you with reliable and efficient performance for years to come.
If you are interested, please contact us today to learn more about our slipway winches.
