Fixed Gantry Crane

Running on rails or tracks, our fixed gantry cranes, also known as stationary gantry cranes, are ideal for applications such as lifting containers, precast concrete, heavy industrial equipment, and other large loads that need to be transported or positioned along a predefined path within a certain area. If your business requires a reliable, heavy-duty lifting solution, our fixed gantry crane is an excellent choice.

fixed gantry crane for sale

Fixed Gantry Crane for Sale: Types And Specifications

If you’re in the market for a high-quality fixed gantry crane, you’ve come to the right place. Whether you need a light duty crane for a small workshop or a heavy-duty crane for a large-scale construction project, we have a fixed gantry crane that fits your needs. Our wide selection of stationary gantry cranes, including single girder, double girder, and semi-gantry models, ensures that we have the right solution for any application.

Single Girder Fixed Crane

Single Girder Fixed Gantry Crane

A single girder gantry crane is a lighter version of the fixed gantry crane. It is typically used for lifting light to moderate-weight loads, making it ideal for small to medium-sized applications. These single beam gantry cranes feature a single girder supported by two vertical legs, offering a compact design that’s well-suited for warehouses, factories, and smaller construction sites.

ModelAQ-NMH
Load capacity3.2-20t
Span8-35m
Lifting height6-12m
Lifting speed0.66-5m/min
Hoist running speed2-20m/min
Crane running speed3-30m/min
Work dutyA5
Custom designs available

Get A Quote
Double Girder Fixed Gantry Crane

Double Girder Fixed Gantry Crane

Fixed double girder gantry cranes are ideal for lifting heavier loads and are used in large-scale industries or projects. This type features two horizontal girders that provide extra support for lifting capacities up to 500 ton. Double girder gantry cranes are typically used in steel mills, power plants, construction sites, and other heavy industries where high lifting capacity and precise control are necessary.

ModelAQ-MG
Load capacity5-500t
Span18-35m
Lifting height6-18m
Lifting speed1.5-11.5m/min
Trolley running speed10-40.1m/min
Crane running speed16-50m/min
Work dutyA3-A7
Custom designs available

Get A Quote
Single Leg Fixed Gantry Crane

Single Leg Fixed Gantry Crane

The single leg gantry crane, also known as semi gantry crane, combines the characteristics of both overhead cranes and gantry cranes. It features a single leg that runs along a ground rail, while the other side is supported by an overhead structure. This design allows for more flexibility and makes it ideal for heavy lifting in tight spaces or areas with limited height.

ModelAQ-BMG
Load capacity5-32t
Span12-30m
Lifting height6-12m
Lifting speed6-11.5m/min
Trolley running speed37-40.1m/min
Crane running speed37.7-40.1m/min
Work dutyA3-A6
Custom designs available

Get A Quote
RMG Fixed Gantry Crane

RMG Fixed Gantry Crane

Rail mounted fixed gantry cranes are specifically designed for container handling at ports, railway yards, and container storage yards. These cranes are equipped with fixed rails and can cover large spans to efficiently handle containers and other heavy loads. RMG cranes are essential for container terminals and logistics centers where precise load positioning and frequent container movements are required.

ModelRMG
Load capacity30-50t
Span18-35m
Lifting height12.3-21m
Lifting speed9.2-12.5m/min
Trolley running speed45-56m/min
Crane running speed42-50m/min
Work dutyA6-A8
Custom designs available

Get A Quote

Where Are Fixed Gantry Cranes Used?

After understanding our different types of fixed gantry cranes for sale, let’s now see what fields they can be used in.

Manufacturing and Production Facilities

Fixed gantry cranes are often used in manufacturing plants where large, heavy components need to be moved regularly during the production process. These stationary cranes provide the stability and lifting power needed for tasks like assembly, moving heavy machinery, or lifting materials from one production station to another.

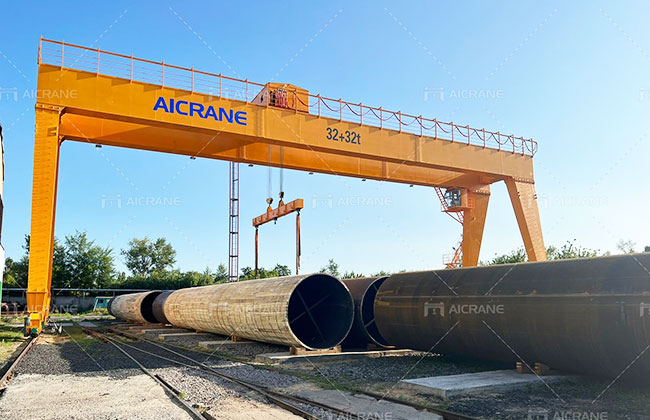

32+32 ton stationary crane in a steel plant

Double Girder Fixed Gantry Crane in a Steel Plant

  • Load capacity: 32+32 tons
  • Span: 42 meters
  • Uses: lifting steel pipes
  • Project location: Lissky, Russia

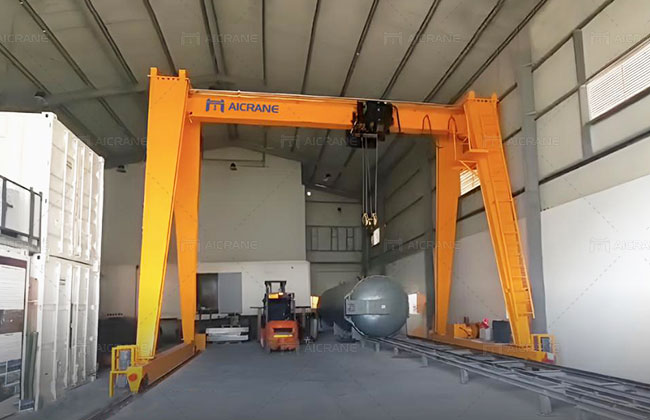

Single Girder Fixed Gantry Crane in a Rubber Factory

  • Load capacity: 12 tons
  • Span: 8.65 meters
  • Uses: lifting rubber products
  • Project location: Qatar
12 ton fixed gantry crane in a rubber factory
20+10 ton stationary crane in manufacturing plant

Single Leg Fixed Gantry Cranes in a Manufacturing Plant

  • Load capacity: 20+10 tons
  • Span: 34 meters
  • Uses: lifting injection molds
  • Project location: Uzbekistan

Logistics and Port Transportation

From container handling in busy ports to loading and unloading cargo in rail yards and logisctics hubs, stationary gantry cranes provide the necessary strength, stability, and precision to manage heavy and specialized loads. The gantry crane in port is typically large, robust, and mounted on tracks, allowing it to handle heavy cargo containers efficiently and accurately.

45 ton rail mounted stationary gantry crane at a railway logistics station

Rail Mounted Fixed Gantry Crane at a Railway Logistics Station

  • Load capacity: 45 tons under the spreader
  • Span: 30 meters
  • Uses: lifting 20-foot, 40-foot, and 45-foot containers
  • Project location: Almaty, Kazakhstan

Double Girder Fixed Gantry Crane at a Logistics Station

  • Load capacity: 32 tons
  • Span: 38 meters
  • Uses: lifting 20-foot and 40-foot containers
  • Project location: Atyrau, Kazakhstan
32 ton fixed crane at a logistics station
60 ton fixed gantry crane for railway yard

Double Girder Fixed Gantry Cranes at a Railway Hub

  • Load capacity: 60 tons
  • Uses: lifting 20-foot containers
  • Project location: Chile

Construction Sites

Fixed gantry cranes are frequently used in large construction projects, particularly for tasks that involve lifting and moving heavy building materials, such as precast concrete beams, steel girders, and other structural components. The cranes are often part of a larger system designed to handle the movement of materials across the construction site.

50 ton fixed gantry crane for a tunnel construction project

Double Girder Fixed Gantry Crane for a Tunnel Construction Project

  • Load capacity: 50 tons
  • Span: 40 meters
  • Lifting height: 80 meters
  • Uses: lifting waste materials out of the tunnel
  • Project location: St. Petersburg, Russia

Single Girder Fixed Gantry Crane at a Construction Site

  • Load capacity: 10 tons
  • Uses: lifting cement pipes
  • Project location: the Philippines
10 ton fixed crane at a construction site

Precast Concrete Production

The precast concrete industry relies heavily on fixed gantry cranes to lift, move, and position large concrete components, such as beams, walls, and panels, during the manufacturing and curing process. Fixed gantry cranes allow for the efficient handling of these heavy elements, which are often part of large-scale construction projects, such as bridges, highways, and buildings.

70 ton stationary crane at a precast concrete yard

Double Girder Fixed Gantry Crane at a Precast Concrete Yard

  • Load capacity: 70 tons
  • Uses: lifting precast concrete beams
  • Project location: Argentina

Single Girder Fixed Gantry Crane for Precast Concrete Production

  • Load capacity: 10 tons
  • Span: 18.9 meters
  • Uses: handling precast concrete beams
  • Project location: Indonesia
10 ton fixed gantry crane in a precast concrete production facility
16 ton fixed gantry crane in a precast concrete plant

Single Beam Fixed Gantry Crane in a Precast Concrete Plant

  • Load capacity: 16 tons
  • Span: 12 meters
  • Uses: lifting precast concrete components
  • Project location: Indonesia

Safety Features in Fixed Gantry Cranes

Rail and Track Safety Features

For fixed gantry cranes that operate on rails, ensuring the safety and integrity of the rail track is crucial. These cranes are equipped with various track safety features, including track sensors, rail alignment detectors, and rail end buffers, which prevent the crane from derailing or going off-track.

Overload Protection System

This system is designed to prevent the crane from lifting loads beyond its rated capacity, thus reducing the risk of crane failure or accidents due to excessive weight. When the crane detects an overload condition, the system automatically activates an alarm and disables the hoisting mechanism to prevent further lifting.

Limit Switches

Limit switches are used to prevent the crane’s hoist or trolley from traveling beyond the safe limits of its operating range. They are strategically placed on the gantry crane to ensure that the movement of the load is confined to designated areas, preventing collision with surrounding structures or equipment.

Emergency Stop Button

Every fixed gantry crane is equipped with an emergency stop button, providing a quick and effective way to halt crane operations in the event of an emergency. This button is strategically located in easily accessible areas on the crane’s control panel and at other points on the crane, such as the operator’s cabin and remote control units.

Anti-Sway System

The anti-sway systems work by controlling the motion of the load and minimizing swinging, allowing for more precise and controlled lifting. Anti-sway systems are especially important in applications where precision is crucial, such as in the handling of sensitive materials or equipment.

Wind Speed Monitoring and Control

The wind speed monitoring systems can measure wind speeds and automatically limit crane operations when wind speeds exceed safe thresholds. This prevents accidents such as the crane tipping over or the load swinging uncontrollably due to wind gusts. Wind speed alarms and cut-off features help ensure that lifting operations cease during dangerous weather conditions.

When selecting or customizing a fixed gantry crane, it is crucial to equip it with the appropriate safety features that align with your specific working condition and environment, maximizing both the safety and efficiency of your crane operations.

Choosing Between Fixed and Mobile Gantry Cranes: Key Factors to Consider

When it comes to selecting the right type of gantry crane for a specific operation, one of the key decisions is whether to go with a fixed gantry crane or a mobile gantry crane. Both types of cranes have their unique advantages and applications, but understanding when each is most beneficial can help companies make more informed, cost-effective decisions. Here are the key factors to consider when choosing between fixed and mobile gantry cranes:

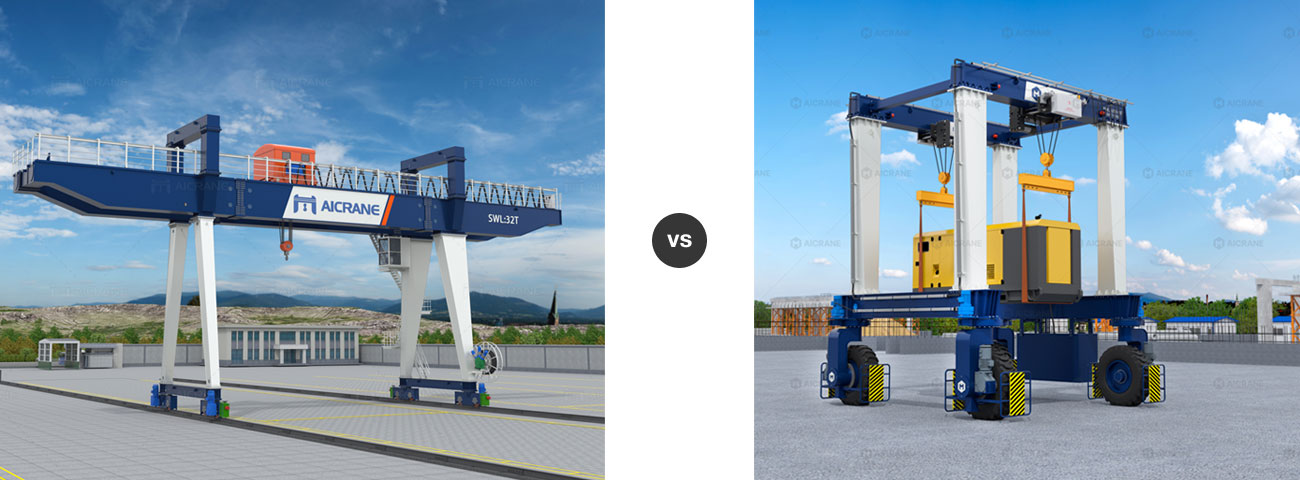

fixed vs. mobile type

Worksite and Space Requirements

  • A fixed gantry crane is ideal for operations within a confined or designated area where lifting needs are focused on a particular spot. Examples include factories, warehouses, and workshops with limited space but requiring continuous operations at a single location.
  • On the other hand, a mobile gantry crane offers flexibility when operations need to be conducted across different locations, such as in construction sites, large yards, or even outdoors. If your work involves shifting materials between different zones within a large facility or site, a gantry mobile crane is the better choice.

Lifting Capacity and Load Demands

  • If the lifting demands are substantial and involve heavy loads on a regular basis, a fixed gantry crane tends to be more suitable. These cranes typically offer higher lifting capacities, are more robust in design, and have a greater load-bearing capability. Stationary gantry cranes are usually more stable, making them perfect for large-scale operations such as steel processing, precast concrete production, and heavy industrial tasks.
  • While mobile gantry cranes can handle medium to heavy loads, they may not always have the same lifting capacities as stationary cranes. However, advancements in mobile crane technology are making them increasingly capable of handling heavier loads, but they are typically more suited for tasks that involve flexibility in location rather than massive lifting capacity in one area.

Operational Flexibility and Mobility

  • Mobile gantry cranes are the go-to choice when flexibility and mobility are required. For example, in environments like shipyards, docks, or large outdoor storage areas, where the need for crane movement across various locations is high, mobile rubber tyred gantry cranes provide the ability to move between tasks with ease. This is especially beneficial when working on projects that require transporting materials or equipment across wide areas or when multiple smaller tasks are spread across different zones.
  • Fixed gantry cranes, by contrast, are optimal when the tasks are highly repetitive and do not require movement. If the crane is meant to stay in one location for continuous operations, such as in a manufacturing line or an assembly area, a stationary gantry crane offers a more efficient and reliable solution.

Infrastructure Considerations

  • If your facility already has the necessary infrastructure, such as rail tracks or reinforced floors, a stationary gantry crane is an excellent choice. These cranes can be installed directly onto the existing infrastructure, providing a stable and long-lasting solution for heavy duty lifting.
  • However, if you’re operating in a rented warehouse or facility, where making permanent modifications to the ground is not an option or where there is concern about surface integrity, a mobile gantry crane will be far more appropriate. Since mobile cranes don’t require track installation or any permanent modifications to the space, they provide the flexibility to move within the facility without damaging the existing ground surface.

Long-Term Business and Project Needs

  • Consider the long-term nature of your projects. If your project involves consistent and heavy lifting in a stable, fixed location, a stationary gantry crane will provide greater durability, lifting capacity, and efficiency for ongoing tasks. It is the best choice for long-term, high-volume operations where crane relocation is not necessary.
  • However, if your business operates across multiple projects or your worksite layout changes frequently, a mobile gantry crane is the better investment. These cranes allow you to relocate the crane as needed, saving on installation and modification costs.

Ready to make the right choice for your lifting needs? Whether you need a fixed or mobile gantry crane, we offer expert advice, custom solutions, and top-quality cranes to fit your unique requirements. Contact us today for a consultation!

How to Get Installation and After-Sales Service from Aicrane

At Aicrane, we offer comprehensive installation and after-sales services to ensure that your crane operates smoothly and reliably. Take a look at the process of accessing installation and after-sales service after purchasing a fixed gantry crane from Aicrane.

Installation Service For Fixed Gantry Cranes

We provide professional installation services to ensure your crane is set up correctly and safely. Here’s how you can access our installation service:

installation service

On-Site Installation

If you choose on-site gantry crane installation, our experienced technicians will:

  • Assemble the crane: We will visit your site to assist your installation team in assembling and installing all crane components, ensuring they meet safety standards and operational requirements.
  • Test the system: After assembly, we will conduct thorough testing, including load testing and safety checks.
  • Staff training: We will train your team on proper crane operation, safety procedures, and routine maintenance.

Remote Installation Support

For more flexible options, we also offer remote installation support:

  • Step-by-step guidance: Our technicians will provide detailed instructions through video calls and documentation to guide your team through the installation.
  • Troubleshooting: If any issues arise, we will assist you with troubleshooting remotely.

After-Sales Service for Fixed Gantry Cranes

Our after-sales service ensures your fixed crane remains in top condition throughout its operational life. Here’s how we support you after installation:

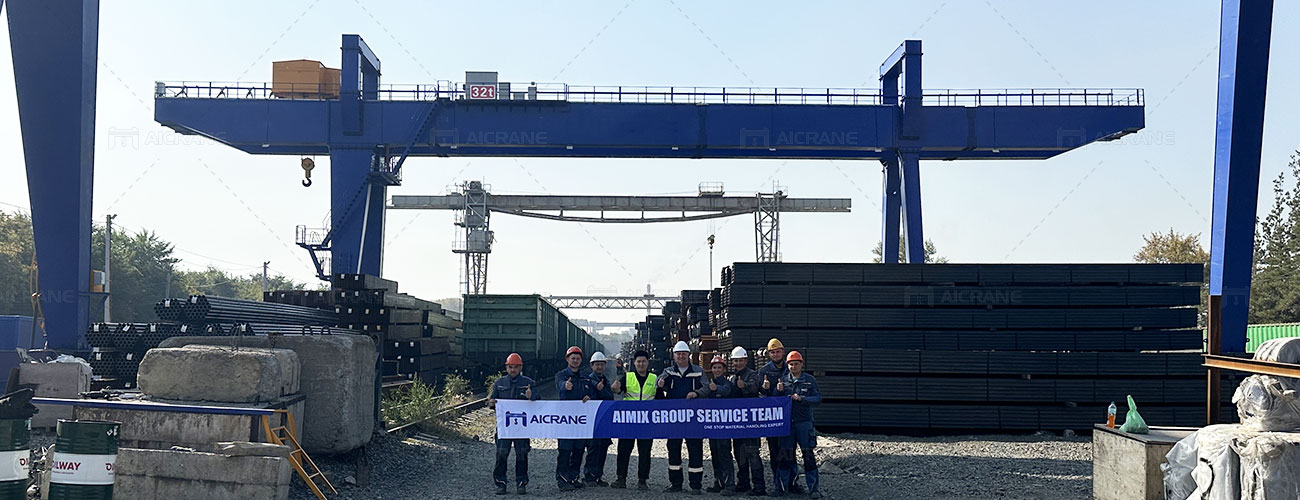

Aicrane after-sales service

Regular Maintenance

Routine maintenance is vital for keeping your crane running efficiently. We offer:

  • Scheduled maintenance: We can help you develop a customized maintenance plan, which includes periodic inspections, lubrication, and performance testing.
  • Spare parts: If any parts need replacing, we provide high-quality, genuine spare parts to ensure compatibility and performance.

Warranty Support

We offer warranty coverage on all our cranes, including fixed or stationary gantry cranes. If any parts or components fail within the warranty period, we will:

  • Repair or replace faulty components at no additional cost.
  • Provide troubleshooting assistance for any technical issues related to your crane.

From professional installation to ongoing support, we are here to assist you at every step of your crane’s lifecycle. With our expertise and dedication to customer satisfaction, you can be confident that your crane will continue to perform reliably for years to come.

Maintenance Tips for Fixed Gantry Cranes

To ensure safety, reliability, and longevity, regular gantry crane maintenance is essential. Here are key tips for maintaining fixed gantry cranes:

fixed gantry crane maintenance

Inspect Structural Components

Check the frame, beams, and supports for wear, cracks, or corrosion. Pay attention to joints and welds.

Frequency: Monthly or more often in harsh environments.

Lubricate Moving Parts

Regular lubrication of bearings, gears, and trolley wheels is necessary to prevent friction and wear.

Frequency: Every 500 operating hours or every 3 months.

Hoist and Trolley Maintenance

Inspect the hoist and trolley for cable wear, motor function, and smooth movement.

Frequency: Every 3–6 months.

Wheel and Rail Check

Examine wheels for wear and ensure the rails are clear and aligned to avoid operational issues.

Frequency: Monthly or more often for high-load cranes.

Electrical System Check

Inspect wiring, controls, and emergency stop systems for wear or damage.

Frequency: Every 3 months.

Brake System Maintenance

Ensure brake pads, hydraulic, and air systems are in good condition to maintain safety.

Frequency: Every 6 months.

Load Testing

Test the crane’s load capacity regularly to confirm it’s operating at full capacity.

Frequency: Annually or after major repairs.

By following these maintenance tips, you can extend the life of your crane, reduce downtime, and maintain safe and efficient operations.

To learn more about our fixed gantry crane or to get a quote tailored to your specific requirements, contact us today!

    Customize Your Lifting Solutions

    Contact us now via email: inquiry15@aicranes.com, or fill in the form below.

    FEW TIPS:

    1.Load capacity: ton?

    2.Span of the crane: m?

    3.Max. lifting height of the crane: m?

    4.What materials will be handled: ?

    5.How many hours will the crane work per day?

    6.Project introduction: project working site, project budget, etc.
