Given the substantial lifting capacities and operational complexity of gantry cranes, ensuring their safety is vital to prevent accidents and safeguard workers. This article will cover key aspects of gantry crane safety, including how we maintain safety throughout each phase of the crane’s lifecycle, along with detailed safety procedures and other essential measures aimed at improving safety.
How We Ensure Gantry Crane Safety: from Design to Operation
From the initial design phase to operation, safety must be integrated at every step to prevent accidents, protect workers, and extend the crane’s lifespan.
Safety in Gantry Crane Design
The foundation of a safe gantry crane starts with its design. At this stage, our engineers and designers focus on several critical safety factors:
a. Structural IntegrityThe crane’s structure must be designed to withstand the maximum expected load, including any dynamic forces that occur during lifting and transportation. Materials used in the crane must be high-quality, durable, and able to resist fatigue. This involves using advanced design software to simulate different loading scenarios and stress points.
b. Safety Features and SystemsIncorporating advanced safety features is a must. These include: overload protection, anti-sway systems, emergency stop systems, and more.
c. Ergonomic Control SystemsDesigning control systems with the operator’s safety in mind is critical. This means ensuring that the controls are intuitive, user-friendly, and placed in positions that reduce fatigue and allow for easy access during operations.
Safety in Gantry Crane Manufacturing
Once the crane design is finalized, ensuring safety during manufacturing is the next critical step. The manufacturing process complies with international safety standards and regulations to guarantee a safe and reliable end product.
a. Quality Assurance and TestingOur manufacturing processes include rigorous testing and quality assurance protocols. Cranes are subjected to load tests, operational tests, and safety function tests to ensure that all components function as intended under real-world conditions. All materials and components meet or exceed the required specifications for strength, durability, and safety.
b. Skilled WorkforceOur skilled and experienced workforce is crucial in the manufacturing process. Workers are properly trained in handling the equipment, assembling the crane, and conducting inspections. This minimizes the risk of human error during the assembly phase, ensuring the crane is built according to safety guidelines.
c. Use of High-Quality MaterialsThe selection of materials used in manufacturing can greatly impact the safety and longevity of the crane. All components of gantry cranes, from the steel beams to the lifting mechanisms, are sourced from reputable suppliers to guarantee high standards of safety and reliability.
Safety in Gantry Crane Shipping
Once the crane is manufactured, ensuring its safe transport to the installation site is another key aspect of crane safety.
a. Proper Packaging and SecuringDuring shipping, our cranes are carefully packed and secured to prevent damage during transit. Components are individually protected, especially delicate parts like control panels or electrical wiring. The crane’s structure is carefully disassembled to minimize shipping costs and reduce potential damage.
b. Shipping Route ConsiderationsChoosing the correct shipping route and ensuring that the crane is handled by experienced logistics professionals is essential for safe delivery. Special considerations, such as avoiding rough roads or unstable transport conditions, are made to ensure that the crane arrives at the installation site undamaged.
c. Inspection Upon ArrivalUpon arrival, the crane should be inspected to ensure no damage has occurred during shipping. This inspection also includes checking for missing components, ensuring all parts are intact, and preparing for the installation phase.
Safety in Gantry Crane Installation
Proper installation is another critical stage that ensures the safe operation of your gantry crane. Even if the crane is designed and manufactured correctly, poor installation can lead to safety issues and equipment failure.
a. Proper Site PreparationBefore gantry crane installation, it is important to conduct a thorough site inspection to ensure the ground and environment can support the crane. The foundation should be solid, level, and capable of handling the weight of the crane and the loads it will lift. Any obstacles or hazards in the surrounding area must also be identified and addressed.
b. Professional Installation TeamOnly trained and certified installation teams should be used. These experts will ensure that all components are correctly assembled, electrical systems are wired properly, and the crane is installed according to the manufacturer’s specifications and local regulations. Installation teams must also conduct tests during installation to check the crane’s alignment, load capacity, and functionality.
c. Safety Checks and CertificationsUpon installation, comprehensive safety checks should be performed, including electrical safety checks, load testing, and a thorough inspection of all crane systems. This ensures that the crane meets all safety regulations and certifications before it begins operation.
Safety in Gantry Crane Operation
Once the crane is installed and fully operational, ensuring safe operation of gantry crane is vital for preventing accidents and prolonging its service life. This requires a combination of operator training, routine inspections, and maintenance.
a. Operator Training and CertificationOperators must undergo thorough training to understand how to safely control the crane, including how to handle loads, use safety features, and react in emergency situations. Certified crane operators should be familiar with all safety protocols, such as the proper use of the emergency stop system, how to handle overload situations, and best practices for minimizing risk during crane operations.
b. Regular Inspections and MaintenanceRoutine inspections and preventive maintenance of gantry crane are key to keeping the equipment in safe working condition. Operators should conduct daily checks of the crane before use, including verifying the condition of the lifting mechanism, brakes, anti-sway systems, and controls. Additionally, the crane should undergo a more detailed inspection at regular intervals to check for wear and tear, particularly in high-stress areas such as the crane’s wheels, electrical components, and lifting cables.
c. Real-time Monitoring and Remote Control SystemsAdvanced gantry cranes can be equipped with real-time monitoring systems that track crane performance, detect issues before they lead to failures, and provide operators with immediate feedback. Remote control and monitoring technologies also allow supervisors to monitor operations from a distance, enhancing safety and allowing for quick intervention in the event of a malfunction or emergency.
d. Safety Signage and Operational ProtocolsClear and visible safety signage should be posted around the crane and operational area. Additionally, all operators should follow established protocols for load handling, environmental conditions, and emergency response.
Details of Gantry Crane Safety Procedures
Establishing a comprehensive gantry crane safe work procedure is critical to ensuring the well-being of workers and the smooth, efficient operation of the crane. The following are the details of safety procedures that should be followed to ensure gantry crane operations are safe and effective.
Pre-Operation Safety Checks
Before any operation, a thorough gantry crane inspection should be carried out. This helps identify potential issues and prevent accidents during operation.
Key Gantry Crane Safety Checklist Before Operation:
- Structural Inspection: Inspect the crane frame, girder, boom, trolley, and hoisting equipment for any signs of wear, cracks, or damage. Any structural issues should be addressed before use.
- Electrical System: Check the electrical connections, wiring, and control systems for any loose connections, exposed wires, or malfunctioning components.
- Load Lifting Mechanism: Ensure that the hoisting mechanism, including the ropes, chains, hooks, and slings, are in good condition and properly secured.
- Limit Switches and Overload Protection: Test the limit switches to ensure they will stop the crane when it reaches the end of its travel. Verify that the overload protection system is functioning and set correctly.
- Control Systems: Verify that both manual and remote control systems are operating smoothly, and confirm that the emergency stop button is functional.
Safe Load Handling
Lifting heavy loads is the primary function of a gantry crane, but improper load handling can lead to accidents and injuries.
Key Safe Load Handling Procedures:
- Load Capacity: Never exceed the crane’s rated load capacity. The load should always be clearly marked, and operators should double-check the weight of the load before lifting.
- Balanced Load: Ensure that the load is evenly distributed and properly secured to avoid swinging or instability. Uneven loads can cause the crane to become unbalanced, which could lead to tipping.
- Load Monitoring: Use load monitoring systems (if available) to ensure the weight of the load is within safe operating limits. Overload alarms or automatic shutdowns can prevent the crane from lifting too much weight.
- Check the Load Path: Ensure the lifting path is clear of obstacles and hazards. The area should be clean, and all personnel should be safely out of the crane’s lifting path.
Environmental Considerations for Safety
Environmental conditions can greatly affect crane operations. Weather, ground conditions, and workspace layout must be taken into account when using a gantry crane.
Key Environmental Safety Procedures:
- Wind Conditions: High winds can affect the stability of the outdoor gantry crane and the safety of the lifted load. Cranes should not be used in high wind conditions unless they are designed for such operations.
- Ground Conditions: Ensure that the ground under the crane is level and capable of supporting the weight of the crane and the load. If the ground is unstable, additional measures such as using mats or reinforcing the ground may be required.
- Lighting: Ensure the area is properly lit, especially if the crane is used during night shifts. Poor lighting can increase the risk of accidents and make it difficult for the operator to see obstacles or gauge distances.
Post-Operation Safety Procedures
Once the lifting operation is complete, it is important to follow proper post-operation safety procedures.
Key Post-Operation Procedures:
- Secure the Load: After completing a lift, ensure that the load is safely placed and properly secured before the crane is turned off.
- Inspection: After each shift, inspect the crane for any signs of wear and tear or damage. Look for any loose parts, abnormal wear on ropes or chains, or issues with the control system.
- Clean the Crane: Remove any debris or materials that might have accumulated on the crane. This prevents operational hazards during the next use.
- Lockout/Tagout: If maintenance or repair work is required, ensure the crane is locked out, and appropriate safety tags are used to prevent unauthorized operation.
Revolutionizing Overhead Gantry Crane Safety with Advanced Technology
Traditional safety measures have been enhanced with the advent of intelligent systems that incorporate cutting-edge technology, such as visual recognition, automation, and advanced control mechanisms.
Smart Monitoring System
The intelligent monitoring systems rely on visual recognition technology, which uses cameras, sensors, and machine learning algorithms to monitor and interpret the crane’s environment in real-time. Through this technology, operators can observe the crane’s surroundings and assess critical operational parameters, such as load positioning, lifting height, and any potential obstacles in the crane’s path.
By visualizing the crane’s operation, the monitoring system ensures that the crane operates smoothly and safely, while also providing real-time alerts in case of potential safety risks. For example, if an object is detected in the crane’s path or if the load is not properly positioned, the system can send an immediate warning to the operator or even halt the operation to prevent accidents. This level of monitoring not only increases safety but also enhances operational efficiency by reducing the risk of human error and the potential for costly downtime.

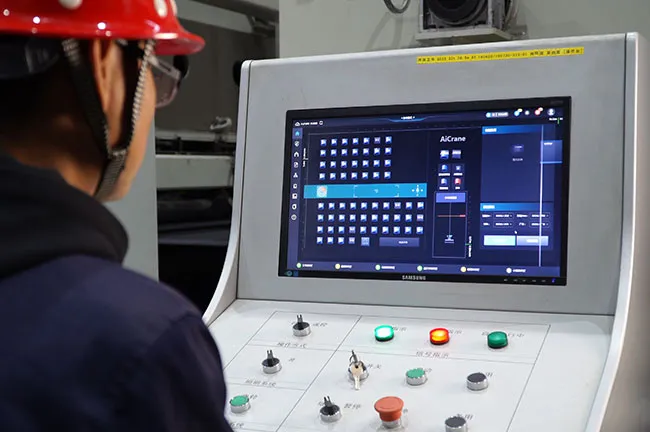

Intelligent Control System
Another integral component of the intelligent safety system is the intelligent control system. By using Programmable Logic Controllers (PLC), cranes can operate with a high degree of automation, which significantly reduces the need for manual intervention and improves the overall safety of operations. PLCs are used to automate various tasks, including load lifting, lowering, and positioning, as well as controlling other crane movements.
In addition to automation, the integration of variable frequency drives (VFD) plays a pivotal role in improving safety and performance. VFDs allow for precise control of the crane’s speed and motion, reducing sudden jerks or vibrations that could lead to equipment malfunction or unsafe handling of materials. By gradually controlling the speed and ensuring smooth transitions during operation, VFDs enhance both safety and efficiency.
If you’re looking to enhance the your overhead and gantry crane safety, it’s time to consider upgrading to an intelligent gantry crane system. Contact Aicrane today to learn more about how our cutting-edge solutions can transform your operations and ensure maximum safety and productivity for your business!
