Our jib crane for sale is an efficient, space-saving, and cost-effective lifting solution designed to handle materials in a localized area. These cranes are ideal for manufacturing, assembly lines, warehouses, and other settings requiring precise and controlled lifting operations.
Jib Crane Types And Specification

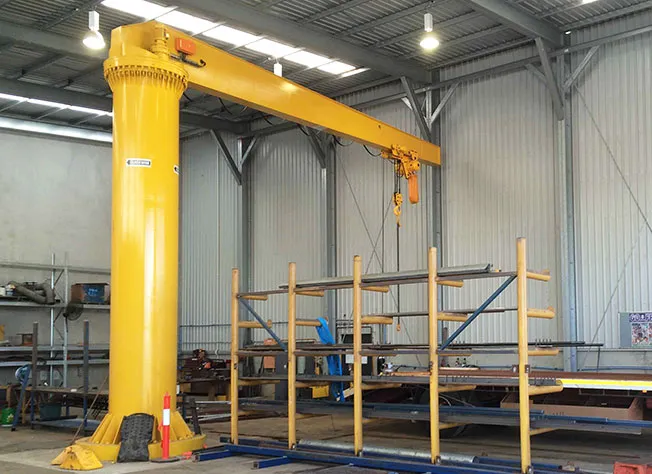

AQ-BZ floor mounted jib crane
Floor-mounted jib crane is installed directly on the floor using a base plate or column foundation. The crane arm pivots from the vertical column and is usually self-supporting, without the need for additional building support.
They are suitable for a wide range of applications, including assembly lines, workshops, and maintenance areas. These cranes are versatile and can serve as standalone lifting equipment in various environments.
AQ-BZ type specifications
- Load capacity: 0.5-20t
- Valid radius: 3m-12m
- Lifting height: 3m-8m
- Slewing angle: 0-360°
- Lifting speed: 8(0.8/8)m/min
- Running speed: 10(20)m/min
- Slewing speed: 0.5-1r/min
- Work duty: A3, A4

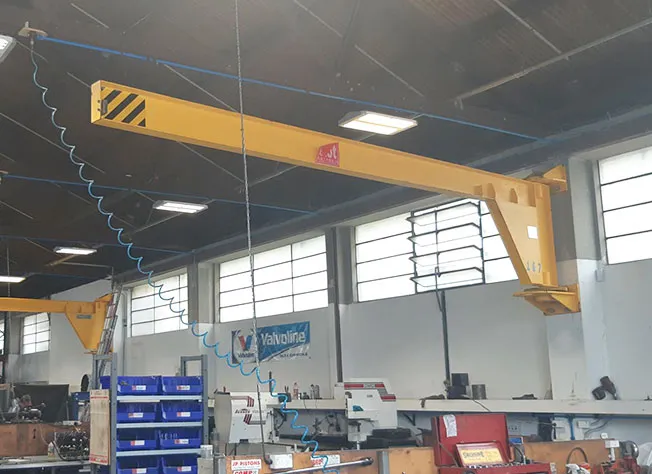

AQ-BX wall mounted jib crane
Wall mounted jib crane is mounted on a building’s wall or column. The jib arm pivots from a fixed point on the wall, allowing for efficient lifting in a limited area.
They are ideal for areas with limited space, such as workshops, warehouses, or small production areas where the crane needs to be out of the way when not in use.
AQ-BX type specifications
- Load capacity: 0.5-10t
- Valid radius: 3m-8m
- Lifting height: 6m-30m
- Slewing angle: 0-180°
- Lifting speed: 0.7-8m/min
- Running speed: 10m/min
- Slewing speed: 0.4-1r/min
- Work duty: A3, A4

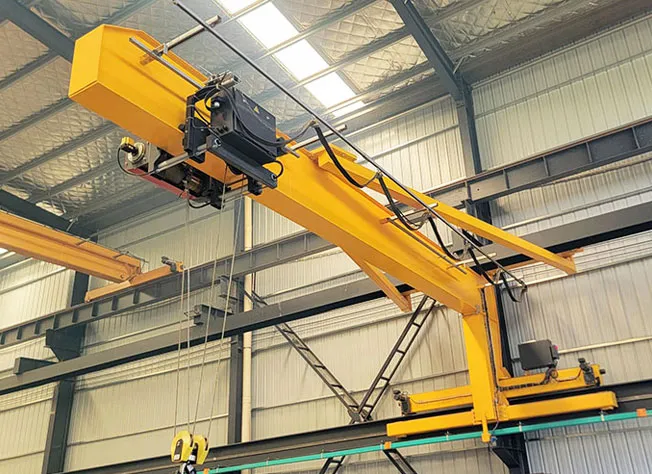

AQ-BB type wall traveling jib crane
Wall traveling jib crane combines features of wall-mounted and traveling cranes. It is mounted on a track or rail along the wall, allowing the crane to move horizontally along the length of the wall while maintaining the jib’s pivoting capability.
This type of crane is ideal for larger spaces or areas where a broader range of motion is required. They are often used in warehouses, factories, and large workshops where precise and versatile lifting and movement are essential.
AQ-BB type specifications
- Load capacity: 0.5-16t
- Valid radius: 5m-12.5m
- Lifting height: 6m-30m
- Lifting speed: 0.35-8m/min
- Hoist speed: 10m/min
- Crane speed: 20m/min
- Work duty: A3, A4
Applications of Jib Cranes
Manufacturing and Assembly Lines:Jib cranes are widely used in assembly lines for lifting and positioning parts or materials during the production process. The cranes help reduce manual handling and improve efficiency in manufacturing operations.
Maintenance and Repair:These cranes are essential in maintenance and repair workshops where heavy or bulky equipment needs to be moved for servicing.
Warehouses and Distribution Centers:In warehouses, jib cranes help with lifting and moving goods, reducing the need for forklifts and manual labor.
Automotive Industry:In automotive factories, these cranes are used to handle heavy vehicle parts and components, such as engines and chassis, during assembly or repairs.
Energy and Power Plants:Jib cranes help in handling components and tools used for maintenance in power plants and energy facilities, especially in areas with limited space.
Aircraft and Aerospace Industry:In aerospace, this type of crane is used for moving large and delicate parts, such as airplane wings or engines, during assembly or maintenance.
Our Jib Crane Highlights
Compact Design for Space Efficiency
Jib cranes are compact and require less space compared to traditional overhead or gantry cranes. Their ability to be mounted on walls or in corners allows them to be used in smaller, confined spaces, making them ideal for areas with limited headroom or floor space.
Versatility in Application
These cranes are incredibly versatile and can be used for a wide range of lifting tasks. They are often employed for lifting light to medium loads, such as machinery, tools, and heavy materials within small, confined spaces. Whether used for assembly lines, workstations, or material handling, our jib cranes for sale can be customized to meet specific lifting requirements, including reach, load capacity, and height.
Easy Installation and Maintenance
Jib cranes are relatively easy to install and require minimal space. With their simple design and fewer moving parts, they are generally easier to maintain and repair compared to more complex lifting systems. Regular inspections and lubrication can ensure the crane operates efficiently and has a long service life.
Cost-Effective Solution
Our jib cranes offer an economical alternative to larger lifting systems, providing a lower initial investment and operating cost. They are ideal for businesses with smaller lifting requirements or limited budgets. With their long lifespan and low maintenance needs, these cranes can offer a high return on investment, especially for industries with frequent material handling tasks.
How to Select the Right Type of Jib Crane
Below are key considerations to help you make the right decision when selecting the right type of crane.
Consider the Load Capacity
The first step in selecting a jib crane is to assess the load capacity needed for your operations. Jib cranes are available in a range of capacities, from 0.5 ton to 20 ton. Ensure the crane you select can handle the maximum load weight that will be lifted regularly.
Assess Available Space
Space constraints are a significant factor when choosing the type of crane. The dimensions of your workspace, including ceiling height, floor area, and proximity to walls or other equipment, will influence which crane design is best suited for the environment.
Determine the Required Reach
The reach of a jib refers to the horizontal distance the boom extends, which directly impacts how far the crane can reach to handle materials. Consider the typical load-handling needs and determine how far the crane’s arm needs to extend.
Evaluate Lifting Height
Lifting height is another important factor when selecting a crane. The height determines how far the crane can lift the load from the ground, which is essential for handling items at varying heights within your workspace.
Consider the Mounting Type
Jib cranes can be mounted in different ways such as wall mounted, column mounted, and freestanding, depending on the operational needs and the space available.
Consider Environmental Conditions
Consider any environmental factors such as temperature extremes, dust, humidity, or exposure to corrosive materials. These conditions will determine the type of crane that can safely operate in your environment.
By assessing these factors, you can select the ideal jib crane that meets your operational needs while ensuring efficiency and safety. Don’t hesitate to reach out to our experts for personalized advice on selecting the right crane for your business. Contact us today to get started and find the perfect lifting solution for your needs!
