Goliath Crane

Goliath crane is a type of a large-scale, heavy-duty gantry crane that spans large areas and is designed for heavy lifting tasks. With immense size and strength, these goliath gantry cranes are perfect for handling massive and bulky items in shipyards, construction sites, and industrial plants.

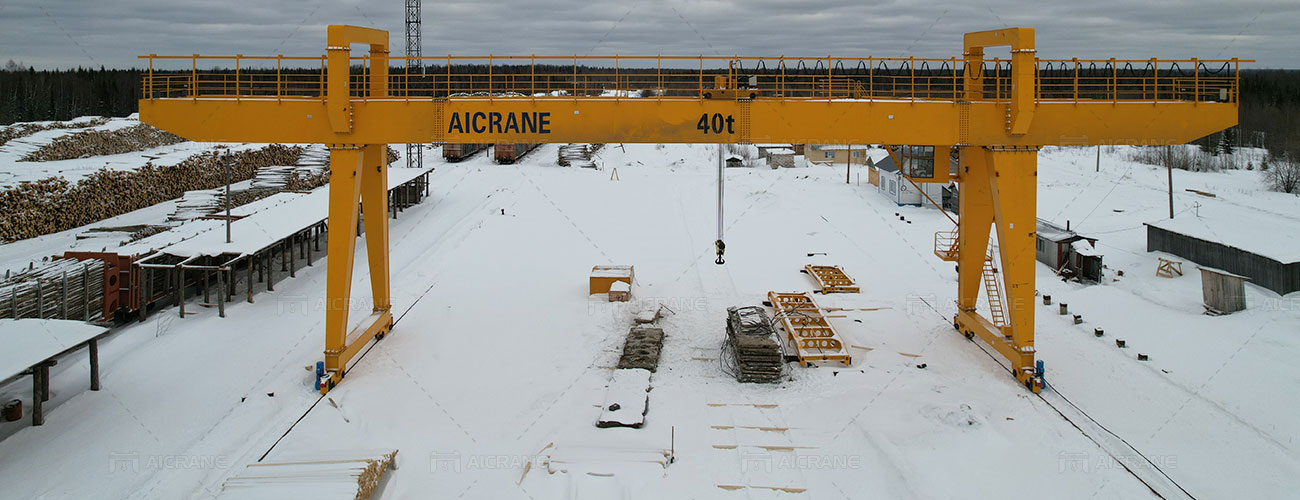

Aicrane Goliath Crane

Types of Goliath Cranes for Sale

At Aicrane, there are various types of goliath crane for sale, including single girder, double girder, semi-goliath type, and mobile type. Each of these crane types has distinct features, advantages, and applications, making them suitable for different industrial tasks.

Double Girder Goliath Crane

Double Girder Goliath Crane

The double girder goliath crane for sale features two parallel girders across its span, providing higher load capacity and greater stability for heavy lifting tasks. This configuration is more robust, allowing it to handle extremely heavy loads and large spans.

Key Features:

  • High Load Capacity: Double girder gantry cranes are designed for heavy-duty applications, with lifting capacities ranging from 10 tons to over 500 tons.
  • Greater Stability: The dual girders provide enhanced stability, making the crane suitable for handling large, bulky, or heavy materials.
  • Longer Spans: Double girder goliath gantry cranes are capable of covering wider spans, ideal for large-scale operations.

Mobile Goliath Crane

Mobile Goliath Crane

The mobile goliath crane, also known as a rubber-tired gantry crane, is a versatile type that can move freely across flat surfaces without the need for ground rails. This type is an excellent option for industries requiring mobile lifting solutions.

Key Features:

  • Mobility: Mobile Goliath cranes can travel across different areas without requiring tracks. This mobility increases operational flexibility.
  • No Rail Installation: Since the crane operates on rubber tires, there is no need to install rails, reducing installation costs and making it easy to relocate the crane.
  • Steering Modes: Mobile gantry cranes can be equipped with multiple steering modes, such as crab steering and carousel steering, to enhance maneuverability.

Single Girder Goliath Crane

Single Girder Goliath Crane

Single girder goliath crane for sale consists of a single beam or girder that spans the width of the crane and supports the hoist or lifting mechanism. The girder is supported by legs that travel along rails installed on the ground, allowing the crane to move horizontally and cover large areas.

Key Features:

  • Cost-Effective: Single girder goliath gantry cranes are generally more economical due to their simple design.
  • Compact Design: The single girder gantry crane design is more compact, making it suitable for applications where space is limited.
  • Ease of Installation: These cranes are easier and faster to install, reducing downtime during setup.

Semi Goliath Crane

Semi Goliath Crane

Semi goliath crane has one leg supported by a ground rail, while the other end of the crane’s girder is supported by an elevated structure, such as a wall or a column. This configuration is ideal for locations where space is restricted or where a full gantry crane is not practical. There are two main types based on girder configuration: double girder and single girder semi goliath crane.

Key Features:

  • Space Efficiency: The semi goliath crane requires less floor space, as one side is supported by a wall-mounted runway.
  • Cost-Effective: As only one leg is required for ground support, it is often more cost-effective than a full goliath crane.
  • Easy Integration: Semi gantry cranes can easily be integrated into existing building structures, saving space and reducing installation costs.

Applications of Goliath Cranes in Various Industries

If your industry requires powerful, reliable lifting solutions, Goliath cranes offer the ideal combination of strength, flexibility, and durability to meet your operational needs. Take a closer look at the key applications of these cranes across different industries, and learn how they contribute to improved productivity and operational efficiency.

Construction Industry: Heavy-Duty Handling of Construction Materials

In the construction industry, Goliath cranes are frequently used in the construction of large infrastructure projects, including bridges, high-rise buildings, and power plants. They can be used to lift and transport heavy building materials such as steel beams, concrete segments, and prefabricated structures.

Goliath Crane for Bridge Construction

Key Applications in Construction:

  • Bridge Construction: Goliath cranes are used to lift and place large bridge segments, such as precast beams or steel trusses, during the assembly of bridges.
  • Precast Concrete Handling: These gantry cranes are vital in precast concrete facilities, where they lift and move large concrete components such as beams, slabs, and columns.
  • Large Equipment Installation: In power plants and industrial construction projects, these large cranes are used to lift and install heavy machinery, generators, and other large equipment.

Shipbuilding and Marine Industry: Precision Lifting of Large Components

The shipbuilding industry relies on Goliath cranes for the construction, maintenance, and repair of ships. These large cranes are widely used to lift and position large, heavy components such as ship sections, engines, and other massive parts.

Application for Shipbuilding

Key Applications in Shipbuilding:

  • Lifting Ship Blocks: Goliath cranes are used to move large ship blocks during the assembly process, ensuring accurate placement for welding and fastening.
  • Loading and Unloading Materials: These cranes are utilized to load and unload heavy equipment and materials onto ships or offload cargo from vessels.
  • Ship Maintenance: Goliath gantry cranes play a vital role in shipyards, helping with dry-docking operations where vessels are lifted for repairs and maintenance.

Steel and Metal Industry: Efficient Transport of Heavy Metal Products

In the steel and metal industry, Goliath cranes play a crucial role in material handling operations, such as moving raw materials, semi-finished products, and finished goods within production plants and storage areas.

Application for Steel Industry

Key Applications in Steel Mills:

  • Lifting Steel Coils: Goliath gantry cranes are used to lift and transport heavy steel coils from one location to another within steel mills.
  • Handling Metal Slabs: The cranes are employed to move metal slabs from the production line to the storage area or onto transportation vehicles.
  • Loading and Unloading: These cranes efficiently load and unload heavy metal products, such as sheets, pipes, and beams, from trucks, trains, or containers.

Logistics and Transportation Industry: Optimizing Large Goods Movement and Container Handling

The logistics and transportation sectors rely on Goliath cranes for lifting and transporting heavy goods and containers. These cranes are designed to operate in outdoor environments and can cover large areas, making them ideal for logistics centers and container yards.

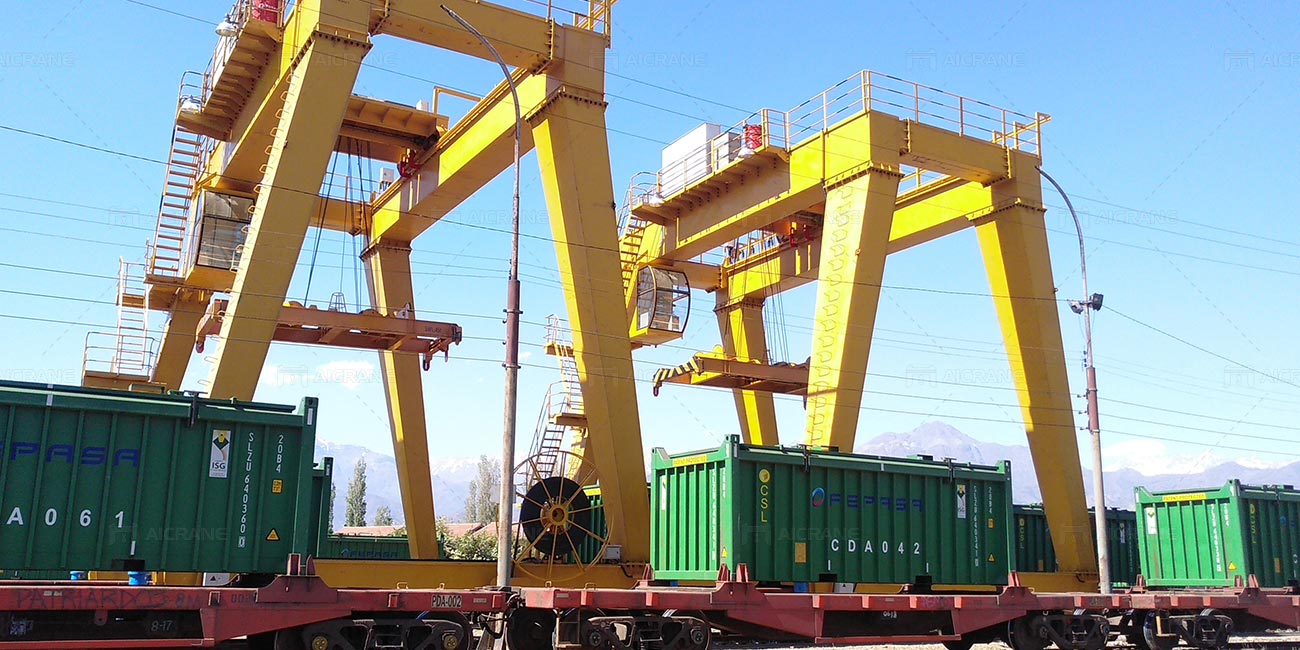

Goliath Crane for Logistics and Transportation

Key Applications in Logistics:

  • Container Handling: Goliath gantry cranes are often used in container terminals to load and unload containers from trucks, trailers, and railcars.
  • Bulk Material Handling: These cranes are also employed to move bulk materials, such as steel, lumber, or precast components, across vast outdoor or indoor storage areas.

Case Studies of Goliath Cranes in Various Customer Projects

45 Ton Goliath Crane For Container Handling

45 Ton Goliath Crane For Container Handling in Kazakhstan

  • Crane Type: Specialized Container Gantry Crane (RMG Crane)
  • Lifting Capacity: 45 tons
  • Span: 38 meters
  • Lifting Height: 15 meters (4+1 container heights)
  • Cantilevers: 7 meters + 9 meters
  • Project Location: Almaty, Kazakhstan
  • Usage: Handling 20ft, 40ft, and 45ft containers at a logistics hub

50 Ton Goliath Crane For Tunnel Construction Project in Russia

  • Lifting Capacity: 50 tons
  • Span: 40 meters
  • Lifting Height: 80 meters
  • Single Cantilever: 5 meters
  • Project Location: Saint Petersburg, Russia
  • Usage: Excavation material handling within the tunnel
50 Ton Goliath Crane For Tunnel Construction
64 Ton Double Girder Goliath Crane For Steel Product Handling

64 Ton Double Girder Goliath Crane For Steel Product Handling in Russia

  • Lifting Capacity: 32T+32T
  • Span: 42 meters
  • Project Location: Lyssky, Russia
  • Usage: Lifting steel pipes

70 Ton Goliath Cranes For Precast Concrete Production

  • Project Location: Argentina
  • Usage: Two 70t goliath cranes work together to facilitate the production of prefabricated concrete components.
70 Ton Goliath Cranes For Precast Concrete Production
40 Ton Mobile Goliath Crane For Steel Tank Handling

40 Ton Mobile Goliath Crane For Steel Tank Handling in the USA

  • Lifting Capacity: 40 tons
  • Span: 19.8 meters
  • Project Location: Texas, USA
  • Usage: Transporting and loading finished tanks onto trucks

Understanding Goliath Crane Specifications

When considering a Goliath crane, it is essential to understand its specifications, which can vary significantly based on your requirements and intended use.

  • Goliath Crane Capacity: The cranes can lift a wide range of weights, such as 50 ton, 100 ton, 200 ton, 300 ton to over 500 tons, depending on the design and configuration. When selecting this type of heavy duty gantry crane, it’s essential to consider not just the maximum load capacity but also the nature of the loads you’ll be handling.
  • Span of the Crane: The span of a Goliath crane refers to the distance between the two vertical supports. The span significantly affects the crane’s ability to lift loads across various applications. Choosing the correct span ensures the crane can effectively cover the necessary work area while maintaining stability and safety.
  • Lifting Height of Goliath Crane: The lifting height specification determines how high the crane can raise its loads. This specification is crucial for operations requiring lifting materials to elevated positions, such as lifting and positioning loads at bridge construction sites. The lifting height can often be customized based on specific operational needs, ensuring maximum efficiency in lifting operations.
  • Travel Distance: The travel distance indicates how far the crane can move along its tracks. This specification is vital for operations that require frequent repositioning of the crane to handle multiple loading and unloading tasks. Long travel distances are beneficial in large industrial facilities where materials are moved across extensive areas.
  • Speed: The lifting speed and travel speed of a crane impact its operational efficiency. Adjustable speed settings are also available in our cranes, allowing operators to fine-tune the speed based on the specific requirements of the job.

Please check out the detailed specifications of goliath gantry cranes below:

Technical Parameter of AQ-MG Double Girder Goliath Crane
Capacityt5101620325075100160200250320400450500
SpanS(m)18~3518~3518~3518~3518~3518~3518~3518~3518~3518~3518~3518~3518~3518~3518~35
Lifting heightm6~186~186~186~186~186~186~186~186~186~186~186~186~186~186~18
Lifting speedm/min11.58.57.97.265.94.73.93.53.52.22.31.51.51.5
Trolley speedm/min37.237.440.1403731.338.233.922.5292816.6101011.5
Crane speedm/min37.737.740.140.1384438.332.328285028181816
Work dutyA3-A7A3-A7A3-A7A3-A7A3-A7A3-A7A3-A7A3-A7A3-A7A3-A7A3-A7A3-A7A3-A7A3-A7A3-A7
Track typeP43P43P43 QU70P43 QU70P50 QU80QU80QU80QU100QU100QU100QU120QU120QU120QU120QU120
Technical Parameter of AQ-MH Single Girder Goliath Crane
Capacityt35101620
SpanS(m)8~358~358~358~358~35
Lifting heightm6~186~186~186~186~18
Lifting speedm/min8(0.8/8)8(0.8/8)7(0.7/7)3.5(0.35/3.5)3.3(0.33/3.3)
Trolley speedm/min20(30)20(30)20(30)1814
Crane speedm/min20(30)20(30)20(30)20(30)20(30)
Work dutyA3~A4A3~A4A3~A4A3~A4A3~A4
Track typeP24P24 P30P30 P38P38P38 P43

What Is The Price of Goliath Crane?

Another critical aspects to consider when investing in a crane is its price. Howver, the Goliath crane price varies significantly based on numerous factors, including load capacity, specifications, configurations, and customized features. So here we will provide an average pricing overview of our goliath crane for sale for your reference:

ModelCapacitySpanPrice (USD)
AQ-MG10 Ton18-35m$44,000-$110,000
AQ-MG20 Ton18-35m$73,000-$147,000
AQ-MG32 Ton18-35m$88,000-$176,000
AQ-MG50 Ton18-35m$110,000-$206,000
ModelCapacitySpanPrice (USD)
AQ-MH 5 Ton10.5-31.5m$10,000-$29,000
AQ-MH 10 Ton10.5-31.5m$14,000-$41,000
AQ-MH 20 Ton10.5-31.5m$22,000-$52,000

Tips for Reducing Goliath Crane Costs

Choose the Right Specifications

One of the most important ways to manage costs is by selecting the correct specifications for your operational needs.

  • Load Capacity: Don’t purchase a crane with more capacity than you need. If your heaviest load is 50 tons, there’s no need to buy a 100 ton goliath crane, as this will unnecessarily drive up costs.
  • Span and Lifting Height: Larger spans and higher lifting heights increase the price of gantry crane. If your workspace doesn’t require extensive span or height, opt for a model with more modest dimensions to save money.
  • Custom Features: Only choose additional features, such as advanced control systems or enhanced mobility, if they are necessary for your specific operations.

Compare Quotes from Multiple Suppliers

One of the most effective ways to reduce upfront costs when purchasing a crane is to compare quotes from multiple suppliers. Prices can vary significantly between suppliers, depending on factors like materials, customization, and included services.

How to effectively compare:

  • Get detailed quotes: Ensure the quotes include all relevant costs such as crane specifications, installation, transportation, and after-sales services.
  • Check for hidden fees: Some suppliers may offer low initial prices but add costs for services like maintenance or warranties.
  • Compare service packages: Consider not just the price, but also the quality of after-sales support, warranties, and maintenance options.

Buy Direct from the Manufacturer

Working directly with Goliath crane manufacturers can sometimes result in cost savings. By cutting out middlemen or third-party distributors, you can negotiate better deals and avoid unnecessary markup.

Advantages of buying direct:

  • Lower prices: Manufacturers typically offer lower prices because there are no distributor fees.
  • Customization options: Manufacturers can provide more tailored solutions to match your specific needs.
  • Better after-sales service: Dealing directly with the manufacturer ensures that service, maintenance, and warranty issues are handled faster and more efficiently.

Plan for Future Needs

While it’s essential to avoid over-specifying your crane, it’s equally important to plan for future growth in your operations. Purchasing a crane with a slightly higher load capacity than your current needs or opting for scalable design features may save you from having to replace or upgrade your crane sooner than expected.

For more information about cost-effective Goliath crane solutions, contact us today. We offer competitive pricing, customizable options, and expert advice to help you find the most suitable crane for your business needs.

Goliath Crane Price

Top Reasons to Choose Aicrane for Your Goliath Crane Needs

When buying goliath cranes, it is also important to choose the right manufacturer or supplier. Here are the main reasons why buying our goliath gantry cranes is the right decision for your business.

High-Quality Equipment Manufacturing

High-Quality, Durable Cranes

We ensure that every crane we manufacture is built to withstand tough conditions. Our Goliath cranes for sale are made from high-strength steel and designed for long-lasting performance. We also use high quality components for our cranes, from the hoist and trolley systems to the power supply and control systems.

Custom Solution Design

Customization to Meet Your Needs

Our team of professional crane engineers works closely with you to develop a tailored goliath crane design that fits your specific operational requirements. Whether you need adjustments in load capacity, span, or specialized features, we customize every aspect of the crane to ensure it meets your exact needs and enhances efficiency in your facility.

Aicrane After-sales Support

Comprehensive After-Sales Support

We provide ongoing support to ensure your crane continues to operate efficiently and safely throughout its lifecycle. Whether you need on-site installation or prefer remote guidance, our team is available to assist with crane setup. We also offer maintenance packages and repair services to keep your crane in top working condition.

Local Office in Uzbekistan

Global Reach with Local Support

We have a strong global presence with local branches and offices in key regions, including the Philippines, Indonesia, Malaysia, Russia, Uzbekistan, Kazakhstan, Saudi Arabia, and more. This network allows us to offer personalized support and quick response times, ensuring that wherever your operations are located, you receive timely assistance and services.

For more information or to discuss your specific crane requirements, contact us today. We’re ready to provide you with a tailored lifting solution that fits your business needs.

FAQs for Goliath Cranes

What is a goliath crane?
A Goliath crane, often referred to as a Goliath gantry crane, is a much larger and more heavy-duty variation of a gantry crane. It is designed specifically for heavy industrial applications, such as shipbuilding and large-scale construction projects. Like traditional gantry cranes, this type of crane also has legs that run along tracks at ground level, but it is typically much taller and stronger to handle extremely heavy loads.

Goliath cranes are often distinguished by their:

  • Extreme load capacity: They can handle weights far beyond that of standard gantry cranes, often in the hundreds of tons.
  • High spans and lifting heights: These cranes can reach incredible heights and spans, making them ideal for shipyards and large construction sites.
  • Robust construction: These cranes are built with reinforced materials to withstand harsh working conditions and lift enormous loads.
What is the difference between goliath crane and gantry crane?

Gantry crane is generally refers to a crane that consists of a bridge supported by two or more legs that run on tracks or wheels. It can be used for various applications, both indoor and outdoor, and may have a single or double girder design.

Goliath crane is typically refers to larger gantry cranes designed for heavy-duty applications, particularly in outdoor environments like shipyards. These cranes are often characterized by their larger span, increased lifting capacity, and robust structure.

Gantry Crane vs Goliath Crane: The Key Differences

  • Size and Load Capacity: The most obvious difference between a gantry crane and a Goliath crane is their size and lifting capacity. Gantry cranes can range from light-duty models, with capacities of a few tons, to medium-duty models used for workshops and factories. In contrast, Goliath cranes are built for extremely heavy-duty applications, with the ability to lift hundreds of tons in one go. For example, Goliath cranes in shipyards are designed to move entire ship sections or other massive components.
  • Applications: The specific applications of gantry cranes vs. Goliath cranes are another major difference. Gantry cranes are versatile and can be used in a wide range of industries, including warehouses, manufacturing plants, and construction. On the other hand, Goliath cranes are primarily used for projects that involve large-scale lifting, such as shipbuilding, precast concrete handling, and other heavy industrial tasks.
  • Cost: Goliath cranes are generally more expensive to manufacture, install, and maintain than standard gantry cranes due to their larger size, higher load capacities, and the structural demands placed on them. A typical gantry crane, especially light-duty models, is more affordable and cost-effective for smaller lifting operations. Companies often choose Goliath cranes only when absolutely necessary for heavy-duty applications.
What kind of maintenance is required for Goliath Cranes?

Regular maintenance is crucial for safe and efficient operation. This includes:

  • Inspection of mechanical components, such as wheels, gears, and ropes
  • Lubrication of moving parts
  • Testing of electrical systems, including limit switches and emergency stop functions
  • Load testing to ensure safe lifting capacities are maintained
  • Checking for structural integrity of the crane and support systems
How can I control a Goliath Crane?

Goliath cranes can be controlled in several ways:

  • Remote Control: Operators can use wireless or radio controls to operate the crane from a distance.
  • Cabin Control: The cranes have operator cabins for more direct control, especially in large-scale operations.
How long is the lifespan of a Goliath Crane?

With proper maintenance and care, a Goliath crane can last for decades. Regular servicing, adherence to safety protocols, and timely replacement of worn-out parts can significantly extend the crane’s operational life.
