Electric Transfer Cart

Aicrane electric transfer cart can be a rail guided or trackless material transport cart that is powered by cable reel, battery or low-voltage rail powered as per customer requirements. It is used to handle and move a variety of materials, such as dies, industrial pipes, coils, heavy equipment and components. Our transfer carts can be designed with large load capacity, ranging from 2 tons to over 150 tons. We also provide tailor-made electric transfer cart to suit your specific load handling requirements. The design possibilities are virtually unlimited.
Electric Transfer Cart Manufacturer
Electric Transfer Cart For Sale

Cases Show of Aicrane Electric Transfer Carts

Different Types of Electric Transfer Carts Available At Aicrane

  • AQ-KPJ cable drum powered transfer cart is powered by cable drum. Specifically speaking, it winds the AC 380V cable in and out by winding device placed under the cart. Through AC control system, it controls the start, stop, forward and backward of the device. The operating system is controlled through low voltage 36V power supply. The AQ-KPJ electric transfer trolley can be designed to handle any load and suit any operational requirements. The maximum running distance can be 200 meters. When the running distance exceeds 50m, it is necessary to be delivered with a cable spooling device for better cable winding.
  • AQ-KPX series electric transfer carts are powered by batteries. The battery provides power to the DC motor, and the DC motor drives the electric flat cart to run. The running distance of this kind of transfer cart is not limited. Compared with the AQ-KPJ and AQ-KPD series, it has greater safety performance, excellent mobility and flexibility.
  • AQ-KPD series transfer cart is a 36V single-phase or three-phase low-voltage track-powered electric transfer cart. ​The ground step-down transformer control cabinet steps down the single-phase (three-phase) AC 380V to single-phase (three-phase) 36V, feeds it to the electric flat cart through the track trolley line, and then boosts it to single-phase (three-phase) AC 380V through the on-board step-up transformer. This type of electric transfer cart has high requirements for track construction, and track insulation must be ensured. When exceeding a certain running distance, copper compensation lines should be added to the track. When the running distance is too long, the number of step-down transformers should be increased.
  • AQ-BWP series trackless transfer cart uses the battery as the power source, and the solid rubberized wheels walk directly on the ground. The operation of the trackless transfer cart is not restricted, and it can turn 360° in situ to adapt to the operation in a narrow space. The imported wheels are wear-resistant while ensuring that the ground is not damaged.
  • Additional components and options include: hydraulic lifting system, wide range of deck sizes, flat deck, V-deck, or custom shaped deck, a range of deck configurations, such as built-in scales, lift/tilt/rotate functions, fixed or variable speed, warning horns, flashing lights, emergency stops, rail sweep, anti-collision device, bumpers, etc.

AQ-KPJ Electric Transfer Car

AQ-KPJ Cable Drum Powered Transfer Cart

Load capacity: 2t~150t
  • Table size: can be customized
  • Wheel base: 1200~7000mm
  • Rail inner gauge: 1200~2000mm
  • Running speed: 0~25m/min
  • Running distance: ≤200m
  • Control mode: button / remote control

AQ-KPX Battery Transfer Trolley

AQ-KPX Battery Powered Transfer Cart

Load capacity: 2t~150t
  • Table size: can be customized
  • Wheel base: 1200~7000mm
  • Rail inner gauge: 1200~2000mm
  • Battery voltage: 24~72V
  • Running speed: 0~30m/min
  • Control mode: button / remote control

AQ-KPD Electric Powered Transfer Cart

AQ-KPD Low Voltage Rail Powered Transfer Cart

Load capacity: 2t~150t
  • Table size: can be customized
  • Wheel base: 1200~7000mm
  • Rail inner gauge: 1200~2000mm
  • Running speed: 0~25m/min
  • Running distance: 50~80m
  • Control mode: button / remote control

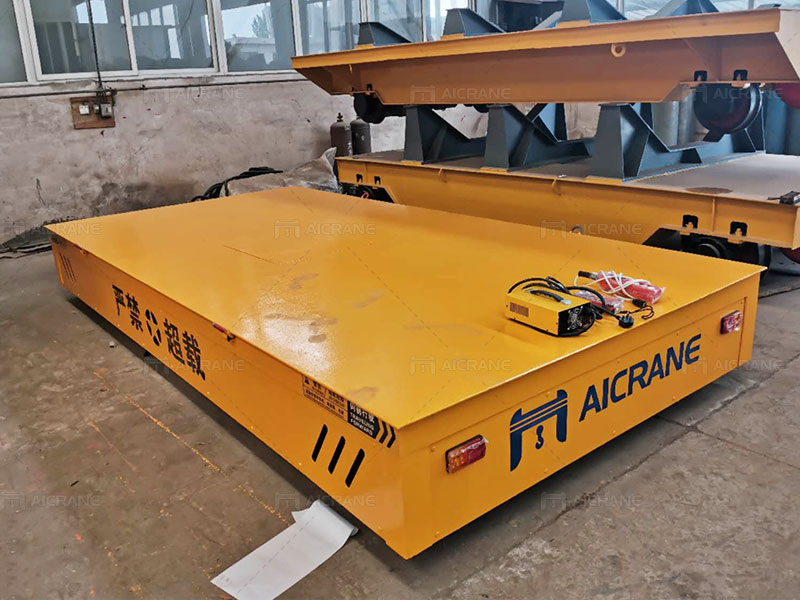

AQ-BWP Trackless Electric Flat Carts

AQ-BWP Trackless Transfer Cart

Load capacity: 2t~100t
  • Table size: can be customized
  • Wheel base: 1080~2000mm
  • Running speed: 0~25m/min
  • Control mode: button / remote control

Applications Of Electric Flat Carts

The simple structure and reasonable cost make this type of transfer cart a popular choice for material handling. It is commonly found in machine shops, chemical plants, warehouses, metallurgical plants and other industries to transport materials inside and outside the facility, or between the crane bays.

The electric transport cart can help you reduce the uses of overhead cranes, as well as minimize lost time waiting for material delivery. It makes the material handling very easy and efficient for you. It can handle a variety of materials, including but not limited to: industrial pipes, coils, slabs, molds, dies, structural steel, heavy equipment, components and accessories.

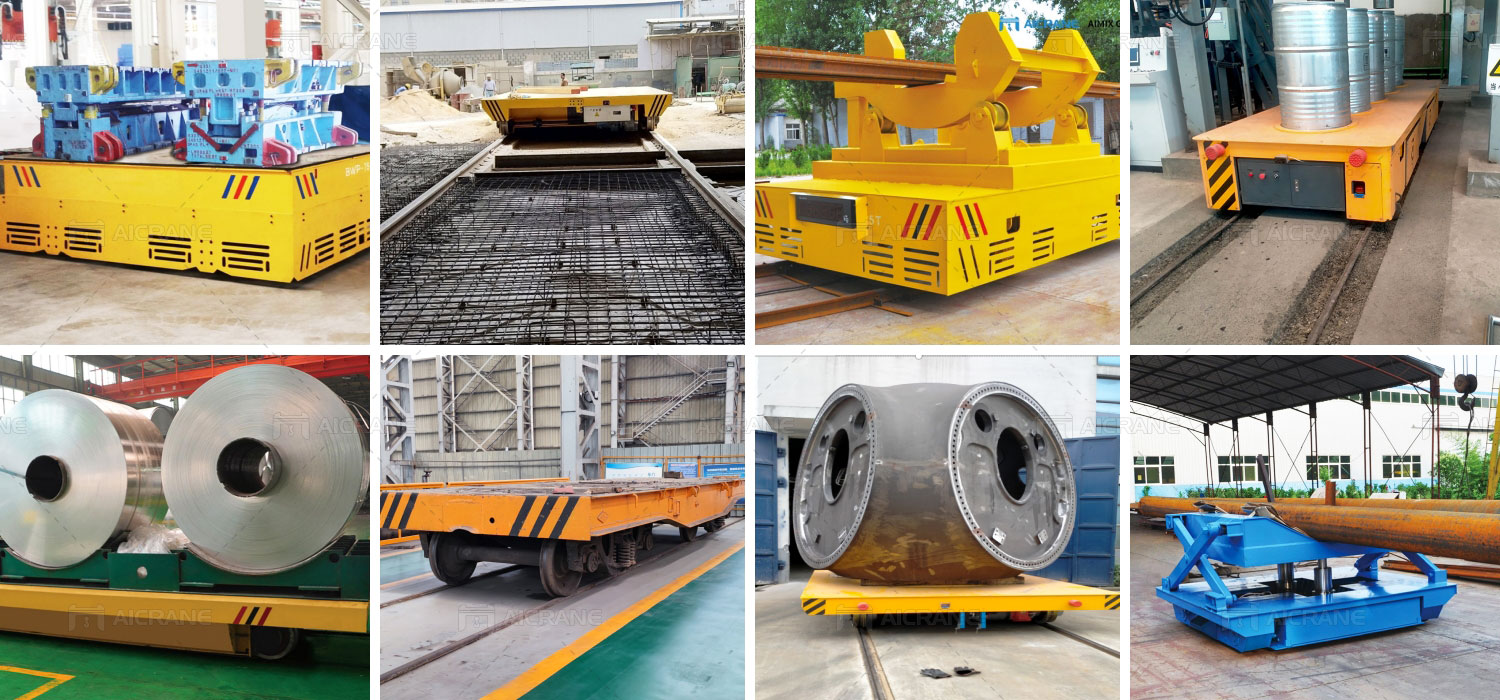

Applications of Transfer Carts

Videos of Electric Transport Carts

The Aicrane team has shot and produced a variety of electric flat cart videos to help our users understand its structure, how to operate an electric material handling cart, how to test run a transfer cart, as well as its on-site working conditions, etc. Follow us into the world of electric powered transfer carts!

This video is about our AQ-KPJ cable drum powered 20 ton transfer cart working in a Kazakhstan customer’s steel coil warehouse for transferring steel coils and steel structures onto the truck. In this project, we provided the customer with a 20-ton electric transfer trolley and an AQ-QDX European standard double-girder 10-ton overhead crane to jointly improve work efficiency and safety.

This video is about the test run of Aicrane transfer cart on flat ground and up a 15° incline. This is our AQ-BWP trackless battery powered transfer cart, with a load capacity of 15 ton. It was made for a customer in Mexico and will be used in his factory to transfer loads.

Aicrane material handling cart can be controlled by a fixed pendant or remote control. User-friendly interface system can simplify load control and makes it easy to operate. Watch the video below to learn how to operate the transfer cart!

You can watch the video below to understand the various parts of the electric flat cart to help you better understand and operate the equipment.

Advantages Of Electric Powered Carts

  • Ideal for any load and high frequency of use
  • Simplify workflow with high efficiency and excellent safety
  • Stable operation, simple and convenient maintenance
  • Simple structure, low cost
  • An ideal choice for transporting heavy objects at short distances within the workshop and between workshops
Electric Flat Cart For Sale
Electric Flat Cart

Buy Your Electric Transfer Cart Today!

You can fill out the contact form below or email us to let us know what you need. In order to help you select the most appropriate electric transfer cart for your application, there are a few basic information you need to provide, such as rated load capacity, deck size, running distance, running speed and control mode. According to your load transporting requirements, we will design the most economical and practical solution for the job.

In addition, we offer a variety of material handling and lifting equipment to suit your applications, such as overhead cranes, gantry cranes, electric hoists and jib cranes. They are designed to streamline the workflow of your workshops.

To receive a free quote on Aicrane electric transfer cart, contact us now!
