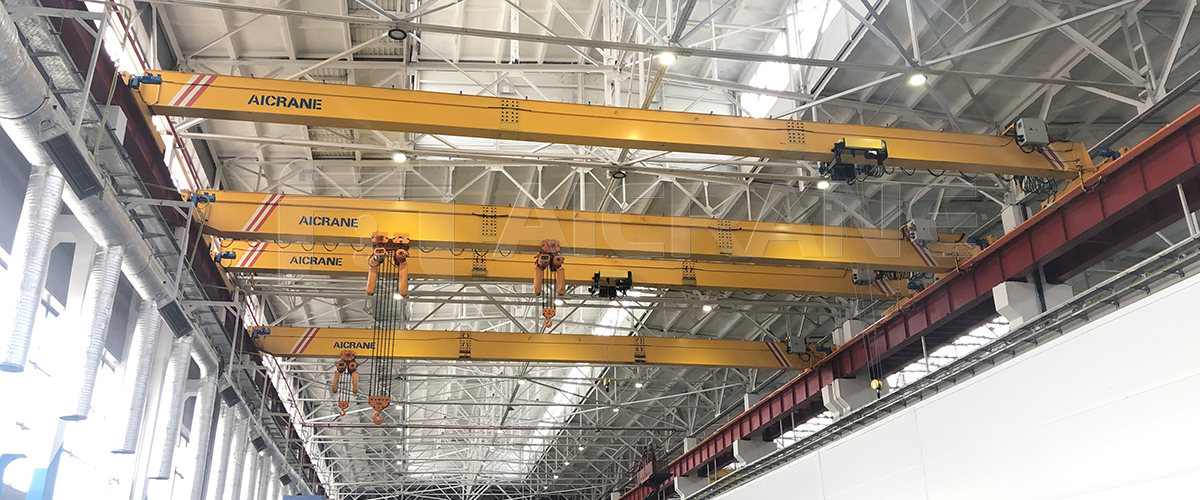

We provide different kinds of European overhead crane, which are suitable for various light jobs and demanding working conditions. The European crane is designed and manufactured based on the European lightweight and modular design concept and advanced production and manufacturing technology, so that the crane has compact structure, stable operation, reduced weight, lower height, energy saving and consumption reduction.
Using a European-style crane can greatly reduce the user’s initial construction cost of the plant and crane operation cost, and improve the quality and operating performance of the crane. By using the latest technology, our overhead cranes can greatly improve the production safety and production efficiency for our customers. Because of these advantages, European standard cranes will become the mainstream of crane development and market demand.
Different Kinds of European Overhead Crane For Sale

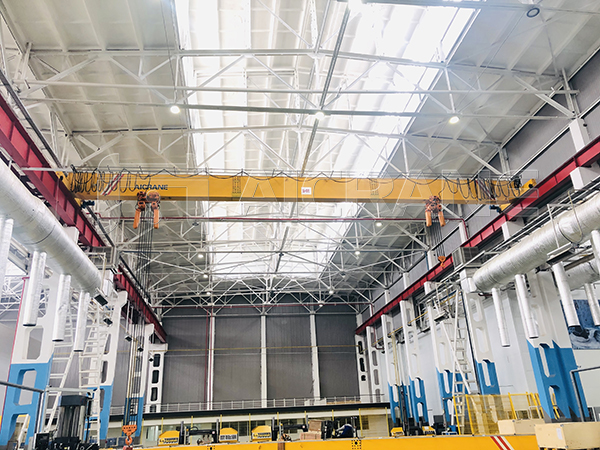

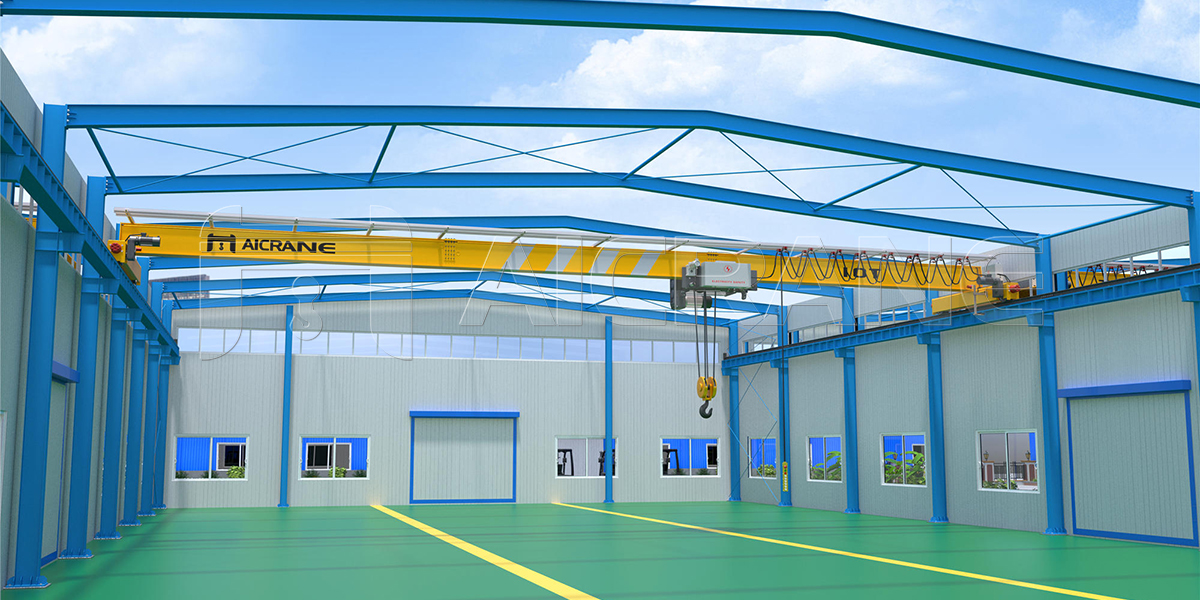

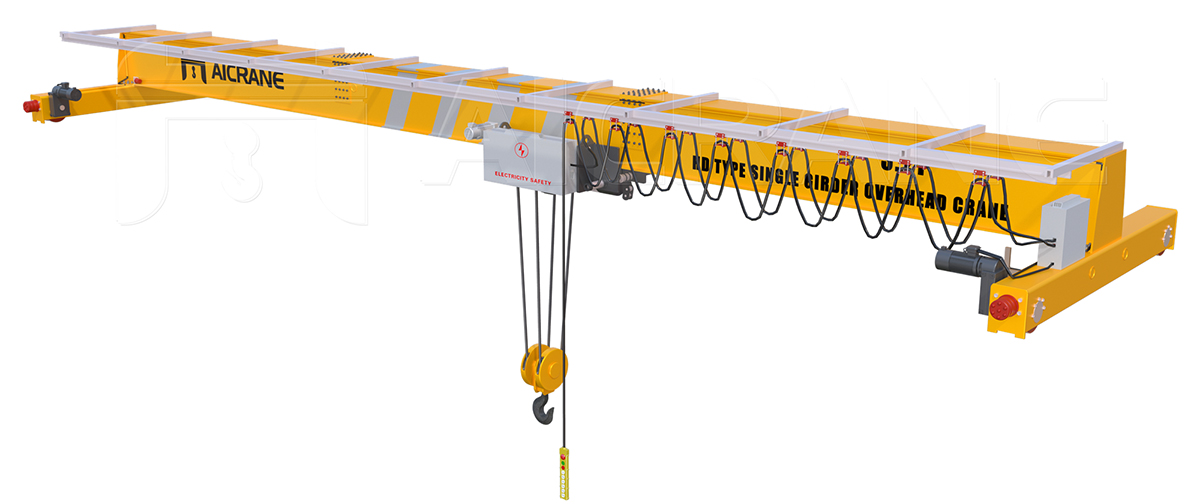

HD European single girder overhead crane
| Model | AQ-HD |
| Load capacity | 1-20t |
| Span | 7.5-28.5m |
| Lifting height | 6-18m |
| Lifting speed | 0.8/5m/min |
| Hoist running speed | 2-20m/min |
| Crane running speed | 3-30m/min |
| Work duty | A5 |
AQ-HD single girder overhead crane is widely used in workshops and warehouses in machinery manufacturing, metallurgy, petroleum, petrochemical, ports, railways, civil aviation, electric power, food, papermaking, building materials, electronics and other industries. It is especially suitable for occasions such as material handling and precision assembly of large parts that require accurate positioning. This type of crane cannot be used in flammable, explosive or corrosive environments.
- The main electrical components are Schneider brand.

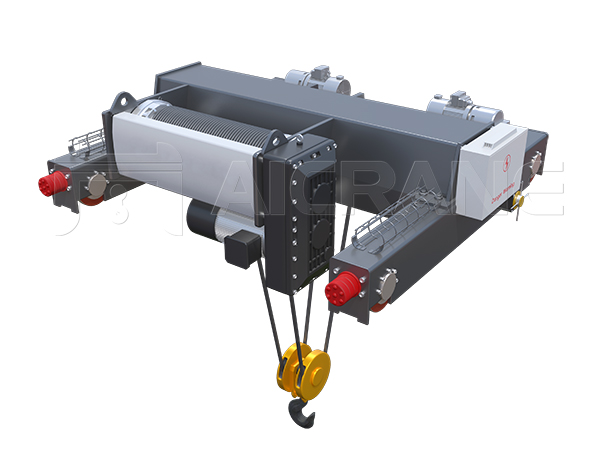

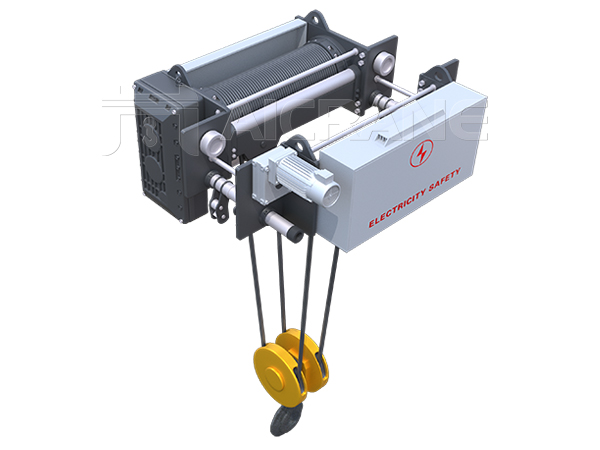

- The lifting mechanism is ND European standard electric hoist, which travels along the lower flange of the I-beam to complete the lifting of items.
- The European-style cranes have lighter dead weight and smaller wheel pressure, occupy less space in the workshop, and greatly reduce the load-bearing requirements for the steel structure of the workshop. If this factor is taken into account in the design stage of the plant, the investment cost of the plant can be greatly reduced.

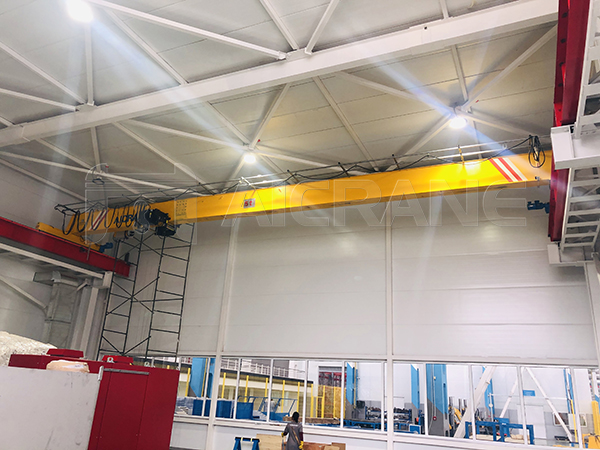

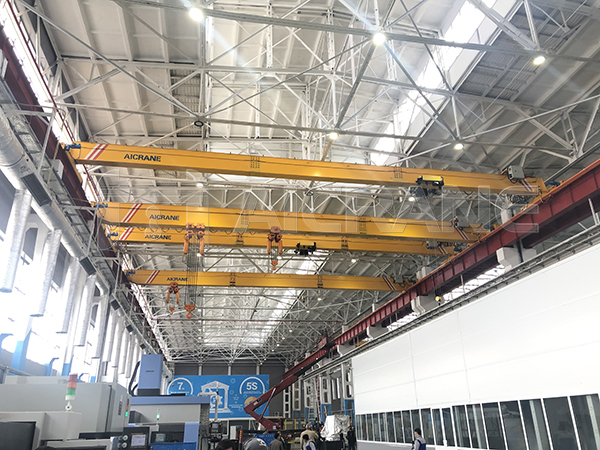

HD Overhead Cranes in Uzbekistan

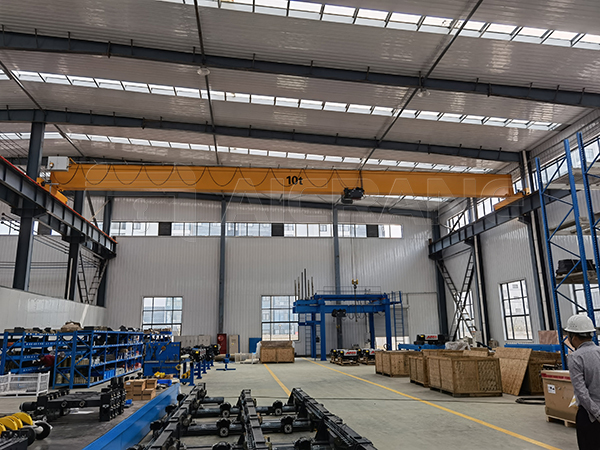

HD 10 Ton Overhead Crane in Nigeria – Installation Video
European double girder overhead crane

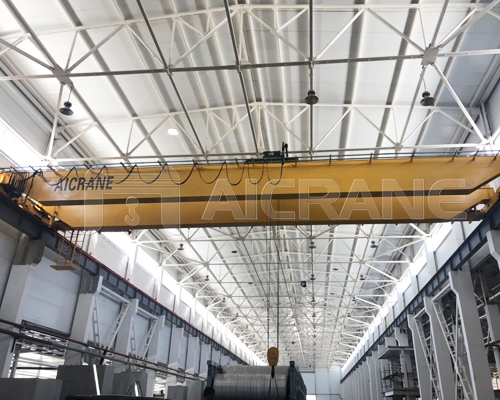

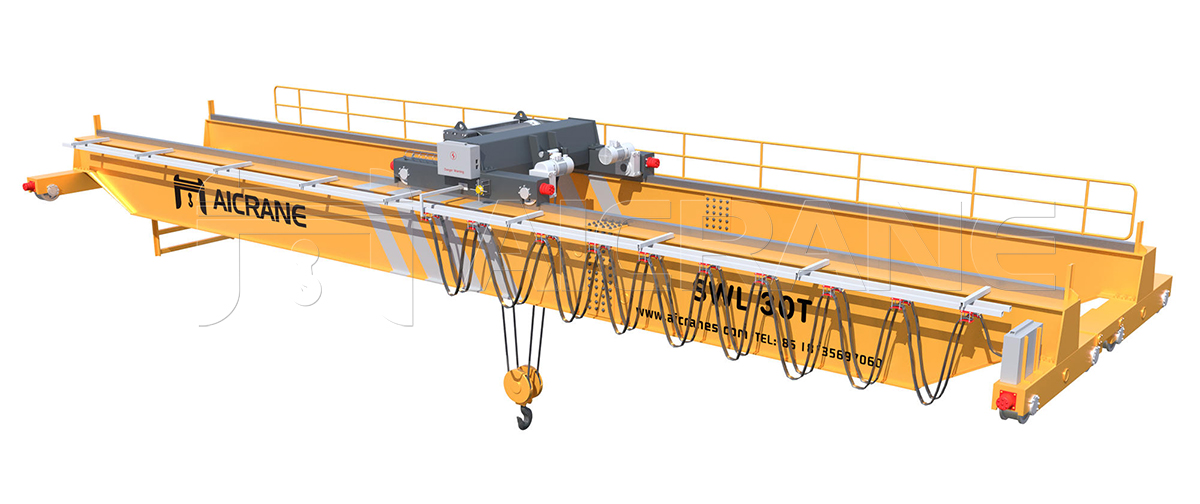

NLH Overhead Crane
| Model | AQ-NLH |
| Load capacity | 5-80t |
| Span | 10.5-31.5m |
| Lifting height | 6-18m |
| Lifting speed | 0.4-5m/min |
| Trolley running speed | 2-20m/min |
| Crane running speed | 3-30m/min |
| Work duty | A5 |
QDX Overhead Crane
| Model | AQ-QDX |
| Load capacity | 5-320t |
| Span | 10.5-31.5m |
| Lifting height | 6-24m |
| Lifting speed | 0.2-10.7m/min |
| Trolley running speed | 2.4-33m/min |
| Crane running speed | 4.2-68m/min |
| Work duty | A3-A5 |
- The double girder crane is designed and manufactured according to European FEM advanced standards.
- It has light weight, small wheel pressure, reliable performance and convenient operation, the first choice for various material handling places.
- In addition to the more advanced design, the core components of the cranes adopt imported brands, so the equipment failure rate is low, the later operating costs are greatly reduced, and the adverse effects caused by equipment downtime are also effectively avoided.

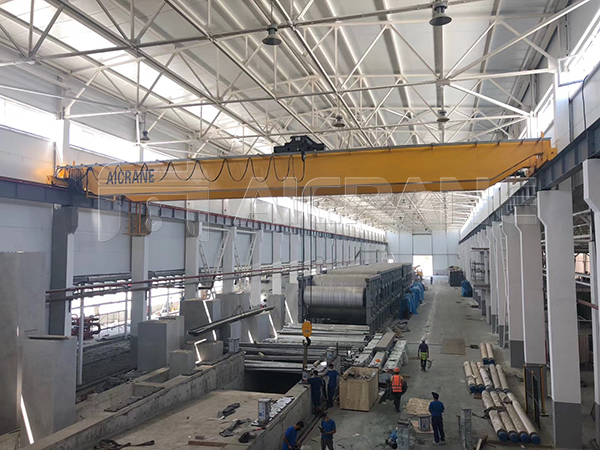

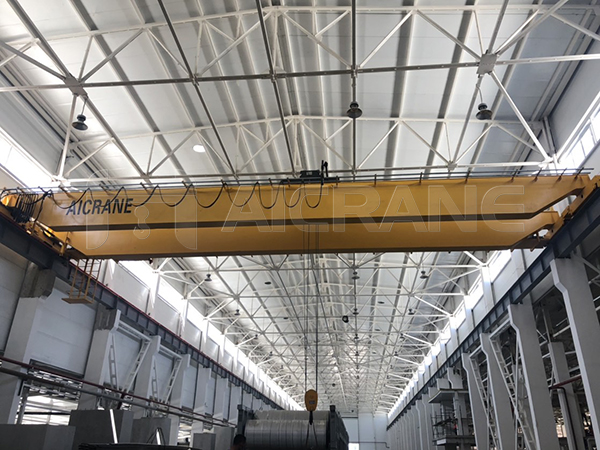

NLH 32 Ton Overhead Crane in Uzbekistan
NLH 10 Ton Overhead Crane in Nigeria
Why Choose European Standard Overhead Crane?
- Light weight, small wheel pressure, small boundary size, reliable performance and convenient operation
- The small wheel pressure and the small boundary size can reduce the investment in the early stage of the factory building, and at the same time, the investment in lighting and heating facilities can be reduced.
- The European crane is reliable and durable, so that the additional cost required in the later use of the product is reduced. On the one hand, the use of high-quality and high-performance parts reduces the maintenance and repair workload; on the other hand, the energy consumption is reduced, and its use cost can be saved.
- Smooth start, run and stop. The frequency conversion control greatly reduces the excessive impact of the instantaneous current on the power grid when starting.
- Fast positioning, ergonomic design, comfortable operation
Safety Protection Function of European-style Cranes
- Overload protection device: When an overload occurs, the machine runs downfor the safe landing of heavy objects.
- Lifting limit: cam rotary type, 4-level adjustable, automatic reset, precise phase sequence control.
- Mechanical anti-collision device: rubber buffer block.
- Wireless anti-collision limit: infrared sensor limit, sensitive and reliable.
- Overheating protection: the hoisting motor is equipped with thermistor, which has a good overheating protection function.
- Brake safety protection: electric brake + mechanical brake.
Send Your Inquiry!
Please fill in the contact form or send us an email to provide the following information so that we can quote you:
- Load capacity: ton?
- Span of the crane: m?
- Max. lifting height of the crane: m;
- Traveling length: m? Do you need us to provide the rail for you?
- How many hours will the crane work per day? How many times per hour?
- Electric Power supply: 3 phase 380V 50Hz?
- What kind of material will the crane lift?
Technical Parameters
| Technical Parameter of AQ-HD European Type Single Girder Overhead Crane | |||||
| Capacity | t | 1 | 2 | 3.2 | 5 |
| Span | S(m) | 7.5~28.5 | 7.5~28.5 | 7.5~28.5 | 7.5~28.5 |
| Lifting height | m | 6~18 | 6~18 | 6~18 | 6~18 |
| Lifting speed | m/min | 0.8/5 | 0.8/5 | 0.8/5 | 0.8/5 |
| Trolley speed | m/min | 2~20 | 2~20 | 2~20 | 2~20 |
| Crane speed | m/min | 3~30 | 3~30 | 3~30 | 3~30 |
| Work duty | A5 | A5 | A5 | A5 | |
| Track type | P18 P24 | P18 P24 | P24 | P24 | |
| Capacity | t | 10 | 12.5 | 16 | 20 |
| Span | S(m) | 7.5~28.5 | 7.5~28.5 | 7.5~28.5 | 7.5~28.5 |
| Lifting height | m | 6~18 | 6~18 | 6~18 | 6~18 |
| Lifting speed | m/min | 0.8/5 | 0.66/4 | 0.66/4 | 0.53/3.4 |
| Trolley speed | m/min | 2~20 | 2~20 | 2~20 | 2~20 |
| Crane speed | m/min | 3~30 | 3~30 | 3~30 | 3~30 |
| Work duty | A5 | A5 | A5 | A5 | |
| Track type | P30 | P30 | P30 P38 | P30 P38 |
| Technical Parameter of AQ-QDX European Style Double Girder Overhead Crane | |||||||
| Capacity | t | 5 | 10 | 16 | 20 | 32 | 50 |
| Span | S(m) | 10.5~31.5 | 10.5~31.5 | 10.5~31.5 | 10.5~31.5 | 10.5~31.5 | 10.5~31.5 |
| Lifting height | m | 6~18 | 6~18 | 6~18 | 6~18 | 6~16 | 6~16 |
| Lifting speed | m/min | 1.07~10.7 | 0.81~8.1 | 0.73~7.3 | 0.58~5.8 | 0.49~4.9 | 0.4~4 |
| Trolley speed | m/min | 3.3~33 | 3.3~33 | 3.2~32 | 3.2~32 | 3.36~33.6 | 2.9~29 |
| Crane speed | m/min | 6.8~68 | 6.8~68 | 5.4~54 | 5.4~54 | 5.6~56 | 5.4~54 |
| Work duty | A3~A5 | A3~A5 | A3~A5 | A3~A5 | A3~A5 | A3~A5 | |
| Track type | P38 | P38 P43 | P43 | P43 | QU70 | QU80 | |
| Capacity | t | 75 | 100 | 160 | 200 | 250 | 320 |
| Span | S(m) | 10.5~31.5 | 13~31 | 13~31 | 13~31 | 13~31 | 13~31 |
| Lifting height | m | 6~24 | 6~24 | 6~24 | 6~20 | 6~20 | 6~24 |
| Lifting speed | m/min | 0.37~3.7 | 0.32~3.2 | 0.25~2.5 | 0.24~2.4 | 0.21~2.1 | 0.2~2 |
| Trolley speed | m/min | 2.92~29.2 | 2.9~29 | 2.65~26.5 | 2.5~25 | 2.5~25 | 2.4~24 |
| Crane speed | m/min | 4.8~48 | 5.26~52.6 | 4.67~46.7 | 5.2~52 | 5.2~52 | 4.15~41.5 |
| Work duty | A3~A5 | A3~A5 | A3~A5 | A3~A5 | A3~A5 | A3~A5 | |
| Track type | QU100 | QU100 | QU120 | QU120 | QU120 | QU120 |
| Technical Parameter of AQ-NLH European Style Electric Hoist Overhead Crane | |||||
| Capacity | t | 5 | 10 | 16 | 20 |
| Span | S(m) | 10.5~31.5 | 10.5~31.5 | 10.5~31.5 | 10.5~31.5 |
| Lifting height | m | 6~18 | 6~18 | 6~18 | 6~18 |
| Lifting speed | m/min | 0.8/5 | 0.8/5 | 0.66/4 | 0.53/3.4 |
| Trolley speed | m/min | 2~20 | 2~20 | 2~20 | 2~20 |
| Crane speed | m/min | 3~30 | 3~30 | 3~30 | 3~30 |
| Work duty | A5 | A5 | A5 | A5 | |
| Track type | P30 | P30 P38 | P38 | P38 P43 | |
| Capacity | t | 32 | 50 | 63 | 80 |
| Span | S(m) | 10.5~31.5 | 10.5~31.5 | 10.5~31.5 | 10.5~31.5 |
| Lifting height | m | 6~18 | 6~18 | 6~18 | 6~18 |
| Lifting speed | m/min | 0.6/2.6 | 0.4~2.4 | 0.4~2.4 | 0.4~2.4 |
| Trolley speed | m/min | 2~20 | 2~20 | 2~20 | 2~20 |
| Crane speed | m/min | 3~30 | 3~30 | 3~30 | 3~30 |
| Work duty | A5 | A5 | A5 | A5 | |
| Track type | P43 | P43 QU70 | QU70 | QU80 |
For more information or a quote on European overhead crane, please feel free to contact us!
