Case Studies – Examples of Aicrane Gantry Cranes in UAE

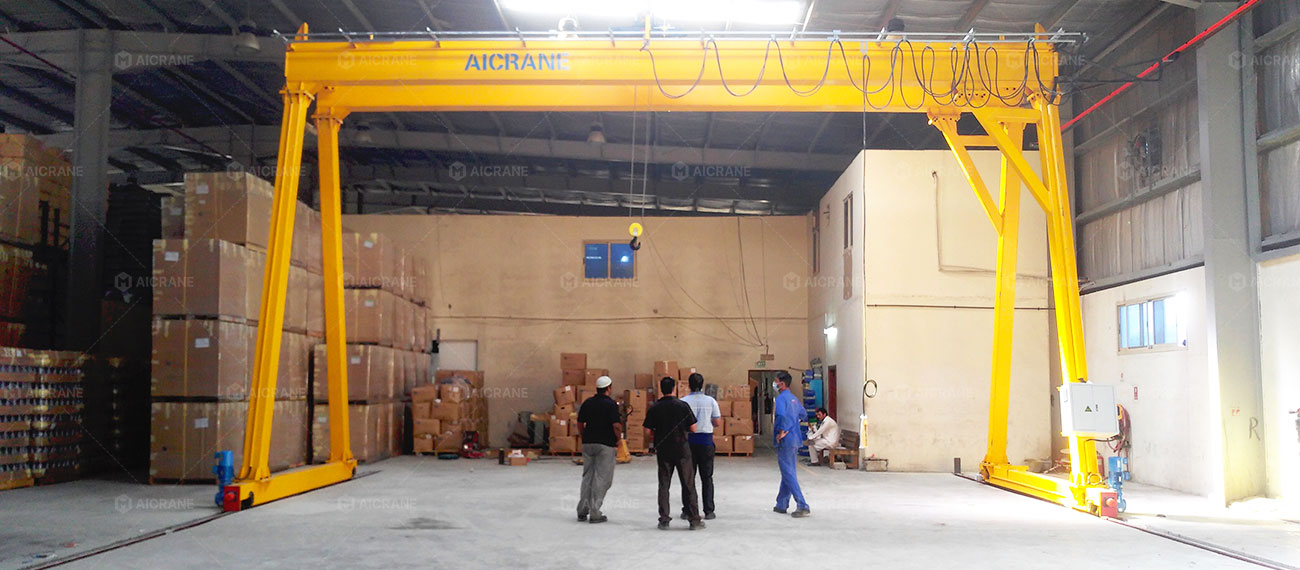

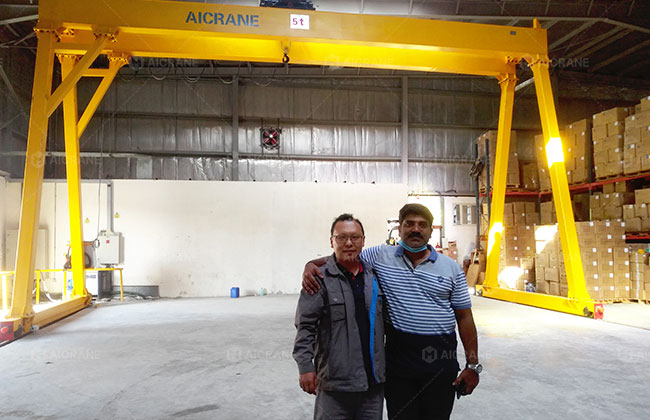

We supplied and installed a 5 ton double girder gantry crane for a UAE customer’s warehouse. As shown in the picture below, the UAE 5 ton gantry crane is used to lift and stack numerous boxes in the warehouse, which greatly improves the work efficiency.
Compared with the AQ-MG double-girder gantry crane, the 5 ton double girder hoist gantry crane we provided to the customer is a cost-effective solution and meets the customer’s working conditions and budget.

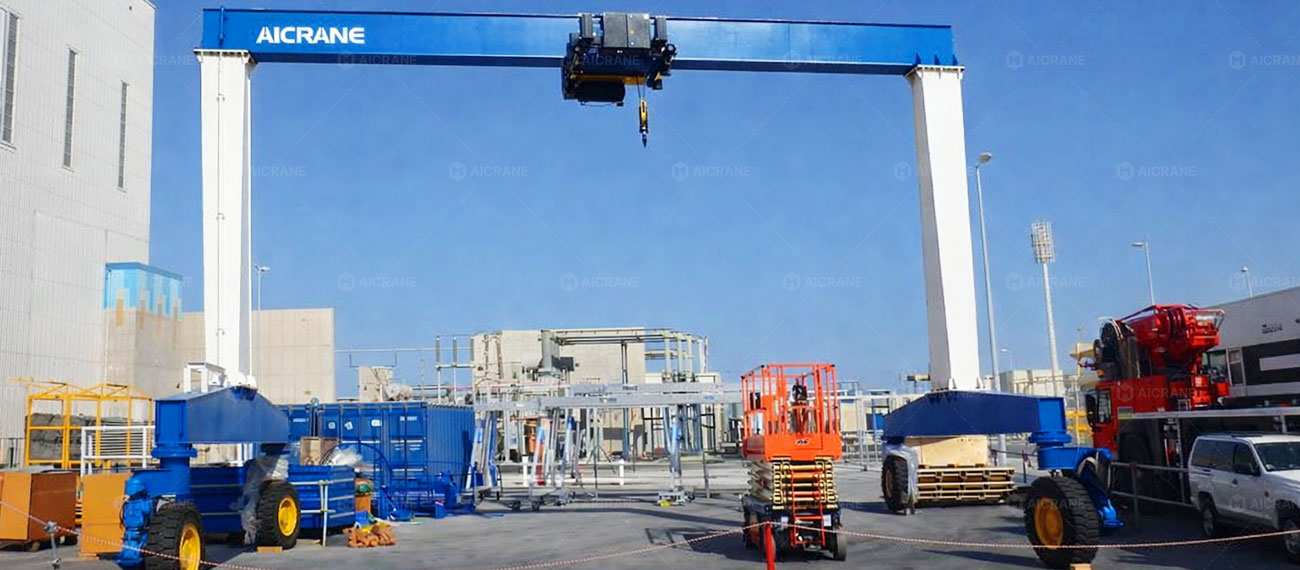

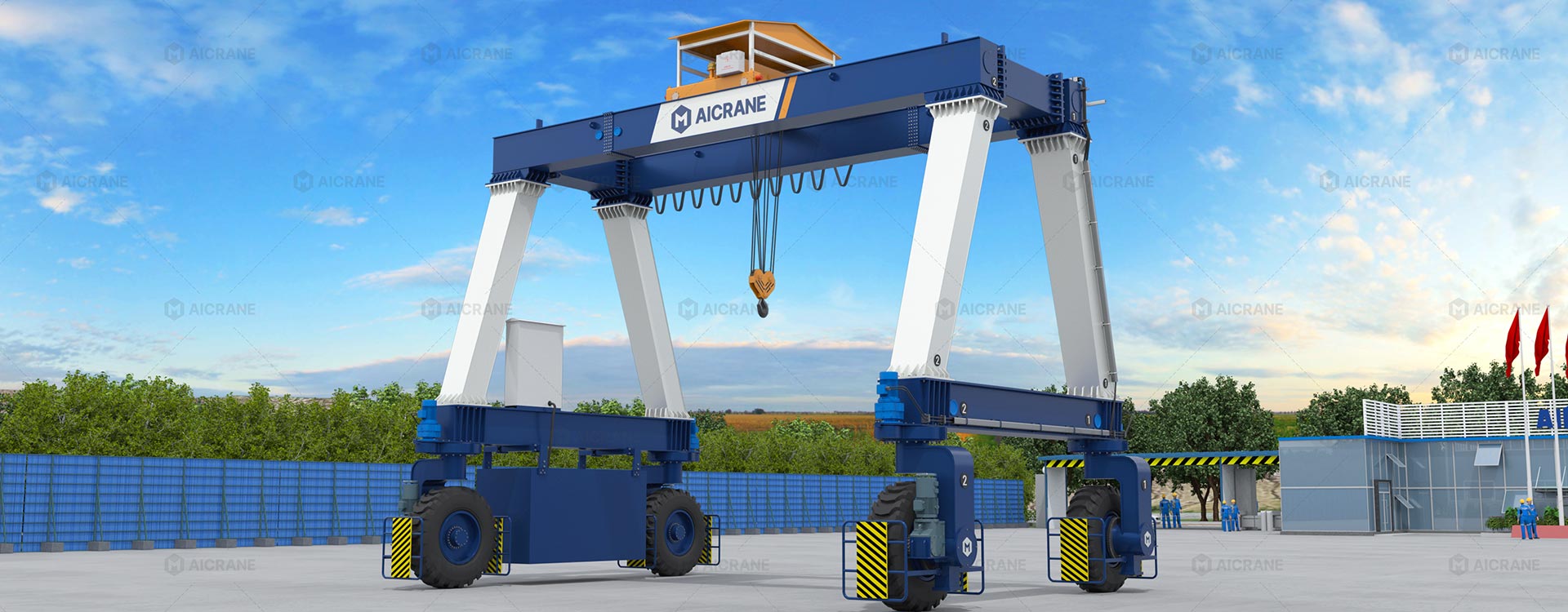

We supplied a 10 ton rubber tyre gantry crane for a nuclear power plant in the UAE. The client company is responsible for the operation and maintenance of Units 1-4 of the first nuclear power plant in the United Arab Emirates, requiring a gantry crane to be used indoors to repair valves, and the crane should travel straight forward and backward.
After confirming the customer’s needs, we recommended our DTL 10 ton electric rubber tyred gantry crane to the customer, which is a flexible and efficient choice for the customer’s application.

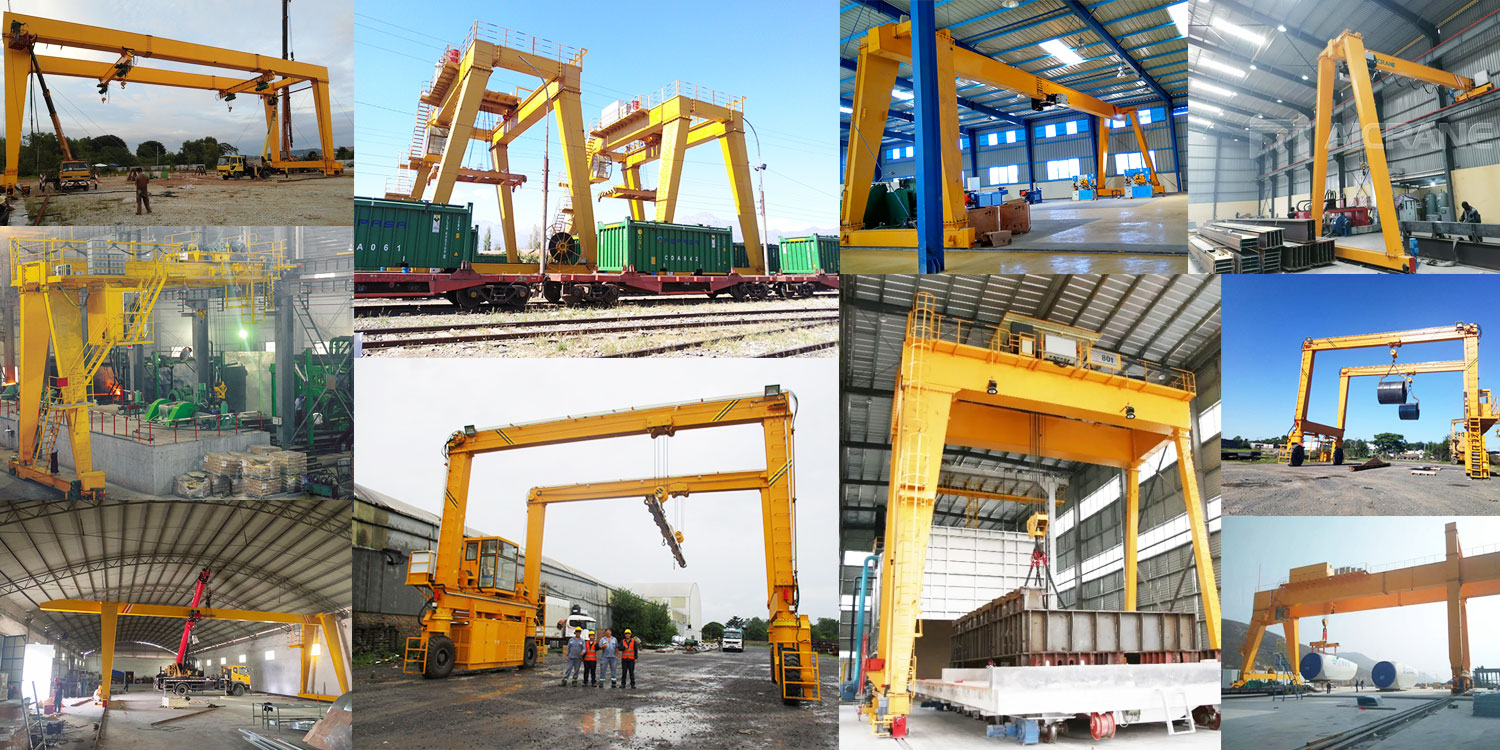

Gantry Crane Solutions For Different Industries in UAE
In addition to the industries and applications in the above cases, our gantry cranes can also be used in many different industries in the United Arab Emirates. For the same industry, we also offer different gantry crane options so that you can choose the right equipment for your application. Here we have briefly listed some industries and available gantry crane options for your reference.
1. Gantry Crane Options For The Manufacturing Industry
For various manufacturing industries, such as machine manufacturing, aircraft manufacturing, automobile manufacturing, etc., we provide different gantry crane options to help customers lift large parts, components and equipment quickly, improving productivity and safety.
- Full gantry cranes for the manufacturing industry have a variety of models for customers to choose from: AQ-NMH European standard single girder gantry crane, AQ-MH single girder crane, AQ-MG double girder crane, etc.

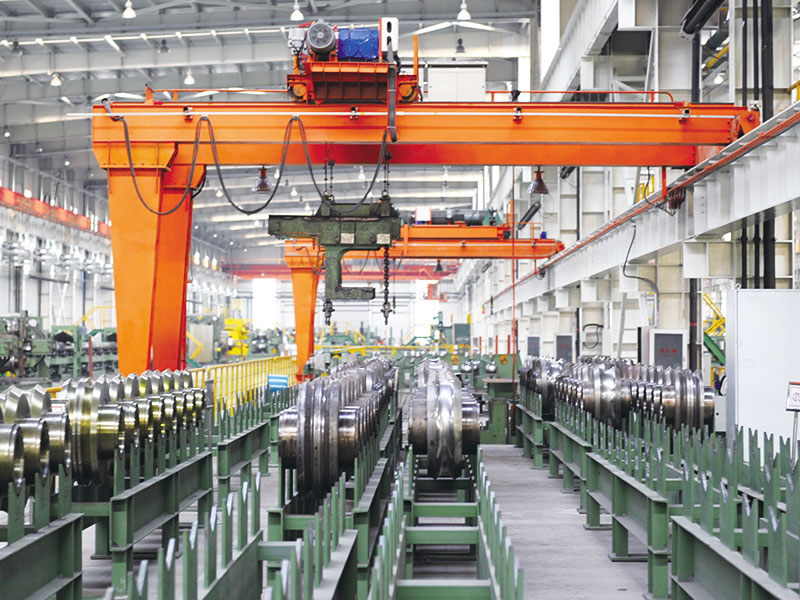

- Semi gantry cranes are also commonly used for heavy manufacturing applications, and they can save you floor space or work space. The models of semi-gantry cranes we offer include: AQ-BMH single girder, AQ-BMG double girder, and European standard semi gantry cranes.
- Portable gantry cranes are ideal for your smaller and lighter-duty applications, such as lifting and moving engines and transmissions in automotive manufacturing.

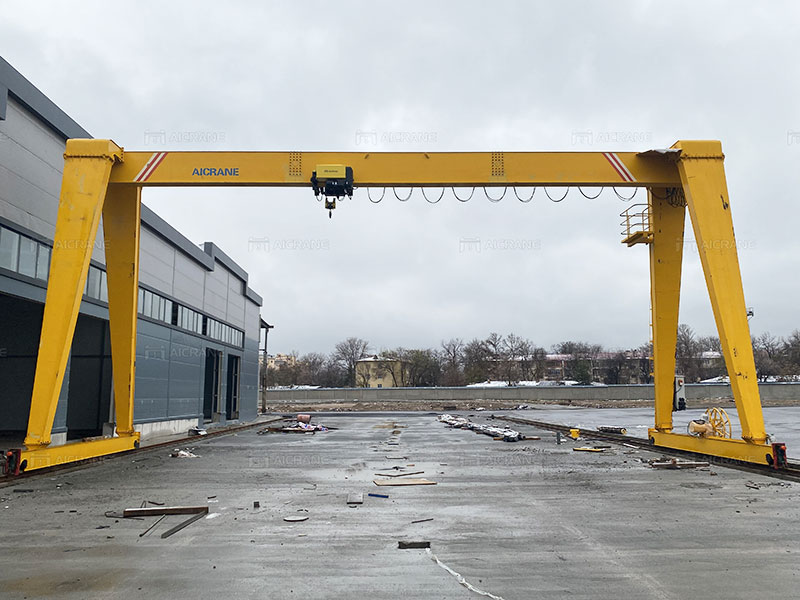

AQ-NMH European Single Girder Gantry Cranes
- Capacity: 3.2-20t
- Span: 8-35m
- Lifting height: 6-12m
- Lifting speed: 0.66-5m/min
- Hoist running speed: 2-20m/min
- Crane running speed: 3-30m/min
- Work duty: A5
Frequency conversion operation
Custom designs available!

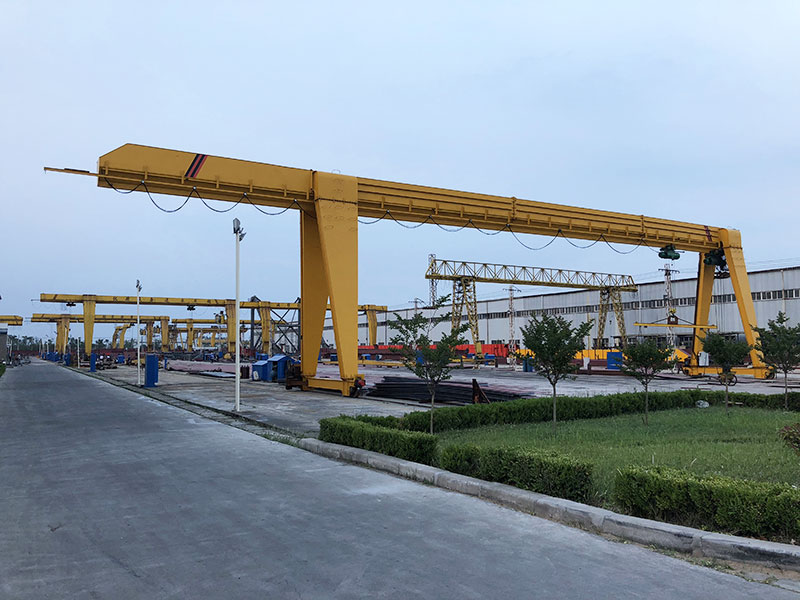

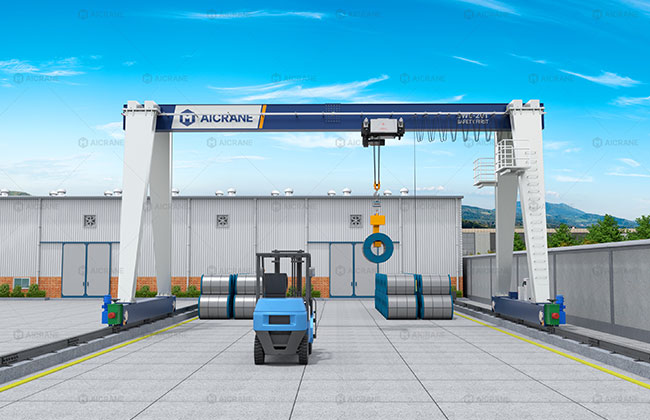

AQ-MH Single Girder Gantry Cranes
- Capacity: 3-20t
- Span: 8-35m
- Lifting height: 6-18m
- Lifting speed: 0.33-8m/min
- Hoist running speed: 20m/min
- Crane running speed: 20m/min
- Work duty: A3, A4
Cost-effective
Wide applications

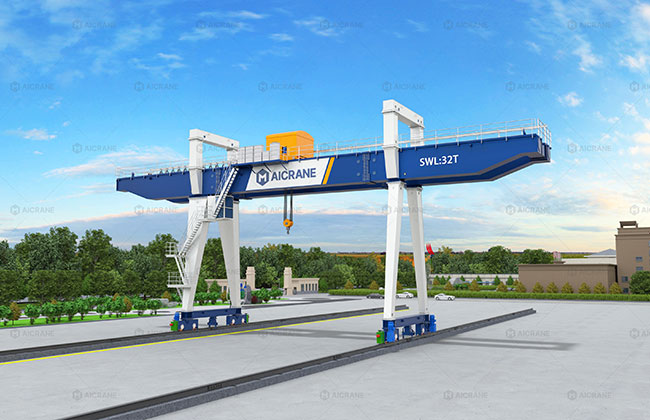

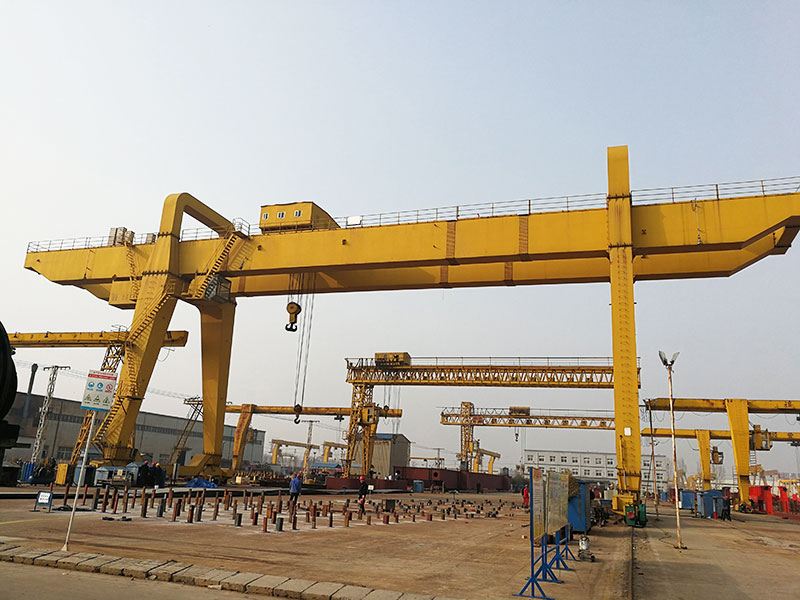

AQ-MG Double Girder Gantry Crane UAE
- Capacity: 5-500t
- Span: 18-35m
- Lifting height: 6-18m
- Lifting speed: 1.5-11.5m/min
- Trolley running speed: 10-40.1m/min
- Crane running speed: 16-50m/min
- Work duty: A3-A7
Higher work efficiency
Heavier-duty applications

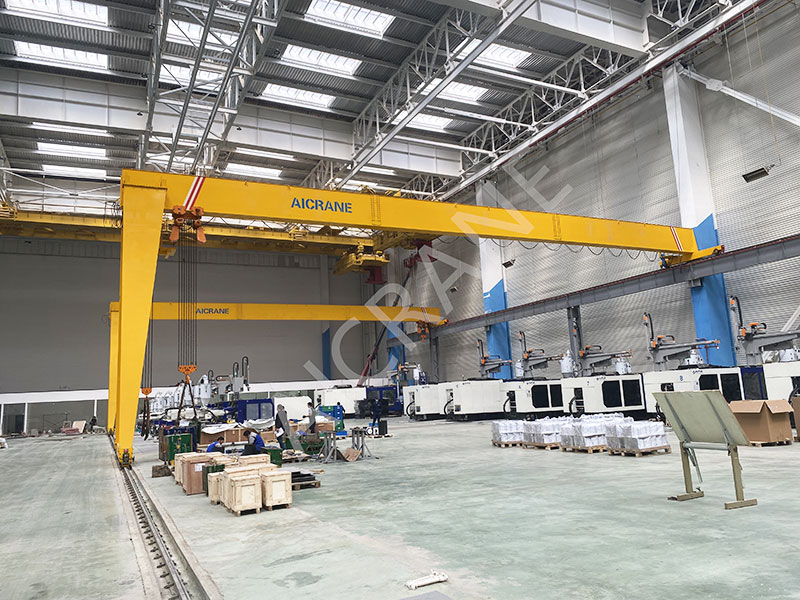

AQ-BMH European Single Girder Semi Gantry Crane
- Capacity: 3.2-20t
- Span: 8-30m
- Lifting height: 6-18m
- Lifting speed: 0.66-5m/min
- Hoist running speed: 2-20m/min
- Crane running speed: 3-30m/min
- Work duty: A5
AQ-BMG Double Girder Semi Gantry Cranes
- Capacity: 5-32t
- Span: 12-30m
- Lifting height: 6-12m
- Lifting speed: 6-11.5m/min
- Hoist running speed: 37-40.1m/min
- Crane running speed: 37.7-40.1m/min
- Work duty: A3-A6

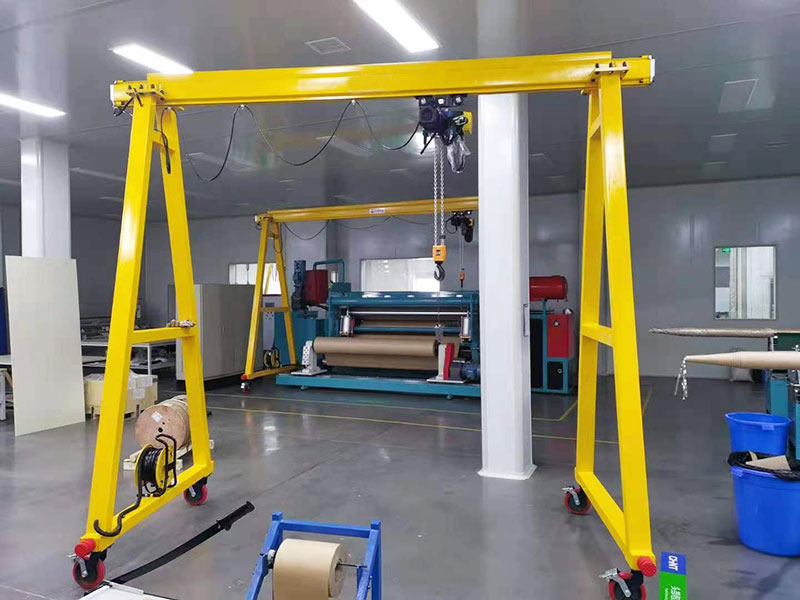

Portable Gantry Crane UAE
- Capacity: 0.5-10t
- Span: 2-16m
- Lifting height: 2-12m
- Lifting speed: 0.9-7.2m/min
- Hoist running speed: 11m/min
- Crane running speed: 6m/min or manual operation
- Work duty: A2
2. Gantry Crane Solutions For The Precast Concrete Industry
You can use our standard single and double girder gantry cranes, rubber tyred gantry cranes, etc., to handle precast concrete elements and concrete beams. All these gantry cranes are efficient and safe in handling precast concrete components, and what we do is to help make the most economical and efficient choice for your business!

Aicrane AQ-MH 10 ton gantry cranes are applied in the customer's precast concrete yard in Uzbekistan to handle precast concrete components. According to the customer requirement, the leg of the gantry crane is truss structure, and the span is 16m.

Aicrane 70 ton double girder gantry cranes are used to lift concrete box girders in Argentina. The customer project is to make concrete box girders for bridge construction, so our AQ-MG double girder gantry crane is a good choice, with high work efficiency and large lifting capacity!

30T+30T double beam rubber tyred gantry crane is very efficient, safe and flexible for lifting concrete beams in precast girder yard! The crane can be customized in width and height to suit the loads that need to be moved.
3. Gantry Cranes For Railway Container Handling
We provide high-quality gantry crane solutions for container handling in railway. Depending on your working conditions and budget, you can choose our universal gantry cranes that are equipped with container spreaders or dedicated rail-mounted gantry cranes for railway. If you’re not sure which type is right for your business, let Aicrane help you!

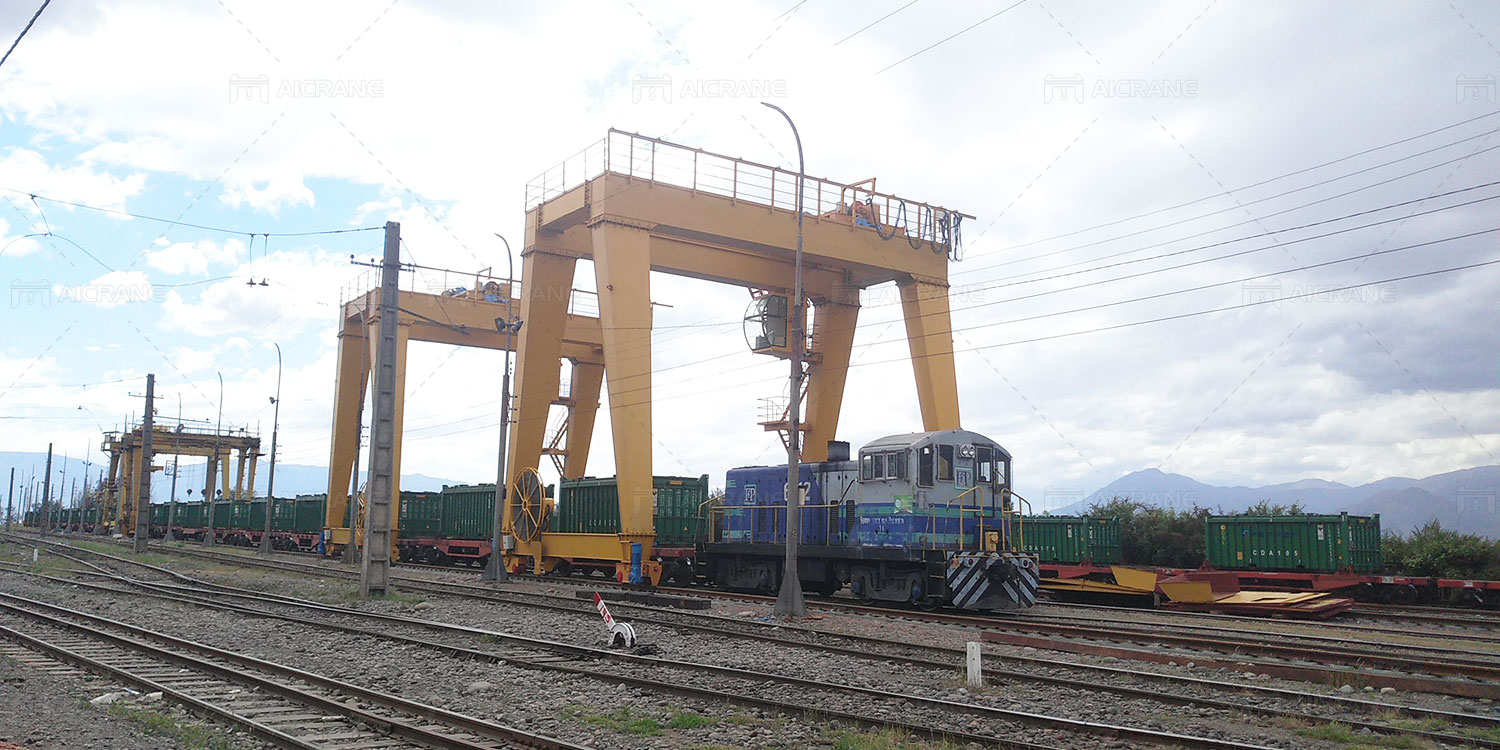

Option One: Double Girder Gantry Cranes With Container Spreader
For customers with tight budgets, Aicrane universal gantry cranes with container spreaders are a good option, which can reduce costs and also meet the lifting needs of customers. If you are looking for this cost-effective gantry crane solution for railway container handling, simple contact Aicrane. We have extensive experience in designing, manufacturing and installing gantry cranes for railways.

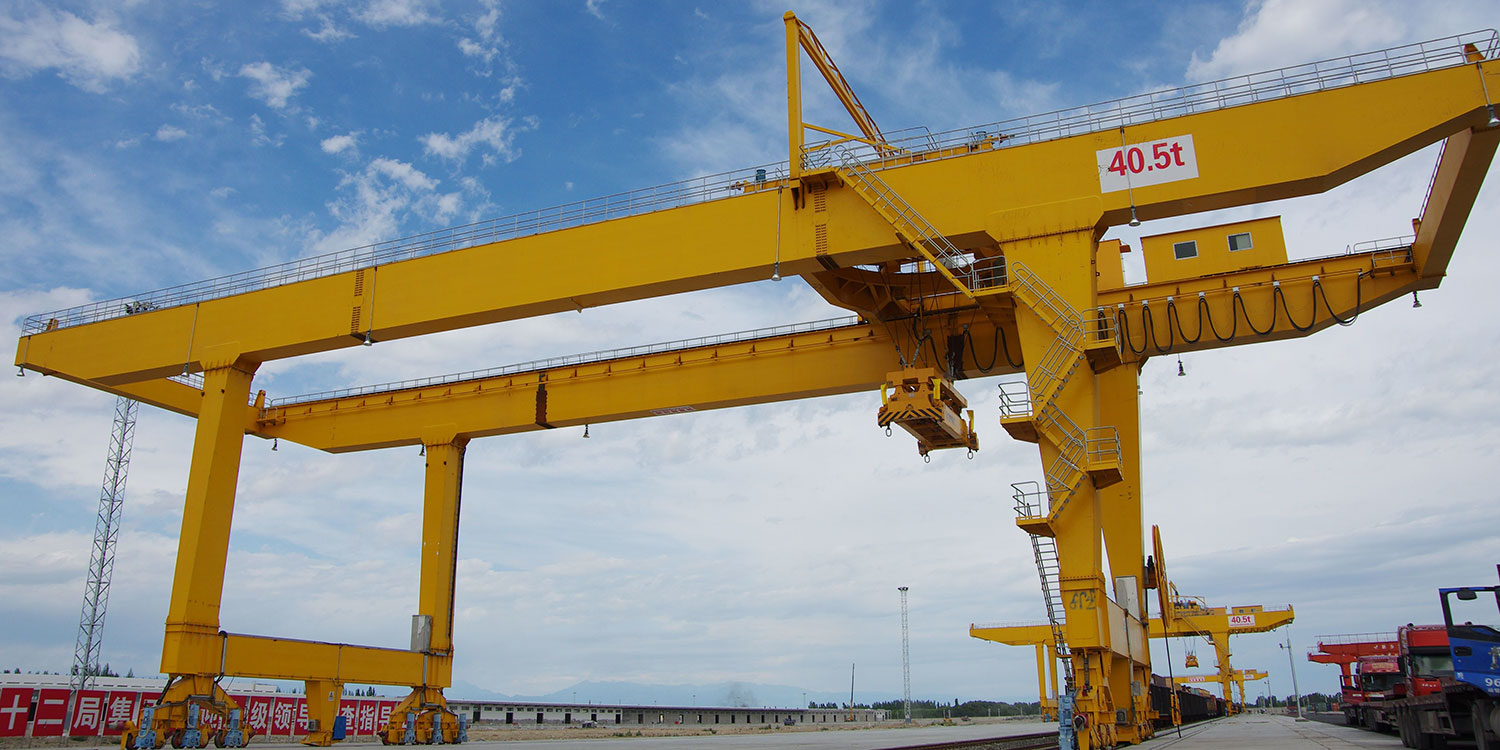

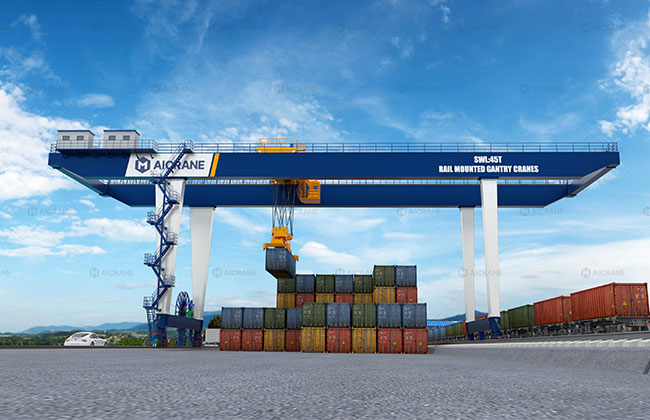

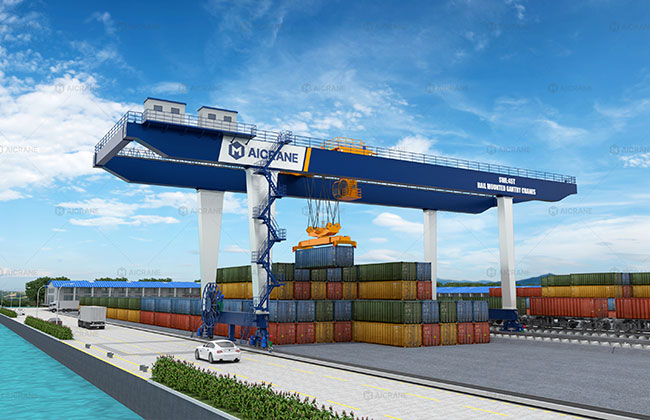

Option Two: Rail Mounted Gantry Cranes
Rail mounted gantry cranes are specifically designed for handling containers on railways and ports. If you work on sufficient budget, this professional container handling equipment is your better choice!
4. Gantry Cranes For Construction

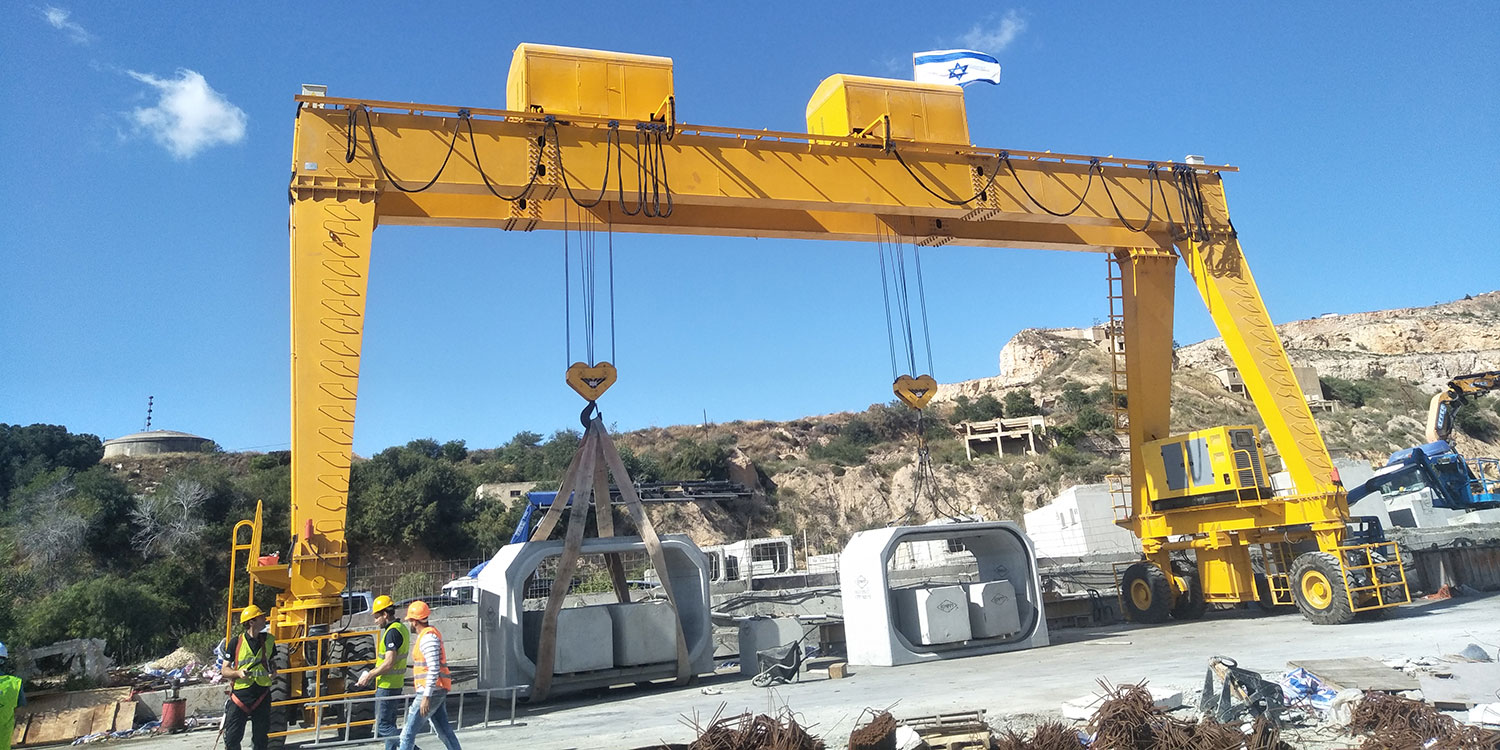

Our gantry cranes can be applied to bridge construction, building construction, subway construction, etc. From the prefabrication of building elements to the construction site, Aicrane can always supply the right gantry crane solutions to meet your needs. For example, using Aicrane single or double beam rubber tired gantry crane, concrete beams for bridge construction can be picked up and positioned to the right place.
We Are Waiting to Discuss Crane Solutions For Your Industry!
The industries and gantry crane options listed above are just a few simple examples. To get the most gantry crane solution for your industry and application, you need to provide your project information, such as working conditions, gantry crane parameters, budget, etc., so that we can help you make the right choice!
How to Install Gantry Cranes in the UAE?
Do you provide installation services? Can you send an engineer over to install gantry crane? These are the questions that many customers ask. For gantry crane installation, we offer different options for UAE customers:
- 1. We can send 1 or 2 engineers to the site to guide the installation and commissioning of your gantry crane, but you need to pay the salary, round-trip air tickets, visa, accommodation and other expenses.
- 2. If your company has experience in installing cranes, we can provide online installation guidance, installation drawings and related installation videos to help you complete the installation.
How Are Your Gantry Cranes Packed And Shipped to UAE?
- For gantry crane package, the steel structure part of the gantry crane is generally packed with plastic film to protect it from rain. Electrical and other smaller parts are packed in standard export-use fumigation-free wooden boxes or plywood boxes, and reinforced with steel plates to prevent damage in the event of a collision.
- In addition, if the length of the main beam exceeds 11m, we will cut it into 2-3 pieces to fit the container. The cutting program is provided by our professional engineers, and the cutting points are connected by flanges and high-strength bolts. We will provide these accessories, and customers can make the connection by themselves according to the drawings we provide.
- In terms of transportation, we have a professional shipping department to help customers at any time.
Contact Us For A UAE Gantry Crane Solution That Works For You!
In the process of cooperating with UAE customers, Aicrane’s high-quality products and timely and professional services have been recognized by many customers, which are the main reasons why customers choose us. Aicrane has crane export experience to the UAE and local installation experience, which is very important and valued by many customers. We are also looking to cooperate with more UAE customers and aim to be one of the most reputable gantry crane suppliers in UAE! If you are looking for a gantry crane solution for your industry in UAE, contact Aicrane today!
