Aicrane specializes in supplying bespoke winch solutions to clients in Saudi Arabia for their lifting and pulling applications. Over the years, we have provided efficient, reliable and cost-effective winch solutions to customers in different industries, including construction, mining, shipbuilding, naval bases, hydro-power stations, oil and gas, marine industry, etc., with our wide range of winch product lines. If you are interested, see below the different winch solutions offered by Aicrane.
Saudi Arabia Winch Solutions From Aicrane
Basically, Aicrane winches can be used in almost all industries to meet the lifting and pulling needs in Saudi Arabia. For different industries and applications, we have two types of winches, electric winches and hydraulic winches, for customers to choose, which is also a popular choice for a majority of our customers. In addition, we also provide diesel winches according to customer needs.
Electric Winch in Saudi Arabia

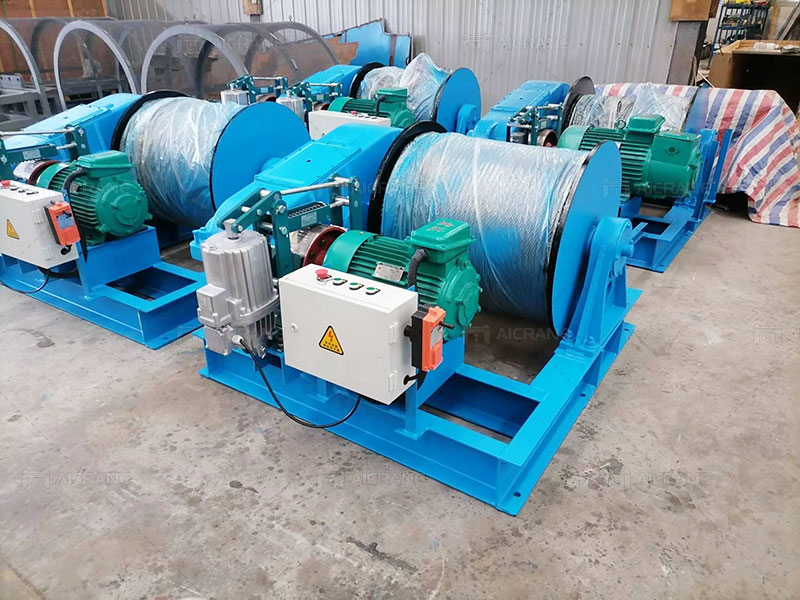

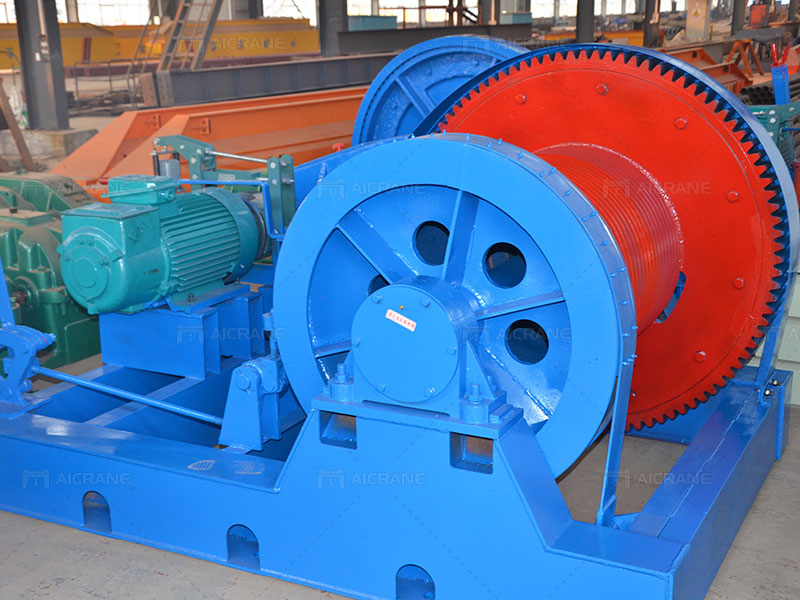

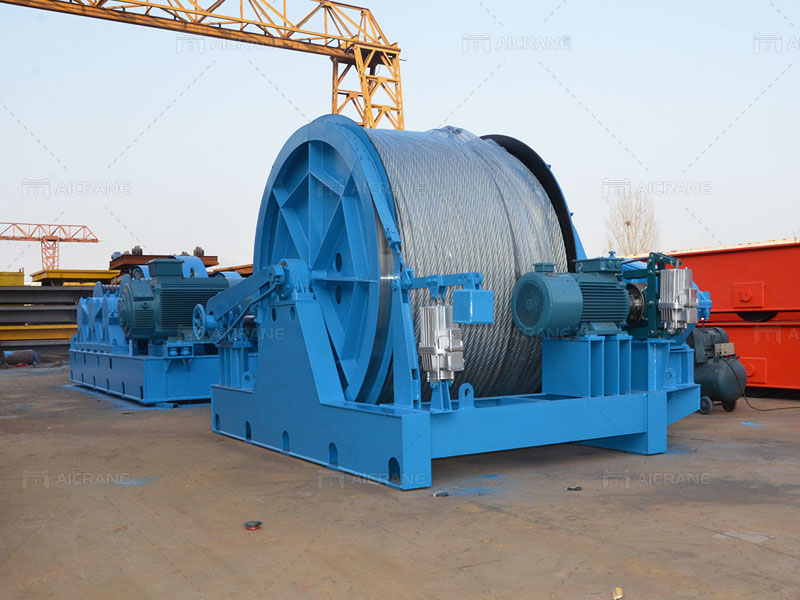

Electric winch for sale in Saudi Arabia is an efficient, reliable and cost-effective solution for many lifting and pulling applications. The electric winch is driven by electric power, with simple structure, easy operation, convenient installation and maintenance, and low operating cost. Our best-selling electric winches include AQ-JM slow speed electric winch, AQ-JK high speed electric winch, AQ-JKL electric piling winch, and AQ-JMM electric friction winch.
| PARAMETERS OF AQ-JM | |
|---|---|
| Load capacity | 0.5~200 t |
| Rope capacity | 20~3600m |
| Working speed | 5~20 m/min |
| Power supply | 220-690V, 50/60HZ, 3Phase |
| PARAMETERS OF AQ-JK | |
|---|---|
| Load capacity | 0.5~60t |
| Rope capacity | 20~500m |
| Working speed | 20~35 m/min |
| Power supply | 220-690V, 50/60HZ, 3Phase |
| PARAMETERS OF AQ-JMM | |
|---|---|
| Load capacity | 0.5~100t |
| Rope capacity | 20~5000m |
| Working speed | 5~20m/min |
| Power supply | 220-690V, 50/60HZ, 3Phase |
| PARAMETERS OF AQ-JKL | |
|---|---|
| Load capacity | 1~10t |
| Rope capacity | 20~500m |
| Working speed | 20~36m/min |
| Power supply | 220-690V, 50/60HZ, 3Phase |
Example of Electric Winches in Saudi Arabia
2 Ton Electric Winch Shipped to Saudi Arabia
A 2 ton electric winch was shipped to Saudi Arabia. This is Acrane’s AQ-JM variable speed electric winch, with drum capacity 150m*13mm. With frequency inverter, the Saudi Arabia 2 ton winch can realize stepless speed change during pulling operation, which is more stable and reliable.
Hydraulic Winch in Saudi Arabia
Aicrane hydraulic winches in Saudi Arabia are designed for heavy-duty lifting, pulling and towing operations. Hydraulic winches are powered by hydraulic systems, which are more durable and stronger than electric winches, making them ideal for the most demanding tasks in construction, mining, industrial, oil and gas, ports and marine applications. It is also a good choice when an electric winch does not meet your operating and performance conditions.
Example of Hydraulic Winches in Saudi Arabia
30 Ton Hydraulic Mooring Winch Exported to Saudi Arabia
A single drum 30 ton hydraulic mooring winch was exported to Saudi Arabia. According to customer requirements, the hydraulic mooring winch is equipped with an accumulator, which is an energy storage device in a hydropneumatic system. It converts the energy in the system into compression energy or potential energy at an appropriate time and stores it. When the system needs it, it converts the compression energy or potential energy into hydraulic or pneumatic energy and releases it to replenish the system. When the pressure of the system increases instantaneously, it can absorb this part of the energy to ensure the normal pressure of the whole system.
Hydraulic Winch vs. Electric Winch: Which One to Choose
Electric winches and hydraulic winches play an important role in lifting and pulling applications, but each has its own advantages and disadvantages, and the unique range of applications for which it is best suited. Here we make a brief comparison between electric winches and hydraulic winches so that you can choose the right one for your business.
Power Source
- Electric winches use electricity to power the winch’s motor. It is very reliable and safe to use. Electric winches are also easy to install and operate.
- Hydraulic winches, as the name suggests, are powered by a hydraulic system. It is capable of delivering massive power to handle big jobs. However, hydraulic winch systems are not as easy to install as electric winches.
Application
- Electric winches are widely used in construction and installation sites, factories, warehouses, mining areas, shipyards, marine, etc., for lifting and pulling various loads.
- The hydraulic winches are more suitable for tough jobs on land and sea. They are more often used on the boats, at docks and on the shore to carry out a number of heavy duty tasks.
Cost
- Generally speaking, electric rope winches are a more cost-effective option, with shorter lead times and lower opereation and maintenance costs.
- The structure of the hydraulic winch is more complicated, so the installation process is more complicated, and the maintenance is more, thereby the cost will be higher.
Dimension
- Electric winches have a larger footprint but can reduce overall system mass and volume due to less need for piping, fittings, HPU, etc.
- Hydraulic winches are more compact and smaller in size (without HPU). However, the overall system can be of higher mass and volume.
In Conclusion
Both electric winches and hydraulic winches are very safe and effective at lifting and pulling heavy loads. Understanding their features and limitations can be very useful in making the right decision. When choosing between electric and hydraulic winches, here are a few questions to consider to help you make the right choice:
- Which power source do you prefer to power the winches, electric or hydraulic?
- Where will you be using the winch and how hard will the job be?
- How long will the winch be used?
- Do you have a hydraulic station on site?
- What is your budget?
The answers will guide you to make the right choice. However, if you have any questions or would like to learn more about our electric and hydraulic winches, get in touch with our winch experts today!
Industries Using Winches in Saudi Arabia
Depending on the type of work you do, winches can be used as material handling equipment, production or maintenance tools. Whether for marine, construction, mine, plant, shipyard, navy or some other application, Aicrane winches are built to serve customers’ specific needs. Here we would like to show different applications that winches can be used for.
60 Ton Slipway Winch For Shipyard – For Pulling Ships Out of The Water
Services Offered by Aicrane in Saudi Arabia
Choose Aicrane, you will enjoy one-stop services such as winch solution design, equipment production, transportation and customs clearance, installation and commissioning, and after-sales service.
- Winch Solution Design – after receiving customer inquiries, Aicrane professional winch engineers and project consultants will work together, discuss and confirm equipment parameters and budget with customers, and then provide the most suitable solution.
- Equipment Production – Aicrane production team manufactures equipment with high quality and high efficiency, and QC team will check equipment quality and progress.
- Shipping and Customs Clearance – our shipping team is responsible for booking containers, preparing and confirming customs clearance documents for our clients.
- Installation and Commissioning – according to customer requirements, our installation engineers can provide online or on-site installation guidance.
- After-sales Service – our after-sales service specialist will visit customers regularly to learn about the status of the equipment.
- One-to-one Follow-up of Order Execution – during the order process, we have a dedicated customer service team to follow up the order execution one-on-one, regularly report the production progress, arrange delivery, installation and other work in advance to ensure the smooth progress of the entire order process.
