Factory Cranes

When it comes to lifting heavy materials, components, or machinery within a factory, a reliable factory crane system is essential. These cranes are designed to improve workflow, enhance safety, and optimize efficiency in various industries, such as machinery manufacturing, metal smelting, metal fabrication, mold manufacturing, precast concrete production, and more. Below, you can discover the various types of our factory crane for sale, such as overhead crane and gantry crane, explore their key features, and learn how to choose the ideal solution for your factory’s specific tasks.

Factory Crane for Sale

Factory Crane Types for Sale: Overhead or Gantry

Overhead Factory Crane

The overhead factory crane for sale is widely used in factories for lifting heavy materials, tools, and components. This type is mounted on elevated tracks, typically fixed to the walls of the factory building, allowing it to move along the length and width of the factory floor. Here are some popular models of our overhead crane for factory:

Single Girder Overhead Factory Crane

AQ-LD Model

A standard and cost-effective single girder overhead crane for light-duty to moderate lifting in factories.

PARAMETERS OF AQ-LD
Load capacity1-25t
Span7.5-31.5m
Lifting height6-30m
Lifting speed0.3-8m/min
Hoist running speed20m/min
Crane running speed20m/min
Work dutyA3, A4
Custom designs available

Get A Quote

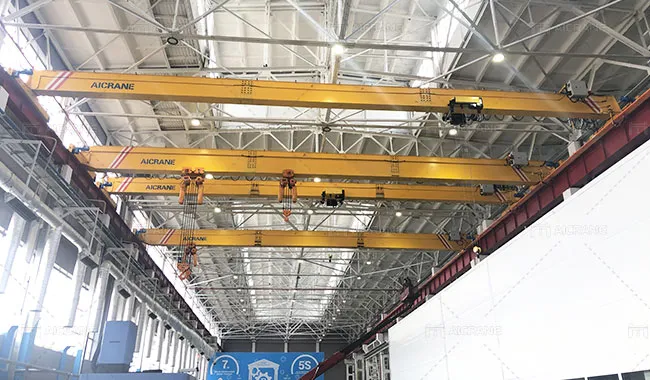

European Standard Single Girder Crane for Factory

AQ-HD Model

A more advanced single girder version with a European design for more stable and delicate lifting in factories.

PARAMETERS OF AQ-HD
Load capacity1-20t
Span7.5-28.5m
Lifting height6-18m
Lifting speed0.8/5m/min
Hoist running speed2-20m/min
Crane running speed3-30m/min
Work dutyA5
Custom designs available

Get A Quote
Double Girder Factory Overhead Crane

AQ-QD Model

A standard and robust double girder overhead crane for heavy-duty lifting tasks in large factories.

PARAMETERS OF AQ-QD
Load capacity5-450t
Span10.5-31.5m
Lifting height6-24m
Lifting speed2.1-11.5m/min
Trolley running speed27-40m/min
Crane running speed42-75m/min
Work dutyA3-A7
Custom designs available

Get A Quote
European Standard Double Girder Factory Crane

AQ-QDX Model

A European-style double girder model, offering smoother operation for demanding factory applications.

PARAMETERS OF AQ-QDX
Load capacity5-320t
Span10.5-31.5m
Lifting height6-24m
Lifting speed0.2-10.7m/min
Trolley running speed2.4-33m/min
Crane running speed4.2-68m/min
Work dutyA3-A5
Custom designs available

Get A Quote
Hoist Double Girder Bridge Crane in Factory

AQ-LH Model

A double girder crane with an electric hoist, designed for factories requiring cost-effectiveness and less intensive lifting needs.

PARAMETERS OF AQ-LH
Load capacity5-50t
Span10.5-31.5m
Lifting height6-30m
Lifting speed0.18-8m/min
Trolley running speed20m/min
Crane running speed20m/min
Work dutyA3, A4
Custom designs available

Get A Quote

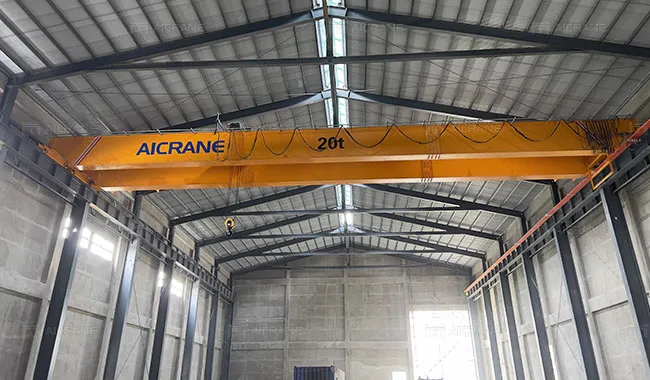

European Hoist Double Girder Factory Crane

AQ-NLH Model

A European-style double girder crane equipped with a European standard electric hoist for high-performance lifting in factories.

PARAMETERS OF AQ-NLH
Load capacity5-80t
Span10.5-31.5m
Lifting height6-18m
Lifting speed0.4-5m/min
Trolley running speed2-20m/min
Crane running speed3-30m/min
Work dutyA5
Custom designs available

Get A Quote

Gantry Factory Crane

Factory gantry crane is another popular choice for moving heavy loads within a factory. These cranes are similar to overhead cranes, but instead of being mounted on tracks attached to the building, factory gantry runs on wheels or tracks on the ground. These gantry cranes are particularly useful in environments where there is no room for overhead tracks, or where a more mobile lifting solution is required. The following are some of our popular models of gantry crane for factories:

Single Girder Factory Gantry Crane

AQ-MH Model

A reliable single girder gantry crane designed for light to medium lifting tasks inside and outside factories.

ModelAQ-MH
Load capacity3-20t
Span8-35m
Lifting height6-18m
Lifting speed0.33-8m/min
Hoist running speed20m/min
Crane running speed20m/min
Work dutyA3, A4
Custom designs available

Get A Quote

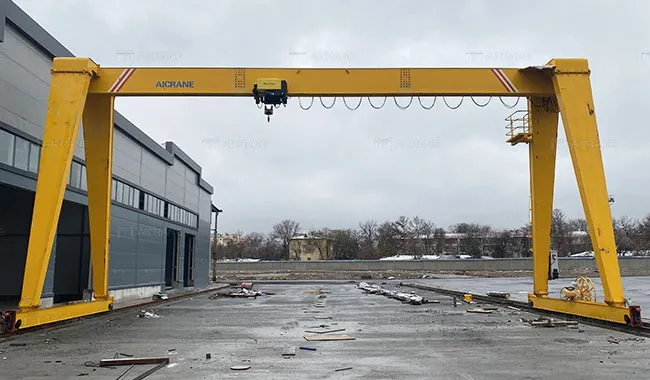

European Standard Single Girder Gantry Crane for Factory

AQ-NMH Model

A European-style single girder gantry crane offering enhanced performance and design in factory use.

ModelAQ-NMH
Load capacity3.2-20t
Span8-35m
Lifting height6-12m
Lifting speed0.66-5m/min
Hoist running speed2-20m/min
Crane running speed3-30m/min
Work dutyA5
Custom designs available

Get A Quote

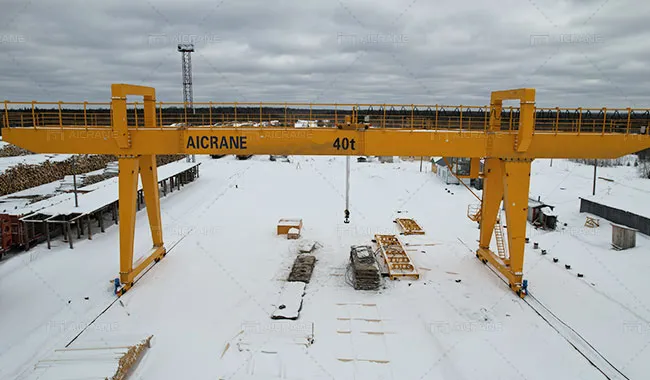

Double Girder Gantry Factory Crane

AQ-MG Model

A double girder gantry crane ideal for demanding lifting applications inside factories or in factory yards.

ModelAQ-MG
Load capacity5-500t
Span18-35m
Lifting height6-18m
Lifting speed1.5-11.5m/min
Trolley running speed10-40.1m/min
Crane running speed16-50m/min
Work dutyA3-A7
Custom designs available

Get A Quote

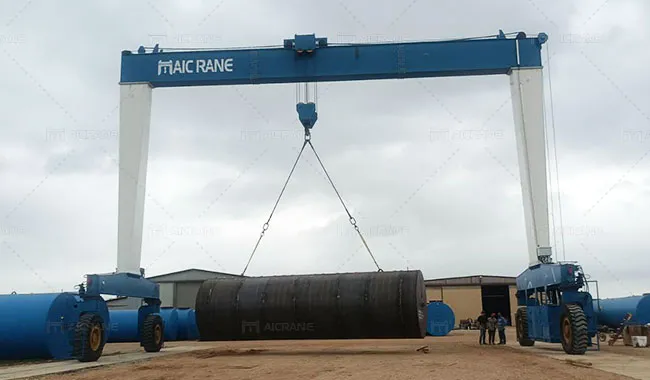

Rubber Tyred Factory Crane

RTG Model

A rubber tyred gantry crane, offering mobility and flexibility for factory lifting operations.

ModelRTG
Load capacity5-500t
Span5-35m
Lifting height6-18m
Lifting speed1-10m/min
Trolley running speed2-20m/min
Crane running speed3-30m/min
Work dutyA3-A5
Custom designs available

Get A Quote
Single Girder Semi Gantry Crane in Factory

AQ-BMH Model

A single girder semi gantry crane used for light lifting in factories with limited floor space.

ModelAQ-BMH
Load capacity3-20t
Span8-30m
Lifting height6-18m
Lifting speed0.33-8m/min
Hoist running speed20m/min
Crane running speed20m/min
Work dutyA3, A4
Custom designs available

Get A Quote
Double Girder Semi Gantry Crane for Factory

AQ-BMG Model

A double girder semi gantry crane suitable heavy lifting operations along one side of factories.

ModelAQ-BMG
Load capacity5-32t
Span12-30m
Lifting height6-12m
Lifting speed6-11.5m/min
Trolley running speed37-40.1m/min
Crane running speed37.7-40.1m/min
Work dutyA3-A6
Custom designs available

Get A Quote

Applications of Cranes in Various Industrial Factories

Machinery Manufacturing Factory

Machinery manufacturing facilities require precise handling and movement of heavy components to ensure that machinery is built to high standards. Therefore, cranes such as bridge cranes and gantry cranes are widely used in machinery manufacturing plants to manufacture, assemble, test and move large and heavy machinery.

32 Ton Overhead Crane for a Machinery Manufacturing Factory

32 Ton Overhead Crane for a Machinery Manufacturing Factory

  • Application: Lifting heavy machinery parts on factory production lines
  • Type: European standard double beam design, equipped with European electric hoist

Metal Fabrication Factory

In metal fabrication factories, different types of cranes including overhead cranes and gantry cranes are employed for handling large, heavy steel beams, plates, coils and components. These metal fabrication factory with cranes help in the movement of materials from storage to processing areas, assembly lines, and transportation zones.

32+32 Ton Gantry Crane for a Steel Processing Factory

32+32 Ton Crane for a Steel Processing Factory

  • Application: Lifting heavy steel pipes in an open area of the factory
  • Type: European standard double girder, with specialized lifting beam to ensure balanced load handling
  • Span: 42-meter span covers a large factory area

Precast Concrete Production Factory

In precast concrete production plants, overhead and gantry cranes are commonly used to lift and move large concrete components like beams, slabs, and columns across the production area.

12.5+12.5Ton Rubber Tyred Crane For a Precast Concrete Factory

12.5+12.5Ton Rubber Tyred Crane For a Precast Concrete Factory

  • Application: The two cranes work in tandem to ensure efficiency and smooth handling of long precast components.
  • Type: Single beam electric powered
  • Span: 6.9m
  • Lifting height: 6.2m

Automotive Manufacturing Factory

The automotive industry requires precision, speed, and the handling of very heavy or delicate components. Overhead or gantry cranes are used extensively in various stages of automotive production, from assembling individual components to final vehicle assembly.

32/20 Ton Rubber Tyred Crane for an Automotive Injection Molding Factory

32/20 Ton Rubber Tyred Crane for an Automotive Injection Molding Factory

  • Application: Lifting large injection molds for the production of automotive parts inside the factory
  • Span: 11.7m
  • Lifting height: 7.7m
  • Total height: 9.5m, tailor-made according to the available space in the factory.

Paper Production Factory

In paper mills, overhead and gantry cranes are essential for moving large rolls of paper, handling raw materials like wood pulp, and lifting finished paper products.

20 Ton Double Girder Crane for a Paper Production Factory

20 Ton Double Girder Crane for a Paper Production Factory

  • Application: For papermaking, corrugated board and carton production in the factory
  • Span: 16.5m
  • Lifting height: 9m

Metal Smelting Factory

In metal smelting plants or steel mills, cranes play a critical role in the safe and efficient handling of molten metals, heavy machinery, and raw materials like ores and alloys. These factories deal with high temperatures and heavy weights, requiring specialized cranes for specific tasks, such as ladle crane for transporting molten metal, charging crane for loading raw materials such as scrap metal, iron ore, and coal into furnaces, and slab handling crane for lifting large steel slabs between rolling mills and cooling beds.

125 Ton Crane for A Metal Smelting Factory

125 Ton Crane for A Metal Smelting Factory

  • Application: Handling hot molten metals in a steel plant
  • Type: Double girder, with upper rotating trolley structure


The examples above highlight some of the common uses of our cranes in factory. However, our cranes are versatile and can be applied in a wide range of industrial settings wherever heavy material lifting and handling are needed. We offer customized designs tailored to meet specific application requirements.

If your factory needs a crane, how do you choose the right one to to maximize efficiency and cost-effectiveness? Continue reading the following section to explore the key factors to consider when selecting a crane for your factories.

Considerations When Selecting a Crane for Your Factory

Whether you are moving heavy materials, lifting components for assembly, or handling large machines in factories, choosing the appropriate crane requires careful evaluation of various factors. Below are the key considerations when selecting an overhead or gantry crane for factories:

Evaluate Load Capacity

The crane must be able to lift the heaviest load you plan to move within the factory.

  • One the one hand, if the crane has a load capacity that is too low, it won’t be able to handle your heavy-duty lifting needs, risking safety and equipment damage.
  • On the other hand, selecting an oversized crane might lead to unnecessary energy consumption and higher operational costs.

Ensure that the crane’s load capacity is slightly higher than the maximum load you plan to lift, providing an additional safety margin.

Choose the Right Type of Crane for Factory

There are various types of cranes designed for factory use, and the right choice depends on the type of work you plan to do.

  • Overhead Crane in Factory: Ideal for lifting heavy loads and moving them along fixed tracks indoors, typically used in warehouses, assembly lines, and manufacturing plants.
  • Gantry Crane in Factory: More suitable for outdoor or large open areas where flexibility in movement is required. They are perfect for handling large items like steel beams, concrete, and machinery.

Each type has its advantages depending on the factory layout and the tasks that need to be performed.

Assess the Working Environment of Your Factory

The working environment of your factory plays a significant role in determining the right equipment. Consider these factors:

  • Temperature and Weather Conditions: If your factory deals with extreme temperatures or harsh weather conditions, you may need a crane with special coatings or materials to prevent rust or damage from heat or cold.
  • Space Limitations: The size of the crane should match the available space within the factory. For tight spaces, compact factory inside cranes or those with a low profile might be required. Ensure that the crane can maneuver easily within the factory’s aisles or working areas.

Consider the Type of Load

Different types of loads have varying requirements in terms of handling, stability, and movement.

  • Regular Load: These loads are typical and uniform, such as machinery parts or pallets of materials. A standard factory lifting crane with a fixed lifting capacity may suffice for these tasks.
  • Fragile Load: Delicate items like glass, electronic components, or precision instruments require cranes equipped with specialized lifting attachments and features to prevent damage.
  • Bulky Load: Loads with an irregular shape, such as oversized equipment or structural components, may require a large gantry crane with a high lifting height and specialized rigging.

Determine Lifting Height and Span

When selecting a crane, ensure that both the lifting height and span meet the specific needs of your factory’s workflow. Consider these factors:

  • The height of the building or factory ceiling: The crane’s lifting height is often restricted by the factory’s ceiling height.
  • The height of the load to be lifted: If large or tall items need to be lifted, you’ll need a greater lifting height.
  • Clearances for safety: Ensure enough clearance for safe operation, such as above the load or any obstacles.
  • The width of the factory: The crane’s span needs to cover the area where lifting is required.
  • The layout of the factory: The crane’s movement must allow access to the key work areas without obstacles.

Evaluate Duty Cycle

The duty cycle refers to the frequency with which the crane will be used and how heavy the lifting tasks will be.

  • A high-duty cycle means the crane will be used frequently, often for heavy lifting, and will need to be more durable and robust.
  • A low-duty cycle, on the other hand, may require less frequent use and lighter load handling.

It is essential to choose a crane with an appropriate duty cycle classification to avoid overworking the equipment, which can reduce its lifespan and efficiency.

Incorporate Safety Features

Ensure that the factory crane machine is equipped with essential safety features to prevent accidents and protect workers:

  • Overload Protection: Prevents the crane from lifting beyond its rated capacity.
  • Limit Switches: Stops the crane’s motion when it reaches the end of its range.
  • Anti-collision Systems: Helps prevent accidents in environments with multiple cranes or machinery.
  • Emergency Stop Button: Allows operators to immediately halt crane movement in case of an emergency.

Evaluate Cost and Budget

The factory overhead crane cost can vary greatly based on its type, capacity, and features. While it’s important to stay within budget, remember that investing in a high-quality crane can lead to long-term savings through improved efficiency and reduced maintenance costs.

Always consider the total cost of ownership, which includes purchase price, installation, maintenance, and operating expenses.

Don’t rush the decision – take the time to assess each factor above to ensure the equipment you select is the best fit for your operations. If you need assistance, our team is here to help you select the right factory lifting solution tailored to your factory’s unique requirements.

What Is the Price of Factory Crane?

When purchasing an industrial factory crane, price is a crucial factor to consider. As cranes are a customized product, we can only provide an accurate quote once we understand your specific requirements and working conditions. However, we can offer approximate price ranges for different types of factory cranes to give you a general idea:

TypeModelCapacitySpanPrice (USD)
Overhead Factory Crane PriceAQ-QD10-50 Ton10.5-31.5m$15,000 – $65,500+
AQ-NLH10-50 Ton10.5-31.5m$14,300 – $66,800+
AQ-LH10-50 Ton10.5-31.5m$9,500 – $53,200+
Gantry Factory Crane PriceAQ-MG10-50 Ton18-35m$40,900 – $190,900+

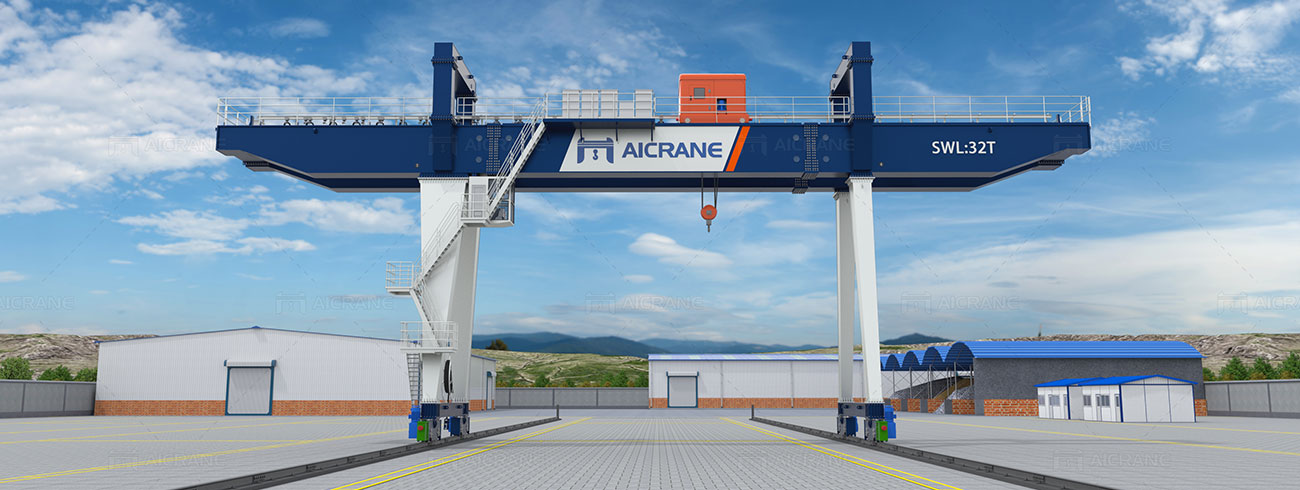

Factory Crane Price

The factory crane price list above is for reference purposes only and may vary significantly based on the type, capacity, span, and customization requirements. For the most accurate overhead or gantry crane pricing, please contact us directly.

Our Factory Crane Service: Reliable After-sales Support

At Aicrane, we not only design and manufacture various types of factory use cranes, but offer a comprehensive range of services to enhance the performance and longevity of your crane systems.

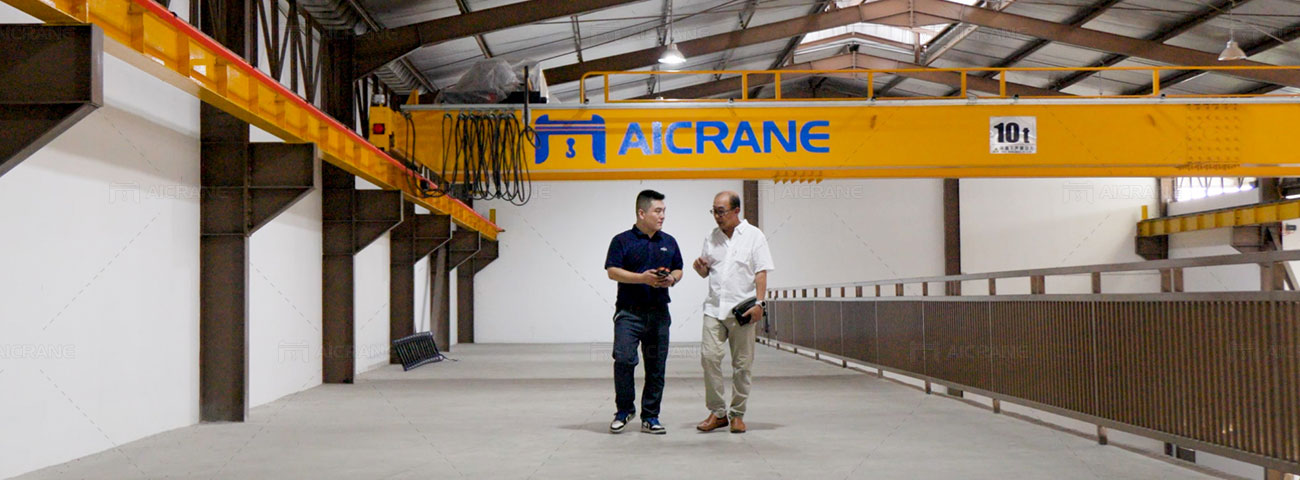

Aicrane Service

Professional Installation for Smooth Setup in Your Factory

We provide professional installation services for various types of industrial factory cranes, including overhead cranes and gantry cranes. Our team of experienced technicians provides online or onsite installation guidance according to customer requirements.

Comprehensive Operator Training to Ensure Safe Lifting in Factory

We offer comprehensive operator training programs that cover all aspects of lifting operation in factories, including safe lifting techniques, control system operation, and troubleshooting.

Timely Spare Parts Supply to Support Continuous Factory Operations

Aicrane offers a wide range of high-quality crane spare parts, including hoists, ropes, motors, electrical components, and control systems. Our parts are sourced from trusted manufacturers and meet industry standards for quality and performance.

Expert Maintenance Services to Maximize Equipment Longevity

We conduct regular inspections to check the condition of key components such as the hoist, control systems, and lifting equipment. Our team also designs and implements preventive maintenance programs that are tailored to your specific crane model and operational requirements.

What Our Customers Say About Our Factory Cranes and Services

We are proud of the relationships we build with our customers and the positive feedback we receive for our products and services. Here’s what some of our satisfied clients have to say about their experience with us:

“Throughout the purchasing process, our experienced with AICRANE was exceptionally smooth. We must recommend Mr. Hou for his outstanding professionalism and dedication. Under his leadership, a two-week project was efficiently completed in less than ten days!” – David Watson, President, Steel Tank Manufacturing Plant

“This equipment is very helpful in our job operations daily. Also, as the person sent here to our factory, to assist with setting up the equipment, was very quick and also very helpful in training our operators.” – Rechard, Operations Director, Precast Concrete Factory

Customer reviews

Customer recommendations

Customer Feedback

We deeply appreciate the trust our customers place in us and are committed to fostering long-term relationships based on excellence, reliability, and ongoing support. Reach out to us today to learn how our factory cranes and services can contribute to the success of your project.

    Customize Your Lifting Solutions

    Contact us now via email: inquiry15@aicranes.com, or fill in the form below.

    FEW TIPS:

    1.Load capacity: ton?

    2.Span of the crane: m?

    3.Max. lifting height of the crane: m?

    4.What materials will be handled: ?

    5.How many hours will the crane work per day?

    6.Project introduction: project working site, project budget, etc.
