Our 10-1200 ton travel lift for sale delivers reliable and efficient boat handling solutions for marinas, shipyards, fishing ports, infrastructure projects, and industrial applications. Available in popular capacities such as 25 ton, 35 ton, 40 ton, 50 ton, 70 ton, 100 ton, 150 ton, 200 ton, 300 ton, 500 ton, and 1200 ton, these mobile boat hoists feature precision steering, synchronized lifting control, and flexible operation for safe handling of vessels and heavy loads.
Custom 10-1200 Ton Marine Travel Lift Solutions for Every Project Scale
From compact yacht marinas to large-scale shipbuilding facilities, our custom 10-1200 ton travel lifts are engineered to optimize load distribution and ensure precise vessel handling. Each system is tailored – matching wheel counts and winch configurations to specific tonnage tiers – to meet the demands of modern marine and industrial applications.

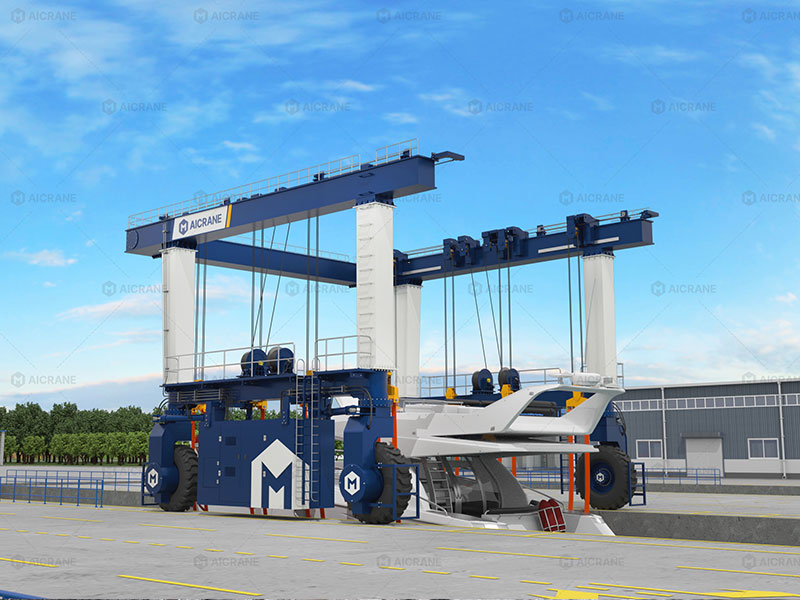

10-100 Ton Travel Lift: Compact Vessel Handling
- Common Capacities: 25t, 35t, 40t, 50t, 70t. | Span: According to customer requirements | Ground pressure (Bar): ≤7 | Gradeability: 4%
- Typical Configuration: 4-Tire / 4-Winch System
- Design Focus: Agility and efficiency. The compact wheelbase and precision steering allow for safe maneuvering in limited spaces like crowded marinas or aquaculture sites.
- Typical Applications: Yacht maintenance, small boat retrieval, and marina operations.

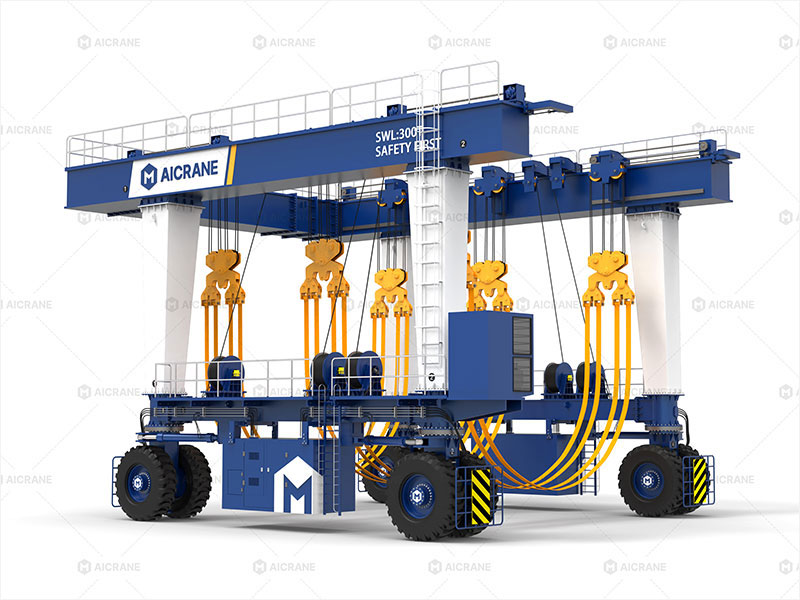

100-400 Ton Travel Lift: Mid-Size Vessel Handling
- Common Capacities: 100t, 150t, 200t, 300t, 400t. | Span: According to customer requirements | Ground pressure (Bar): ≤9 | Gradeability: 3%
- Typical Configuration: 8-Tire / 6-Winch System
- Design Focus: Balanced load distribution. The 8-wheel layout reduces dock surface pressure, while the 6-winch synchronized system provides accurate hull balancing for commercial fleets.
- Typical Applications: Commercial fishing vessels, tugboat maintenance, and workboat servicing.

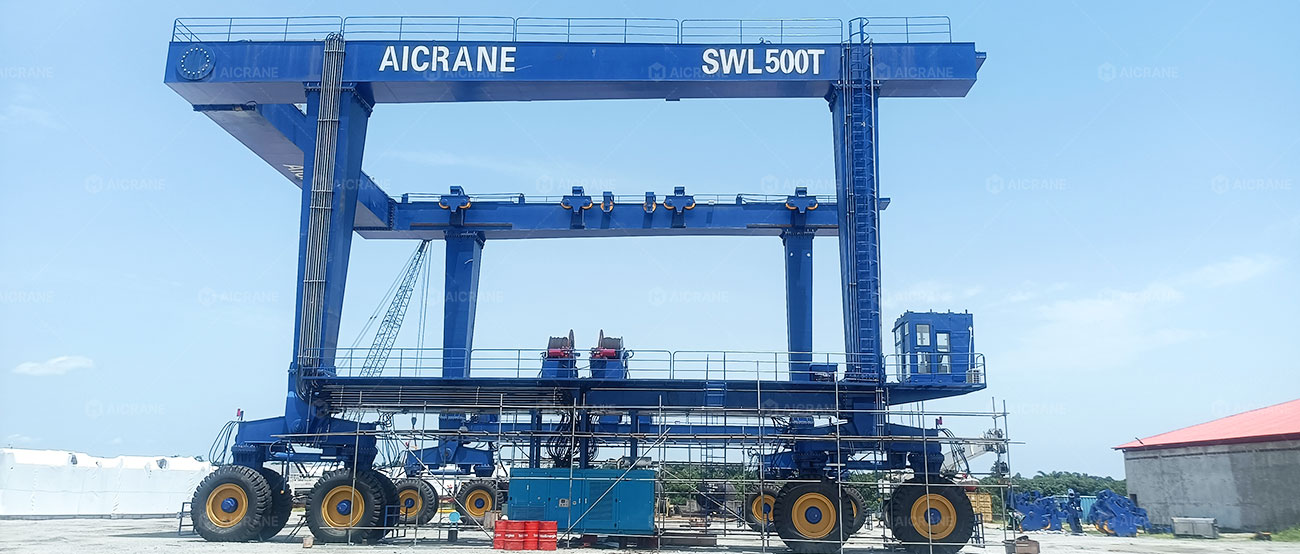

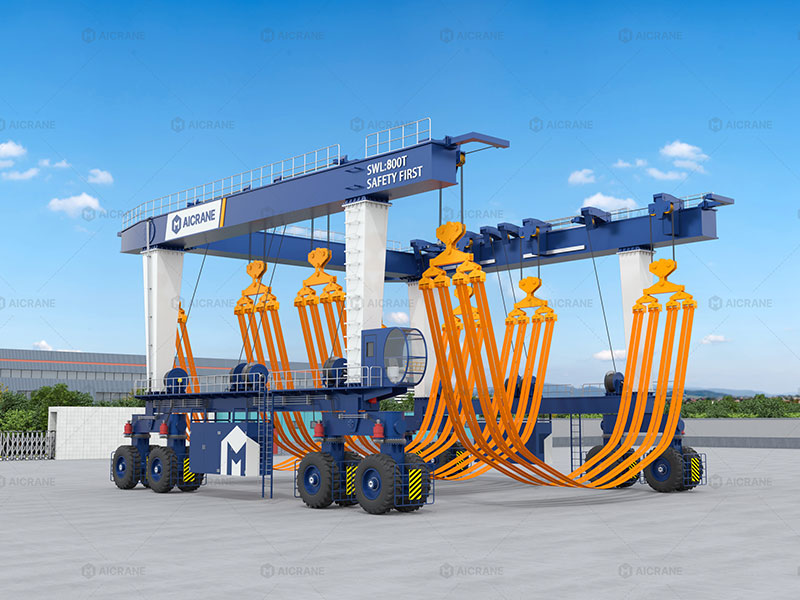

400-800 Ton Travel Lift: Heavy-Duty Vessel Handling
- Common Capacities: 500t, 600t, 800t. | Span: According to customer requirements | Ground pressure (Bar): ≤10 | Gradeability: 3%
- Typical Configuration: 16-Tire / 8-Winch System
- Design Focus: Stability and multi-point control. Built for demanding heavy-duty environments, this range utilizes advanced synchronization to ensure safe handling of mega-yachts and oversized industrial equipment.
- Typical Applications: Mega-yacht shipyards, naval vessel maintenance, and offshore equipment handling.

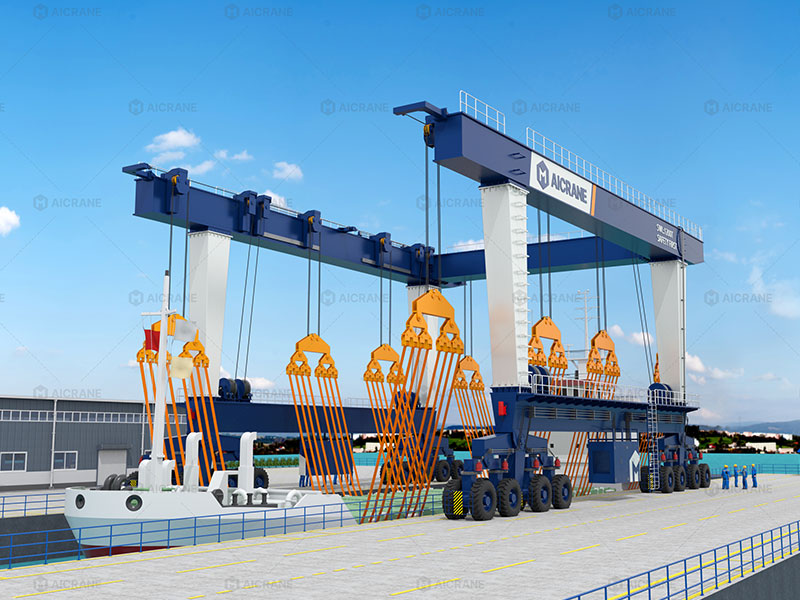

800-1200 Ton Travel Lift: Ultra-Capacity Vessel Handling
- Common Capacities: 1000t, 1200t. | Span: According to customer requirements | Ground pressure (Bar): ≤10 | Gradeability: 3%
- Typical Configuration: 32-Tire / 8-Winch System
- Design Focus: Maximum infrastructure protection. The 32-wheel system is critical for spreading extreme loads, preventing dock damage during the transport of 1000+ ton vessels.
- Typical Applications: Global shipbuilding hubs, large-scale maritime engineering, and mega-infrastructure projects.
With a comprehensive capacity range from 10 to 1200 tons, our marine travel lifts are trusted by shipyards, commercial fishing ports, luxury marinas, and heavy engineering firms across the globe. The following representative projects showcase our ability to solve complex lifting challenges through custom engineering and reliable real-world operation.
Global 10-1200 Ton Boat Travel Lift Projects

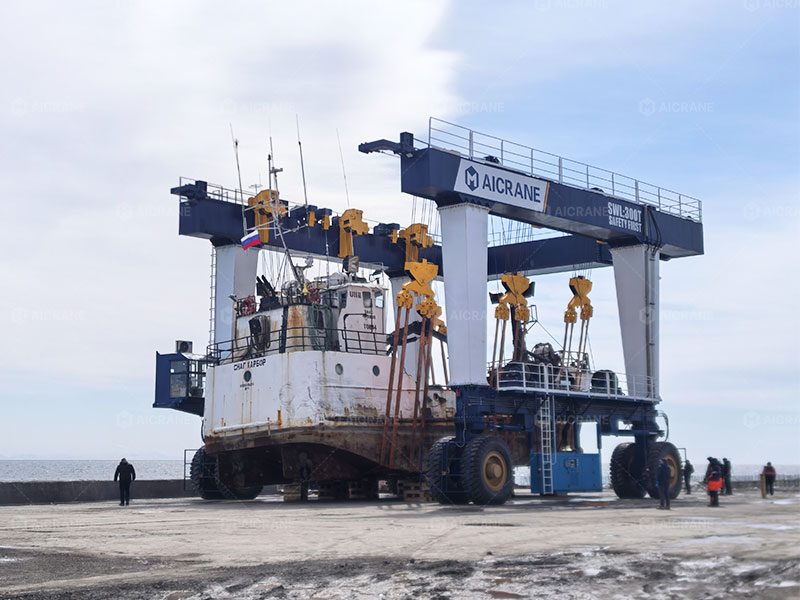

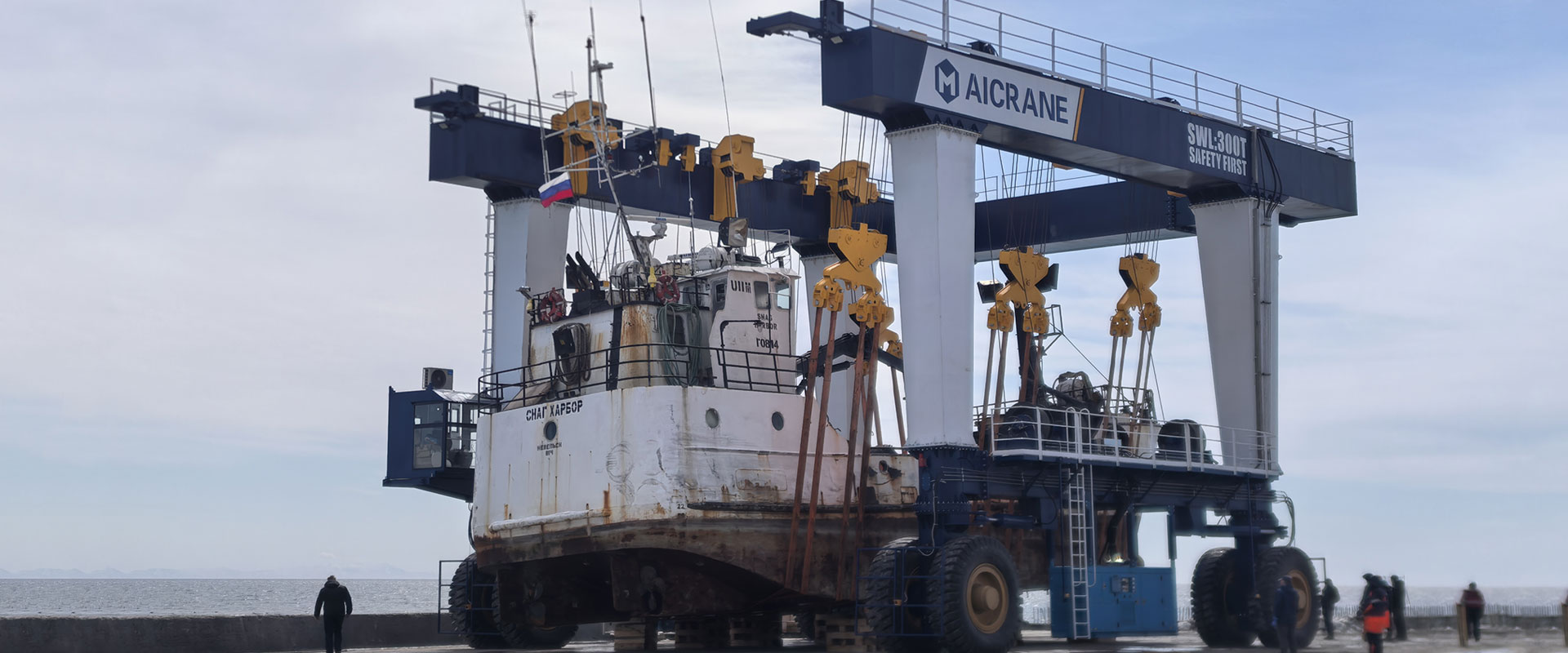

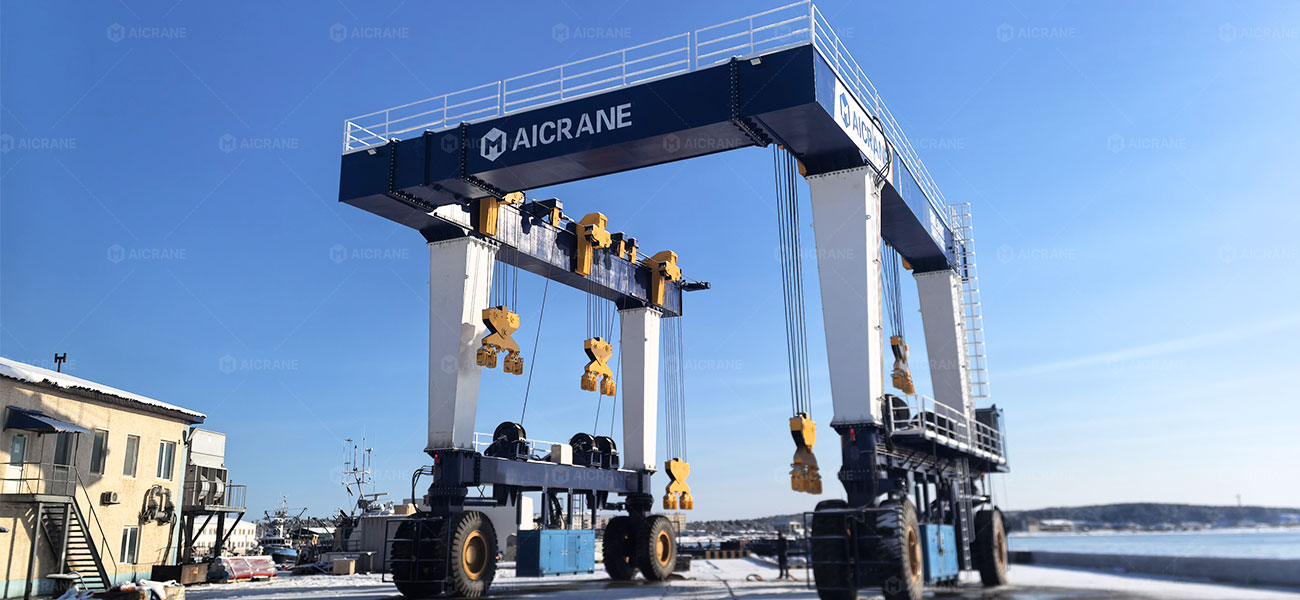

300 Ton Marine Travel Lift for Commercial Fishing in Russia
Project Background: A major fishing port in Russia required a robust solution for retrieving and launching heavy-duty fishing vessels in a high-salinity, low-temperature environment.
Customer Needs: Handling 200-ton vessels (approx. 20m L × 8m W × 10m H) consistently on uneven dock surfaces.
The Challenge: Operation in sub-zero temperatures and managing concentrated loads on non-standard piers.
Our Solution (MBH 300):
- 300-Ton Rated Capacity: Specifically chosen to provide a 50% safety margin for 200-ton hulls, ensuring long-term structural durability.
- Cold-Climate Package: Reinforced anti-corrosion coating and low-temperature hydraulic oil systems.
- Advanced Steering: Multi-wheel steering to compensate for uneven dock conditions and maximize stability.
Project Results:
- Achieved stable lifting performance despite harsh Arctic-border weather.
- Reduced port operational risks and improved daily fleet turnaround efficiency.

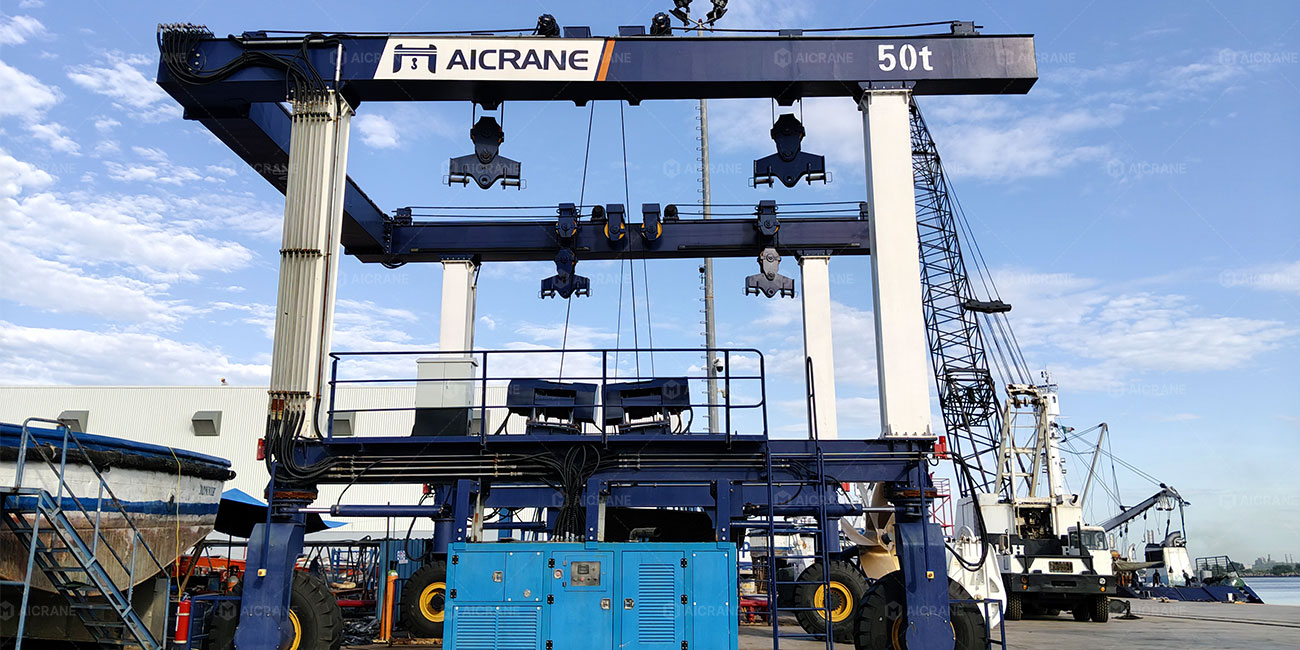

50 Ton Marine Travel Lift for High-Frequency Aquaculture in Mexico
Project Background: A sardine aquaculture operation in Mexico needed a reliable boat hauler for high-frequency daily tasks in a confined dock area.
Customer Needs: Frequent, rapid launching and retrieval of specialized aquaculture boats within a limited working radius.
The Challenge: High operational frequency combined with extreme space constraints.
Our Solution (MBH 50):
- Compact 4-Wheel Design: Optimized for tight maneuvers in small fishing ports and aquaculture facilities.
- Wireless Remote Control: Enhanced operational safety and visibility, allowing a single operator to manage the lift with precision.
- High-Duty Cycle Components: Engineered for constant daily use without overheating or mechanical fatigue.
Project Results:
- Eliminated space bottlenecks during vessel movement.
- Significantly increased the speed of daily sardine harvesting logistics through simplified operation.

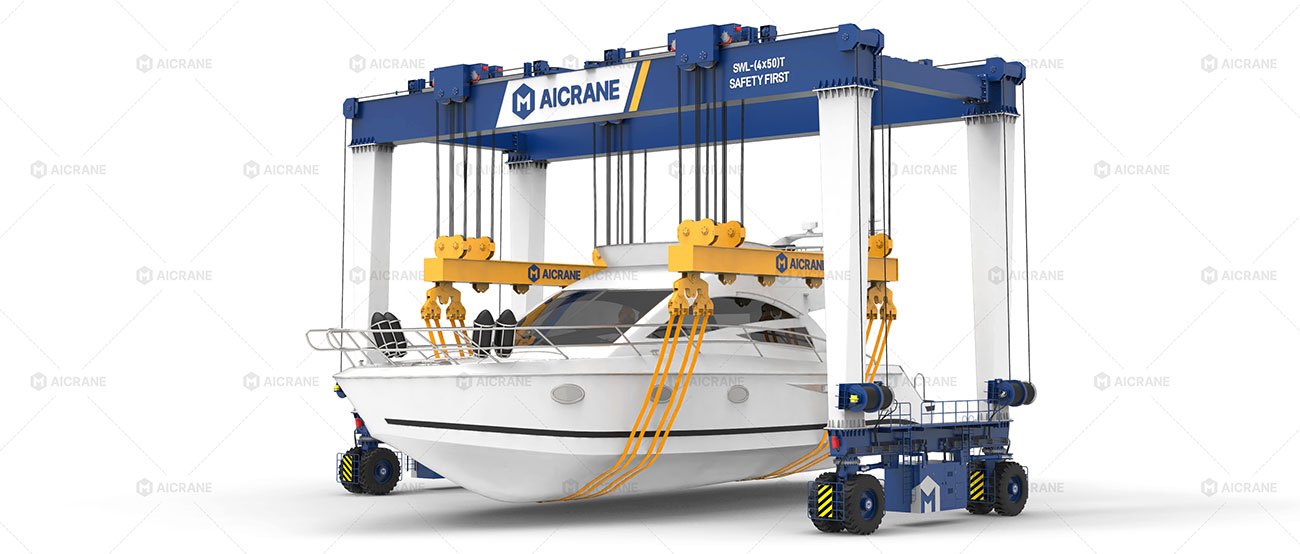

Selection Guide: Determining the Right 10-1200 Ton Boat Travel Lift Capacity
Determining the correct travel lift and boat hoist lifting capacity is a precise calculation of static weight, dynamic variables, and project growth. Consider these four factors to finalize your tonnage requirements.
Calculate Total Displacement (Static Load)
Base your selection on the Total Displacement at the moment of lifting, not the theoretical dry weight.
- Formula: Vessel Weight + Full Fuel/Water Tanks + Onboard Equipment + Marine Growth.
- Guideline: Rated Capacity ≥ Total Displacement × 1.2 (Safety Factor).
In many projects, a 300 ton marine travel lift or higher is selected for a 250t vessel to ensure the system does not continuously operate at its maximum mechanical limit.
Account for Center of Gravity & Hull Geometry
Uneven weight distribution increases the load on specific winches and structural beams.
- Critical Factor: Rear-heavy vessels (engines at the stern) or wide-beam catamarans.
- Guideline: High-offset loads require a higher tonnage tier to ensure structural rigidity and perfect winch synchronization.
Depending on vessel balance and lifting conditions, a 500 ton travel lift may be necessary for a 400t unbalanced vessel to maintain a level lift and reduce hull stress.
Factor in Dynamic & Environmental Loads
Lifting is a dynamic process where external forces add “hidden” weight to the machine.
- Critical Factor: 10%-20% dynamic allowance for acceleration + 5%-15% allowance for wind resistance on high-profile yachts.
- Guideline: In exposed coastal sites, lateral wind pressure requires increased frame stability.
For marinas located in high-wind coastal areas, upgrading from a 50 ton to a 100 ton travel lift can provide the additional stability needed for handling yachts with large surface areas.
Future-Proofing & Usage Frequency
A travel lift is a 20-year asset. Current needs must align with future market demands.
- Critical Factor: Potential for larger vessels in your region + high-frequency daily operations.
- Guideline: Add a 20%-30% expansion margin to prevent early equipment obsolescence.
Looking ahead, some shipyards choose to invest in a 1000 ton or 1200 ton system so they can accommodate future commercial or naval vessel classes beyond the capability of an 800t unit.
Tonnage is just a number; the core is how the machine handles the stress. To understand why a 200 ton or 400 ton travel lift remains stable under extreme conditions, we must look at the structural and safety design.
Structural & Safety Design of a 10-1200 Ton Boat Lift System
Lifting vessels from 10 tons up to 1200 tons requires a boat lift system engineered not only for strength, but also for controlled stress distribution, long-term fatigue resistance, and operational stability. Below is how the structure is designed to ensure safe and reliable performance under maximum load conditions.
Material Foundation & Structural Integrity
- Q355B (S355J) High-Strength Steel: All load-bearing plates are made of Q355B steel, optimized for high yield strength, impact resistance, and fatigue endurance.
- Pre-camber & Stiffness Control: To prevent structural sagging under load, main beams feature a pre-camber of (0.9-1.4)S/1000. The design maintains a strict stiffness value of f≤1S/750, ensuring the frame remains within its elastic limit.

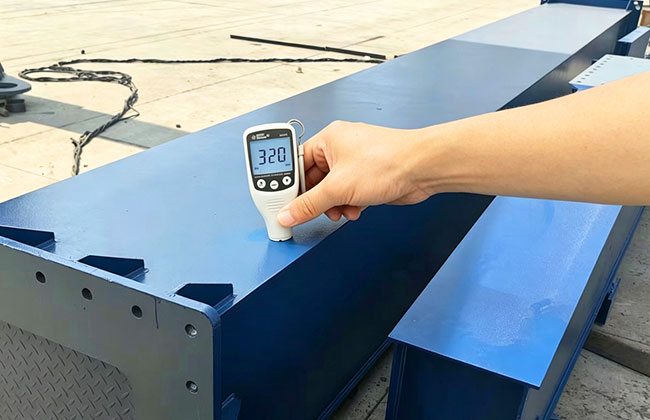

- Advanced Corrosion Protection: Using JOTUN marine-grade paint with a thickness ≥260μm prevents rust from weakening the steel. This ensures a design life of ≥20 years even in high-salinity coastal areas.
Advanced Stress Management

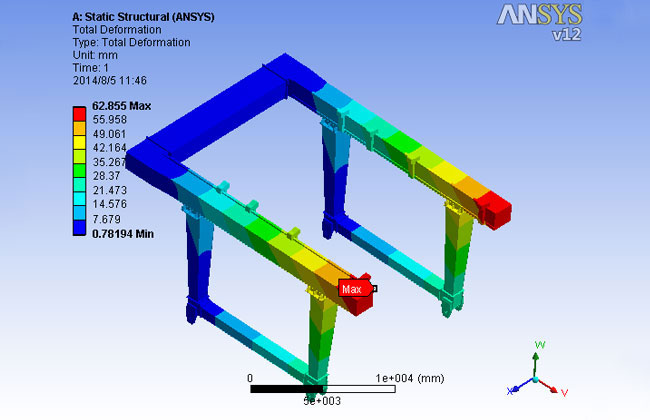

- Ansys Finite Element Analysis (FEA): Every structural component is optimized through Ansys simulation. This allows us to identify and reinforce high-stress concentration points specifically for 500t+ operations.
- Flexible Articulated Pivot Structure: To prevent the frame from cracking on uneven ground, we utilize articulated trunnions at the leg-to-beam connections. This releases internal torsion and stress when the machine travels over dock slopes.
- High-Strength Bolting: All critical joints use 10.9S high-strength bolts treated with Dacromet for maximum shear resistance and corrosion protection.

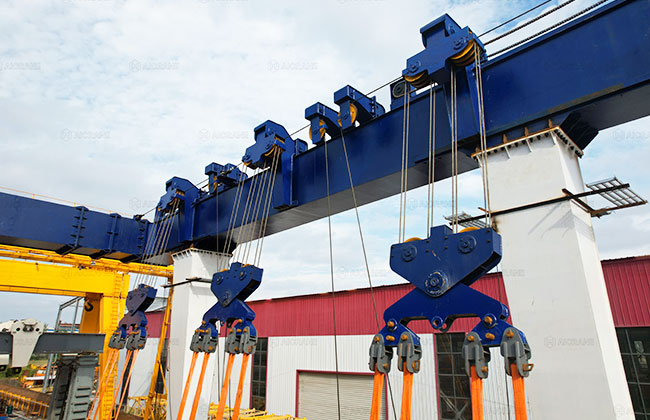

Hoisting Power & Load Distribution
- Redundant Safety Factors:
- Bridon Wire Ropes: 1960Mpa grade with a 5x safety factor.
- Synthetic Slings: High-strength fiber material with a 7x safety factor, including rubber protection blocks for underwater durability.
- Precision Synchronization: We use Brevini planetary reducers and Danfoss variable motors controlled by encoders. This ensures that all lifting points move in perfect sync, preventing the vessel from tilting and causing dangerous load shifts.
- Wheel Load Balancing: The traveling mechanism features double-bearing boxes and equalizer beams to distribute the weight across multiple wheels, protecting the dock foundation from point-load damage.

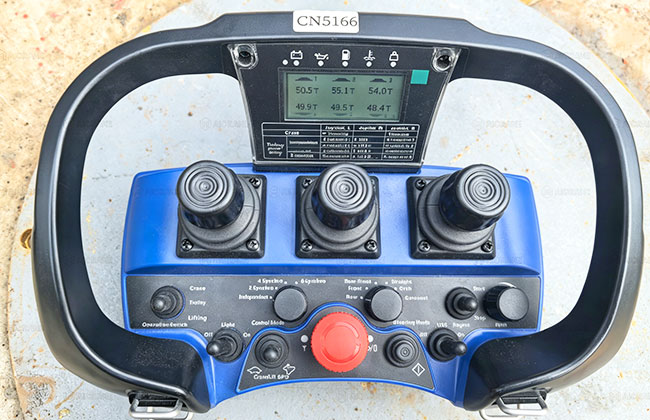

Real-Time Safety & Load Monitoring
- Multi-Point Load Sensing: Pin sensors at each hoisting point monitor both total tonnage and individual sling load. This prevents overloading any single part of the structure due to an offset Center of Gravity (CoG).
- Environmental & Mechanical Safeguards:
- Anemometers: Monitors wind speed to prevent lateral instability.
- Safety Redundancy: Includes hydraulic overflow valves, mechanical safety brakes, and emergency stop buttons at all four corners.
- Intelligent Feedback: The Scanreco remote control displays real-time data on lifting weight, oil temperature, and system pressure, giving the operator total control over the load.
Multi-Industry Adaptability: 10-1200 Ton Travel Lifts Beyond Boat Handling
A 10-1200 ton travel lift is widely used beyond traditional marina operations because its structural design combines high lifting capacity, flexible mobility, and stable load handling. In many industries, it functions as a heavy-duty rubber tyred gantry system capable of transporting oversized components safely and efficiently.
Infrastructure & Precast Concrete: 80-500 Ton Travel Lift
Used for handling large-scale infrastructure and precast construction components:
- Precast bridge beams and girders
- Concrete segments for tunnels and viaducts
- Large-scale infrastructure modules and slabs
Typical systems: 80 ton, 100 ton, 150 ton, 200 ton, 300 ton, 400 ton, 500 ton
Wind Energy Industry: 200-1200 Ton Travel Lift
Used for manufacturing, assembly, and maintenance of wind power components:
- Wind turbine tower sections
- Nacelles and hub assemblies
- Blade handling and storage operations
Typical systems: 200 ton, 300 ton, 500 ton, 800 ton, 1000 ton, 1200 ton

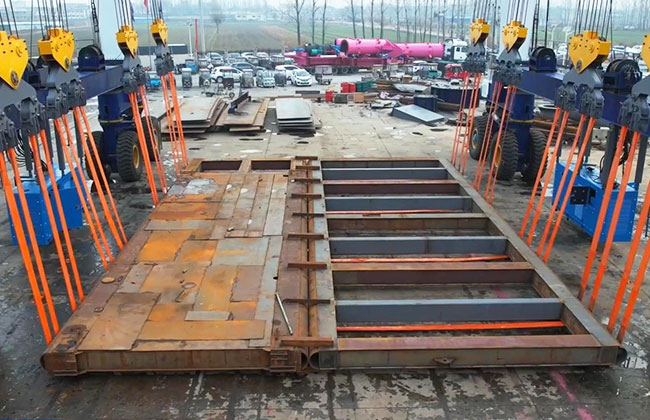

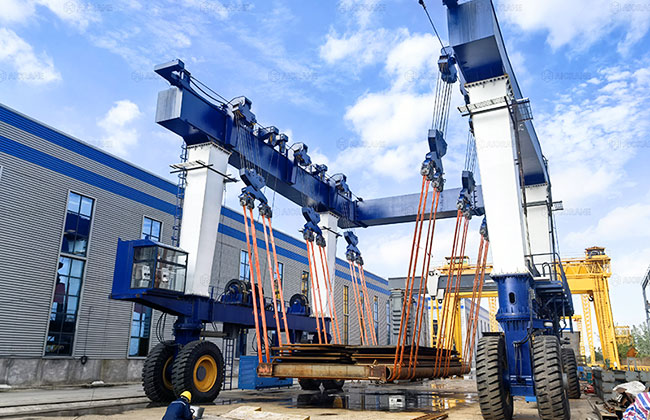

Steel Fabrication & Heavy Manufacturing: 150-800 Ton Travel Lift
Used in industrial fabrication yards and heavy manufacturing:
- Large steel structural assemblies
- Industrial pressure vessels and reactors
- Heavy machinery components and assemblies
Typical systems: 150 ton, 200 ton, 300 ton, 500 ton, 600 ton, 800 ton
Power & Energy Industry: 200-1000 Ton Travel Lift
Used for handling heavy equipment and components in power generation and energy infrastructure projects:
- Power plant turbine components
- Heat exchangers and boiler modules
- Nuclear and hydro power equipment modules
Typical systems: 200 ton, 300 ton, 500 ton, 800 ton, 1000 ton
With their combination of mobility, high lifting capacity, and flexible load handling, 10-1200 ton travel lifts have evolved into versatile heavy-duty lifting solutions for multiple industries – not just boat handling. This versatility allows operators to maximize equipment utilization, reduce the need for multiple lifting systems, and achieve higher long-term return on investment.
Frequently Asked Questions: 10-1200T Marine Travel Lifts
How much does a 100 ton travel lift cost?
How is ground pressure managed for a 1000 ton travel lift?
Can a 500 ton marine travel lift handle non-marine industrial loads?
What are the safety redundancy standards for a 600 ton travel lift?
How is the 150 ton travel lift protected against corrosion?
Does a 100 ton boat lift require multiple operators?
How are 10-1200 ton travel lifts delivered and assembled on-site?
Get Your Custom 10-1200 Ton Marine Travel Lift Solution
Whether your project requires a 10 ton travel lift or a 1200 ton heavy-duty industrial system, our objective remains the same: balancing structural safety with high operational efficiency.
Contact AICRANE engineering team to receive a tailored technical proposal and quotation for your marine travel lift requirements based on vessel profiles, site ground conditions, and multi-industry applications.
We are here to help you align the right lifting capacity with your long-term business growth.
