Aicrane gantry crane for sale in Australia comes in various types and configurations to suit a variety of industrial lifting applications. You can also choose from a wide range of capacities and sizes. Any crane you buy from us will provide a full range of service, from the gantry crane design, manufacturing, to installation and after-sales service. According to customers’ actual production conditions and lifting requirements, we can help customers choose the most suitable crane models, so that they can spend the least money to get a crane that best fits their process requirements.
Types Of Gantry Cranes For Sale in Australia
Looking for a gantry crane in Perth, Brisbane, Adelaide, Melbourne, Sydney and other cities in Australia? Take a look at the various types of Aicrane overhead gantry cranes for sale in Australia and consider which one is right for your business.
Single Girder Gantry Crane in Australia
AQ-MH single girder gantry crane is a light gantry lifting equipment used with electric hoist. The standard rated load is 3-20t, span 8-35m. It can also be custom designed in span, lifting height and other parameters according to user needs. The single girder gantry crane is widely used in machinery manufacturing, assembly, warehouses, storage yards, etc.
| Model | AQ-MH |
|---|---|
| Load capacity | 3-20t |
| Span | 8-35m |
| Lifting height | 6-18m |
| Lifting speed | 0.33-8m/min |
| Hoist running speed | 20m/min |
| Crane running speed | 20m/min |
| Work duty | A3, A4 |
| Custom designs available | |
| Model | AQ-NMH |
|---|---|
| Load capacity | 3.2-20t |
| Span | 8-35m |
| Lifting height | 6-12m |
| Lifting speed | 0.66-5m/min |
| Hoist running speed | 2-20m/min |
| Crane running speed | 3-30m/min |
| Work duty | A5 |
| Custom designs available | |
Double Girder Gantry Crane in Australia
Aicrane AQ-MG double girder gantry crane is suitable for loading, unloading and handling operations in open-air warehouses, stock yards, railway freight stations, port, docks and cargo yards. It can also be equipped with a variety of special spreaders for different operations. Each section of the main beam is hinged and combined with a pin shaft, which is very convenient for disassembly and assembly. The double girder gantry crane has multiple functions, high rigidity, simple operation, safe and stable performance. According to user needs, the crane travelling mechanism can be installed with cable reels or trolley wires for power supply.
| Model | AQ-MG |
|---|---|
| Load capacity | 5-500t |
| Span | 18-35m |
| Lifting height | 6-18m |
| Lifting speed | 1.5-11.5m/min |
| Trolley running speed | 10-40.1m/min |
| Crane running speed | 16-50m/min |
| Work duty | A3-A7 |
| Custom designs available | |
Semi Gantry Crane in Australia
One end beam of the semi gantry crane runs on the elevated runway beam, and the other end beam runs on the ground, saving production space and cost. The legs have height differences, which can be determined according to the site conditions.
Rubber Tyred Gantry Crane in Australia
The industrial rubber tyred gantry cranes provided by Aicrane are a flexible solution suitable for a variety of industries and applications, such as concrete precast, external logistics warehousing, wind energy, heavy boilers, shipyards, ports, construction sites, etc. Our rubber-tyred gantry cranes are available as single and double girders, powered either electrically or hydraulically. According to your specific use, our experienced engineers can tailor-made rubber tyre gantry cranes for you.
| Model | RTG |
|---|---|
| Load capacity | 5-500t |
| Span | 5-35m |
| Lifting height | 6-18m |
| Lifting speed | 1-10m/min |
| Trolley running speed | 2-20m/min |
| Crane running speed | 3-30m/min |
| Work duty | A3-A5 |
| Custom designs available | |
Rail Mounted Gantry Crane in Australia
We provide rail mounted container gantry cranes for railway container transshipment yards, large container storage yards and ports for more efficient and safer loading, unloading, handling and stacking of containers. Our RMG rail mounted gantry cranes can be equipped with intelligent control and automatic operation devices, which can easily realize monitoring and positioning, automatic and semi-automatic control, and greatly improve work efficiency.
| Model | RMG |
|---|---|
| Load capacity | 30-50t |
| Span | 18-35m |
| Lifting height | 12.3-21m |
| Lifting speed | 9.2-12.5m/min |
| Trolley running speed | 45-56m/min |
| Crane running speed | 42-50m/min |
| Work duty | A6-A8 |
| Custom designs available | |
Portable Gantry Cranes for Sale in Australia
The portable gantry cranes in Australia are a light and small lifting equipment that is shaped like a gantry and can be moved in all directions. The main beam of the portable crane is made of I-beam, which not only bears the load but also acts as the horizontal moving track of the hoist. There are universal load wheels under the legs of the gantry, which can move in all directions on the flat ground. The main beam of the gantry and legs are connected with high-strength bolts through flange plates, which can be quickly assembled and disassembled, and transferred to another site easily. With electric or chain hoist, 0.5-10t heavy objects can be lifted.
The portable gantry crane can reduce manpower, production and operation costs, and improve work efficiency. It is a great choice for mold manufacturing enterprises, mines, auto repair factories, construction sites, logistics companies, mechanical processing and manufacturing enterprises, and warehouses.
Our Gantry Crane Projects in Various Industries in Australia
We provide customized gantry crane solutions for various industries in Australia, including construction, manufacturing, and shipping. They can lift heavy loads and move them over long distances, and increase productivity and efficiency by allowing for quick and easy loading and unloading of materials.
Gantry Cranes in the Construction Industry
In the construction industry, gantry cranes are commonly used for lifting and moving heavy materials and equipment. Some of the specific applications of gantry cranes in construction include: lifting and moving precast concrete segments and steel girders with rubber tired gantry cranes during bridge construction; lifting and moving heavy materials and equipment to the upper floors of high-rise buildings during construction; lifting and moving tunnel boring machines and other heavy equipment during tunnel construction, lifting and moving precast concrete segments and other heavy materials during road and highway construction.
Gantry cranes are preferred in construction because they can be moved easily, require minimal foundation work, and are highly efficient in lifting and moving heavy loads.

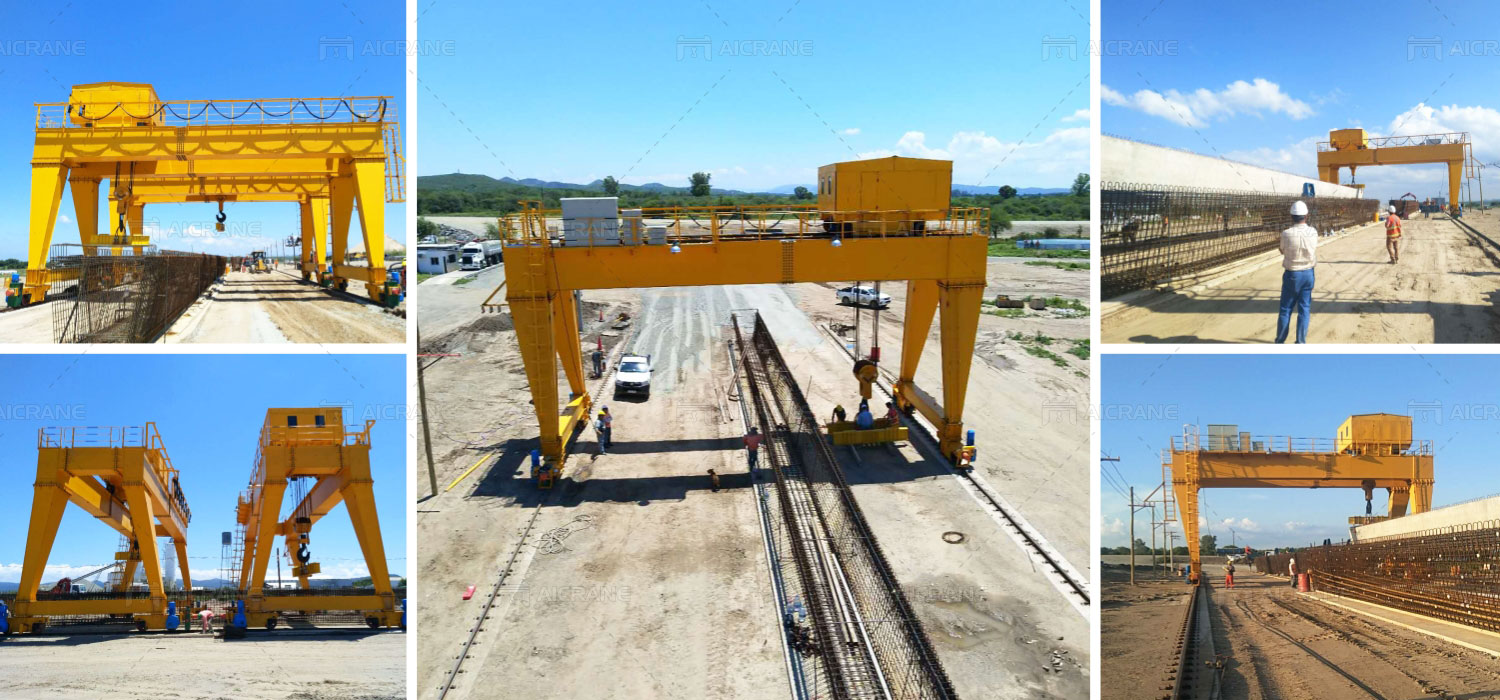

Two 70-ton double girder gantry cranes are used to lift and move precast reinforced concrete beams during the construction of a bridge.
Gantry Cranes in the Manufacturing Industry
Gantry cranes in Australia have many applications in the manufacturing industry due to their ability to lift and move heavy machinery and equipment. Some of the specific uses of gantry cranes in manufacturing include: used in manufacturing assembly lines to move heavy equipment and parts from one work station to another; used for maintenance and repair work, including lifting and moving machinery for inspection and replacement of parts; used to move raw materials, work-in-progress items, and finished products around the manufacturing facility; used to load and unload large components and machinery from trucks and shipping containers; used to move heavy tooling and dies to and from the production lines.

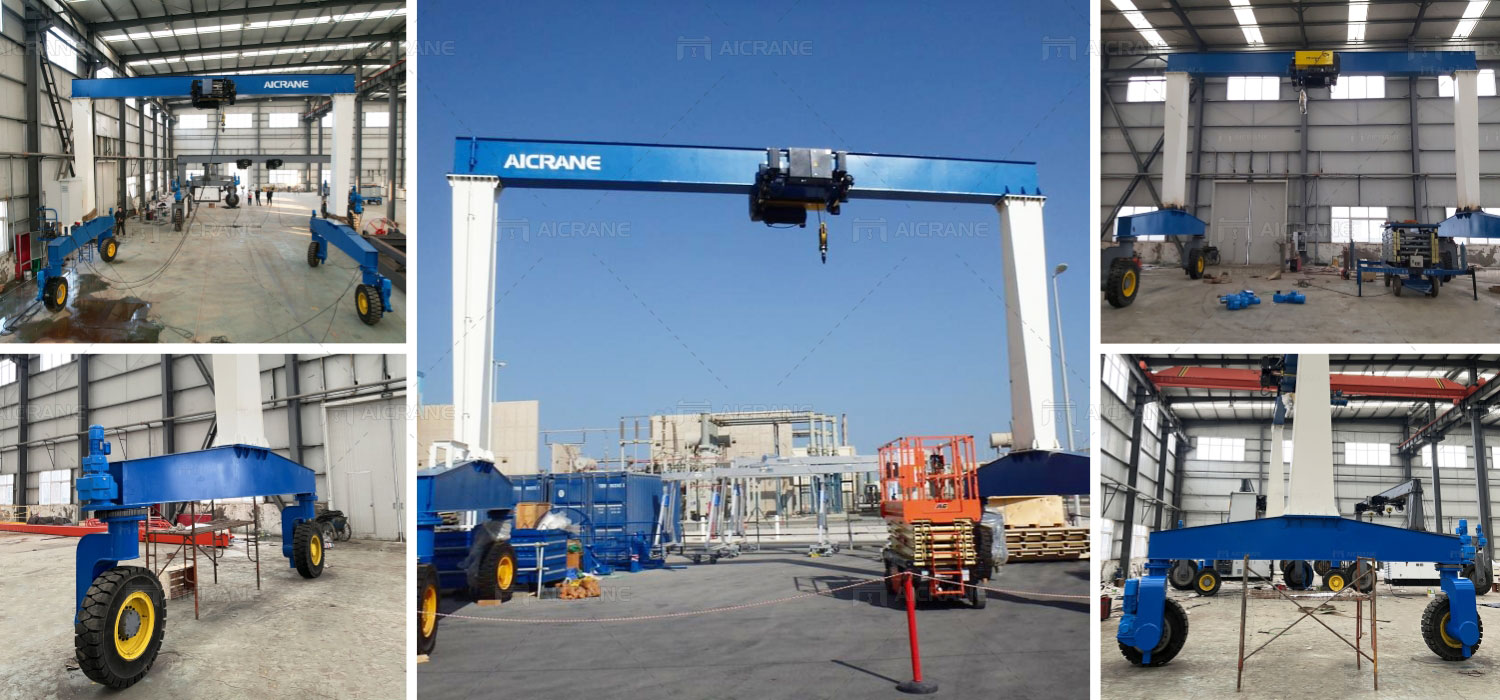

- This is an electric single beam rubber-tyred gantry crane, which is used for maintenance of valves.
Gantry Cranes in Warehousing And Logistics
Gantry cranes are widely used in warehouses and logistics stations for the movement of heavy materials and pallets of goods. For example, they can be used for loading and unloading cargo from trucks, trains, and shipping containers in logistics stations. The warehouse gantry cranes can be used to move goods and pallets within a warehouse or storage facility, providing efficient storage and retrieval of goods. They can be used to stack goods and pallets in a warehouse, making the most efficient use of available storage space. They can also be used for maintenance and repair work in logistics stations, including lifting and moving heavy machinery and equipment.

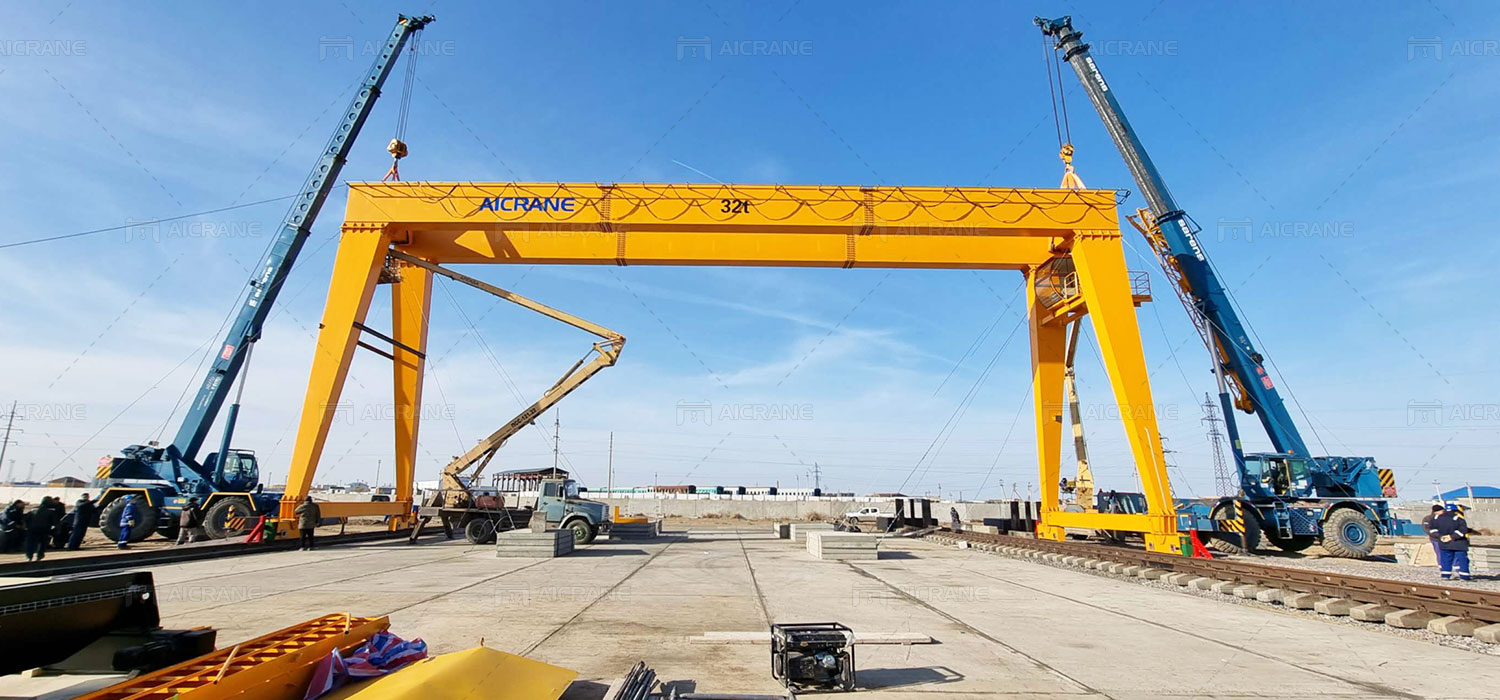

- This is a double girder 32 ton gantry crane, which is used for lifting containers in a logistics station, with a span of 30m and a lifting height of 13m.
Gantry Cranes in Shipping and Port
Gantry cranes used in shipping and ports are typically large and heavy-duty, with the ability to lift containers and other heavy loads weighing dozens of tons to hundreds of tons. The container gantry cranes are also equipped with advanced safety features, such as anti-sway systems and collision avoidance technology, to ensure safe and efficient operations in the busy port environment.
Some of the specific uses of gantry cranes in shipping and ports include: loading and unloading containers and transfer them to trucks or trains for transportation; lifting and moving bulk cargo, such as grain, coal, and ore, from ships to trucks or storage facilities; used for maintenance and repair work on ships, including lifting and moving heavy machinery and equipment.
- This is a 40.5 ton RMG container gantry crane, which is used for lifting, loading and unloading containers in port.
Why Choose Aicrane? A Closer Look At The Aicrane Factory, Teams And Services
“How about Aicrane?” “Is Aicrane a good company to work with?” There’s probably a lot you want to know about Aicrane to make sure it’s a reliable and trustworthy partner. With an in-depth knowledge of Aicrane factory, teams and services, we believe you will find Aicrane to be reliable and trustworthy to work with!
Aicrane Factory
- The Aicrane factory covers an area of 850,000 square meters and produces various types of lifting equipment, including overhead cranes, gantry cranes, hoists, winches, steel structures, etc.
- Advanced production equipment can ensure high-quality products for customers.
- Production workers are all strictly trained, skilled and experienced.
- Support third-party inspection and professional quality inspection reports can be issued.
- Fast production and delivery can be guaranteed.
Aicrane Teams And Services
Aicrane’s multiple departments and teams work together to ensure professional one-stop service to clients:
- Sales team discusses requirements with customers, works with technicians to offer solutions, and addresses customer questions and concerns.
- Technical team provides customized drawings and solutions according to customer requirements.
- Production team is responsible for manufacturing high-quality equipment.
- QC team is responsible for checking equipment quality and production progress.
- Customer-service team serves the entire order process, including updating the production progress and finished product photos to customers, confirming the shipping time, sending foundation drawings and electrical drawings, sending customs clearance documents, contacting customers about crane conditions, reminding customers on equipment maintenance, etc.
- Shipping and document team is to book container, prepare and confirm customs clearance documents.
- After-sales service team offers online installation guidance or on-site guidance, operator training, maintenance guidance, etc.
