Project Cases in Vietnam
Over the past few years, we have deeply cultivated the Vietnamese market and have rich market experience in Vietnam. So far, we have worked with numerous Vietnamese customers to provide customized bridge crane solutions for their businesses. Check out several of our Vietnam overhead crane examples below:

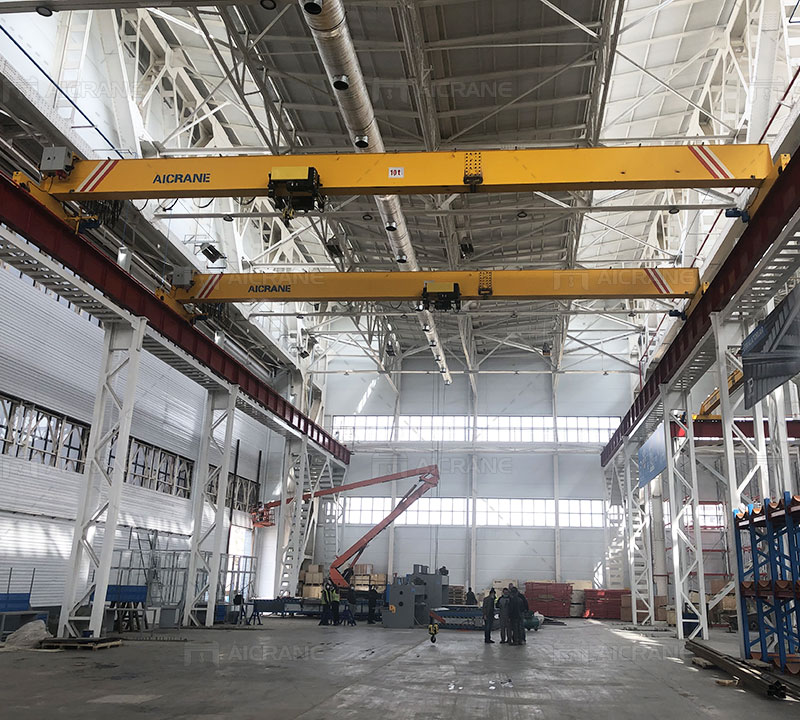

Aicrane AQ-HD European standard 10 ton overhead crane has been installed in our customer’s newly-built steel structure workshop in Vietnam. It is used to handle various loads in the workshop. This high-performance European style single girder bridge crane is well received by many Vietnamese customers, greatly improving work efficiency and operation stability and safety.
AQ-QDX European standard double-girder 10 ton overhead crane was installed in Vietnam steel factory warehouse to lift steel coils. The overhead crane is equipped with specific motorized coil tongs for the rolling and handling of coils. It can be equipped with a rotating mechanism to achieve 270°rotation.

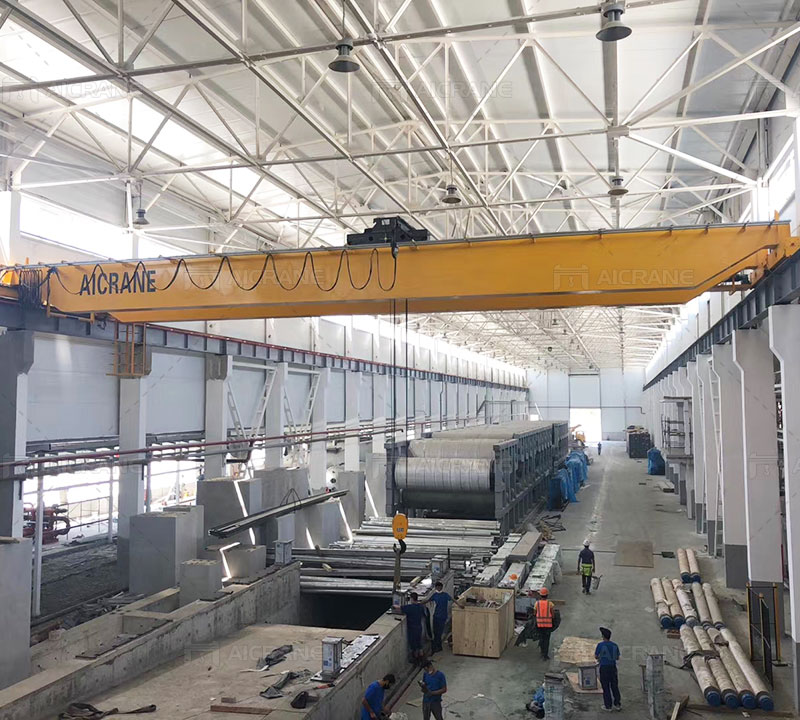

AQ-NLH European standard 20-5T overhead crane was installed in our customer’s industrial plant to lift mechanical equipment and components. According to the customer requirements, the overhead crane is equipped with two sets of hoisting systems to meet different application requirements, the rated lifting capacity of the main hook is 20 ton, and the auxiliary hook lifting capacity is 5 ton.
Aicrane Overhead Crane Solutions For Different Industries in Vietnam
We supply overhead crane solutions for different industries in Vietnam, including machine manufacturing industry, automobile industry, aircraft industry, chemical industry, steel industry, pulp and paper industry, power industry, waste recycling, precast concrete industry, etc. For different industries, we can provide customized eot crane solutions to meet your specific requirements.
1. Universal Overhead Crane Solutions For General Industries in Vietnam
Here, we list several typical models of Aicrane overhead cranes that can be applied to general industries in Vietnam, including AQ-LD single girder overhead cranes, AQ-HD European standard single girder cranes, AQ-QD double girder overhead cranes, AQ-QDX European double girder cranes, AQ-LH hoist double girder overhead cranes, and AQ-NLH European hoist double girder cranes. See the brief introduction and parameters of general industrial overhead cranes below:
AQ-HD European Standard Single Girder Overhead Crane
- Span: 7.5-28.5m
- Lifting height: 6-18m
- Lifting speed: 0.8/5m/min
- Hoist running speed: 2-20m/min
- Crane running speed: 3-30m/min
- Work duty: A5
European standard, frequency conversion operation, higher working level
Compared with the traditional AQ-LD single-girder bridge crane, Aicrane AQ-HD European type single girder overhead crane has variable frequency operation, double-speed lifting and higher working level, so it is more efficient and stable, and is more suitable for occasions where fine work is required.

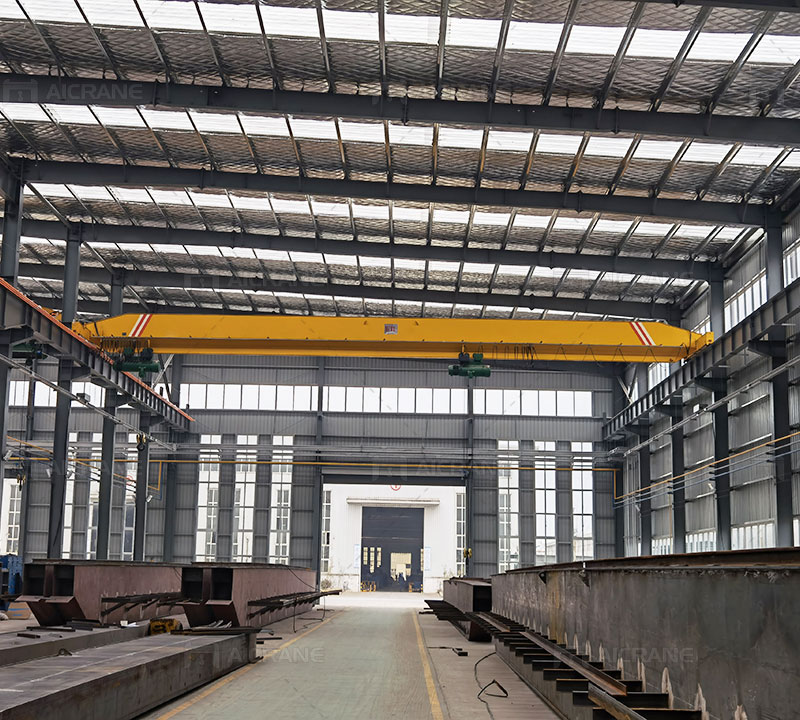

AQ-LD Single Girder Overhead Crane
- Span: 7.5-31.5m
- Lifting height: 6-30m
- Lifting speed: 0.3-8m/min
- Hoist running speed: 20m/min
- Crane running speed: 20m/min
- Work duty: A3, A4
Cost-effective and easy to maintain
If you are looking for a cost effective single girder crane, the Aicrane AQ-LD series is a good choice. Compared with European type overhead cranes, AQ-LD single girder overhead cranes have lower cost, but the working level is not high, suitable for light duty applications.
AQ-QD Double Girder Overhead Crane
- Span: 10.5-31.5m
- Lifting height: 6-24m
- Lifting speed: 2.1-11.5m/min
- Trolley running speed: 27-40m/min
- Crane running speed: 42-75m/min
- Work duty: A3-A7
Wide applications, reasonable cost
The AQ-QD series are our common hook double girder overhead cranes, widely used in general industries for medium to heavy duty applications. The working level can be from A3 to A7, suitable for various loads.

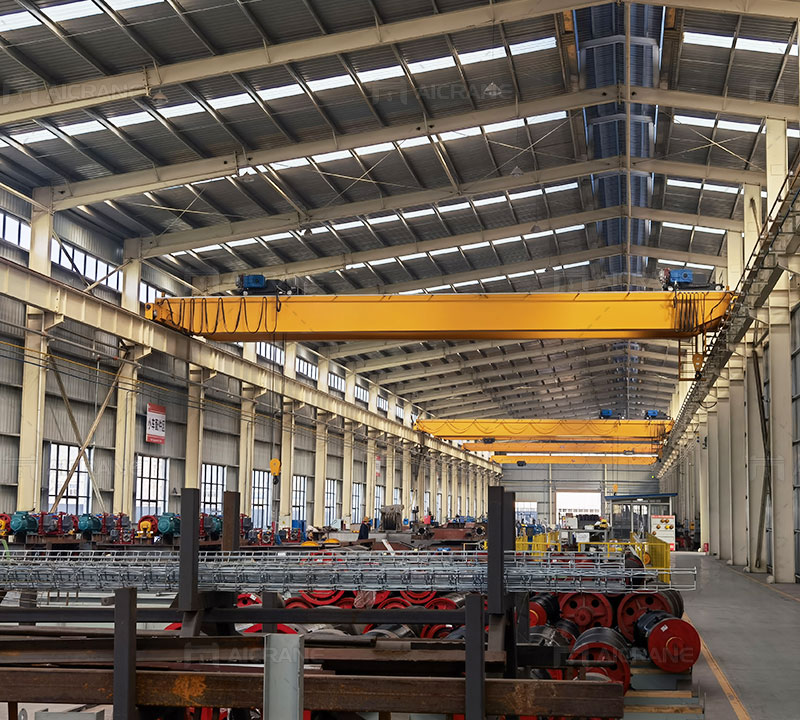

AQ-QDX European Double Girder Bridge Crane
- Span: 10.5-31.5m
- Lifting height: 6-24m
- Lifting speed: 0.2-10.7m/min
- Trolley running speed: 2.4-33m/min
- Crane running speed: 4.2-68m/min
- Work duty: A3-A5
European standard, frequency conversion operation, custom design
AQ-QDX European standard double girder overhead crane adopts a lightweight design concept, with compact structure, small wheel pressure, small limit size and reliable performance.
The trolley adopts frequency conversion motor and welding drum, which is safer and more reliable.
The trolley running mechanism adopts a three-in-one deceleration motor with a compact structure.
AQ-LH Hoist Double Girder Overhead Crane
- Span: 10.5-31.5m
- Lifting height: 6-30m
- Lifting speed: 0.18-8m/min
- Trolley running speed: 20m/min
- Crane running speed: 20m/min
- Work duty: A3, A4
Cost-effective, simple structure
AQ-LH series overhead crane is a cost-effective double-girder configuration, with a wire rope hoist as the hoisting mechanism. However, its working level can only reach A3 and A4, so it cannot be applied to heavy load or busy material handling conditions.
AQ-NLH European Hoist Double Girder Crane
- Span: 10.5-31.5m
- Lifting height: 6-18m
- Lifting speed: 0.4-5m/min
- Trolley running speed: 2-20m/min
- Crane running speed: 3-30m/min
- Work duty: A5
European standard, frequency conversion operation
Aicrane AQ-NLH series is a high-performance European-style double girder bridge crane. Compared with ordinary double-girder cranes, the European-style overhead crane has a lower height, reduced wheel pressure and lighter weight, which reduces the user’s plant construction cost.
2. Custom Overhead Crane Solutions For Specific Industries in Vietnam
We supply tailor-made overhead crane solutions to meet your specific process requirements in the papermaking industry, automotive industry, waste-to-energy, aircraft industry, chemical industry, steel production and handling, and other specific industries.

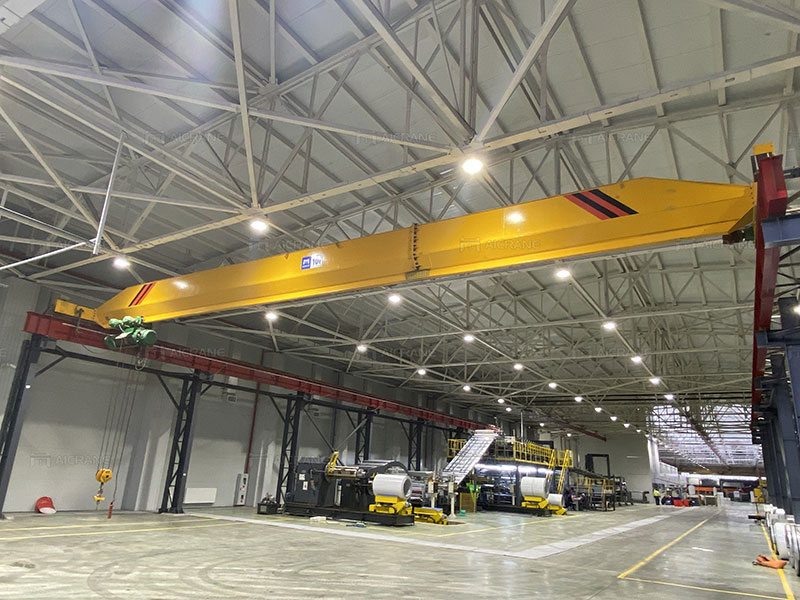

- Explosion Proof Overhead Crane – explosion proof cranes are mainly used in chemical and metallurgical plants where there is a large amount of flammable and explosive gases or dust.

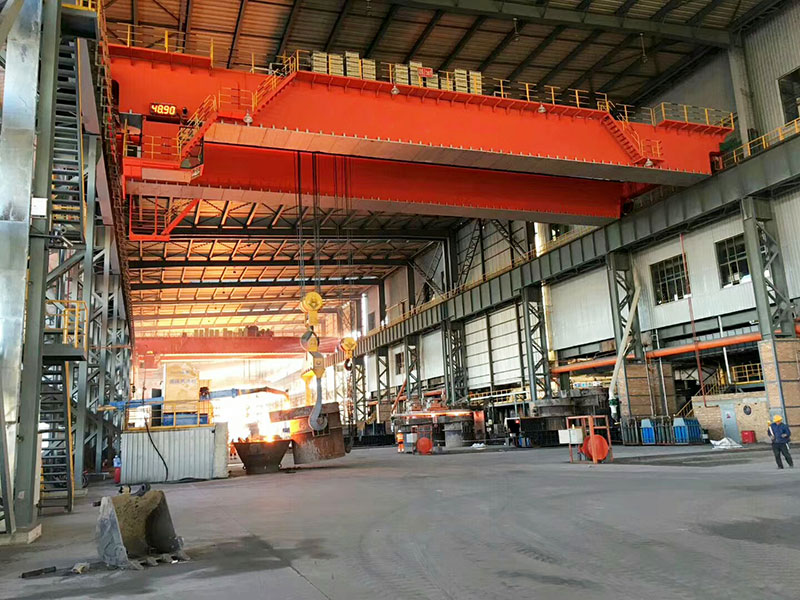

- Metallurgical Casting Overhead Crane – casting cranes are the main equipment in the continuous casting process of steelmaking, mainly used for lifting and transferring molten metal.
- Electromagnetic Overhead Crane – the double girder electromagnetic crane is suitable for handling cast iron ingots, steel balls, scrap steel, etc.

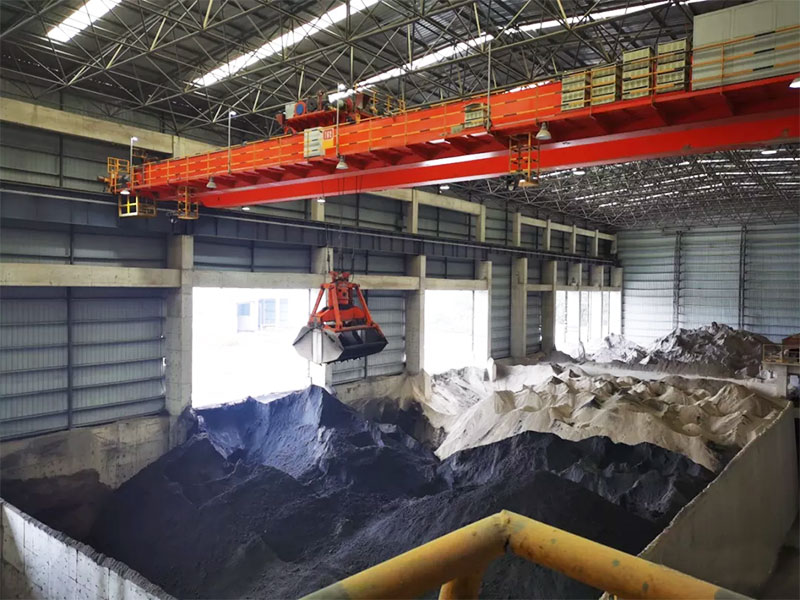

- Grab Overhead Crane – grab cranes are widely used in power plants, freight yards, workshops, docks, etc. for the loading and unloading of bulk materials. It can be equipped with a mechanical grab or a hydraulic grab depending on the material to be handled.
3. One-stop Solutions For Overhead Crane And Steel Structure Workshops

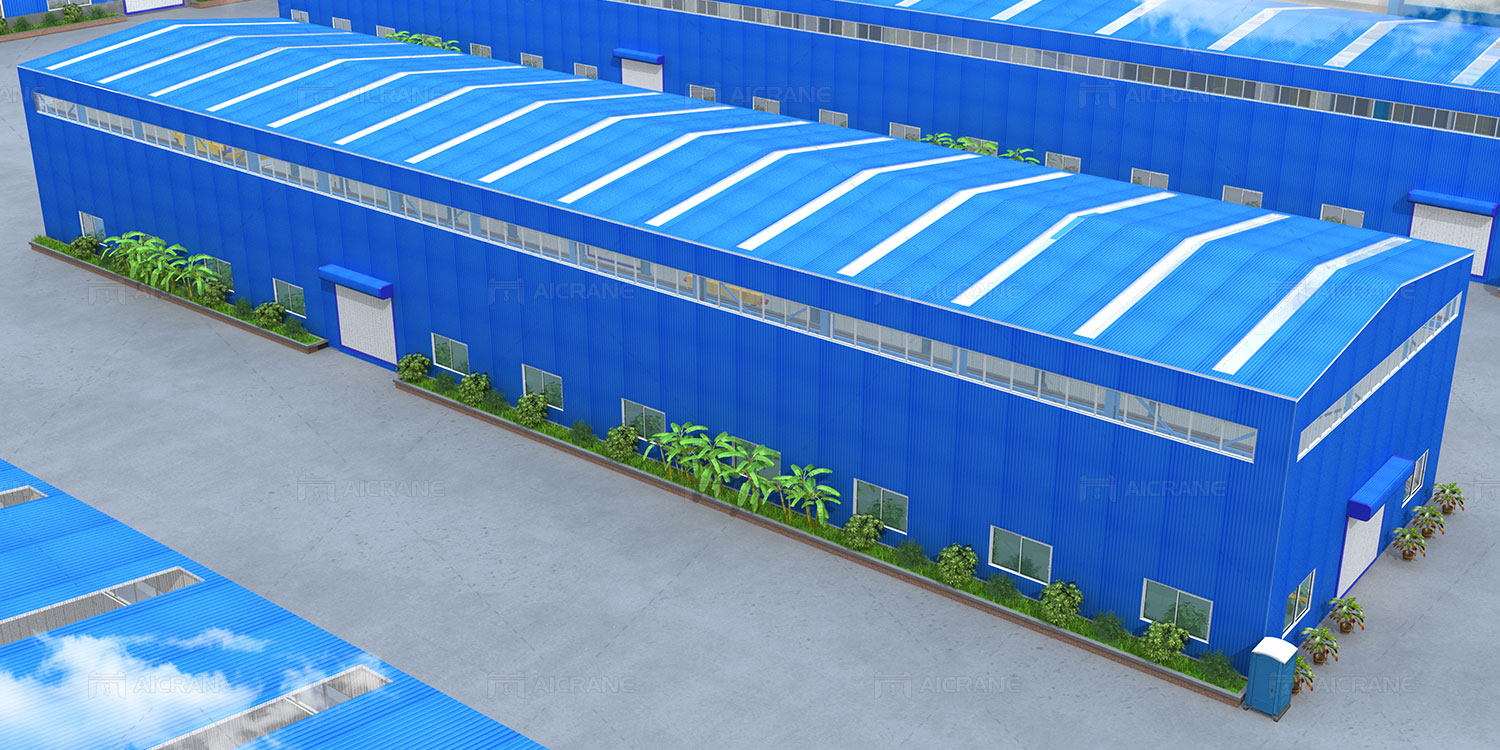

If you are looking to build new steel structure workshops and overhead cranes to expand your business, Aicrane can provide you with one-stop service, including steel structure workshop and overhead crane design, production, installation and after-sales service. The types of steel structures we provide for your project include steel structure industrial plants, large warehouses, office buildings, etc.
Steel Structure Solution Expert!
Steel Structure Systems For Your Industrial Plant

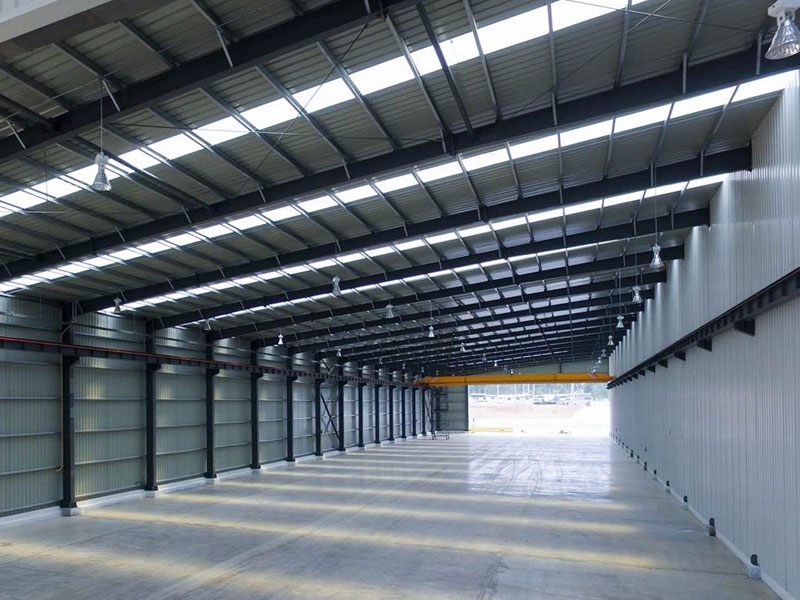

- Portal steel frame structure – the portal steel frame is commonly used in single-storey industrial buildings, such as warehouses, workshops, etc. Various types of overhead cranes can be installed in the steel workshops to meet your lifting requirements for production.
- Multi-storey steel frame – this steel frame is widely used in multi-storey office buildings, industrial plants and other multi-storey steel buildings. It can form a building structure with a larger space with flexible layout, so the building space can be fully utilized.
Aicrane Service And Support For Vietnamese Clients
In addition to producing and manufacturing overhead crane products, Aicrane also has a professional service and support team that provides a range of technical support and after-sales services to Vietnamese customers.
- Professional Technical Support – we have a professional technical team to provide customized overhead crane solutions for Vietnamese customers, and ensure that the configuration, parameters and performance of the overhead crane can fully meet customer requirements.
- Local Service Staff – Aicrane has local service staff who can speak Vietnamese to communicate with customers without any problems.
- Local Installation Team – we have a local installation team that can provide turnkey projects for Vietnamese customers. We can recommend to you if needed. In addition, the Aicrane after-sales service team also provides online installation instructions.
What Is The Overhead Crane Price in Vietnam?
Because overhead cranes are highly customized products, we cannot give a specific figure for their price. The price of overhead cranes in Vietnam is affected by many factors, including product model, load capacity, configuration, different structural forms, freight price, raw material price, etc.
So what is the overhead crane price in Vietnam? We recommend that you consult the crane manufacturer, who will provide you with a suitable overhead crane solution as well as its price according to your specific lifting requirements and budget.
Contact Aicrane For Overhead Crane Price in Vietnam Now!
If you want to know about overhead crane prices in Vietnam, contact Aicrane today! We guarantee you the most competitive price!
- Factory direct price – The Aicrane factory covers an area of 850,000 square meters, and the production license covers all kinds of cranes, hoists, steel structures and winches. It can ensure fast production and delivery, as well as factory direct sales prices. In addition, the company has a professional procurement team to purchase raw materials in bulk to ensure the quality and price of raw materials.
- Cost-effective solution – Aicrane’s professional technical team will recommend the most cost-effective overhead crane equipment according to your budget to meet your requirements for the economy and efficiency of cranes.
