Aicrane overhead crane Kenya focuses on the Kenyan market, providing Kenyan customers with the most suitable and economical overhead crane solutions to increase the productivity, efficiency and safety of their business. Read on to learn about the types of overhead cranes, cases, services and more we can provide to our Kenyan customers!
Different Types of Overhead Cranes for Sale Kenya
There are two types of overhead cranes we supply to Kenyan customers: single girder and double girder overhead cranes. Each crane can be custom designed and built to meet customer’s specific needs.
Single Girder Overhead Cranes for Sale
For small and light duty applications, we have a variety of single girder overhead cranes to choose from, depending on the actual working conditions and budget:

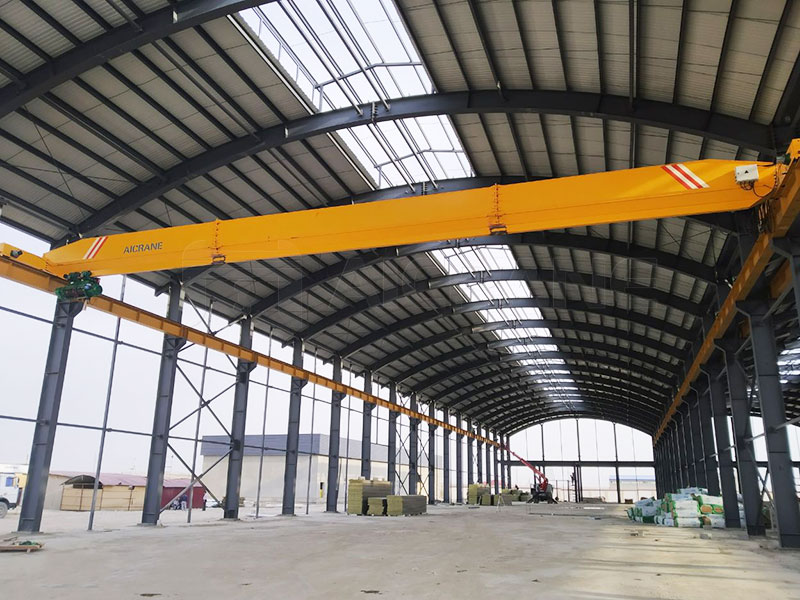

AQ-LD Single Girder Overhead Crane
The AQ-LD single girder overhead crane is versatile and cost-effective, and many Kenyan customers prefer to choose this crane for light duty work if they are on a tight budget.
AQ-LD overhead crane is designed for general lifting purposes and cannot be used in flammable, explosive, dangerous substances and corrosive media environments. The power supply of the crane is three-phase AC, the rated frequency is 50HZ or 60HZ, and the rated voltage is 220V~660V.
| Model | AQ-LD |
| Load capacity | 1-25t |
| Span | 7.5-31.5m |
| Lifting height | 6-30m |
| Lifting speed | 0.3-8m/min |
| Hoist running speed | 20m/min |
| Crane running speed | 20m/min |
| Work duty | A3, A4 |

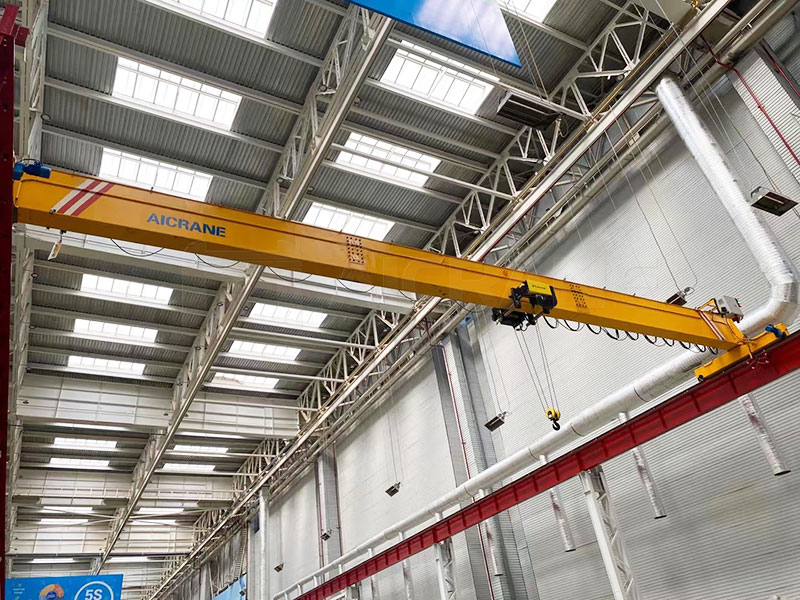

AQ-HD European Style Single Girder Overhead Crane
If you have a sufficient budget and have higher requirements on the operation and performance of the crane, the AQ-HD European standard single girder overhead crane is a better choice.
The work duty of the crane is A5, and the whole crane adopts frequency conversion and double-speed lifting, which has higher working efficiency and more stable operation. In addition, European overhead cranes also have the advantages of light weight, compact structure, low energy consumption, small wheel pressure, maintenance-free components, safety and reliability, and beautiful appearance.
| Model | AQ-HD |
| Load capacity | 1-20t |
| Span | 7.5-28.5m |
| Lifting height | 6-18m |
| Lifting speed | 0.8/5m/min |
| Hoist running speed | 2-20m/min |
| Crane running speed | 3-30m/min |
| Work duty | A5 |
AQ-LX Single Girder Underslung Crane
Single girder underhung crane is employed where there are no supporting columns in the building. Since their beams hang from the building roof, underhung cranes have a limited lifting capacity – usually 10 tons or less. Before choosing an underhung bridge crane, you should evaluate the structural strength of your facility’s roof to ensure it can withstand the crane and the load.
For lifting and transporting items in large-span workshops, such as the assembly workshop of an aircraft manufacturing plant, due to the large span of the workshop, the roof structure of the workshop is mostly a grid steel structure, so in order to reduce the load on the roof, a multi-pivot underhung crane is a great choice.
| Model | AQ-LX |
| Load capacity | 0.5-10t |
| Span | 3-22.5m |
| Lifting height | 6-30m |
| Lifting speed | 0.7-8m/min |
| Hoist running speed | 20m/min |
| Crane running speed | 20m/min |
| Work duty | A3, A4 |
Double Girder Overhead Cranes for Sale
Double girder overhead cranes are recommended for heavier-duty applications, with higher work efficiency, greater hook height, larger load capacity and longer span. You can choose from our wide range of double girder overhead cranes:

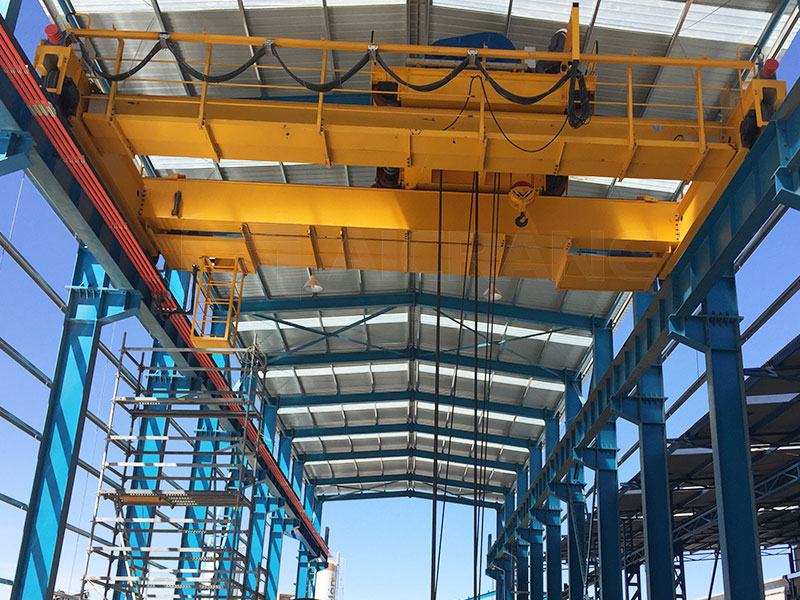

AQ-QD Double Girder Overhead Crane
AQ-QD double girder overhead crane is mainly used in various indoor workshops. According to the utilization level and load state, it is divided into different working levels, from A3 to A7.
Double girder overhead cranes can handle larger capacities and longer spans. Because of this, the components of the crane system, including the hoist and trolley, are more complex in design – making double-girder cranes more expensive than single-girder cranes.
In addition, with the double girder design, additional features such as walkways and maintenance platforms, cabs, magnetic reels and lights can be added and supported.
| Model | AQ-QD |
| Load capacity | 5-450t |
| Span | 10.5-31.5m |
| Lifting height | 6-24m |
| Lifting speed | 2.1-11.5m/min |
| Trolley running speed | 27-40m/min |
| Crane running speed | 42-75m/min |
| Work duty | A3-A7 |
AQ-QDX European Type Double Girder Overhead Crane
AQ-QDX European Standard double girder overhead crane adopts frequency conversion operation, lightweight and modular design concept, and has the advantages of small limit size, small wheel pressure, small vibration, low noise, and stable operation. It is ideal for heavy equipment production and transportation, and frequent lifting of heavy loads.
| Model | AQ-QDX |
| Load capacity | 5-320t |
| Span | 10.5-31.5m |
| Lifting height | 6-24m |
| Lifting speed | 0.2-10.7m/min |
| Trolley running speed | 2.4-33m/min |
| Crane running speed | 4.2-68m/min |
| Work duty | A3-A5 |

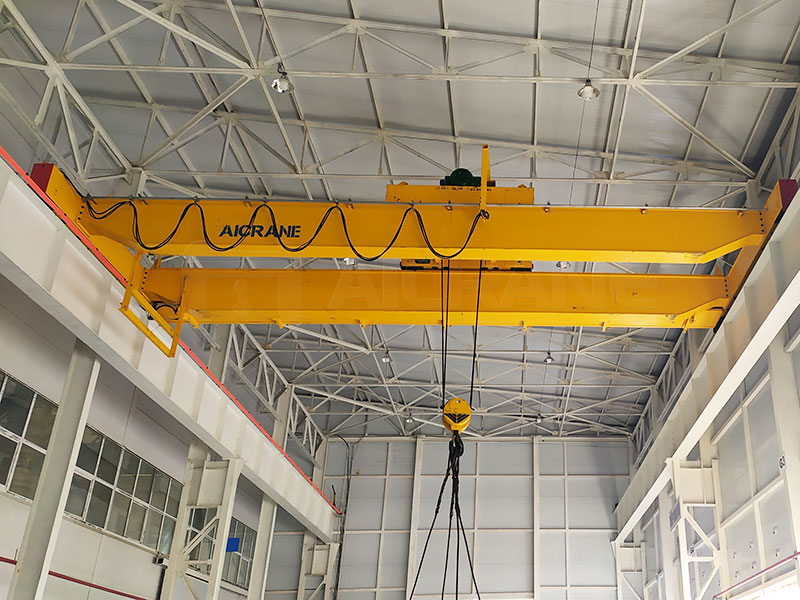

AQ-LH Electric Hoist Double Girder Bridge Crane
AQ-LH electric hoist double girder overhead crane uses wire rope hoist as the hoisting mechanism, installed on the centrally driven double-track trolley.
This type of hoist overhead crane is mainly used in machinery manufacturing workshop, warehouse, stockyard, hydropower station maintenance, assembly and other places.
| Model | AQ-LH |
| Load capacity | 5-50t |
| Span | 10.5-31.5m |
| Lifting height | 6-30m |
| Lifting speed | 0.18-8m/min |
| Trolley running speed | 20m/min |
| Crane running speed | 20m/min |
| Work duty | A3, A4 |

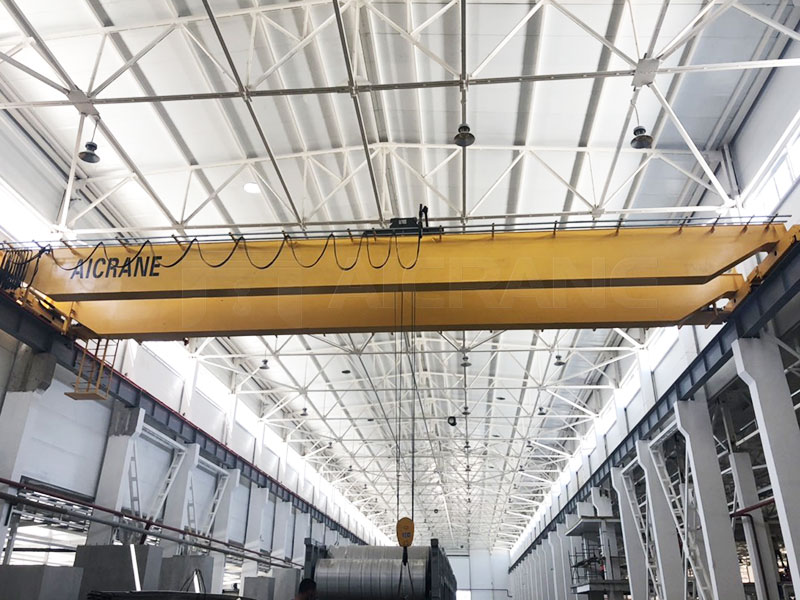

AQ-NLH European Hoist Double Girder Overhead Crane
AQ-NLH European hoist double girder crane has all the advantages of the AQ-HD single girder crane, and it has a higher lifting capacity. In addition, the trolley walks along the two main beams, so the operation is more stable, and the hook is located between the two main beams, so the lifting height is higher. There are also maintenance platforms on both sides, which are convenient for motor and trolley maintenance.
| Model | AQ-NLH |
| Load capacity | 5-80t |
| Span | 10.5-31.5m |
| Lifting height | 6-18m |
| Lifting speed | 0.4-5m/min |
| Trolley running speed | 2-20m/min |
| Crane running speed | 3-30m/min |
| Work duty | A5 |
In addition to general purpose overhead cranes, we also offer specialized overhead cranes for specific industries such asexplosion proof overhead cranes, grab overhead cranes, metallurgical casting overhead cranes, etc. If you are interested, please contact our crane professionals for more information!
Cases in Kenya
AQ-HD 5 Ton EOT Crane Installation in Kenya
AQ-HD 5 ton single girder eot crane was installed in the customer’s workshop in Kenya. The crane is used for handling mechanical parts. Here are the specifications of 5 ton overhead crane Kenya for your reference: span 8m, lifting height 5m, lifting speed 0.8/5m/min, hoist travelling speed 5-20m/min, crane travelling speed: 3-30m/min, work duty A5.
AQ-HD 10 Ton Overhead Crane Delivered to Kenya
An AQ-HD 10 ton overhead crane was delivered to Kenya, and the span is 6m. According to the parameters and plant conditions provided by the Kenyan customer, our engineers design solutions for him. After thorough communication, the customer confirmed our design plan and placed an order with us.

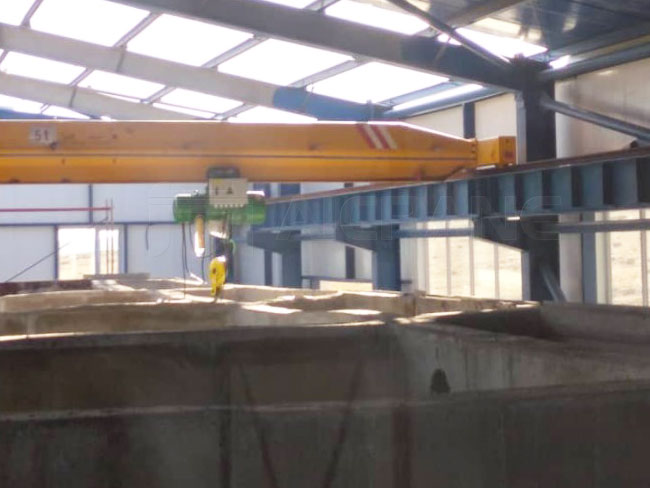

AQ-LD 5 Ton Overhead Crane Installed in Kenya
An AQ-LD 5 ton overhead crane has been installed in our customer’s facility in Kenya. The span is 10.7m and the lifting height is 6m. Under the online guidance of our after-sales service engineers, the installation and commissioning of the 5 ton overhead crane Kenya went very smoothly!
Kenya AQ-HD 2 Ton Bridge Crane Feedback
Aicrane is pleased to receive feedback on the AQ-HD 2 ton bridge crane from a Kenyan customer who says the crane works well and is satisfied with our crane product. The picture below is about the 2 ton crane installed in the customer’s workshop:
Selection Guide: How to Buy The Right Overhead Crane?
To ensure you get the right type of overhead crane for your business, when you communicate with an overhead crane manufacturer, you should provide as much detail as possible about your project so they can design the right lifting solution for your business.
– The type of crane you need
– The capacity or maximum rated load you need the crane to lift
– The span of the crane
– Lifting height
– Travelling length
– How many hours will the crane work per day? How many times per hour?
– What kind of material will the crane lift?
– Electric Power supply: 3 phase 380V 50Hz?
– Other special requirements
Based on the information you provide, professional overhead crane engineers will design the most suitable overhead crane solution for your application!
How to Install Overhead Cranes in Kenya?
For overhead crane installation, we have different options for customers to choose:
1. We can send 1 or 2 engineers to the site to guide the installation, but the customer needs to pay the salary, round-trip air ticket, visa, accommodation and other expenses.
2. Customers can install by themselves, and we provide 3D installation video, English instruction manual, detailed electrical drawings, 24-hour online installation guide, etc.
For after-sales service, we provide 7*24 online service, and engineers can provide remote guidance. If the problem cannot be solved, we can send engineers to the site. The warranty period for main parts is one year, and we also provide wearing parts, which ensures that when the equipment has problems, it can be solved as soon as possible.
Contact Us For Overhead Crane Prices in Kenya!
If you want to get the price of overhead cranes in Kenya, please fill in the contact form below or send us an email and let us know your specific requirements, such as load, span, lifting height, working environment, etc. After receiving your inquiry, we will arrange a Kenya sales manager to contact you, communicate and confirm your needs, and provide you with the right lifting solutions and quotations.
