We provided two 5-ton planetary electric winches for the customer’s steel mill in South Korea. The 5 ton electric winches will be installed in the steel mill to hoist ladle heaters. The drum capacity of the winch is 50m*20mm, and the speed is 0.88-8.78m/min variable speed.
5 Ton Electric Planetary Winch Solutions For Steel Mill in South Korea
- 1. Receive customer inquiry – We received an inquiry for a 5 ton electric planetary winch from Korea on our website. The end customer is the largest steel mill in Korea, and they needed 5-ton electric winches to hoist ladle heaters in their steel mill.
- 2. Confirm needs with the customer – For hoisting ladle heaters in steel mill, where there are thermal insulation walls in the workshop, not a high temperature environment but a normal temperature, so we recommended AQ-JM planetary structure winch 5 ton to our customer.
- 3. Communicate with the client and revise solutions – In the process of communication with the customer, the customer had customized requirements and needed a detailed list of accessories. Therefore, our engineers constantly modified the drawings and plans according to the customer’s needs to ensure that the configuration, parameters and performance of the winch meet the customer’s requirements.
- 4. South Korea customer visit – More importantly, the client company has strict requirements on product quality, and has repeatedly emphasized that it must be a high-quality winch. Therefore, the customer proposed to visit our factory. We welcome the customer to visit our factory, which is also a good opportunity to increase mutual understanding and trust. Therefore, the customer sent a special person to Aicrane factory to inspect the products twice. After visiting our factory and confirming our products, they were very satisfied with the quality of our winch products.
- 5. Provide information required by the client – During the period, for the various reports and instructions requested by the customer, our customer specialists translated various documents in time and provided all the information required by the customer.
- 6. Receive the purchase order – After we confirmed all the details of the winch design with the customer and ensured that the customer’s requirements were met, we finally got the customer’s purchase order.
- 7. Production of the 5 ton winches – During production, we regularly updated the production progress to the customer with pictures. Now, the production is complete and ready to ship.
- 8. Shipping and Installation – We hope that the winches can reach Korea and be installed smoothly. Since Aicrane electric winch is very easy to install and has been assembled and debugged before leaving the factory, it is not difficult for the customer to install the winch. In addition, the Aicrane after-sales service team is always on hand to provide online guidance to the customer.
Technical Parameters of The South Korea 5 Ton Planetary Electric Winch
| Model | AQ-JM planetary structure |
| Load capacity | 5 ton |
| Rope length | 50m |
| Wire rope diameter | 20mm |
| Rated speed | 0.88-8.78m/min variable speed |
| Voltage | 460V/60HZ/3-phase |
| Structure | Built-in planetary reducer structure, Siemens motor |

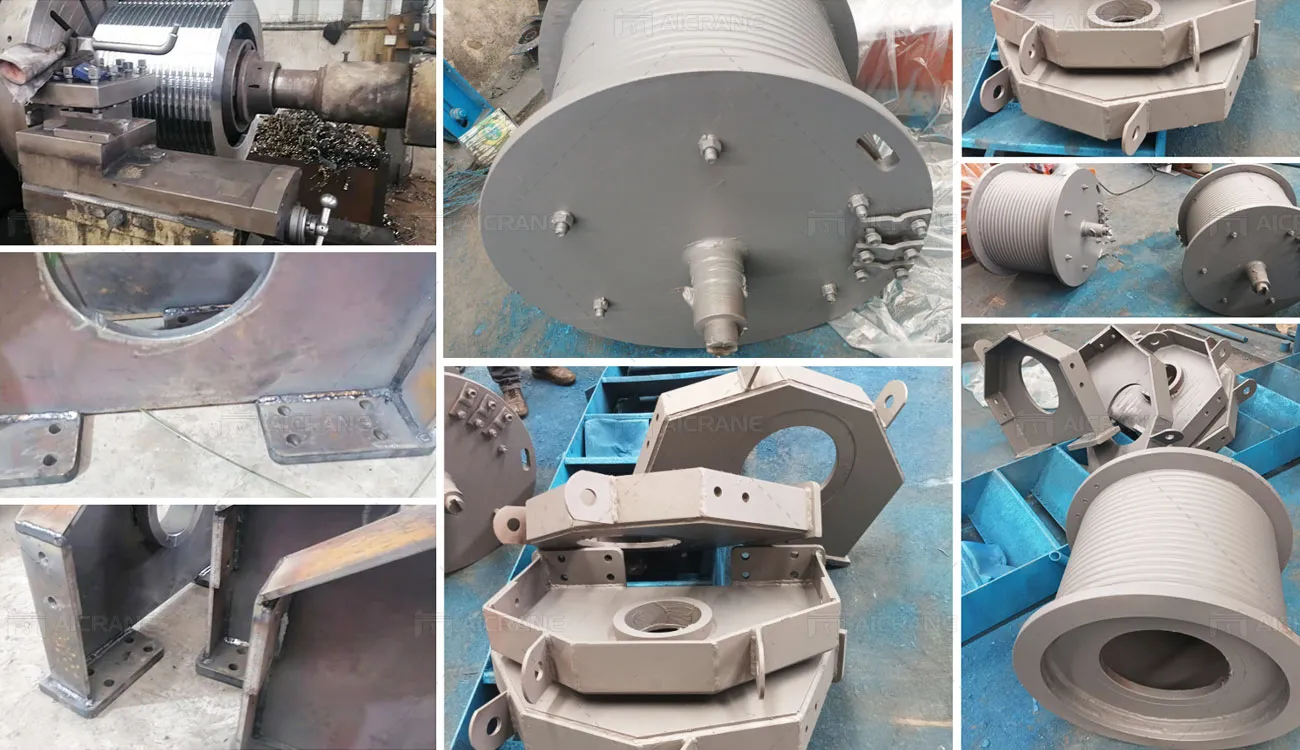

Production of The South Korea 5 Ton Electric Winches
The picture below is about the production of the South Korea 5 ton electric planetary winch in our factory. We updated the production progress to the customers regularly with these pictures.

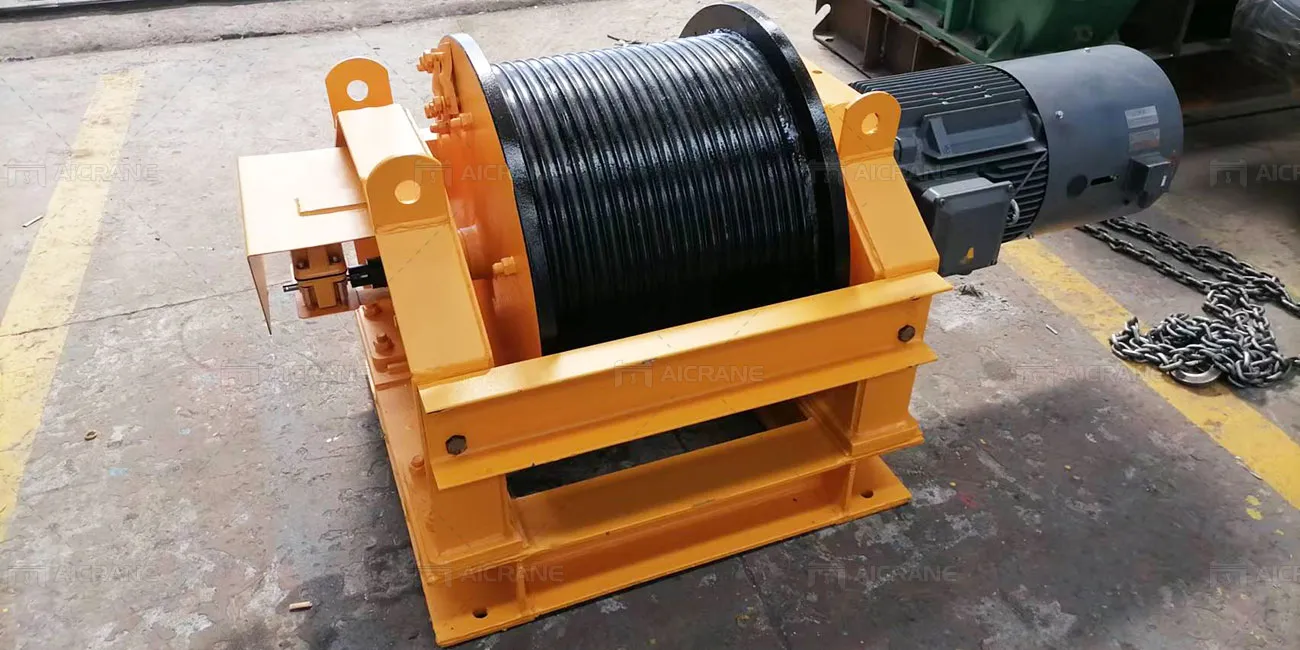

Packaging And Delivery of 5T Winches to South Korea
The South Korea 5 ton electric winches were packed in wooden boxes and ready to be shipped. They will soon arrive at the port of destination.
